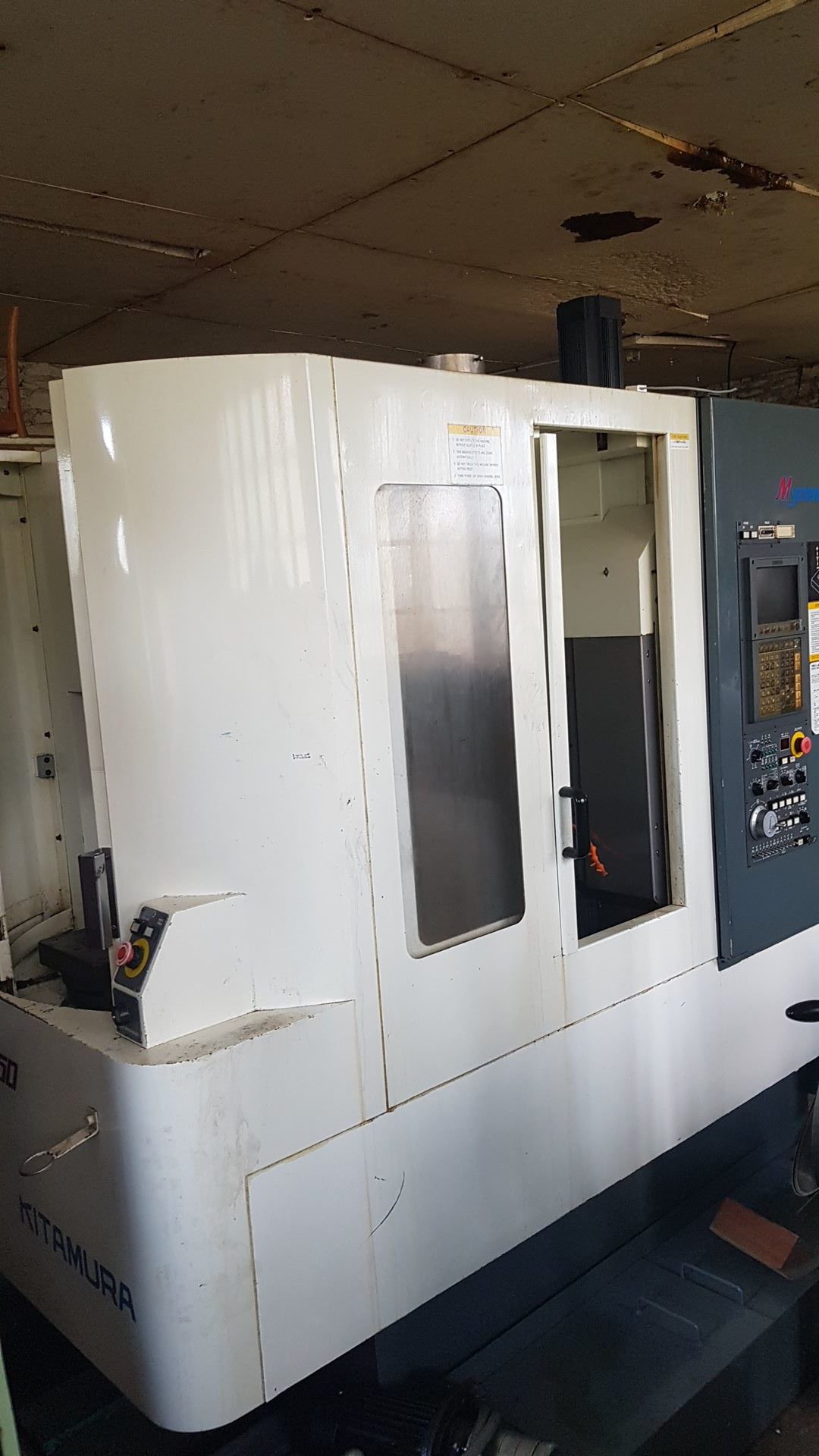

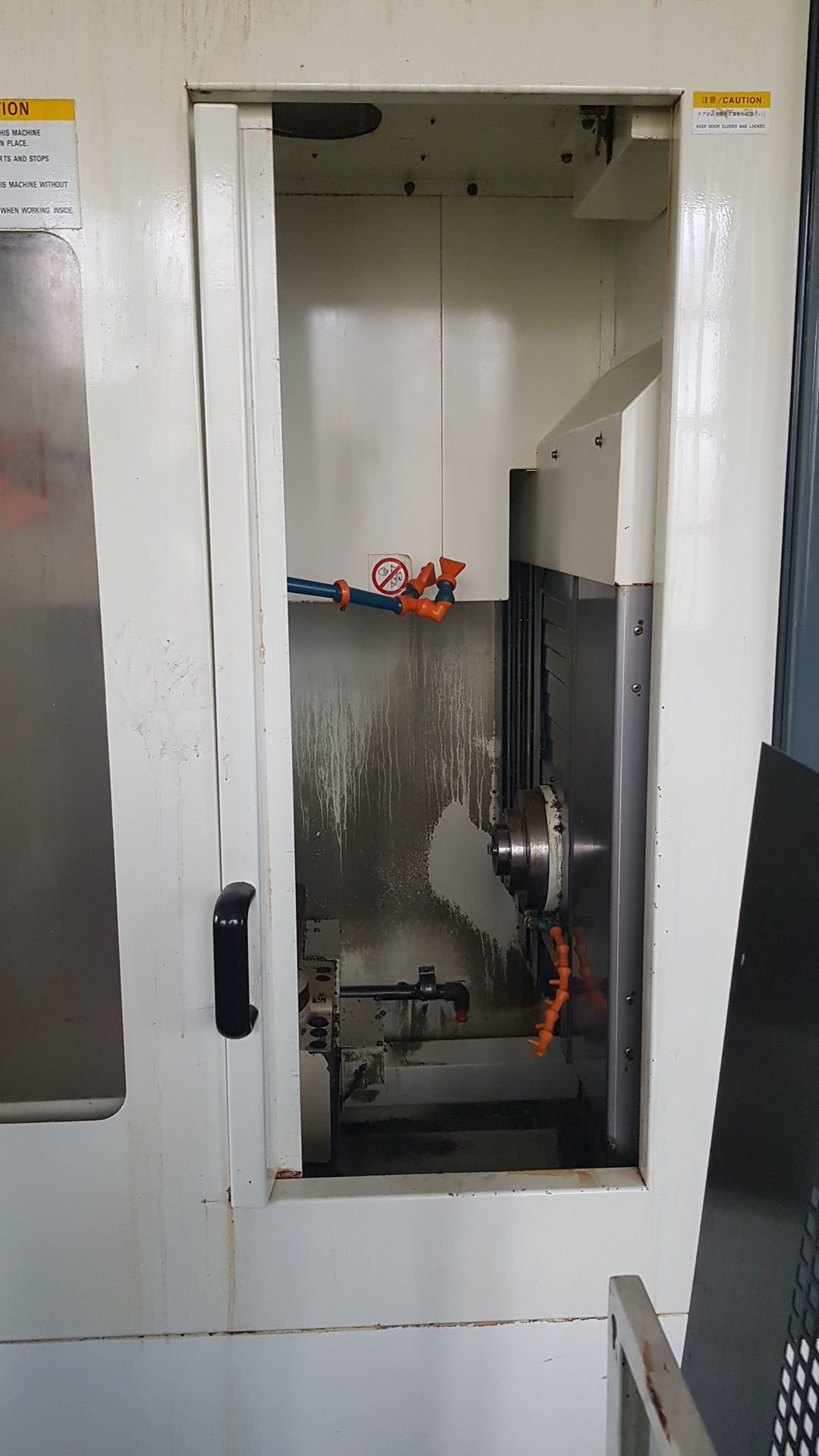

KITAMURA MYCENTER - Gebrauchte Maschine
Verkauft

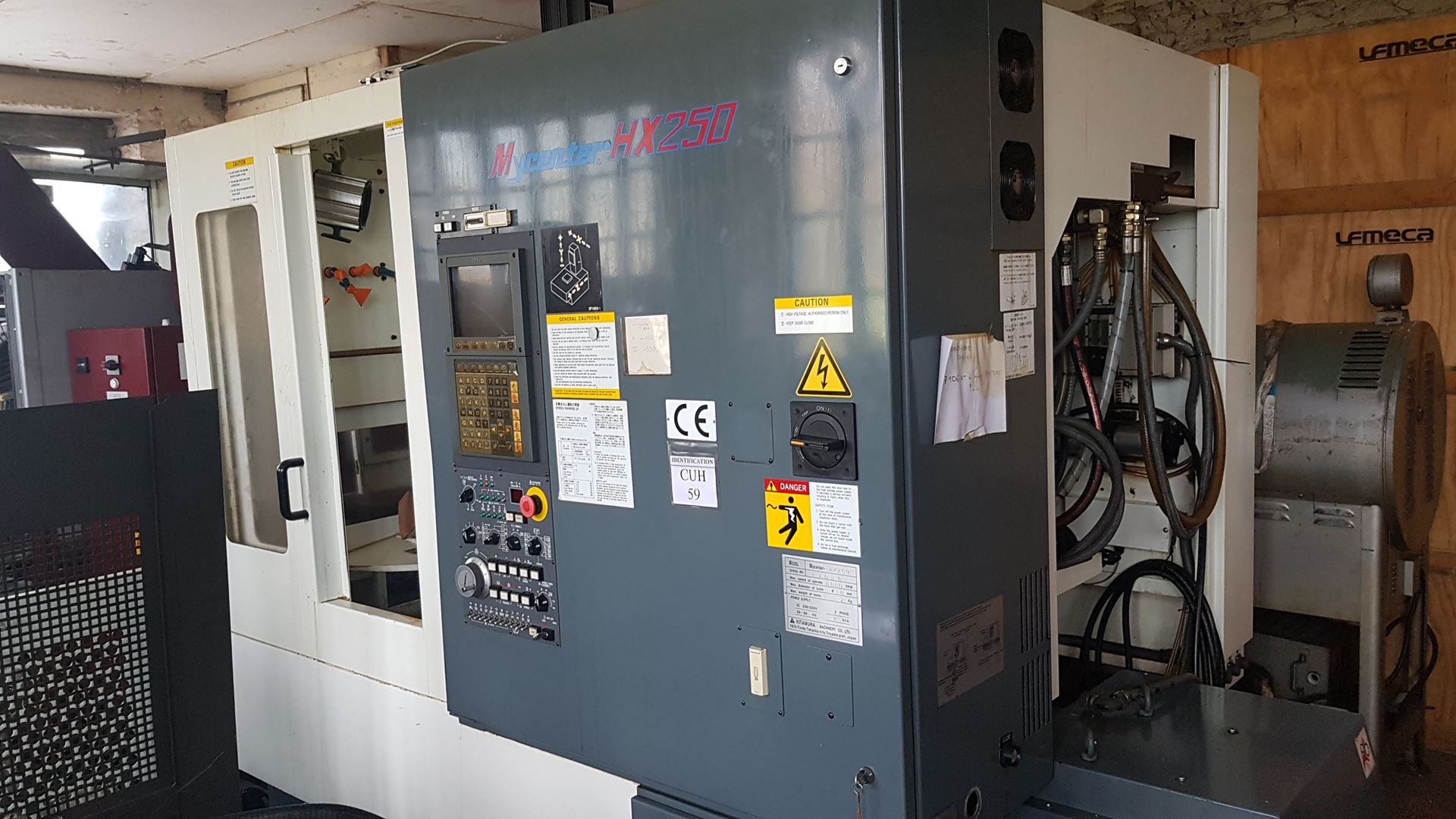

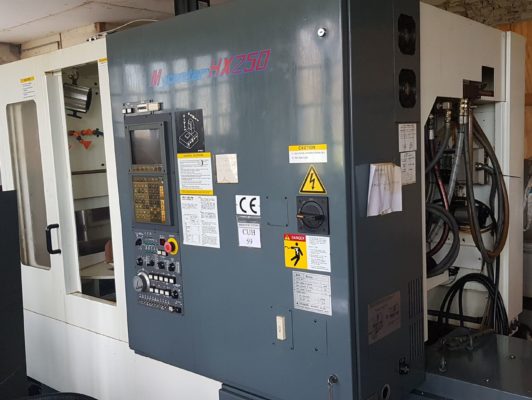

| Modell | MYCENTER-HX250 |

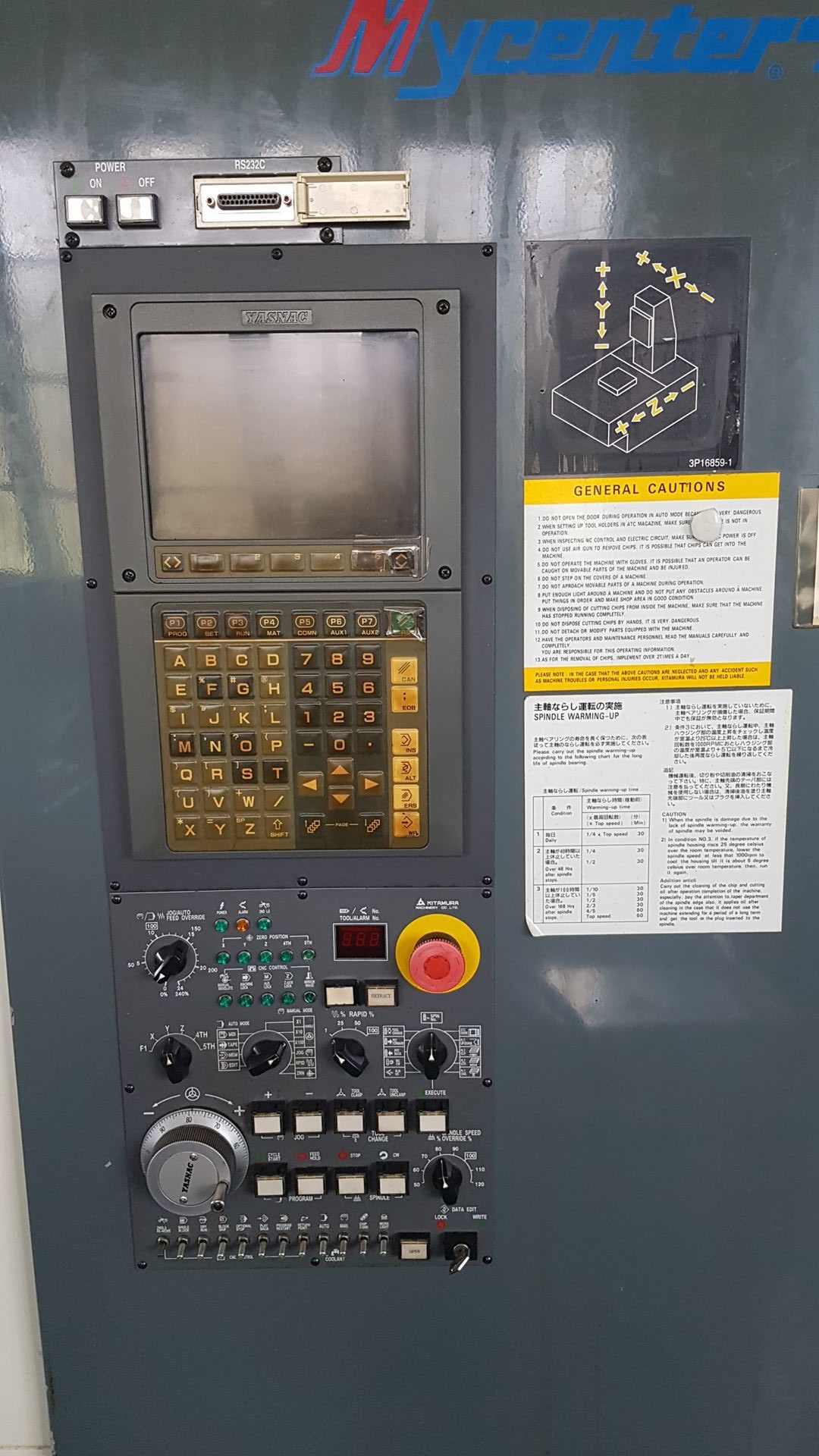

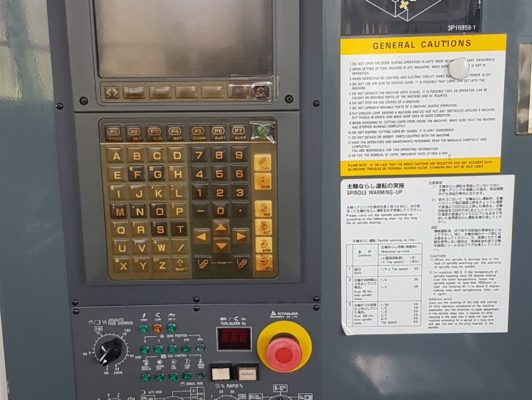

| CNC (numerisch gesteuerte Maschine) | Yasnac i80 MB |
| Längsbewegung - X | 304.8 mm |
| Querverschiebung - Y | 304.8 mm |
| Vertikaler Hub - Z | 330.2 mm |

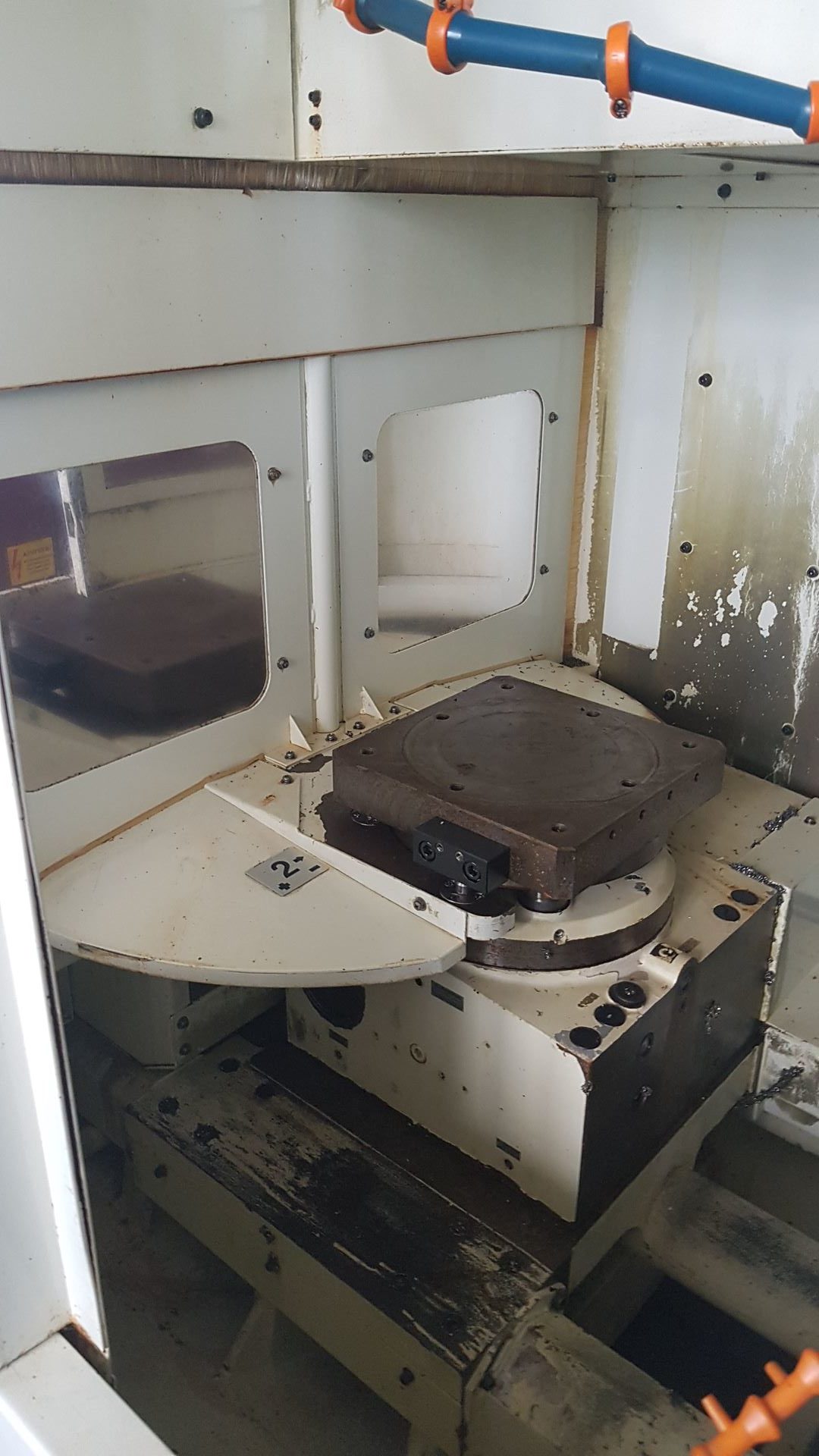

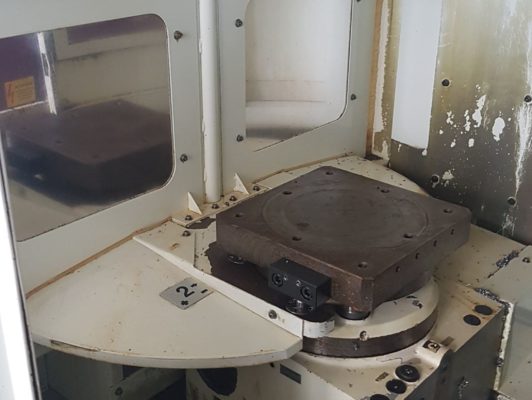

| Anzahl der Paletten | 2 |
| Abmessungen der Paletten | 254 x 254 mm |
| Indizierung der Paletten | 360° |
| Spindelkonus | BT 30 |
| Spindeldrehzahl | 15000 RPM |
| Werkzeugmagazin | 24 outils |
| Abmessungen | 2844,8 x 1651 x 1981,2 mm |
| Weight | 4127.7 |
Coolant Thru Spindle (220 psi)
Full 4th Axis
Caterpillar Type Chip Conveyor
2 Station APC Front Mount
Additional M Function 4 Sets

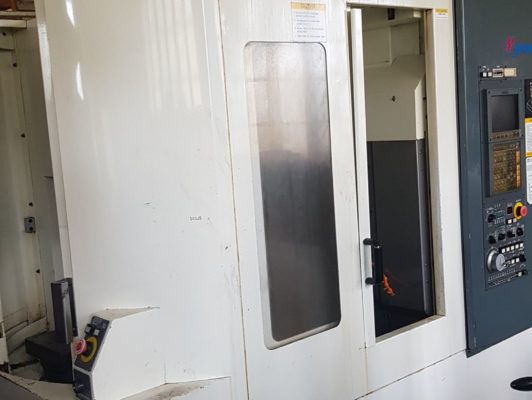

Fully Enclose Splash Guards
Rigid Tapping
1574 IPM Rapids on X, Y, Z

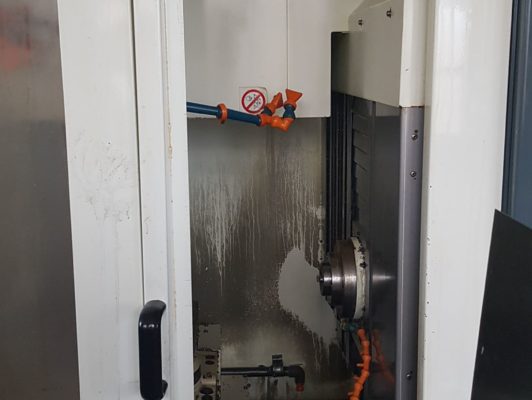

Shower Coolant
320 M Memory
54 pcs. Work Coordinate Offsets
99 pcs. Tool Offsets
Coordinate System Rotation
Automatic Corner Override
Helical Interpolation
Single Direction Positioning
User Macro 110 Variables
GHSC Hi-Feed Function
