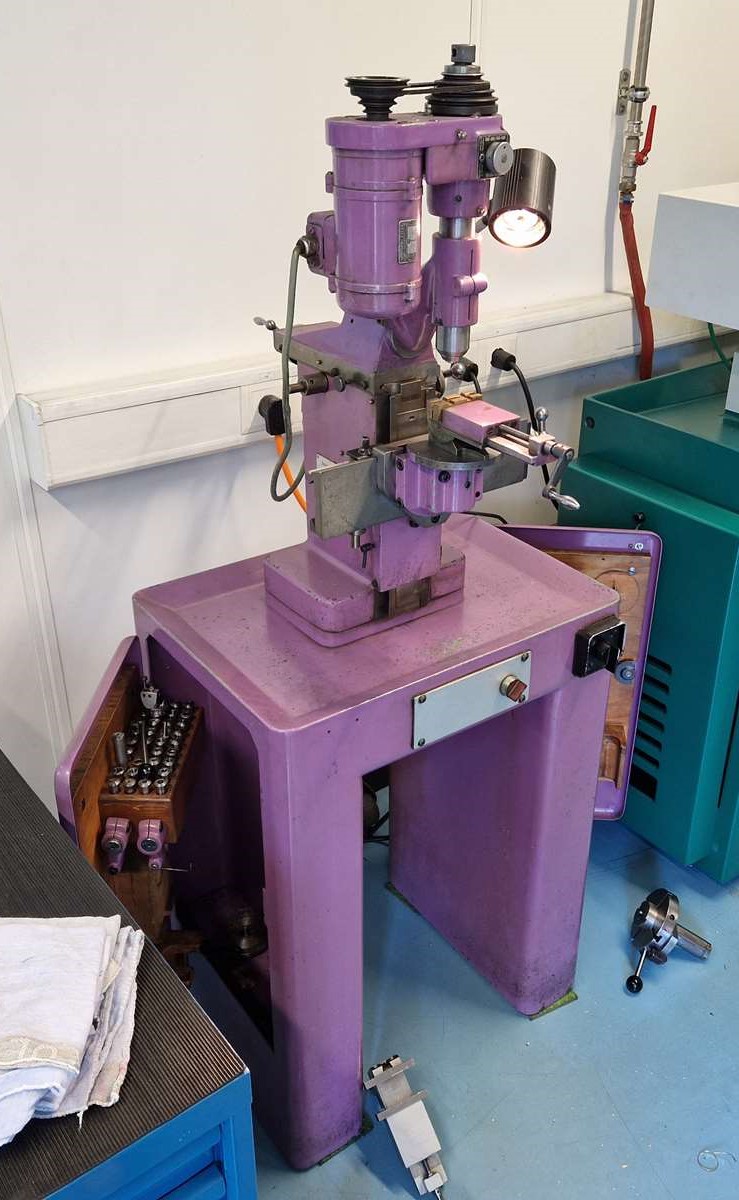

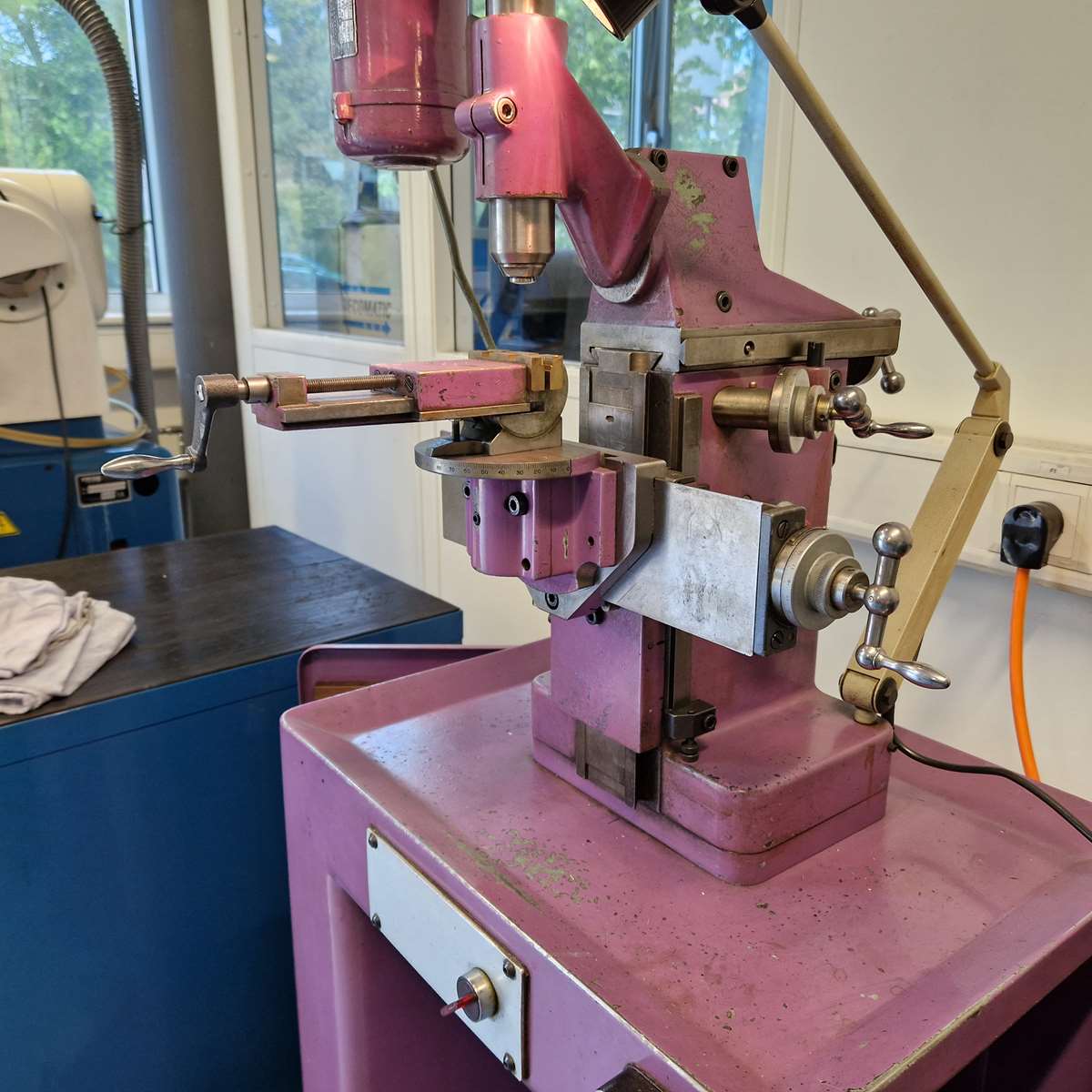

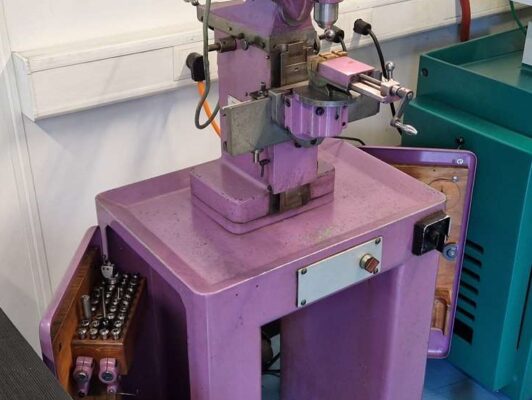

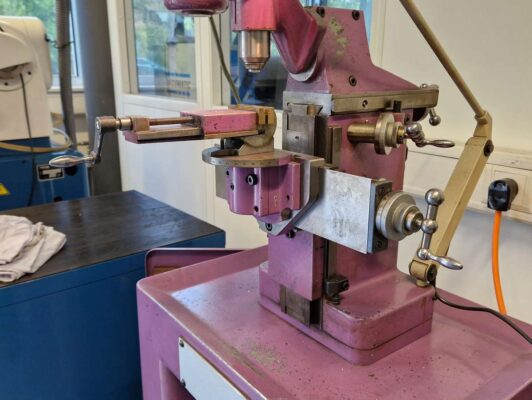

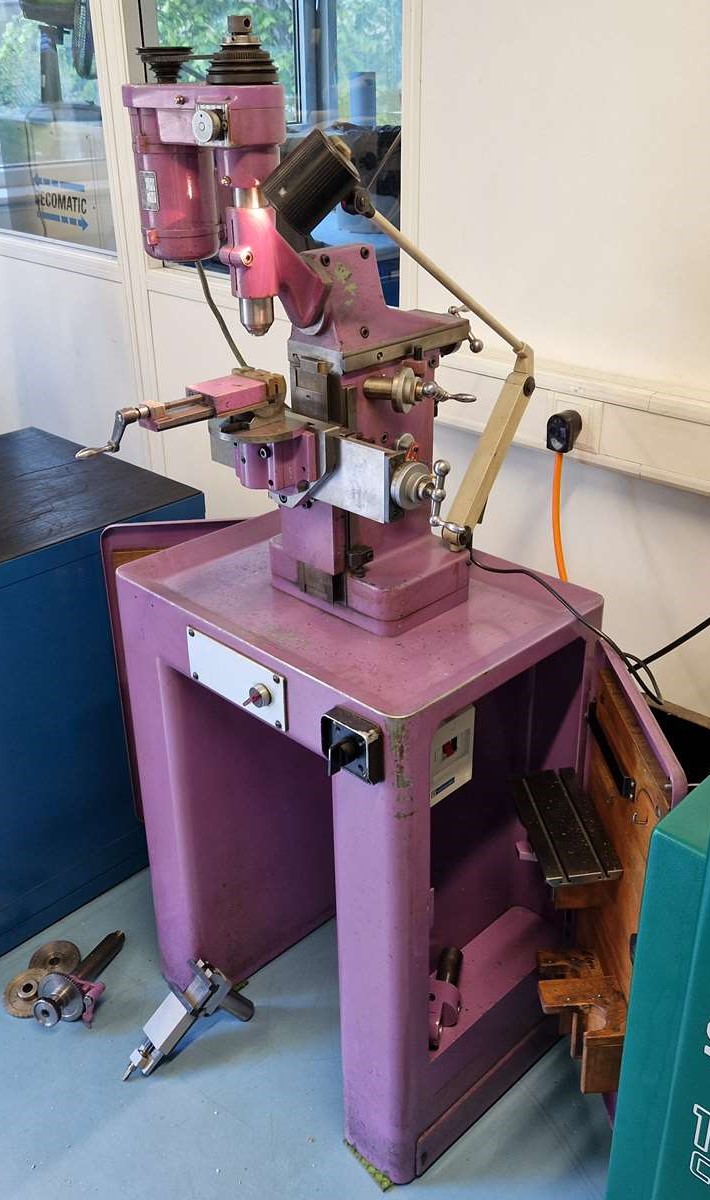

ACIERA F1 - Used machine
Model | F1 |
Longitudinal travel of the table | [X] 100 mm |
Cross travel | [Y] 75 mm |
Vertical stroke | [Z] 150 mm |
Clamping surface of the table | 220x100 mm |
Number of T-slots | 2 |
Groove maximum width | 8 mm |

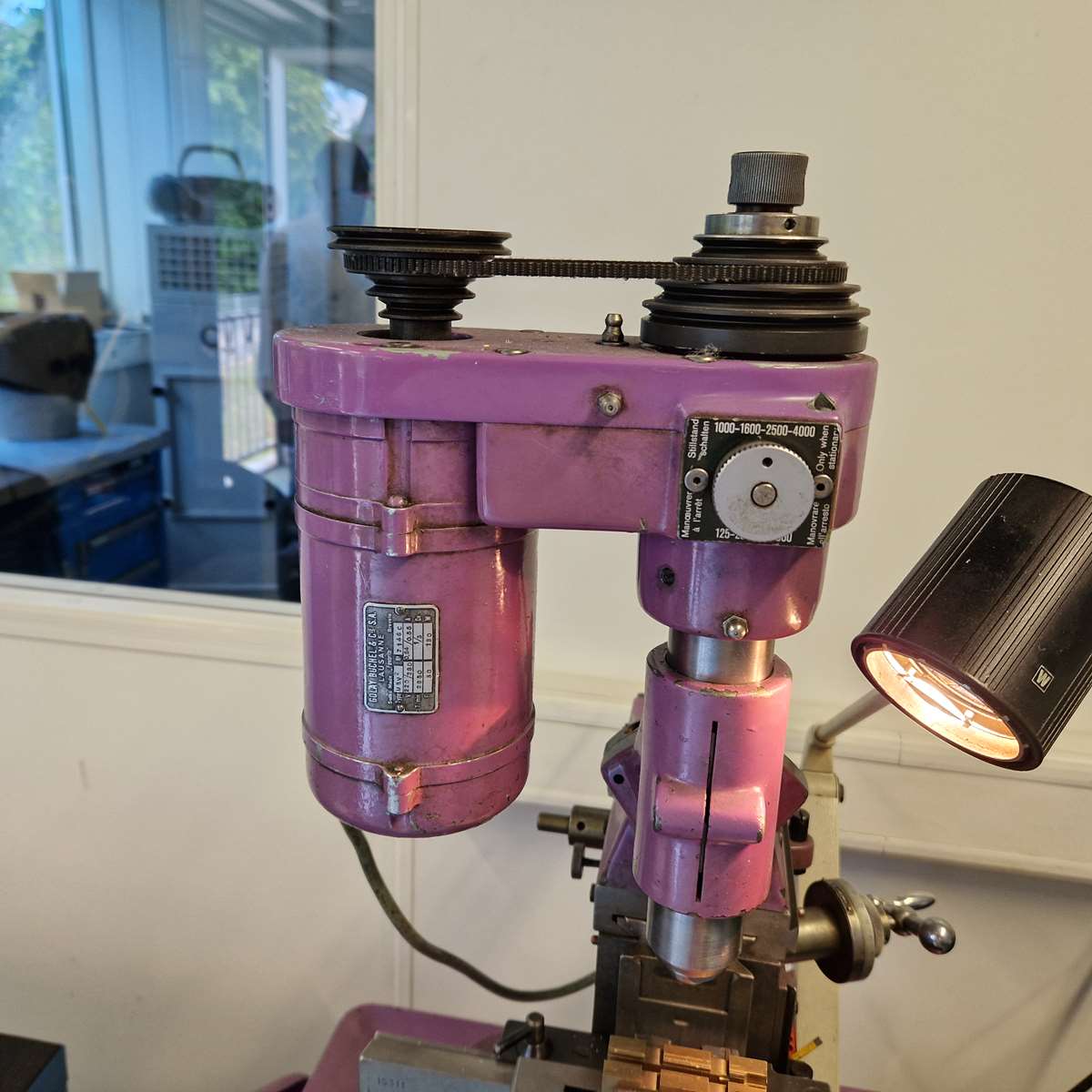

Spindle speed | 125-4000 RPM |
Power | 0,245 |
Space requirements | 1300x530x1370 mm |
Weight | 120 Kg |
Cutter head spindle: For W12 cutters and cleats, 12 mm body
Accessories :

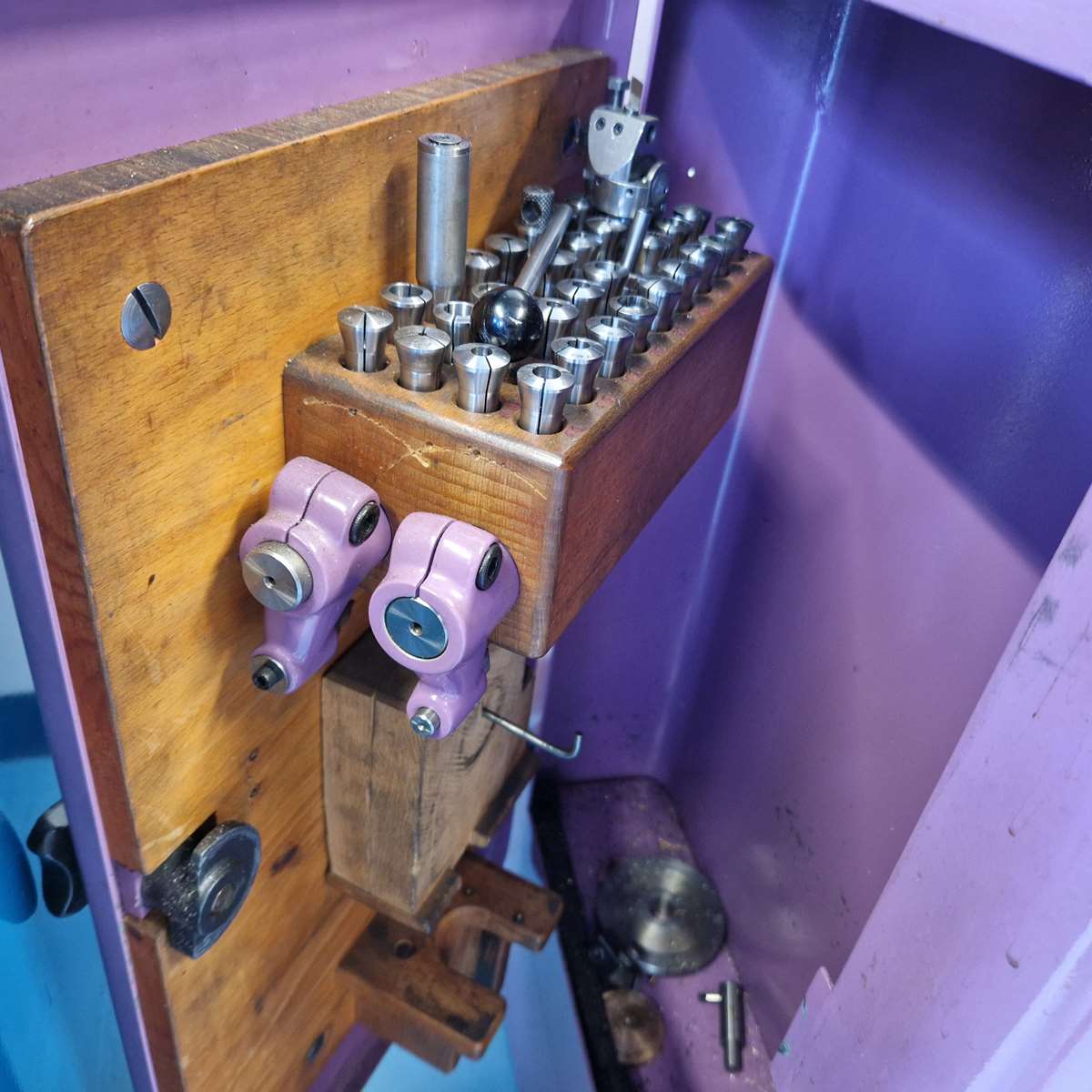

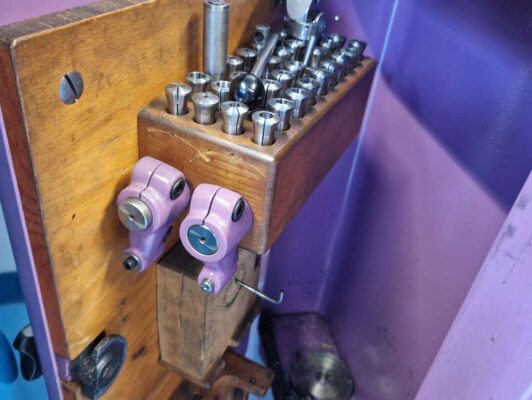

Set of W12 collets

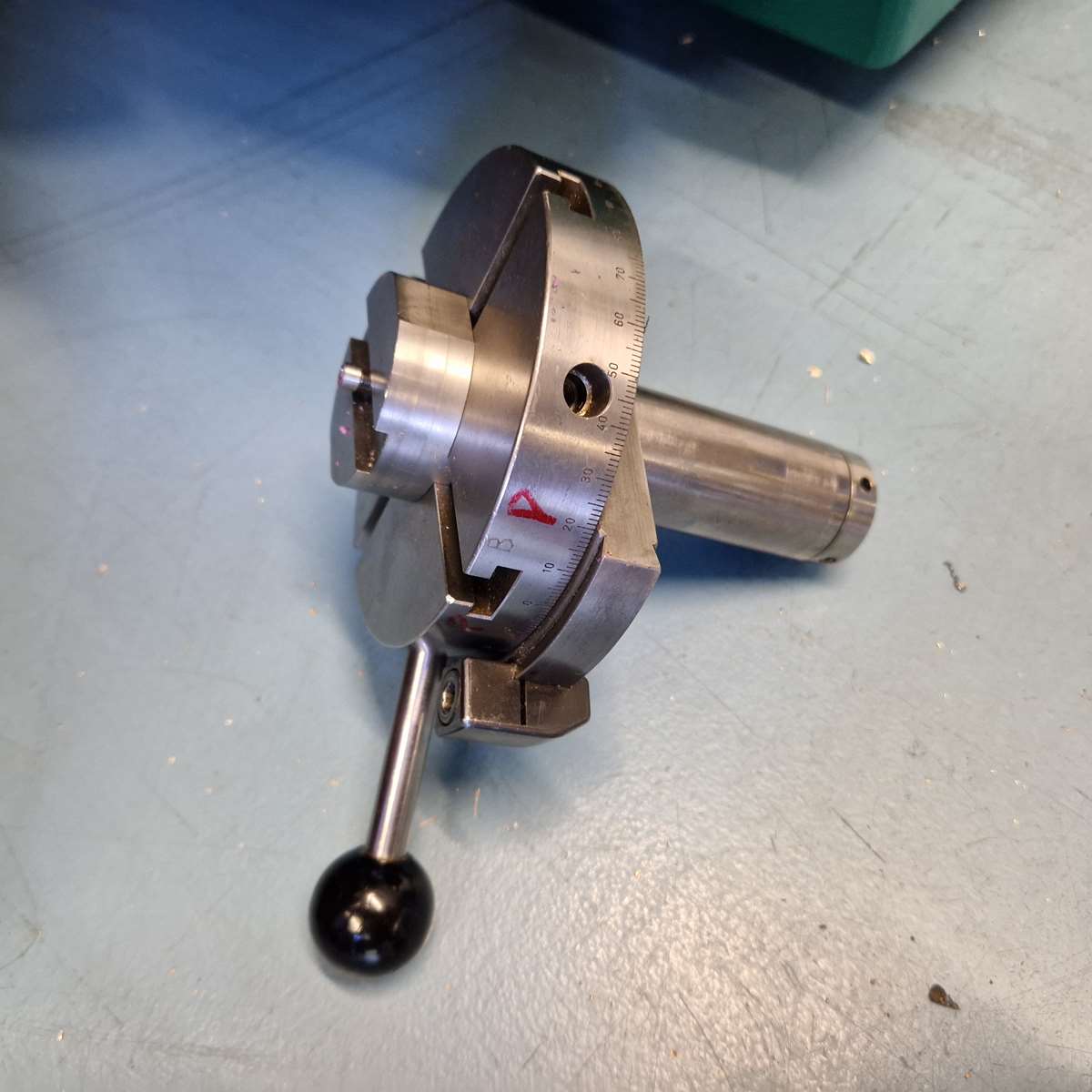

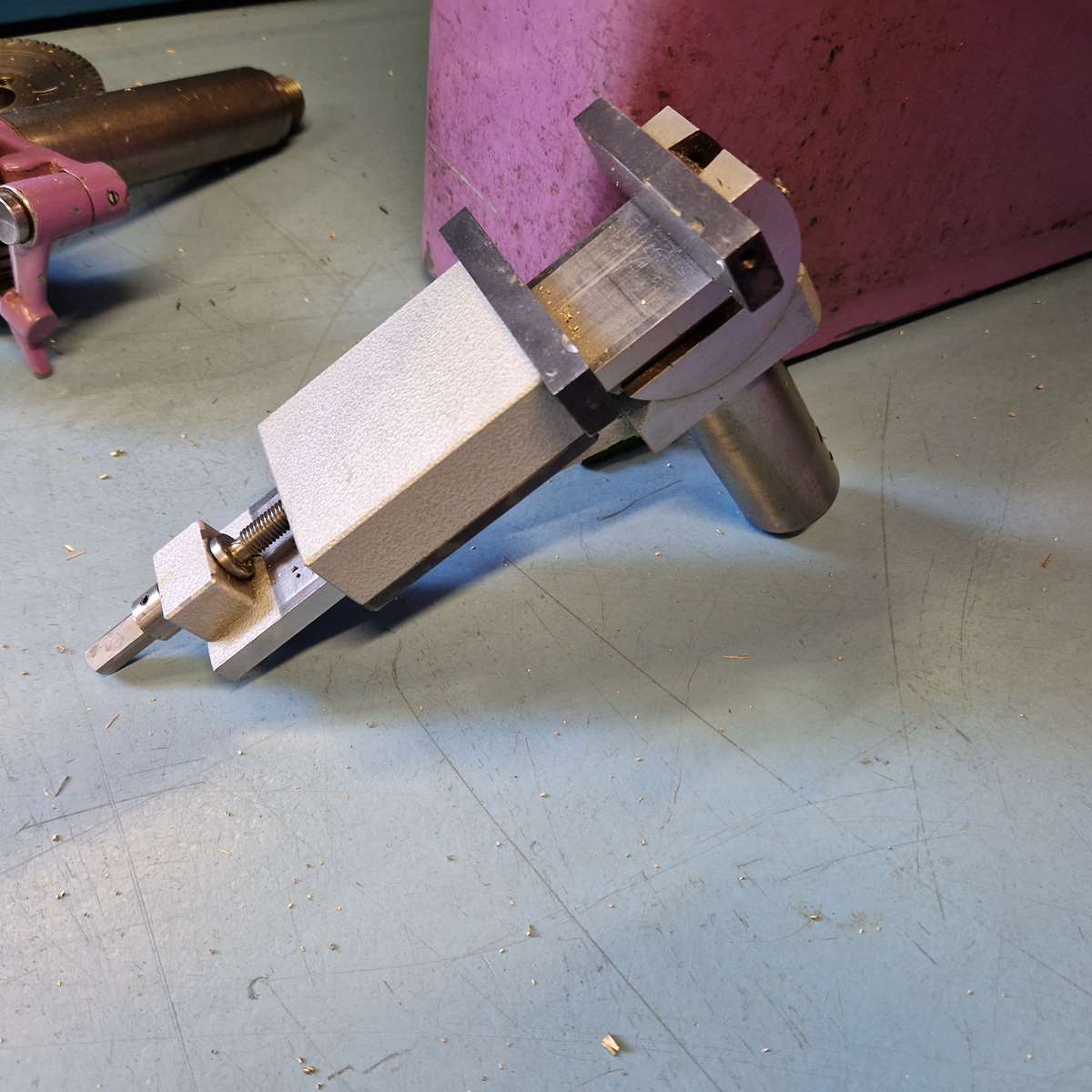

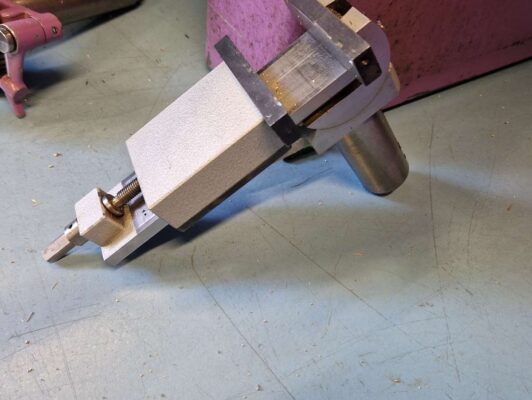

Rotating and tilting vice

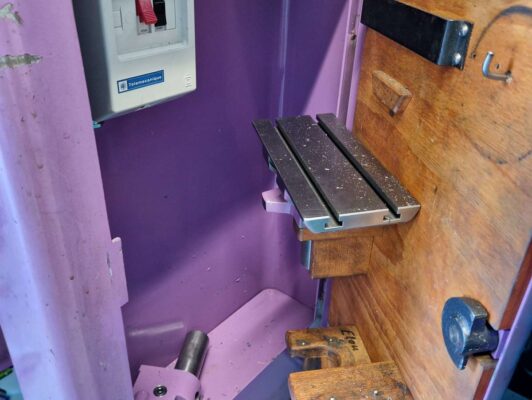

Universal table

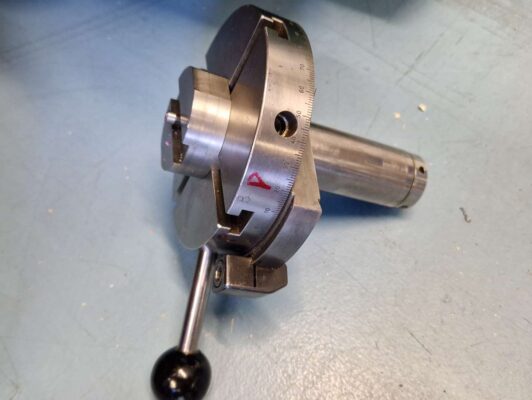

Circular table

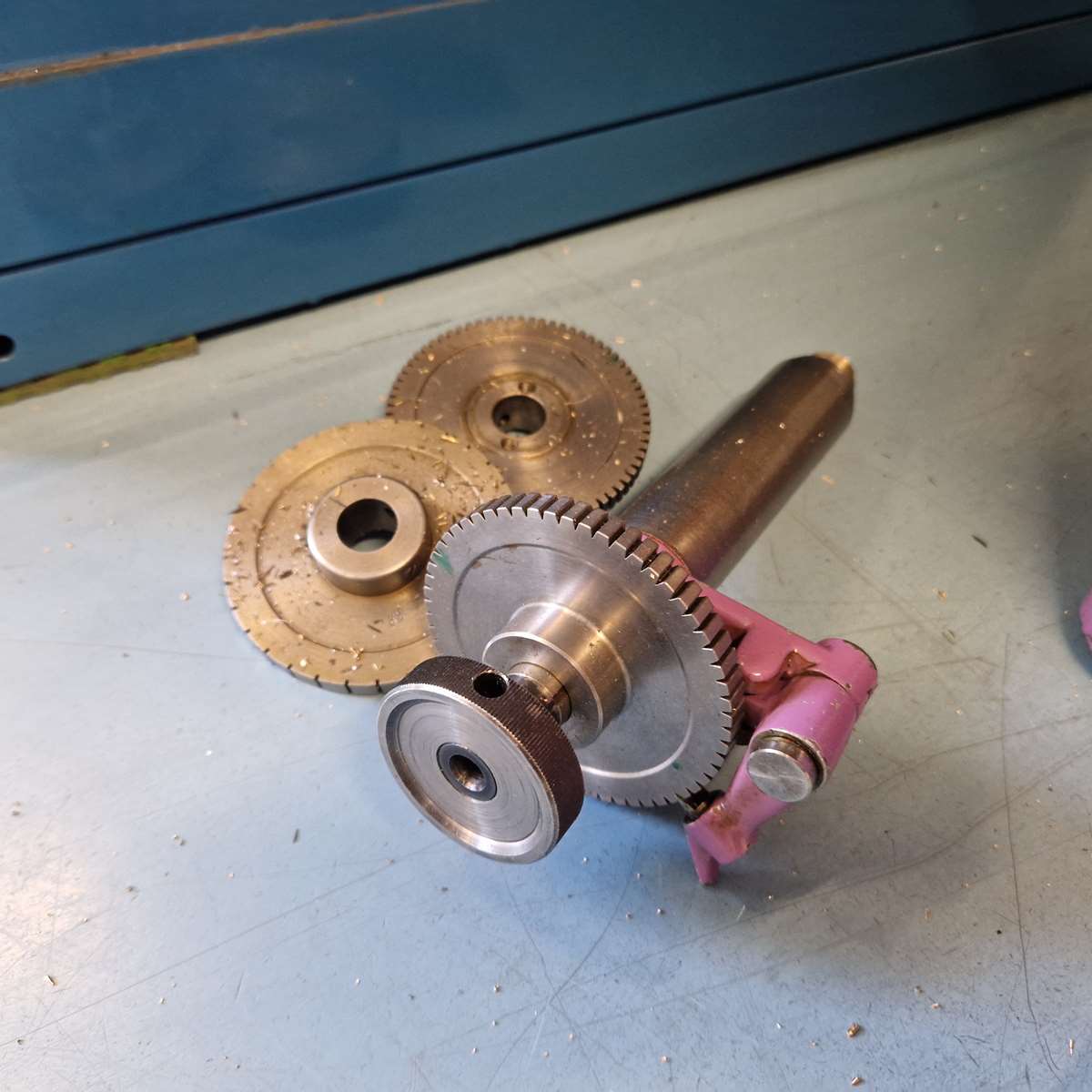

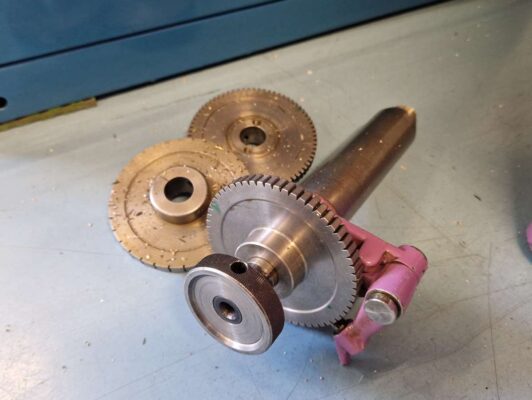

Single dividing headstock
Waldmann lamp
