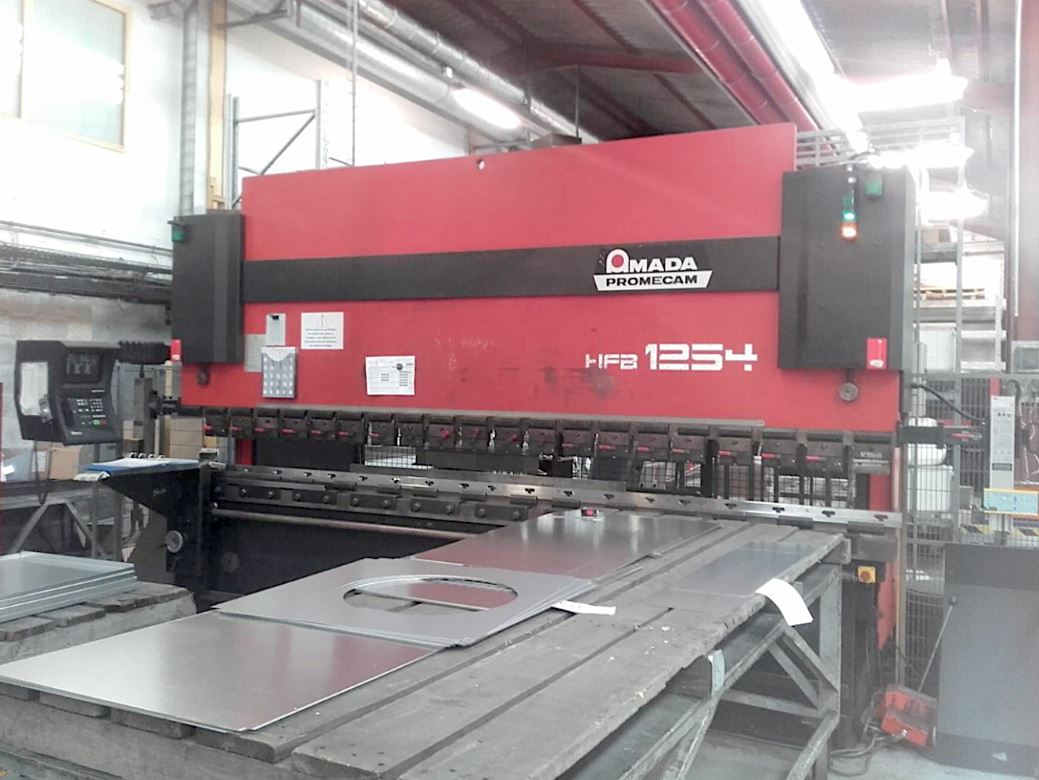

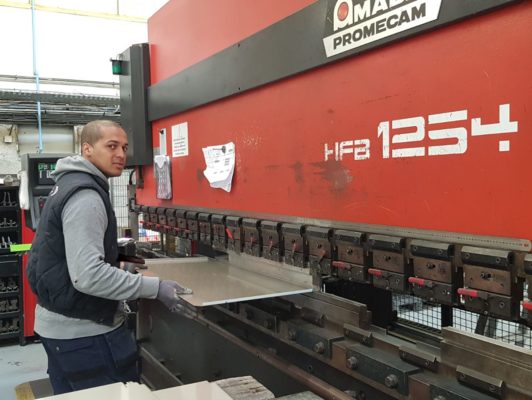

AMADA HFB 125/4 - Used machine
SOLD

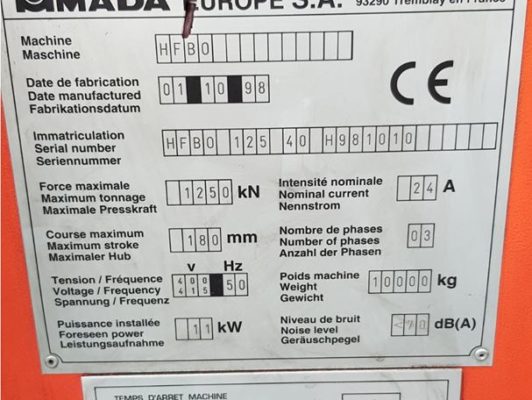

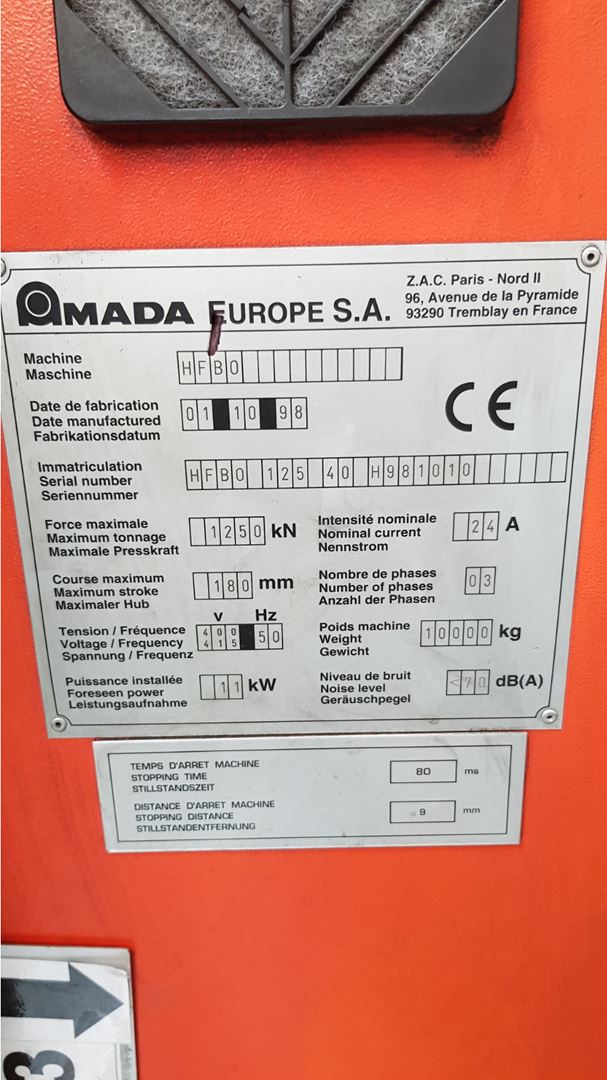

| Year | 1998 |
| Model | HFB 125/4 |

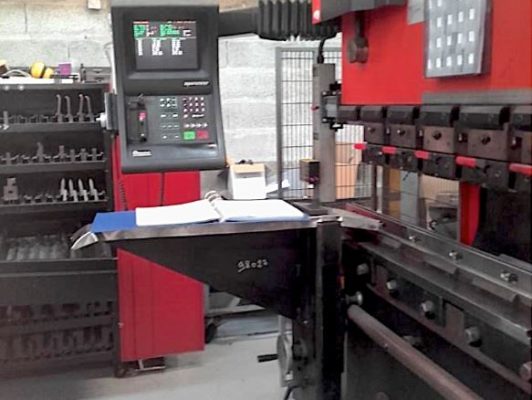

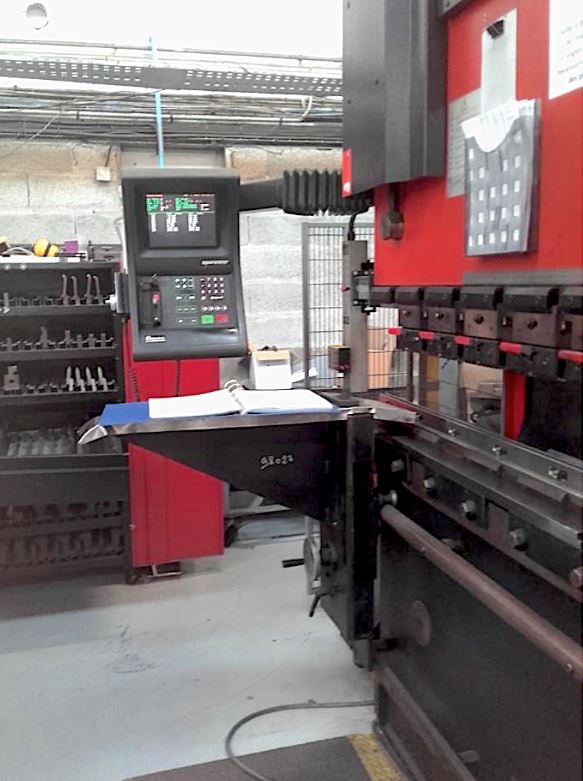

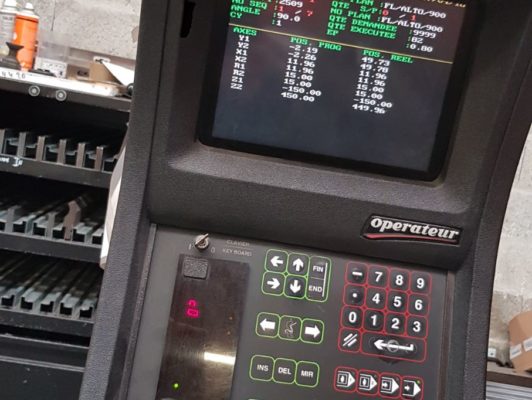

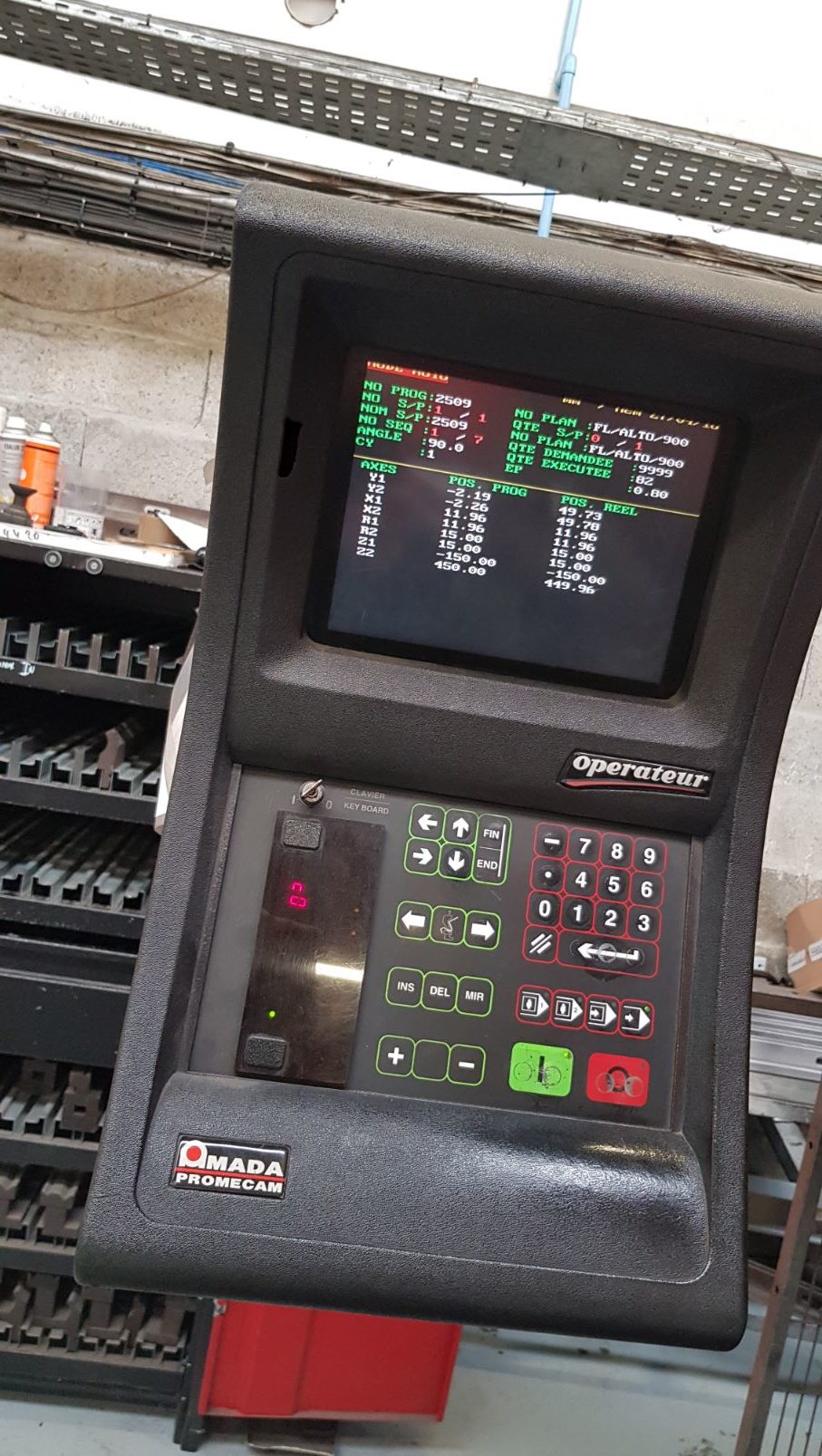

| C.N.C. | OPERATEUR 2 |
| Maximum pressure (T) | 125 Tons |
| Maximum length | 4200 mm |
| Axis number | 8 |
| Distance between uprights | 3760 mm |
| Depth of throat | 410 mm |
| Ram stroke | 180 mm |
| Working speed | 8 mm/s |
| Distance between table and ram | 450 mm |
| Motor power | 9 HP |
| Weight | 10000 Kg |
| Dimensions | 4520 x 2165 x 2890 mm |

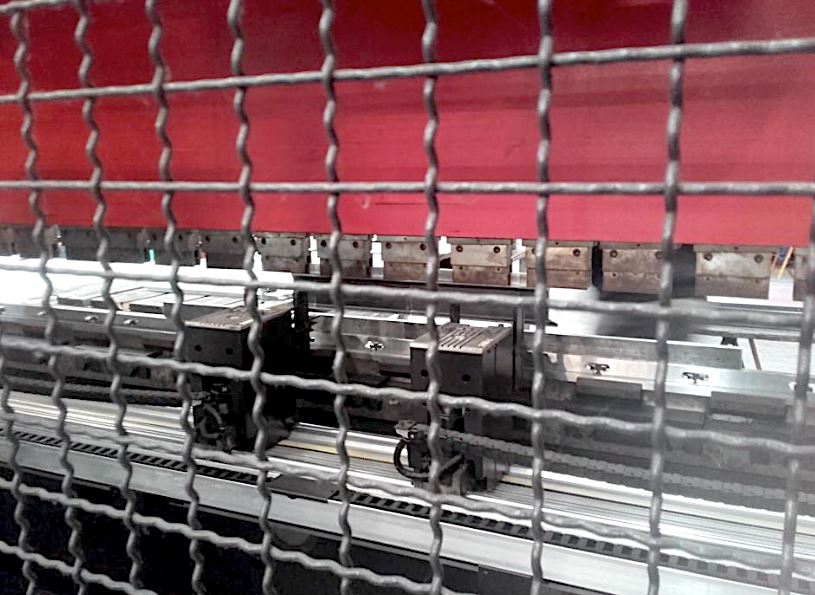

8 axes: Y1 Y2, X1 X2, R1 R2, Z1 Z2.

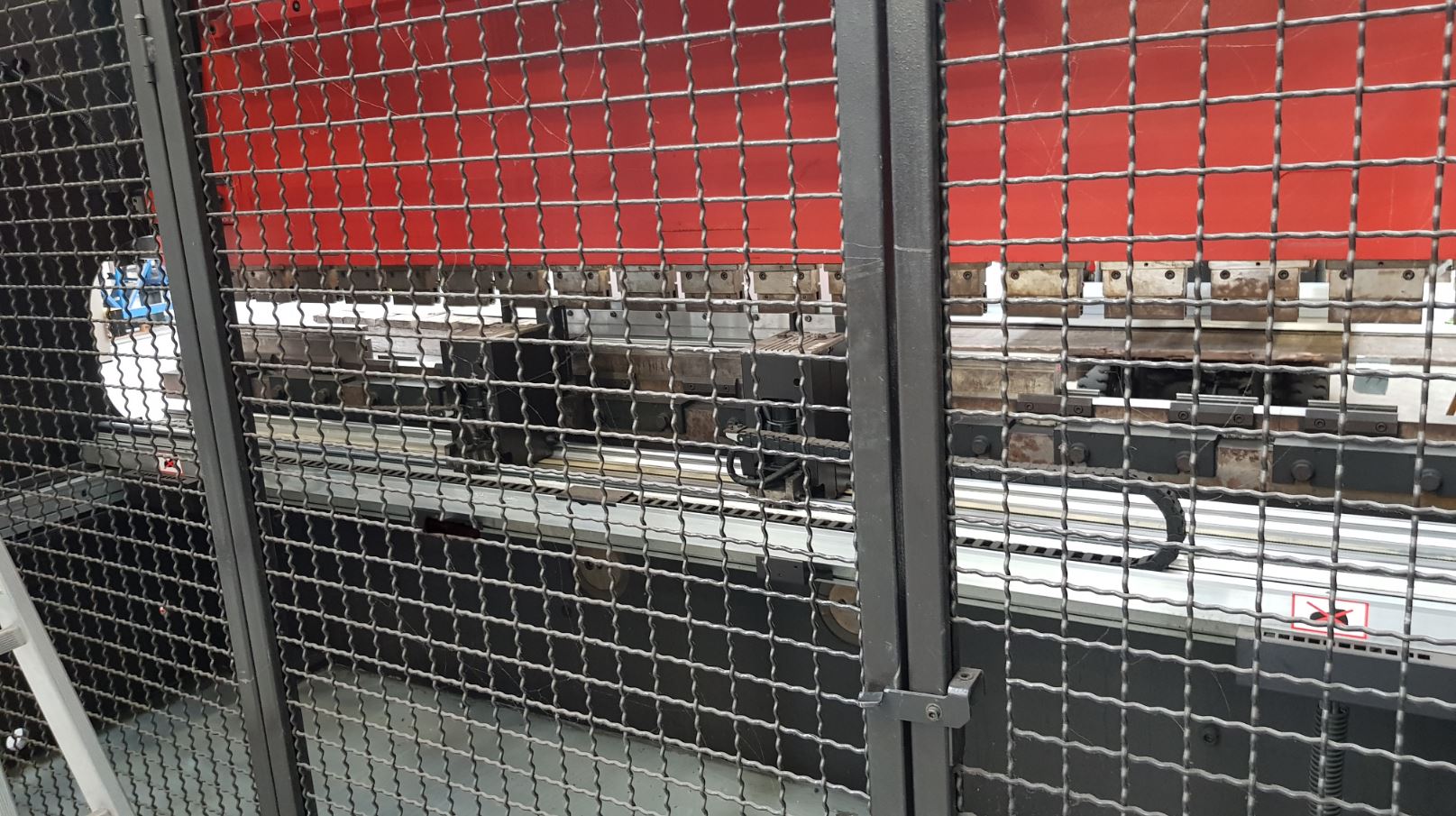

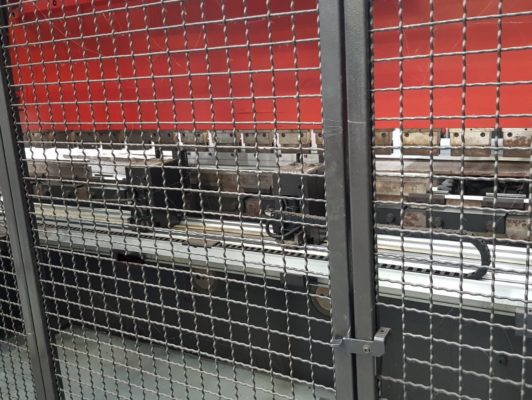

Akas security.

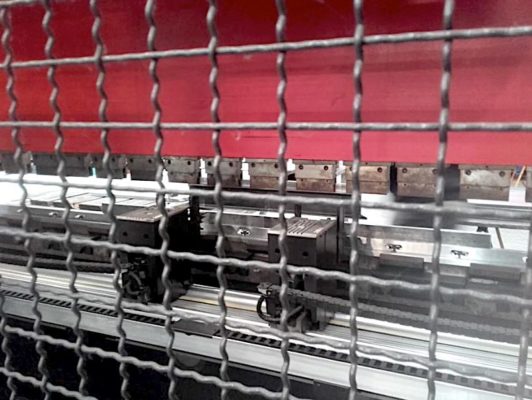

A front sheet metal support.
Punching clamping: fast and manual.
