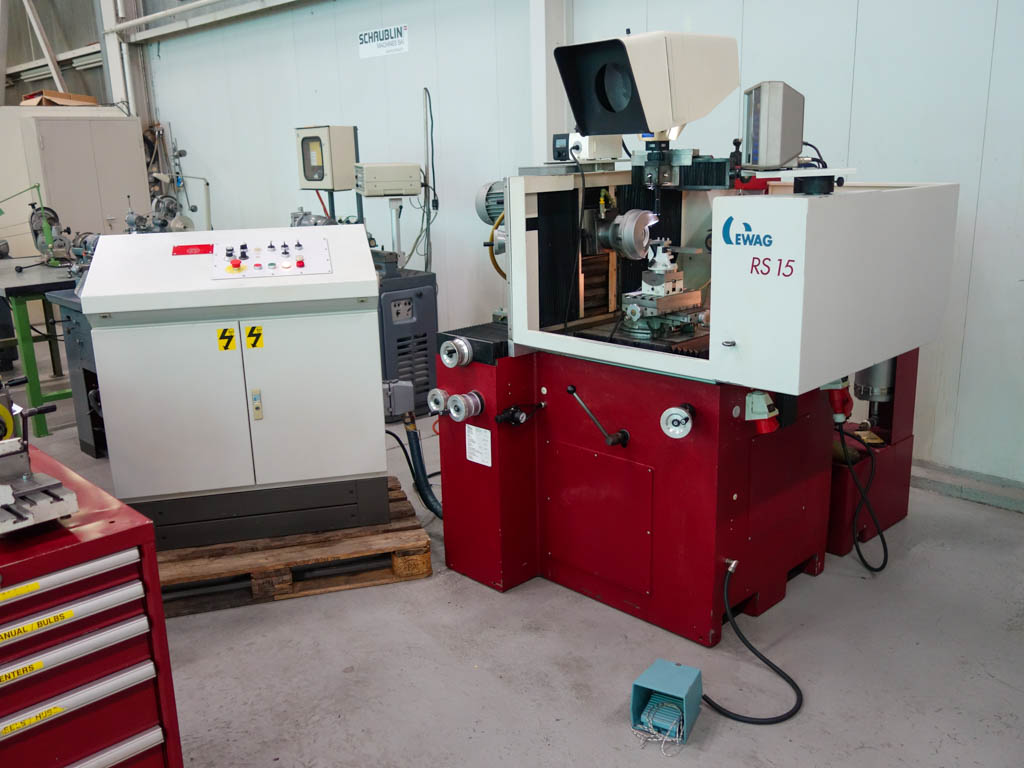

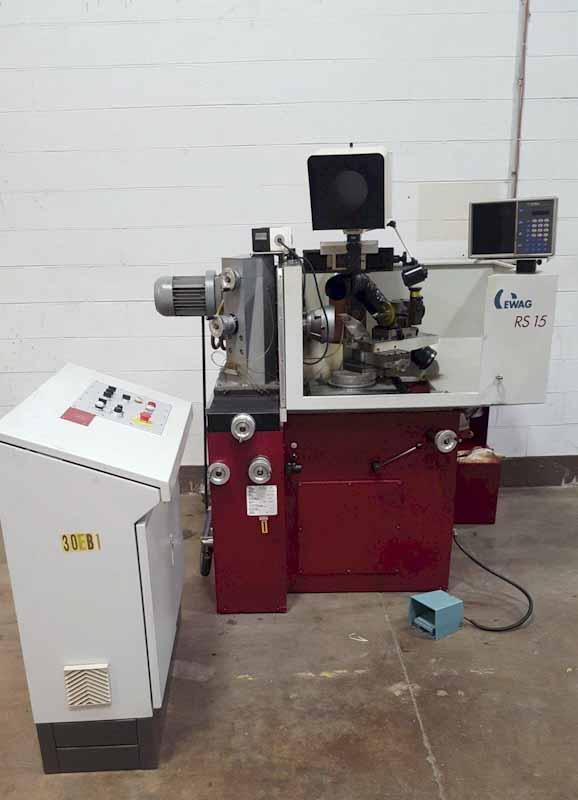

EWAG RS-15 - Used machine
SOLD
| Spindle power | 2.2 KW |
| Spindle speed | 1000 - 8000 RPM |
| Lead angle of the spindle | -10° / +27° |
| Y axis | 130 mm |
| X axis | 490 mm |
| Z axis | 0.01 - 120 mm |
| Power supply | 3 x 380 V |

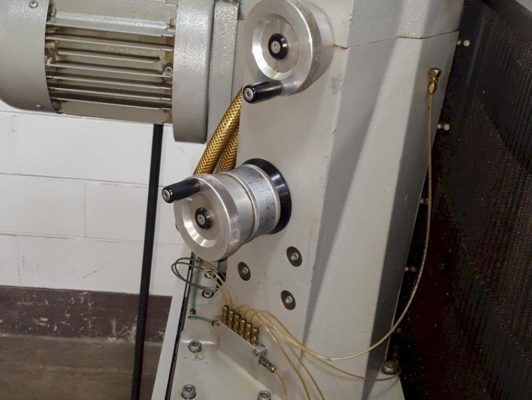

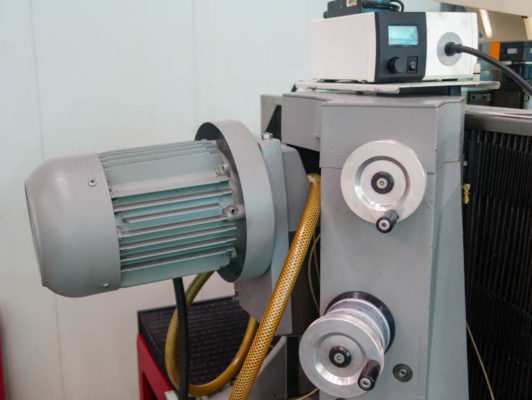

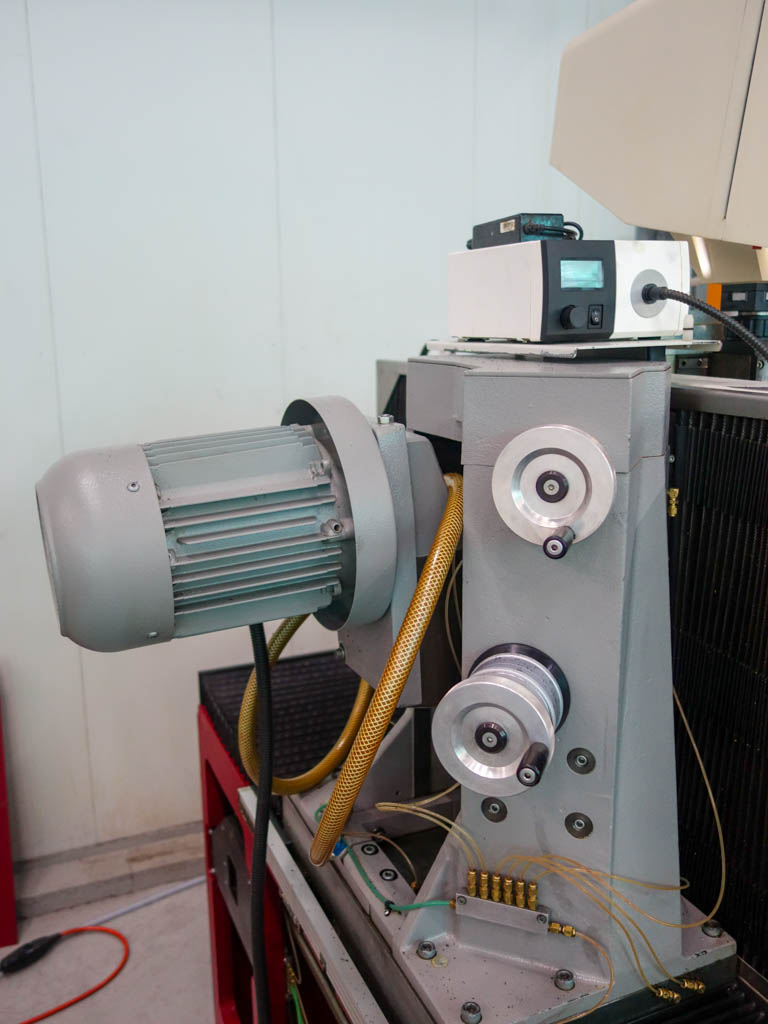

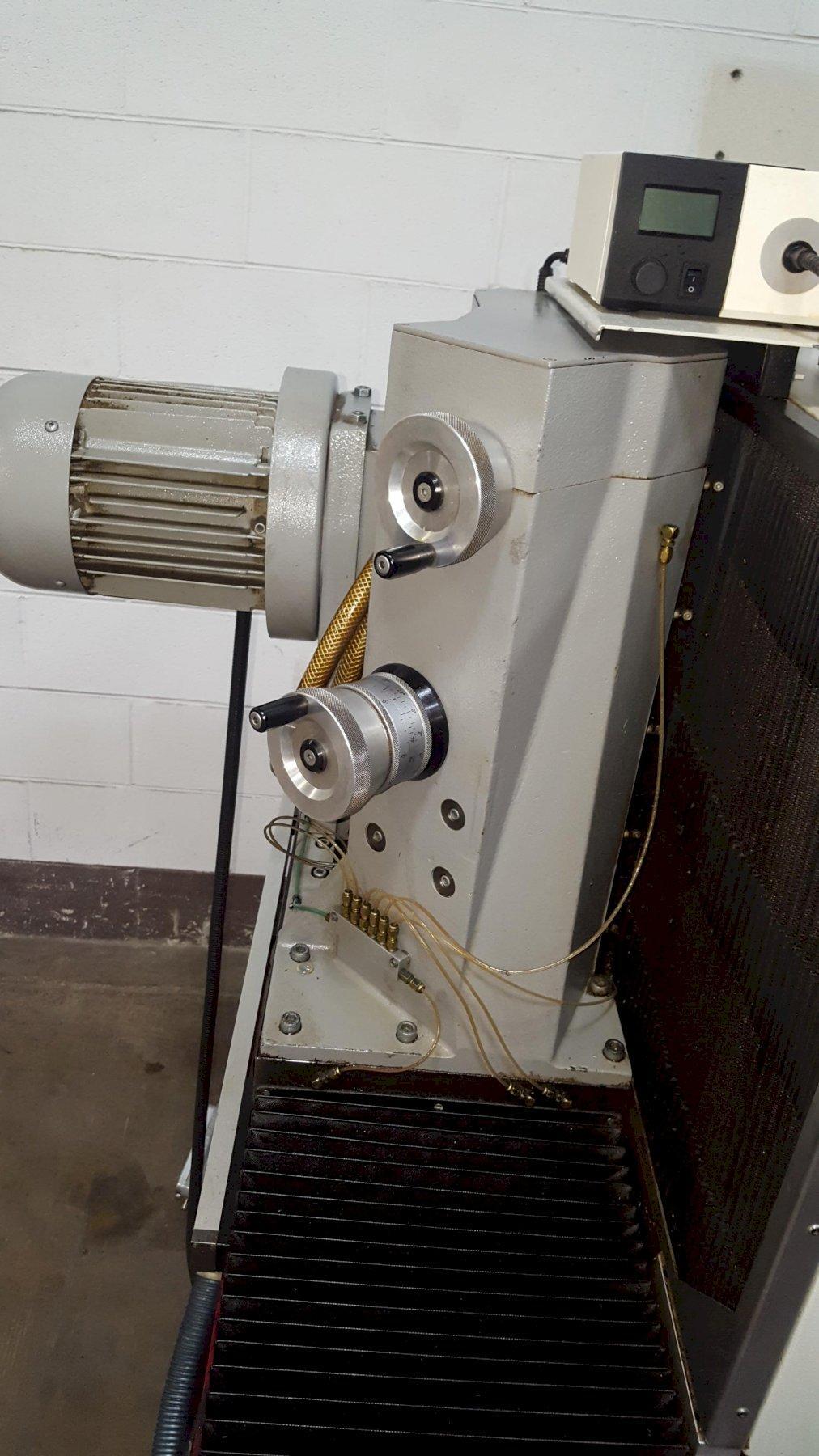

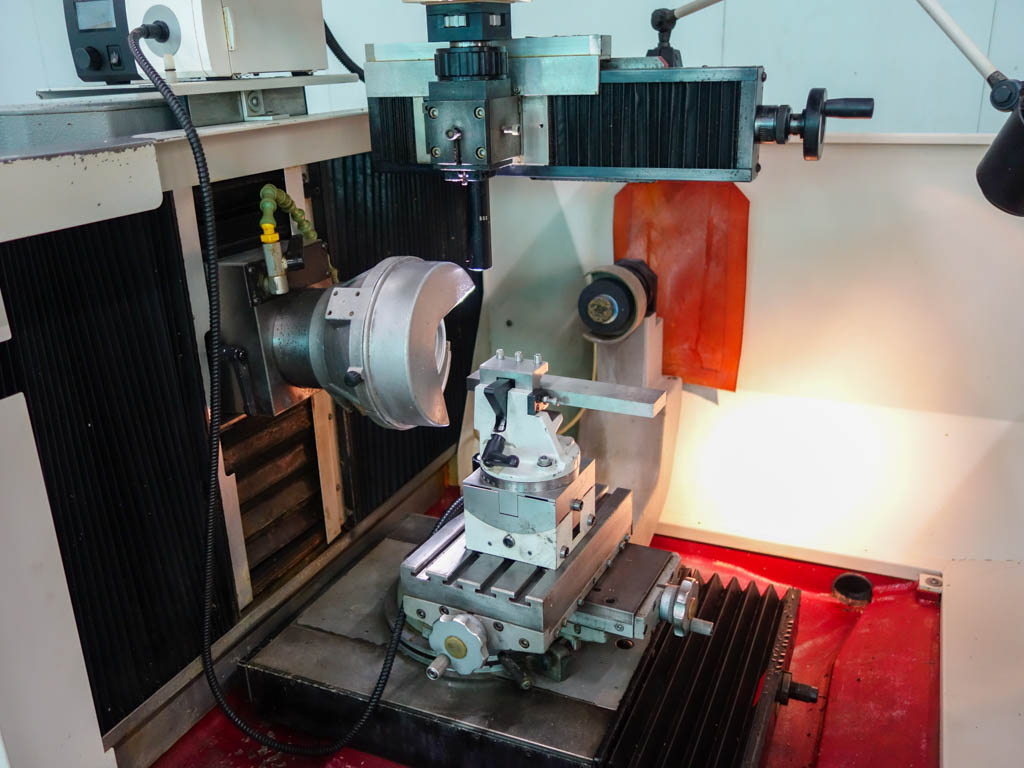

Grinding wheelhead
Setting accuracy of spindle inclination : 1 min
Oscillation stroke, steplessly adjustable during
operation : 0 – 68 mm
Oscillation frequency : 0 – 68 min-1

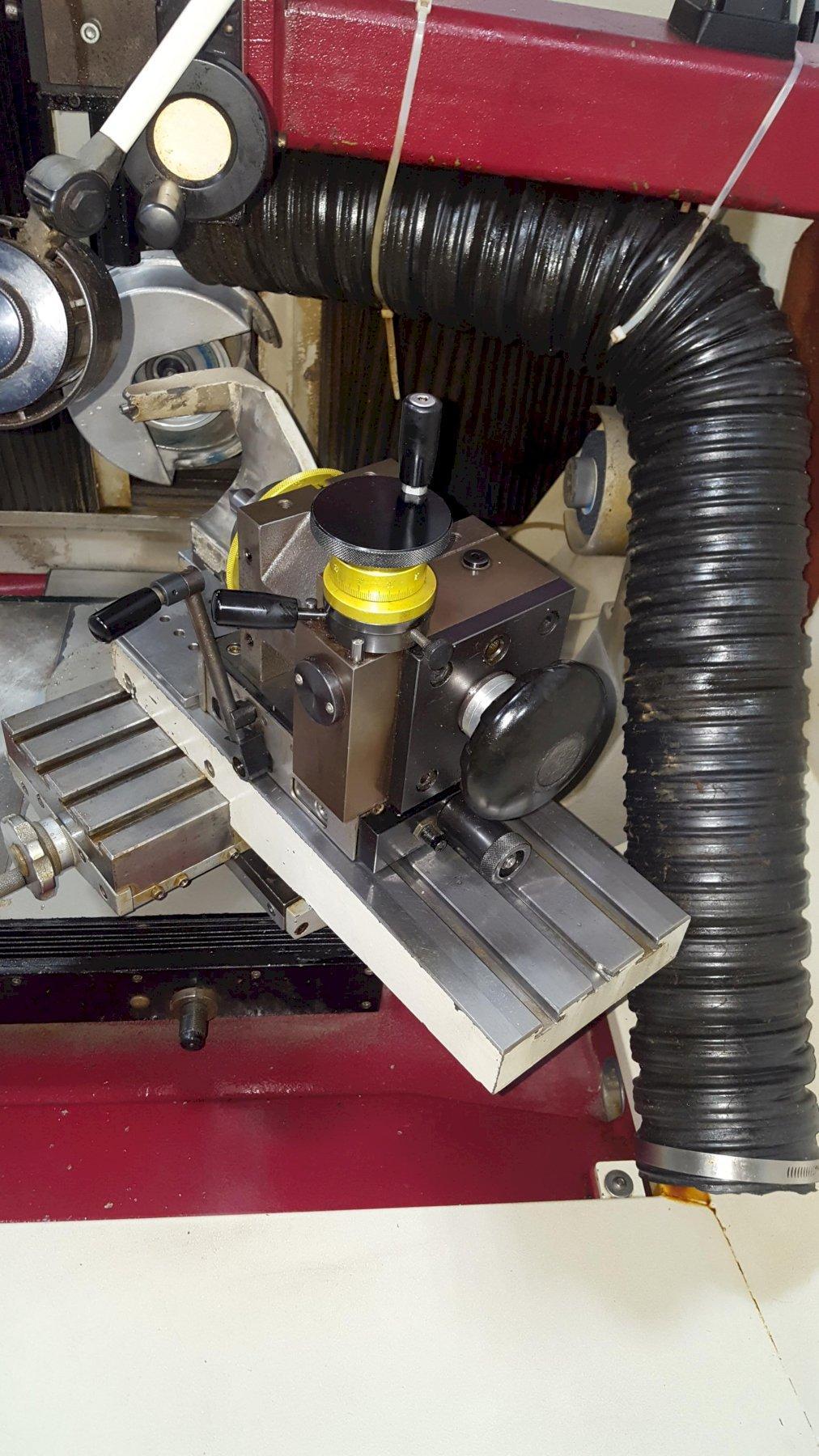

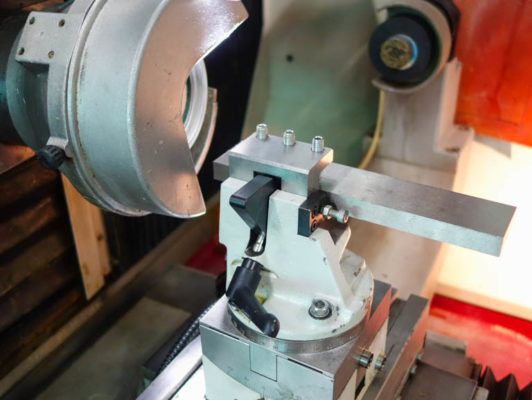

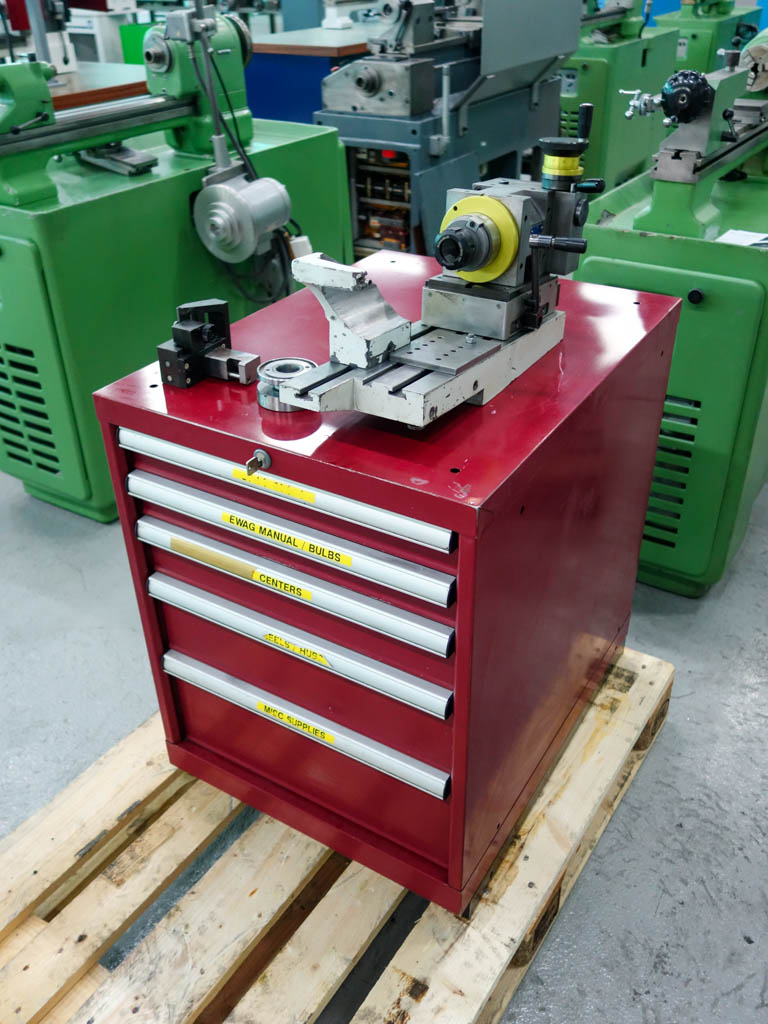

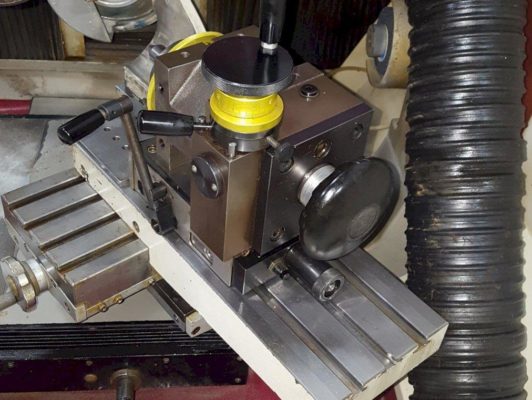

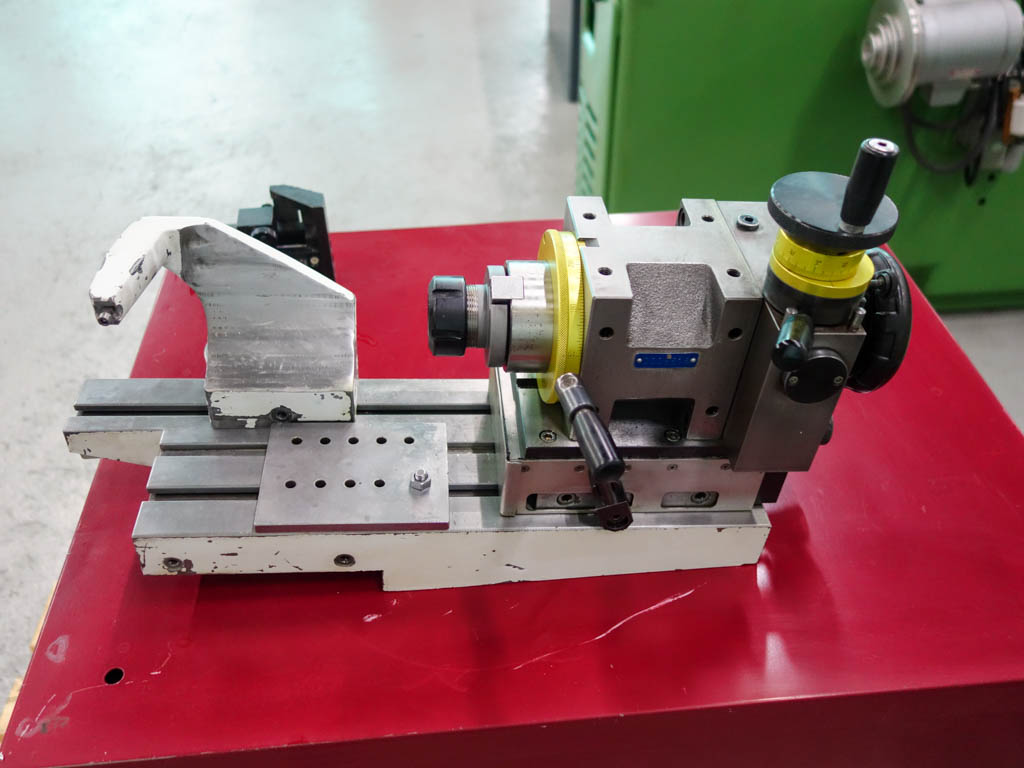

Workhead
Setting accuracy of Z axis : 0.01 mm
Retraction of slide from the grinding to the
measuring position : max. 120 mm
Cross table, clamping surface : 155 x 205 mm
Travel : each 60 mm (2.36”)
Maximum swivelling angle (B axis) : 260°
