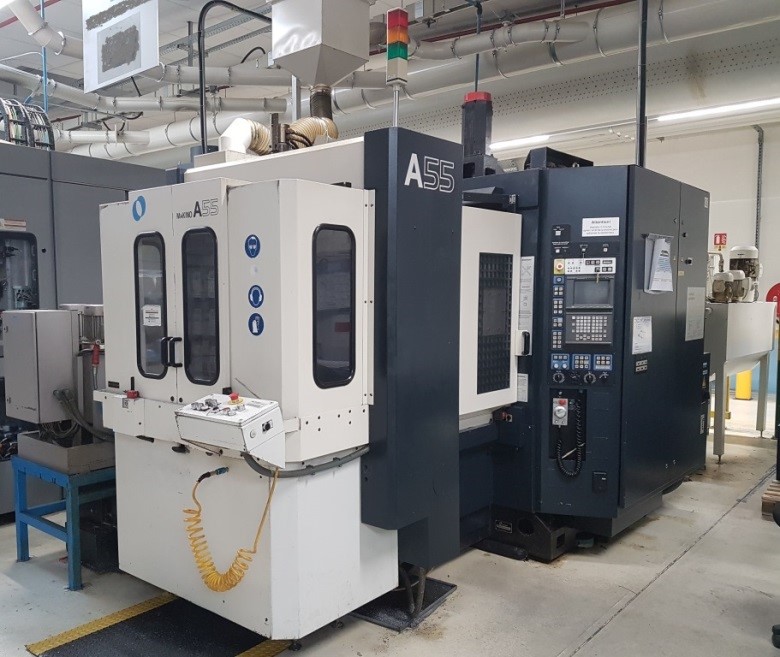

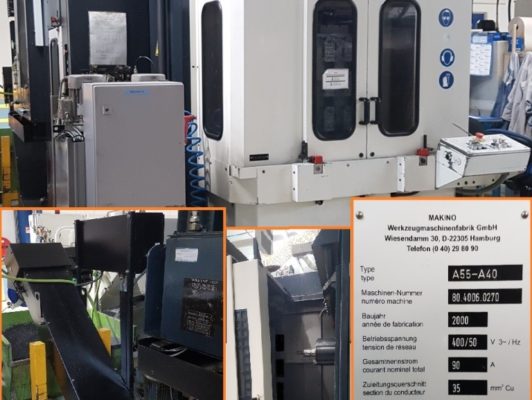

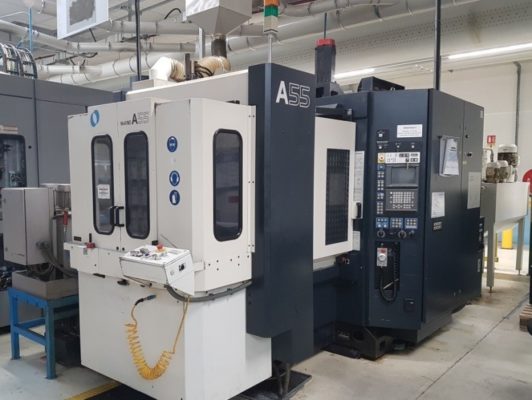

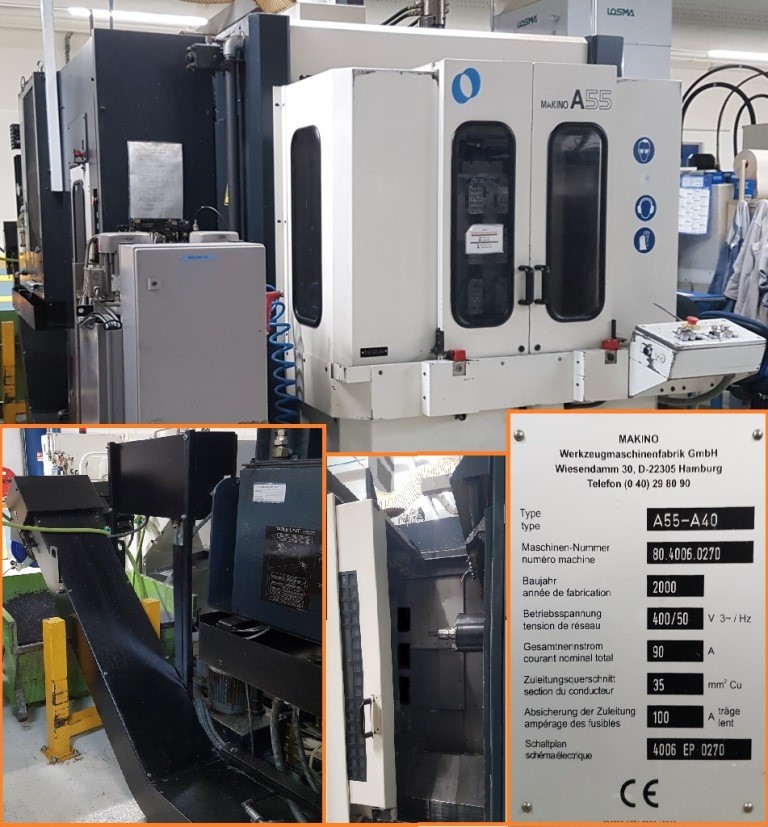

MAKINO A55-A40 - Used machine
SOLD
| C.N.C. | FANUC Série 16-MC |
| Longitudinal stroke - X | 560 mm |
| Cross travel - Y | 560 mm |
| Vertical stroke - Z | 560 mm |
| Spindle taper | ISO 40HSK-A63 |
| Number of pallets | 2 |
| Pallets size | 400x400 mm |
| Max weight admitted | 400 kgs |
| Spindle speed | 50-12000 RPM |
| Min distance between table and spindle nose | 80 mm |
| Max distance between table and spindle nose | 640 mm |
| Tool storage | 40 outils |
| Rapid feeds X & Y | 40000 mm/mn |
| coarse feed of Z axis | 40000 m/mn |
| Spindle motor | 22 KW |
| Dimensions | 3540x2430x2820 mm |
Accessories

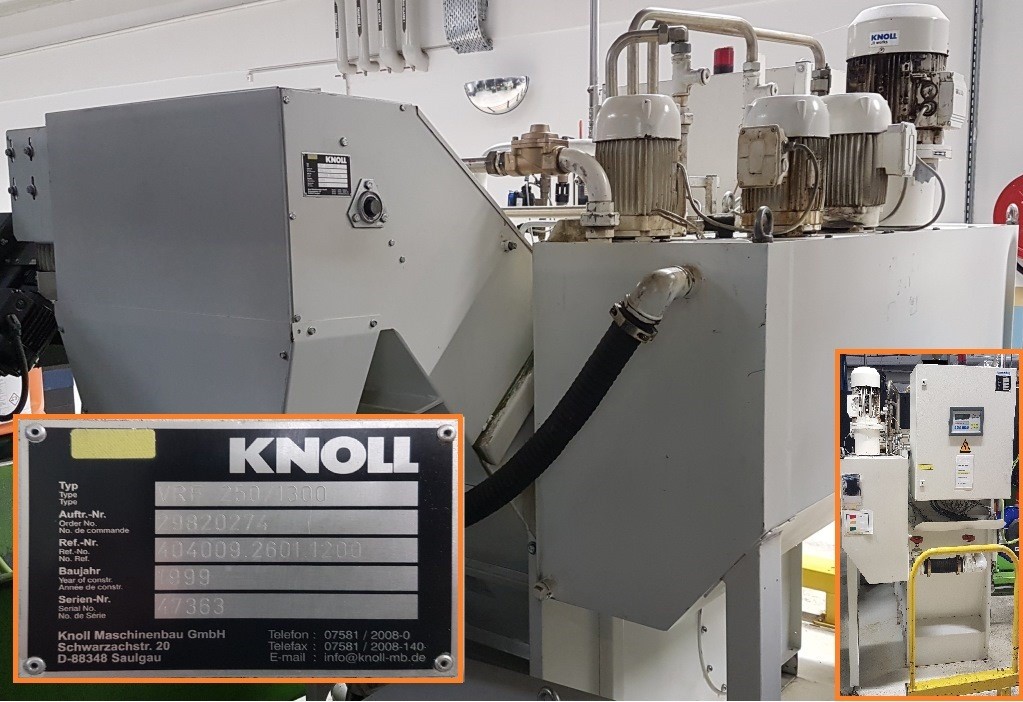

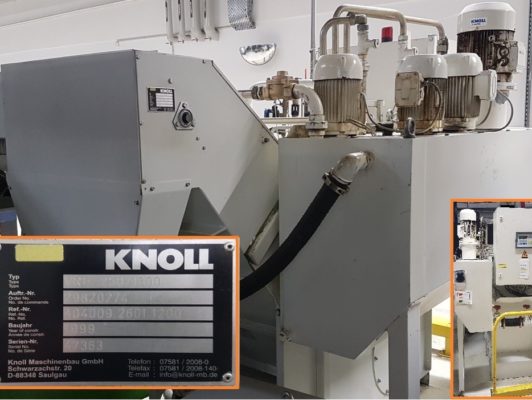

Chip conveyors
Coolant through spindle + pump HP 50b
Hand wheel
