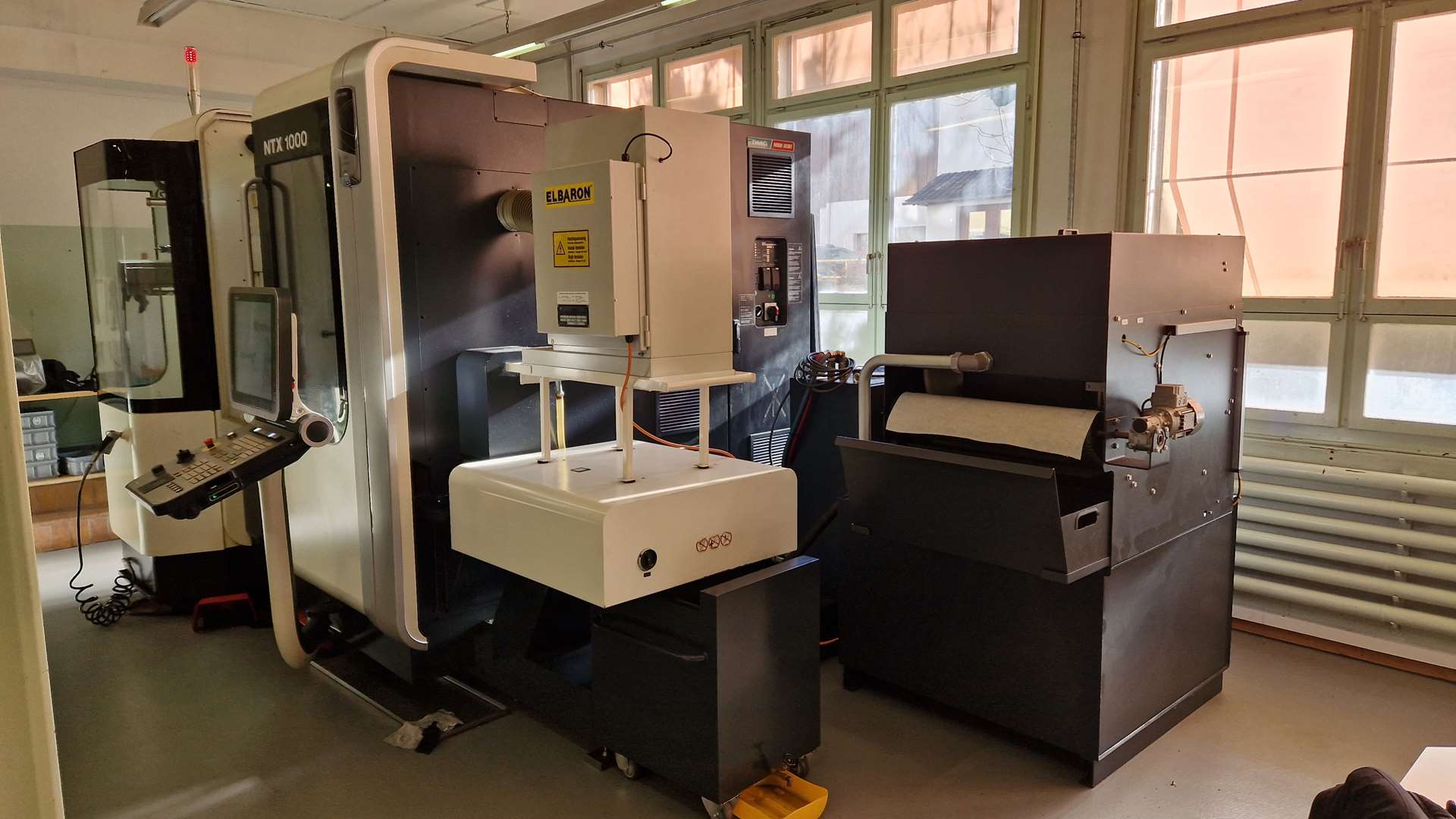

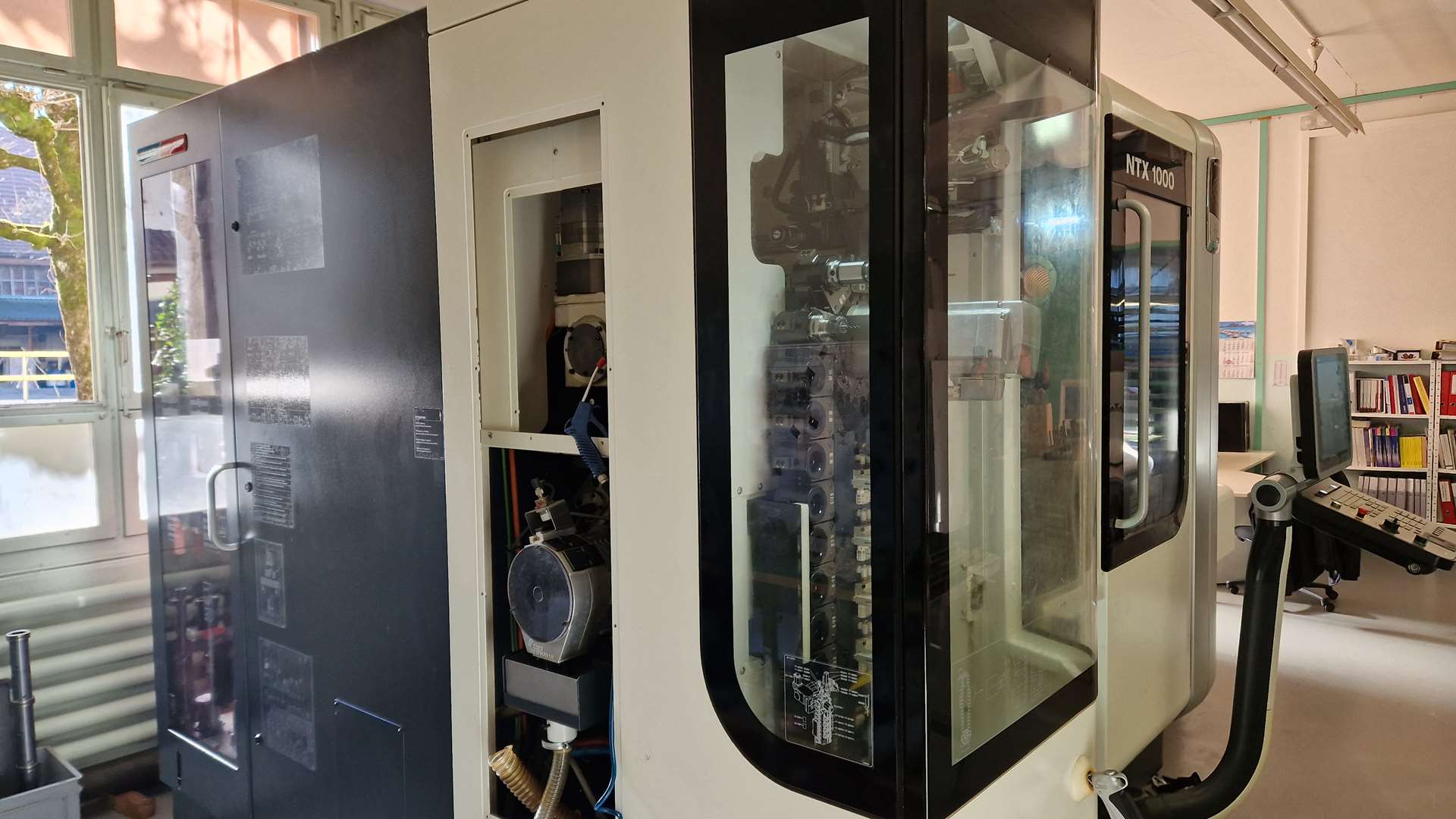

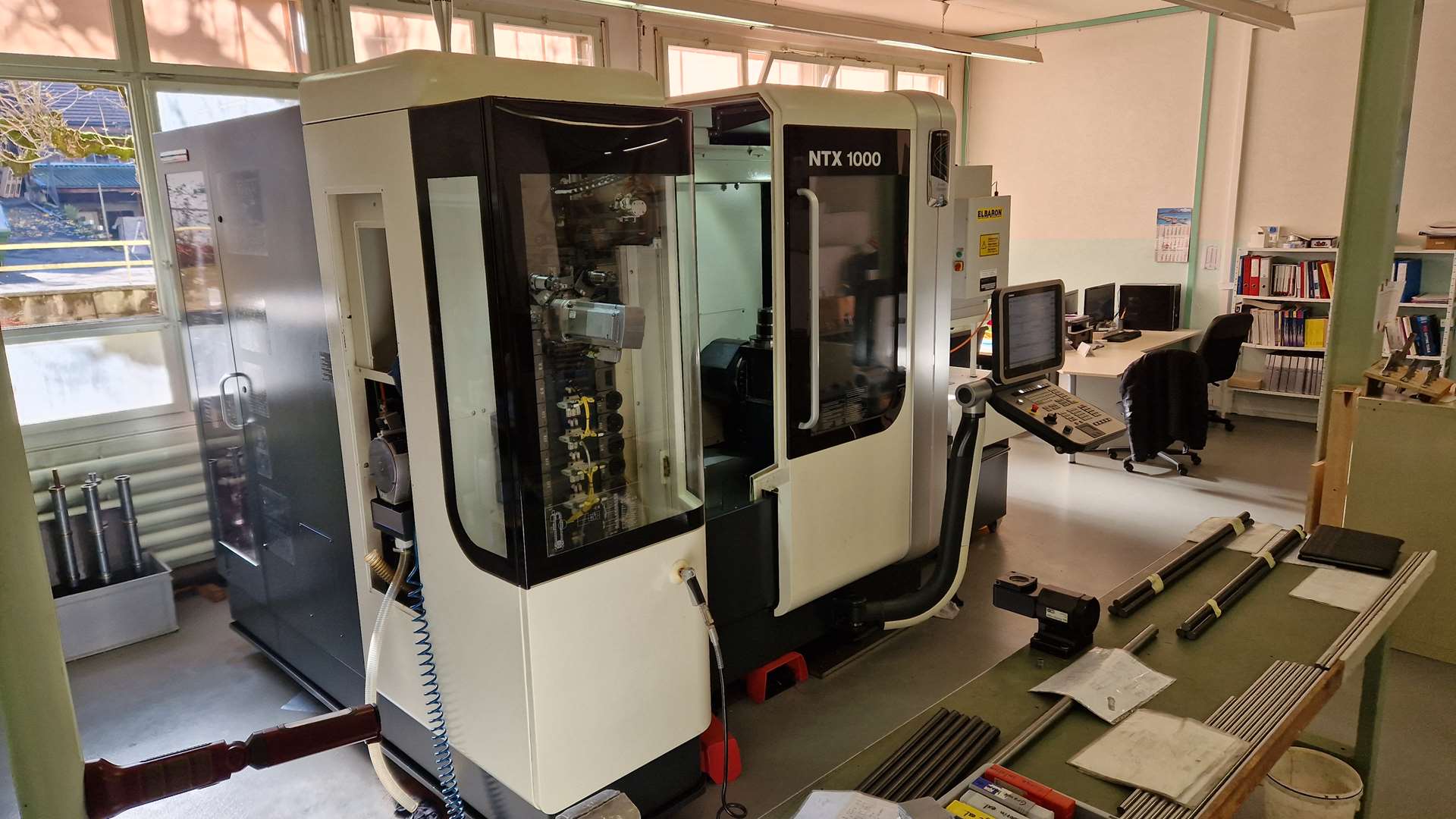

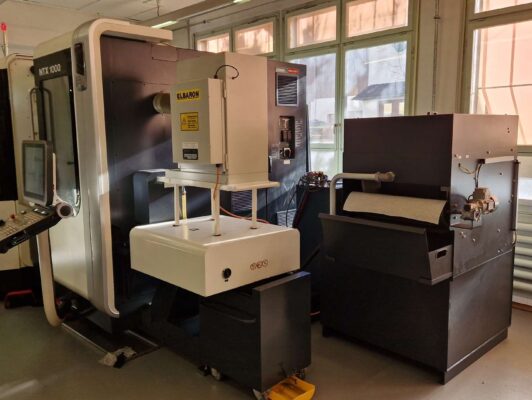

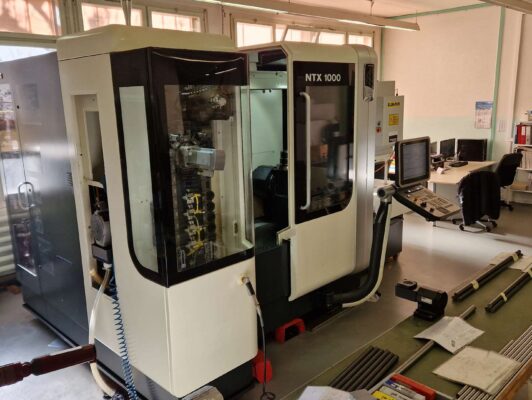

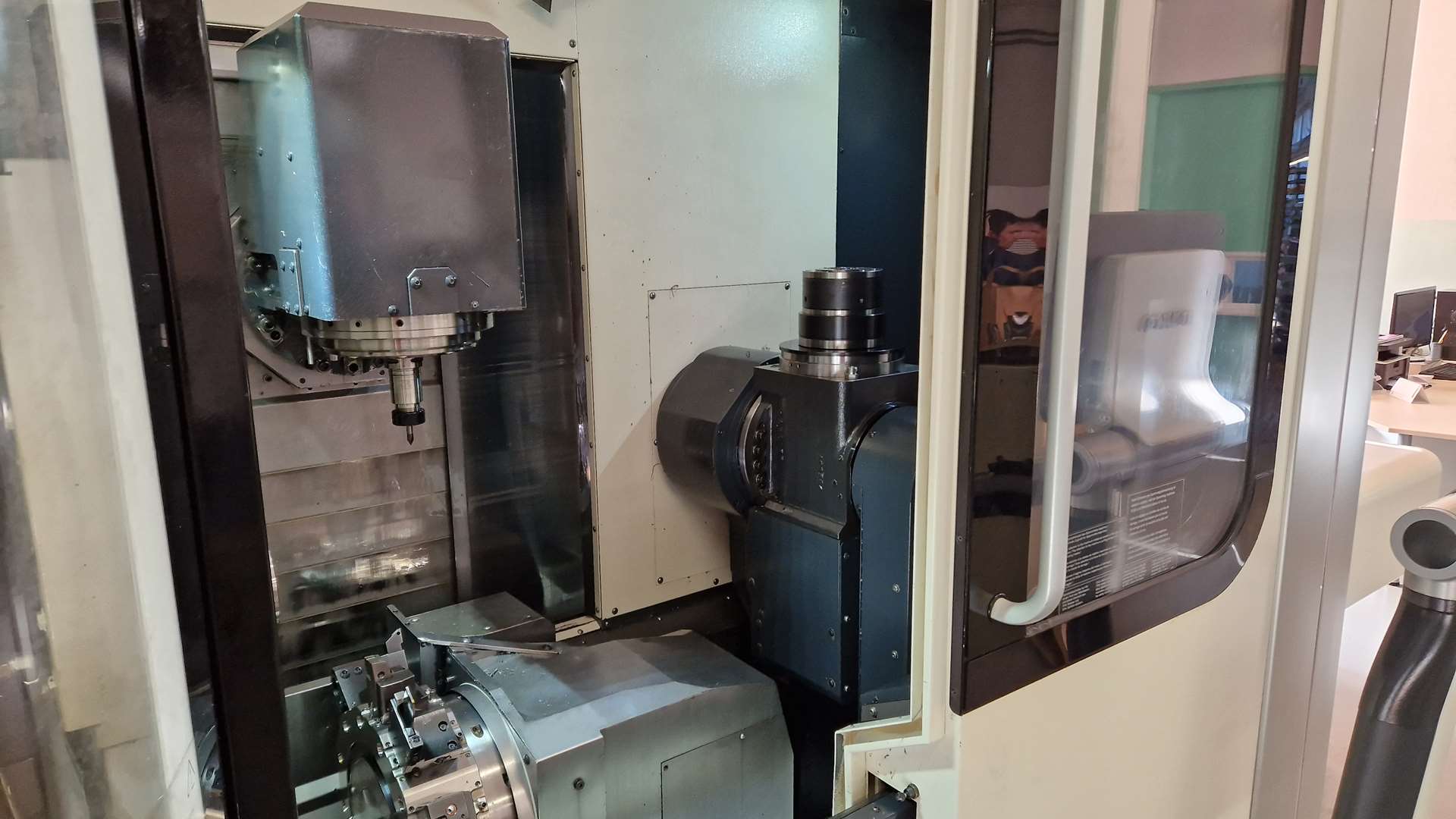

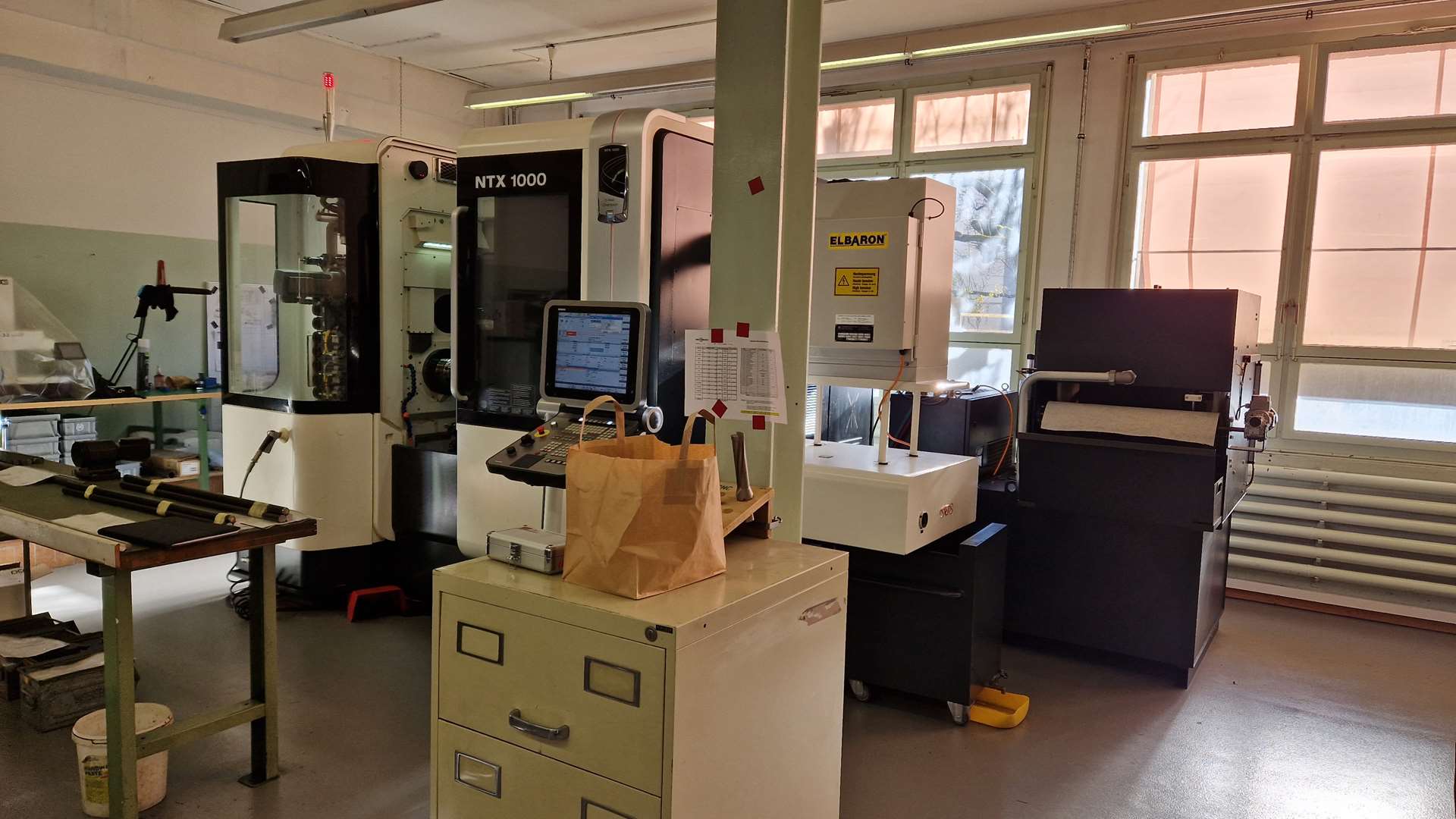

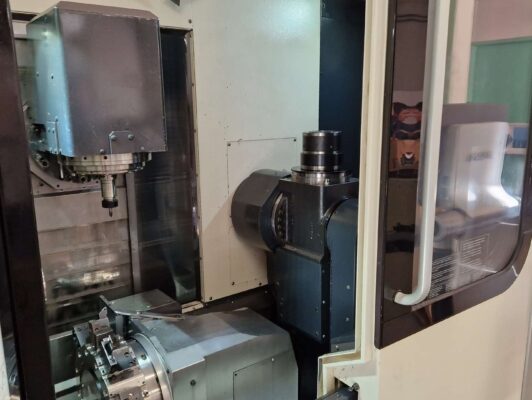

NTX 1000 - Used machine
![Gildemeister](https://www.db-machines.com/wp-content/uploads/2022/10/GILDEMEISTER.png)
Year | 2013 |
Model | NTX 1000 |

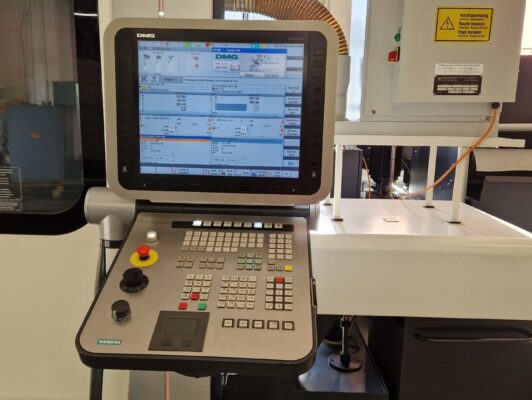

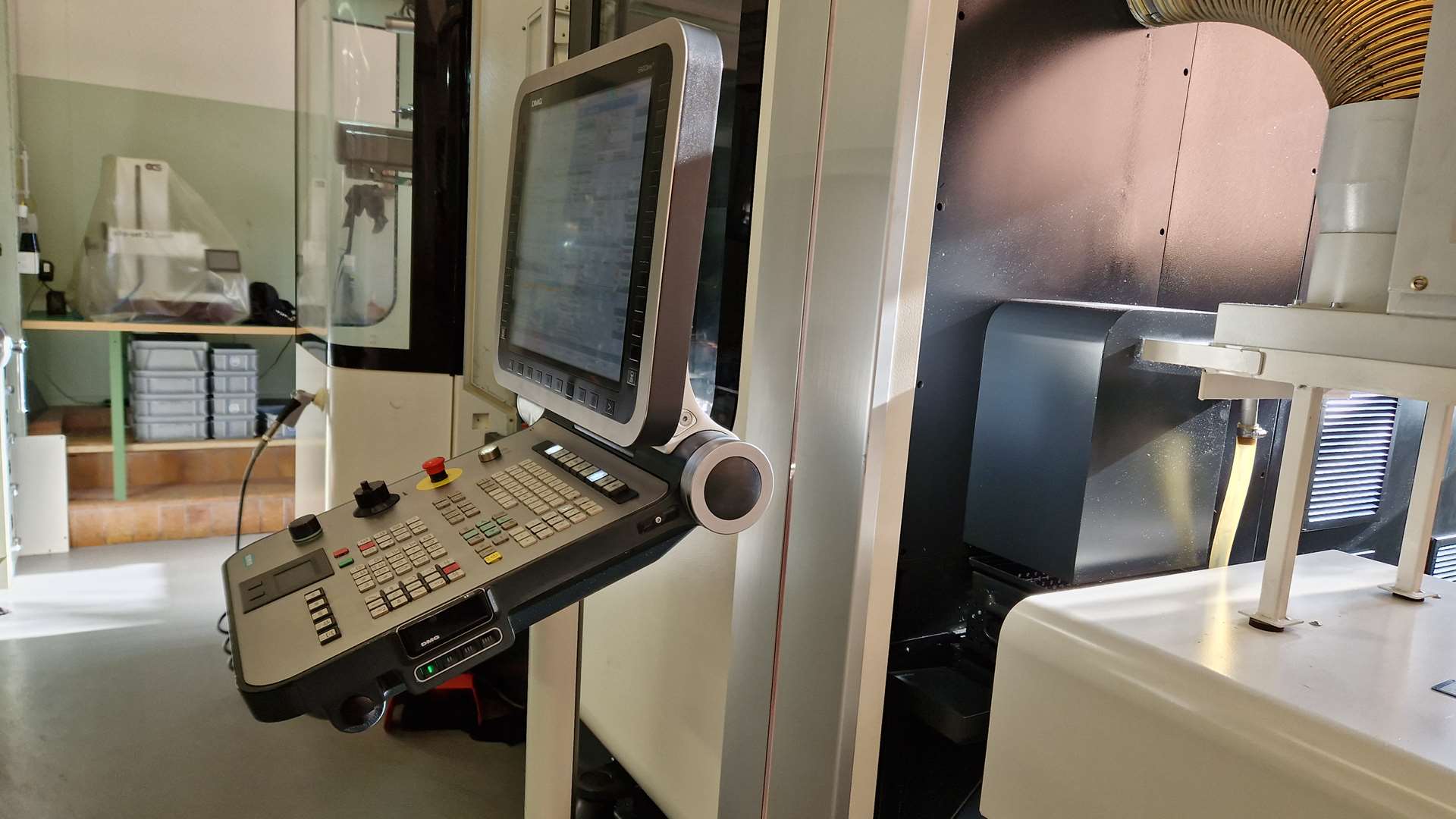

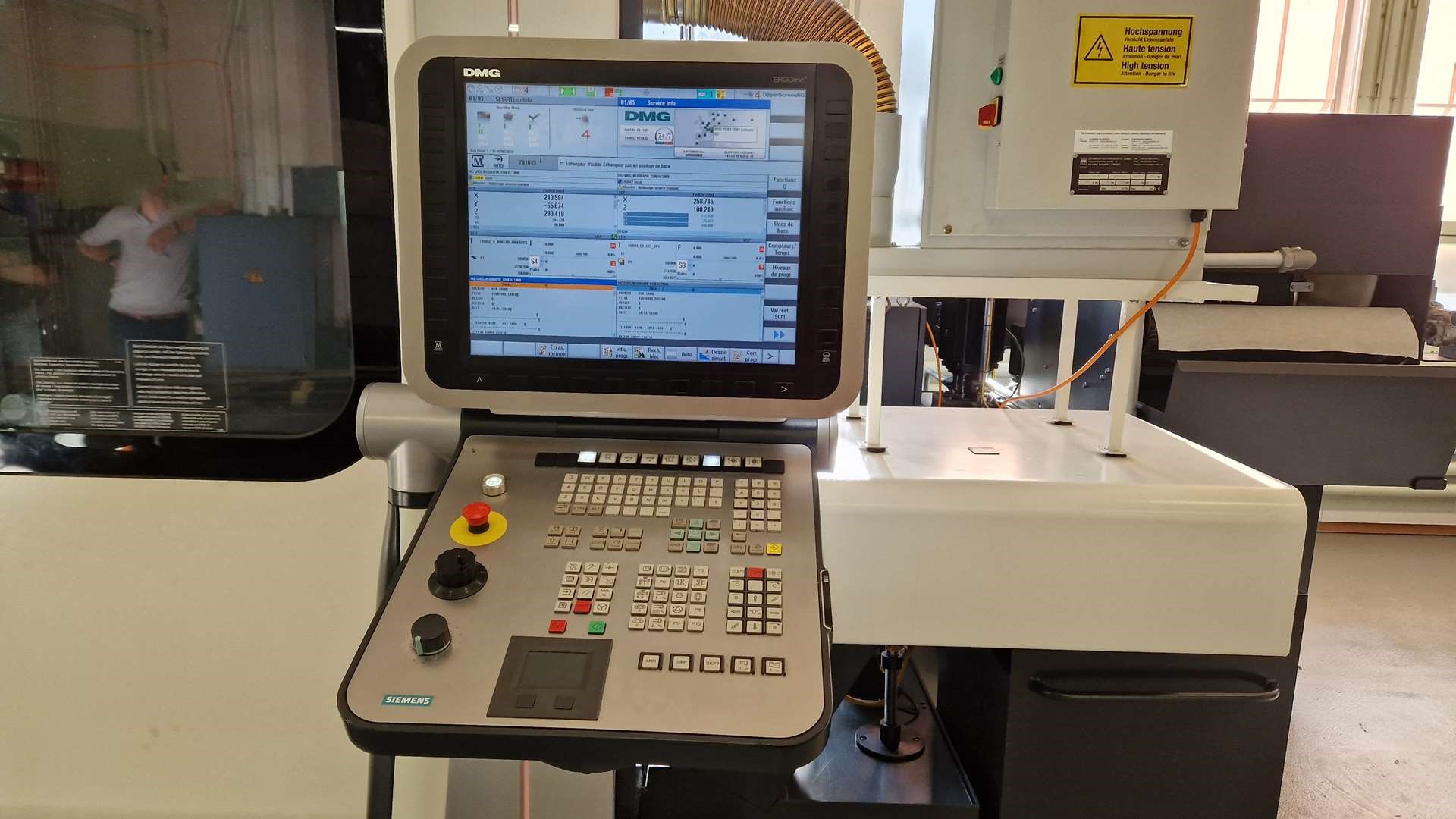

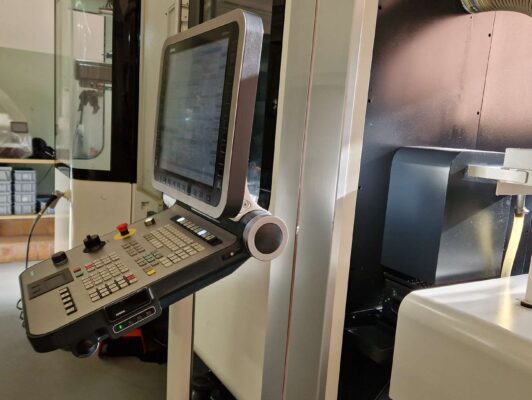

C.N.C. | Sinumerik 840D |
Axis number | 5 |
Number of spindles | 2 |
Turning maximum diameter | 370 mm |
Max turning length | 450 mm |

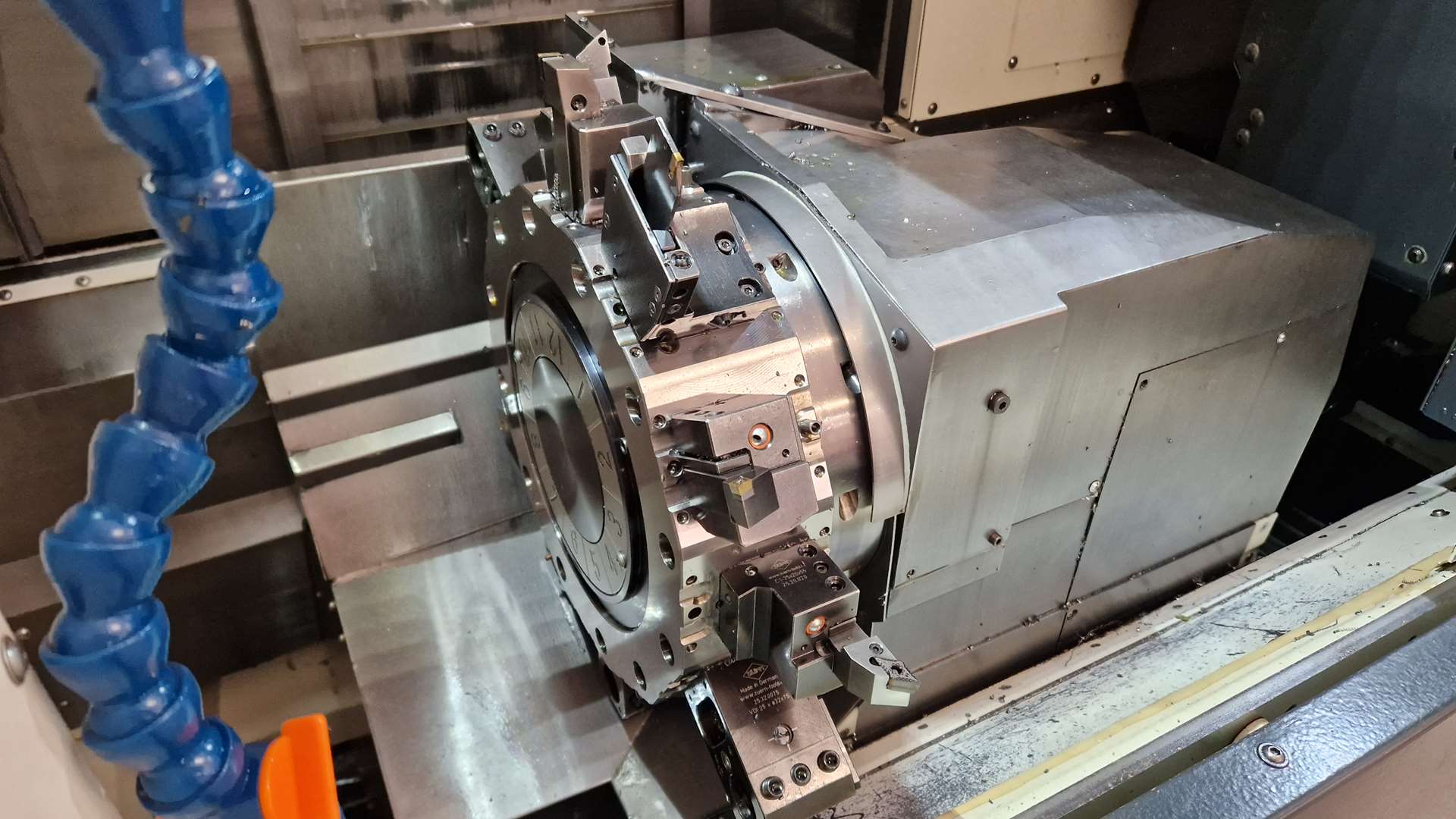

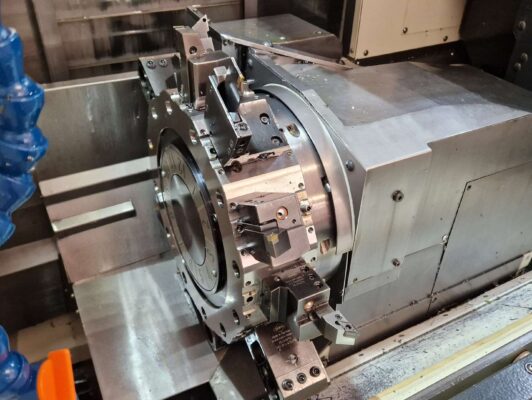

Number of turret | 1 |
Number of stations on turret 1 | 12 |
Fixed number of tools | 12 |
Carriage stroke X2 | 155 mm |
Carriage stroke Z2 | 610 mm |
Rotation speed of the main spindle | 6000 RPM |
Spindle power | 7.5/11 KW |

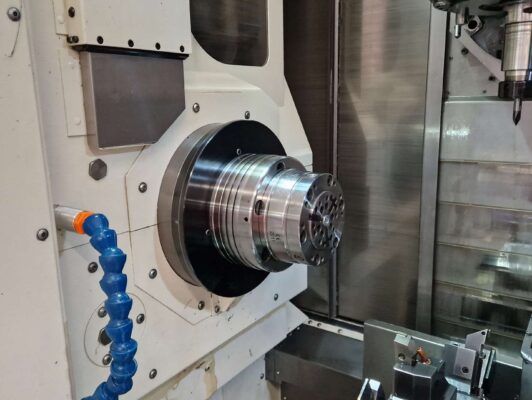

Chuck diameter | 200 mm |

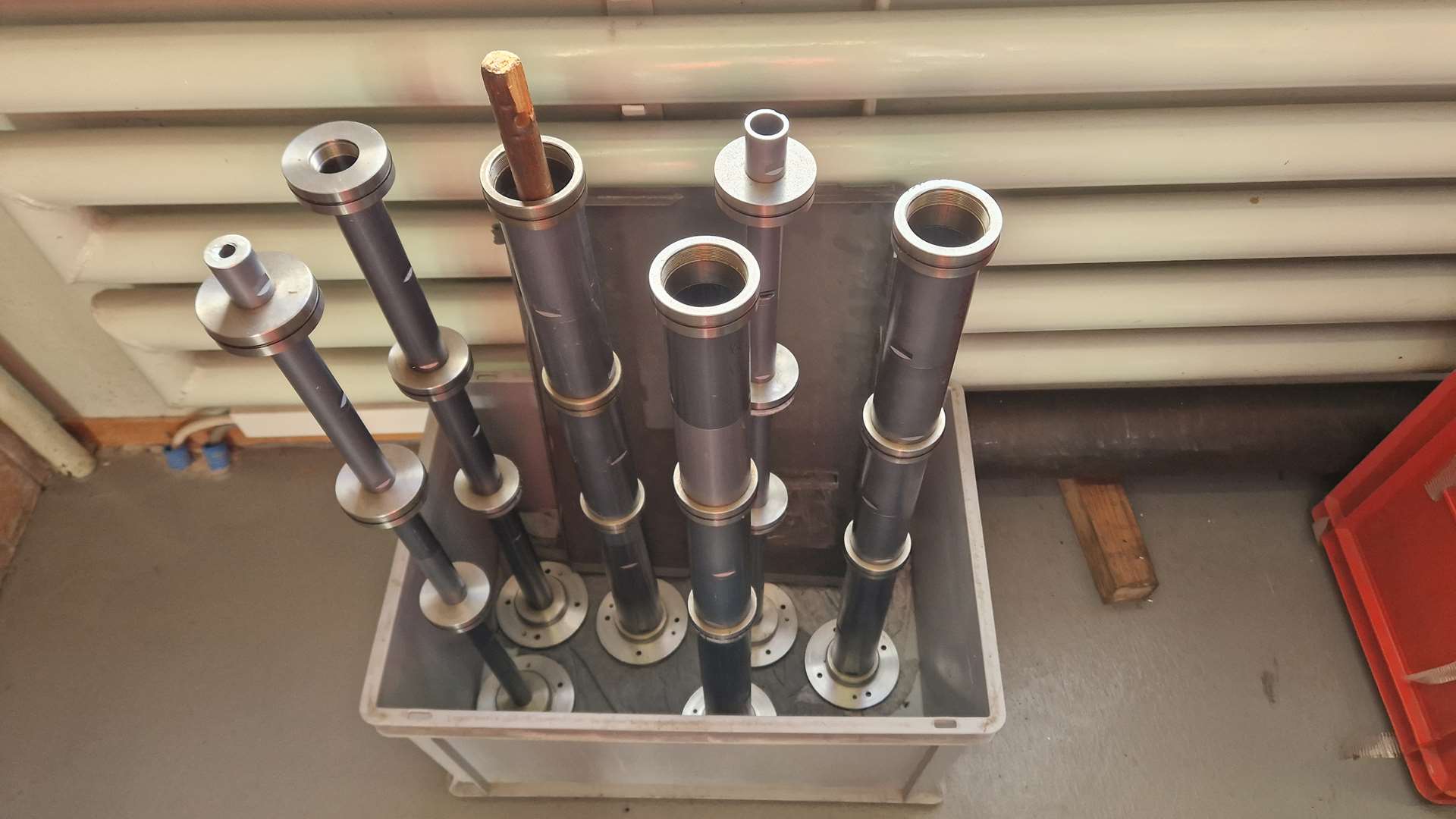

Bar diameter | 51 mm |
Spindle nose | JIS A2-6 |
Hole through spindle | 73 mm |
Counter spindle speed | 6000 RPM |
Max. counter-spindle drive power | 5.5/7.5 KW |
Diameter of counter-spindle chuck | 140 mm |
Counter-spindle nose | 80h5 mm |
Counter spindle bore diameter | 38 mm |

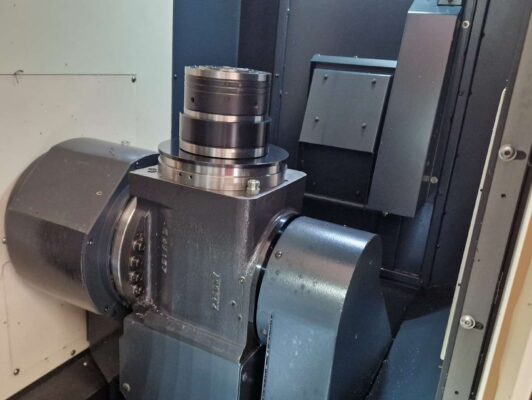

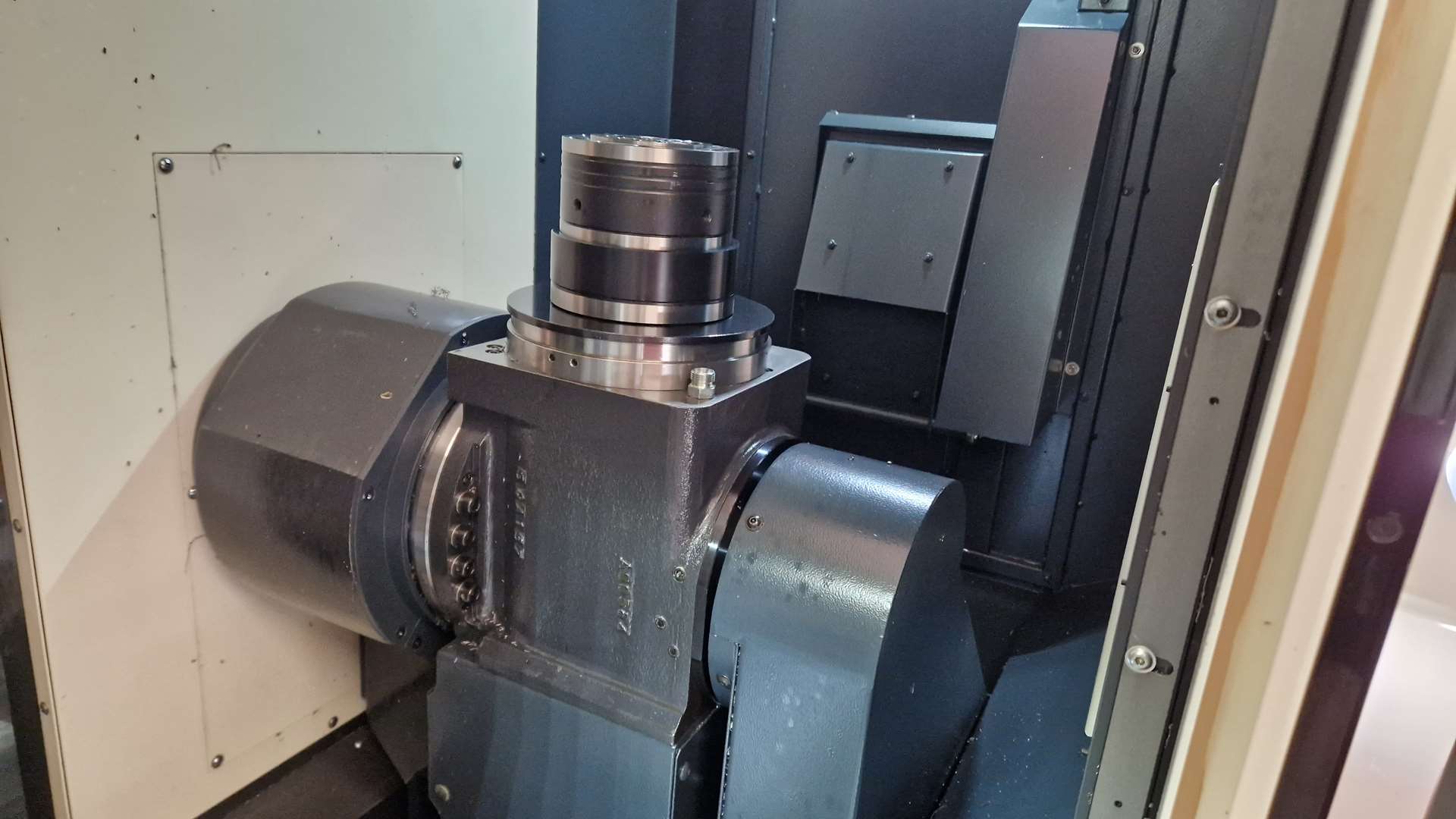

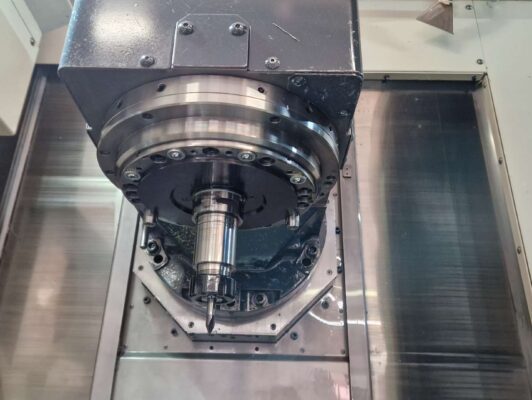

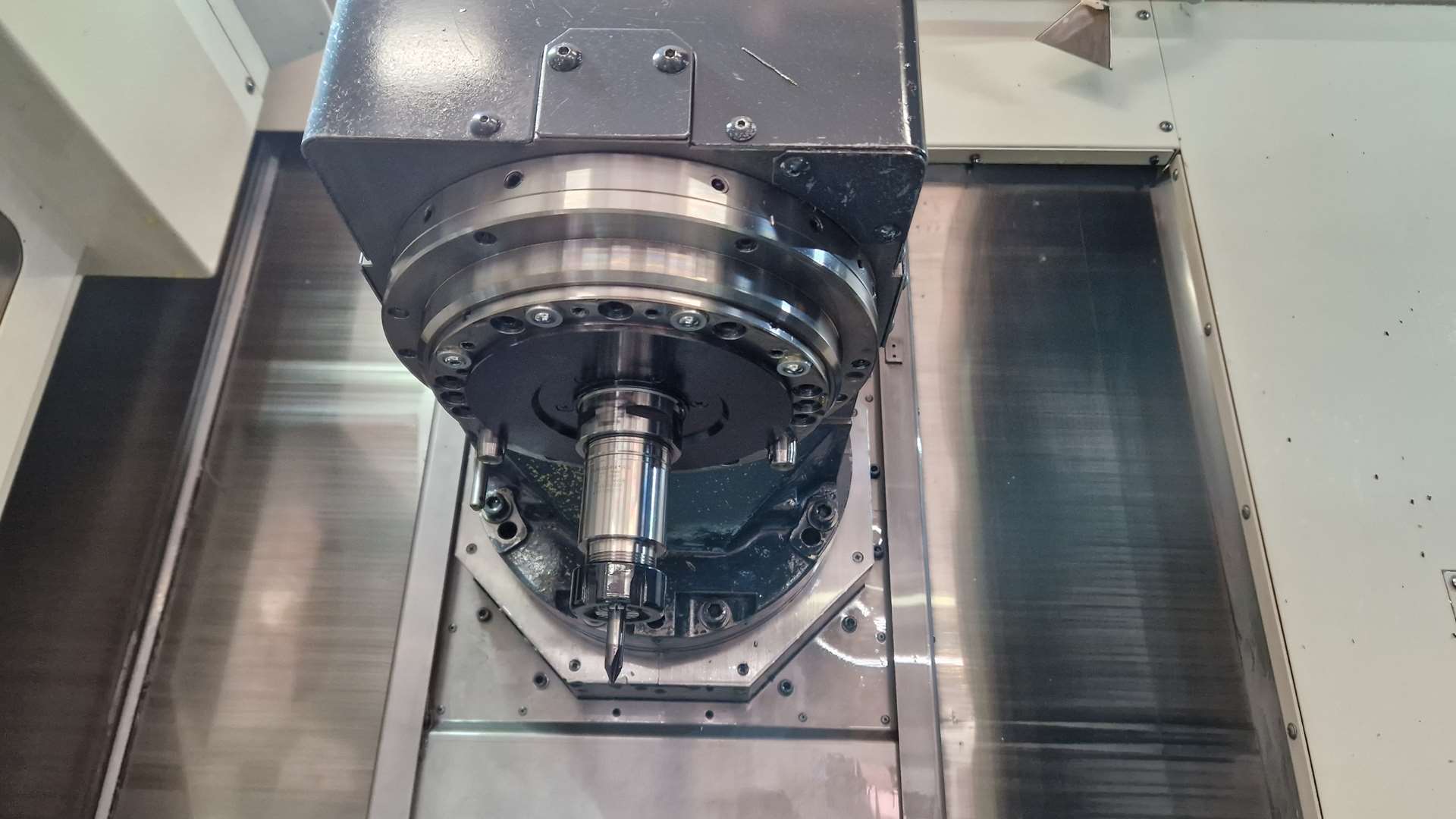

B axis | 0-225° at 40 RPM |
Carriage stroke X1 | 380 mm |
Travel of the axe Y | +-105 mm |
Carriage stroke Z1 | 454+161 (for ATC) mm |
Rapid traverse X/Y/Z | 40/40/50 m/mn |

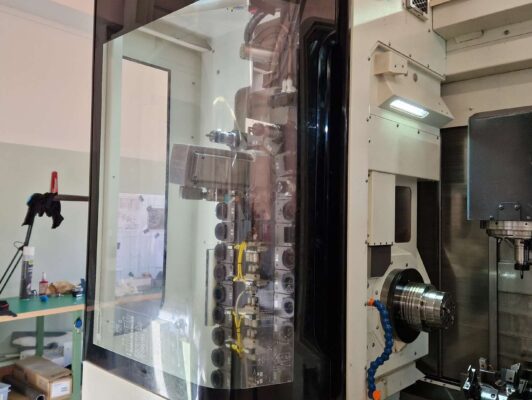

Tool storage | 38 |
Max tool diameter | 70 mm |
Max length of the tools | 250 mm |
Max weight of the tools | 5 kgs |
Dimensions | 3570x2690x2870 mm |
Weight | 8500 Kg |
Equipment

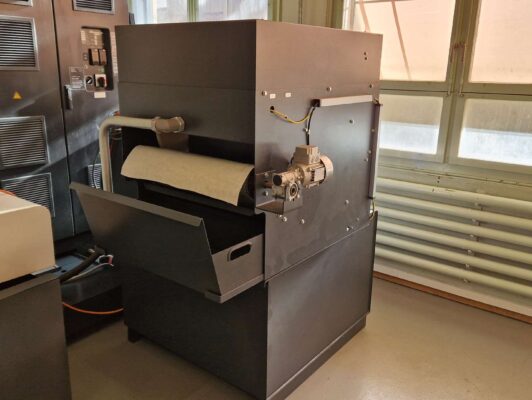

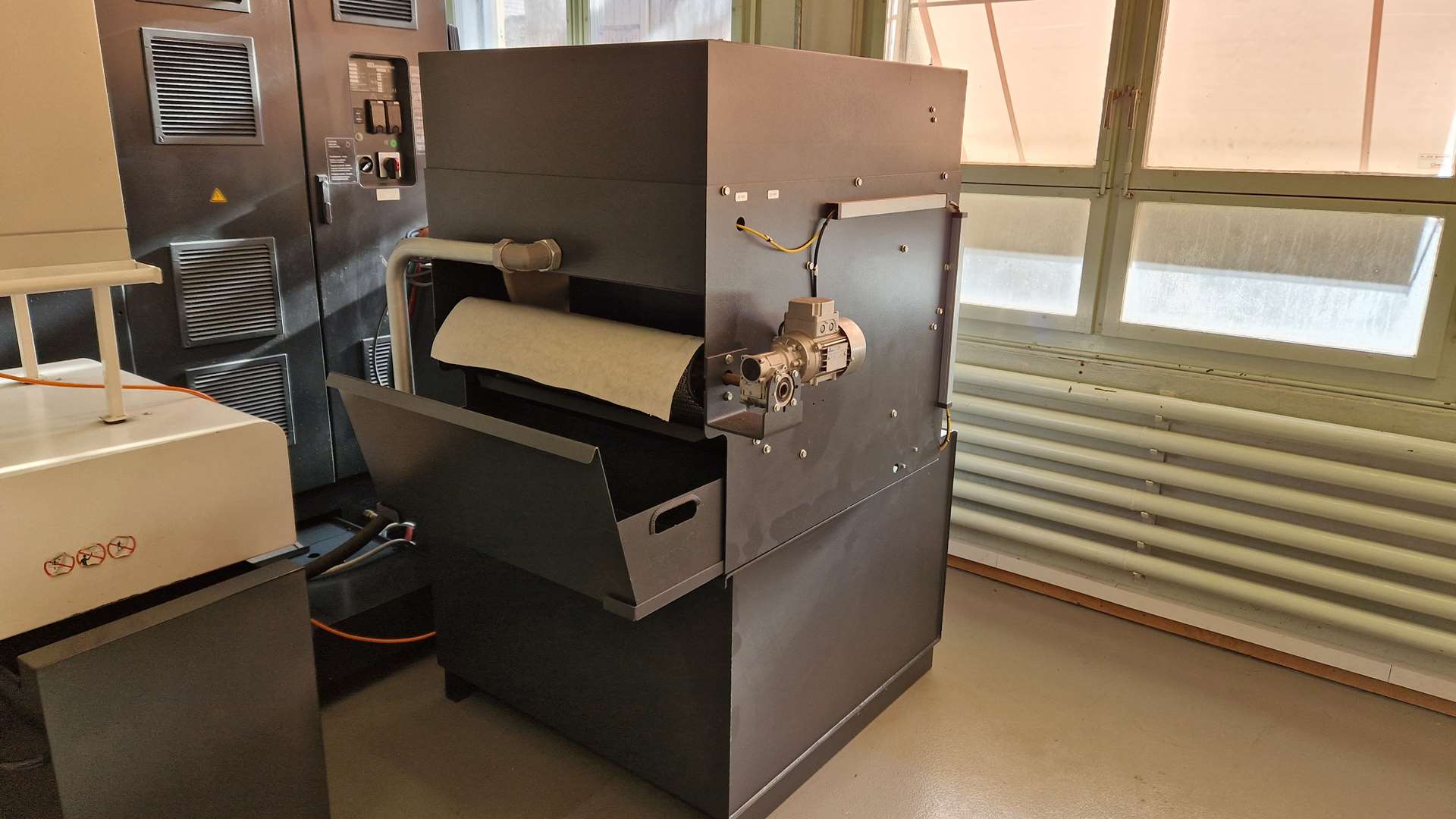

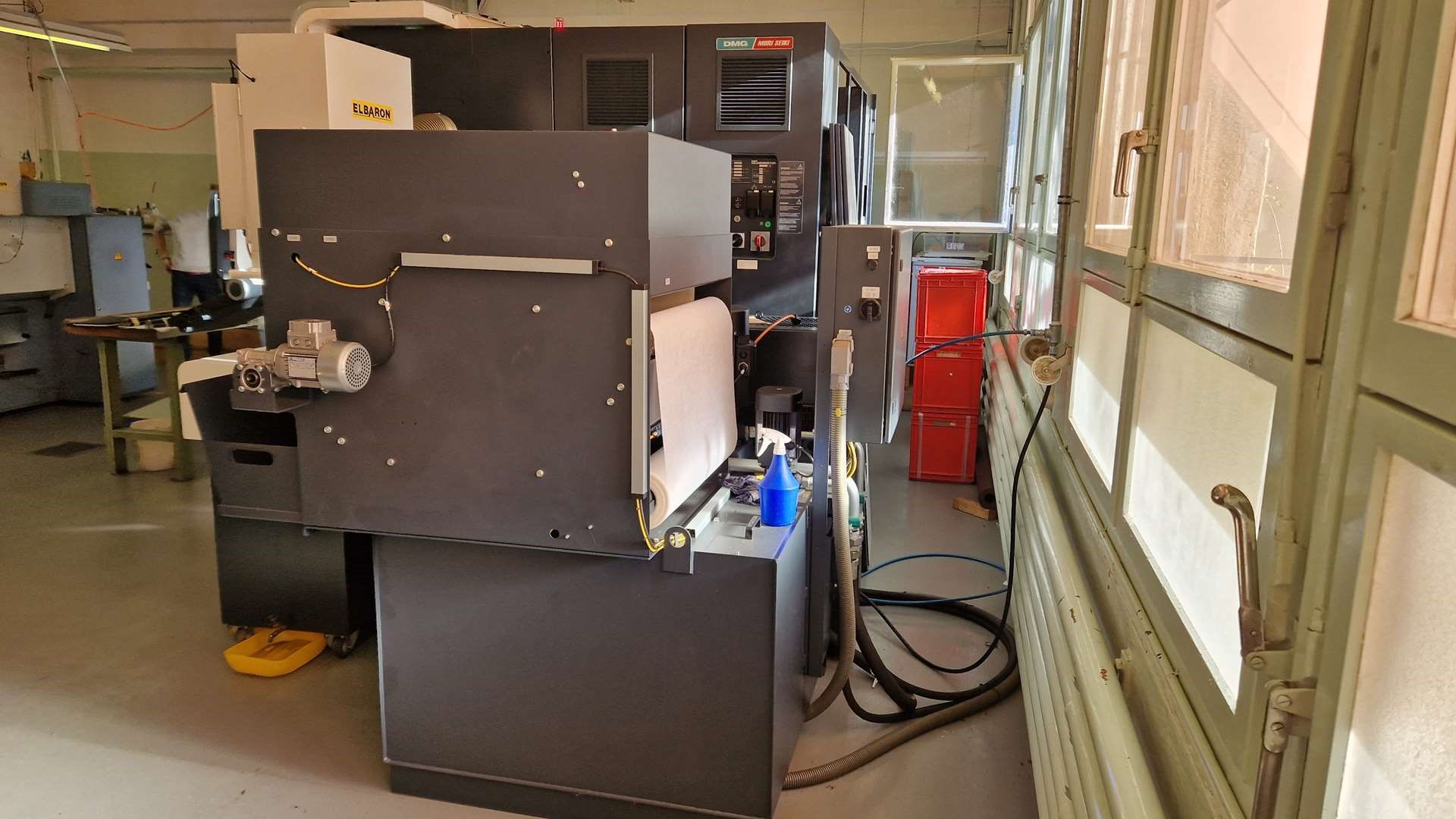

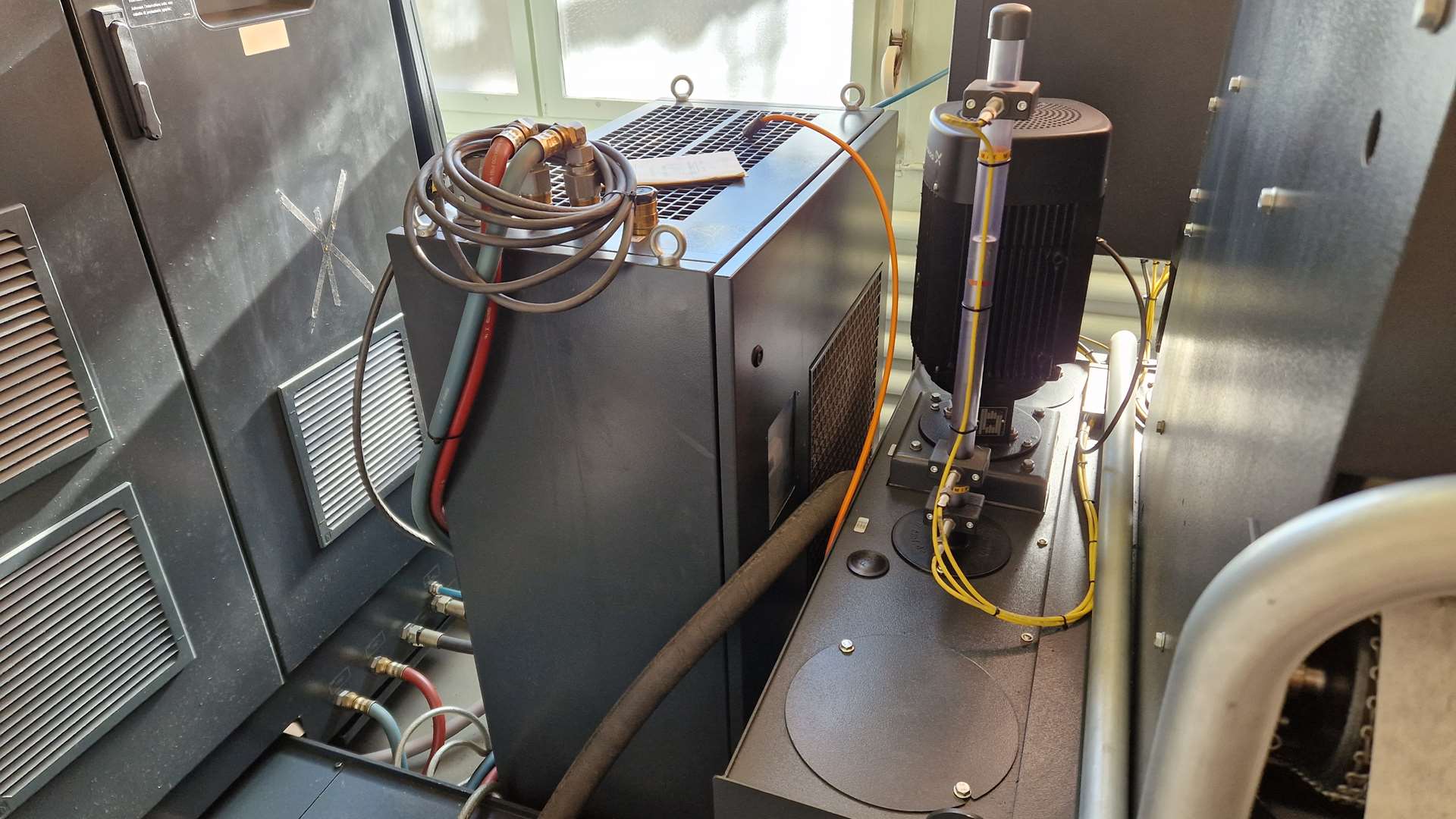

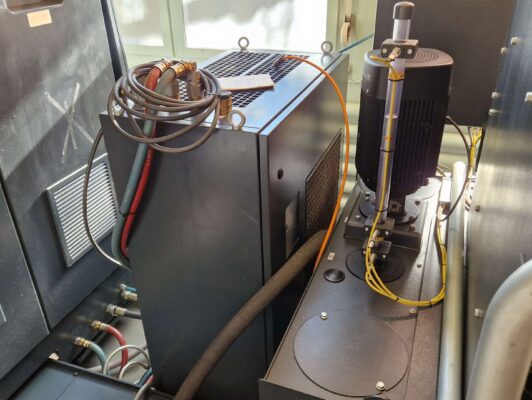

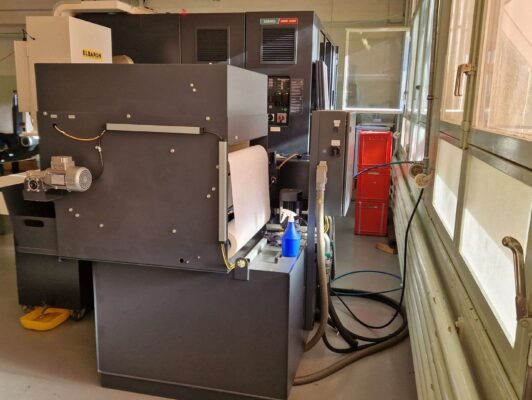

Coolant system 8/20 bar including :
– 600l tank,
8 bar/20l/min and 20 bar/40l/min
Choice by M function,
With supply via turning/milling spindle
Connection for bar-feeder
