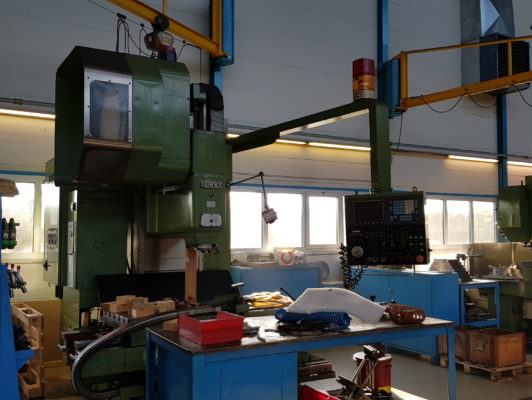

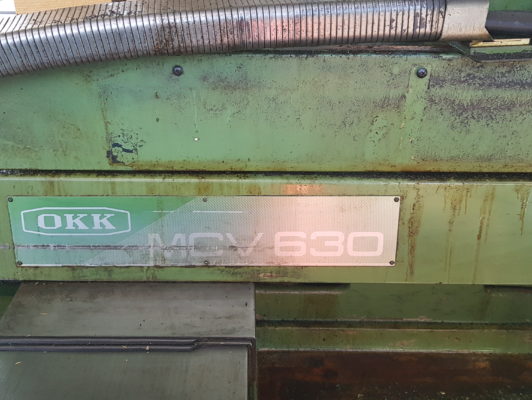

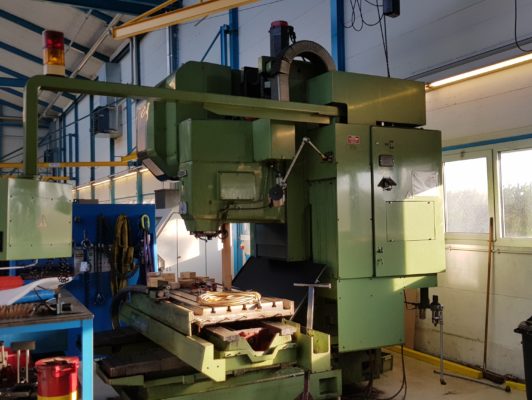

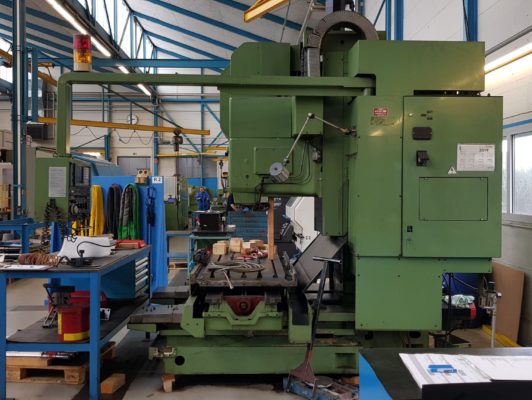

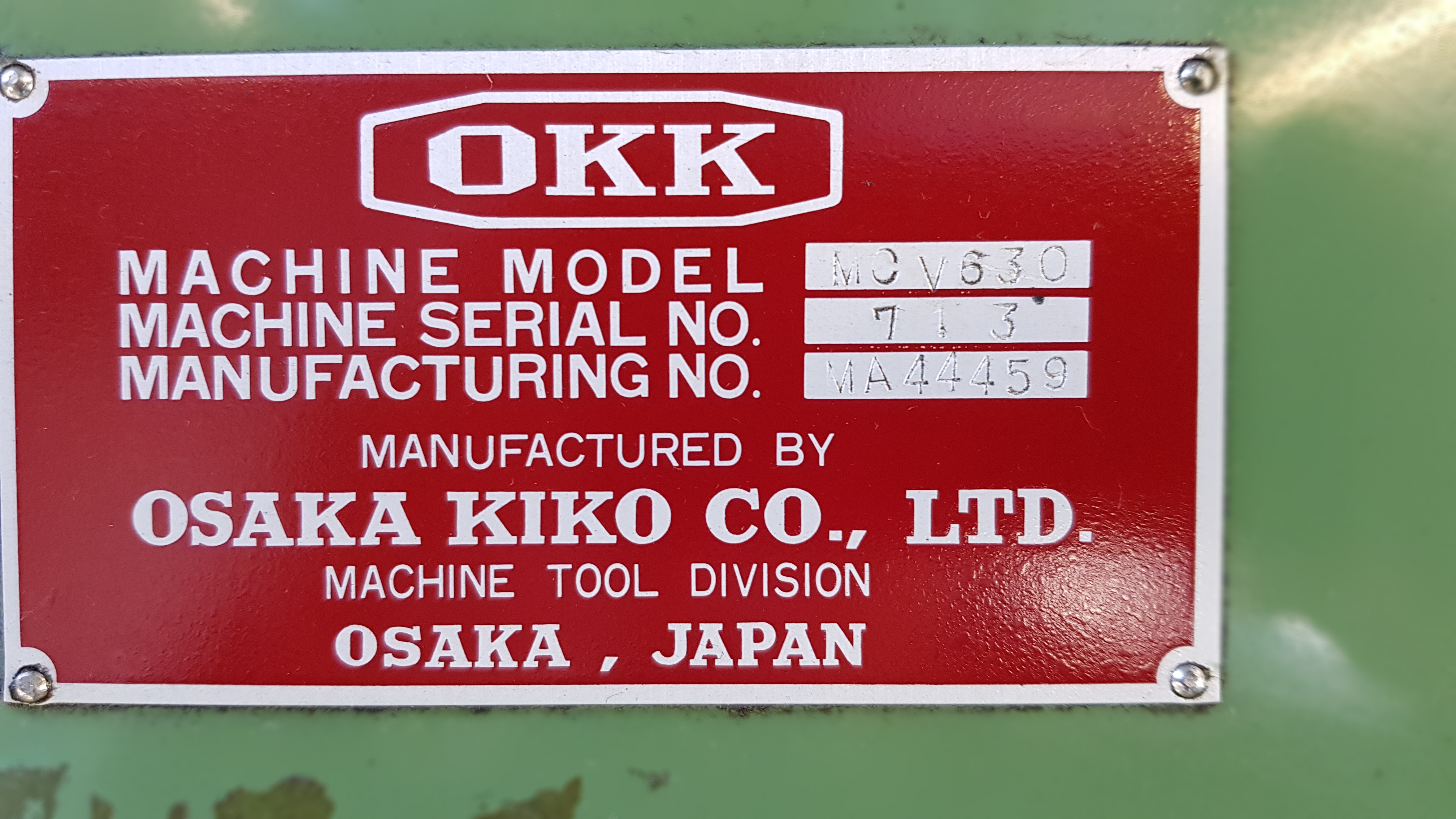

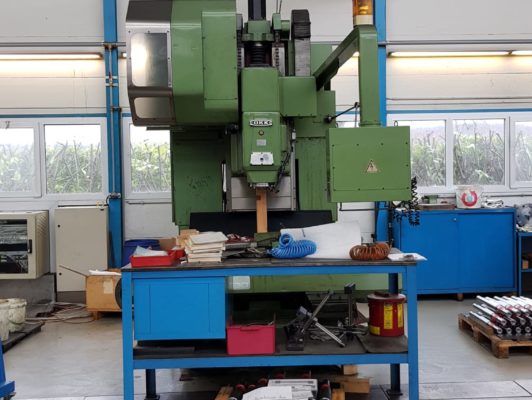

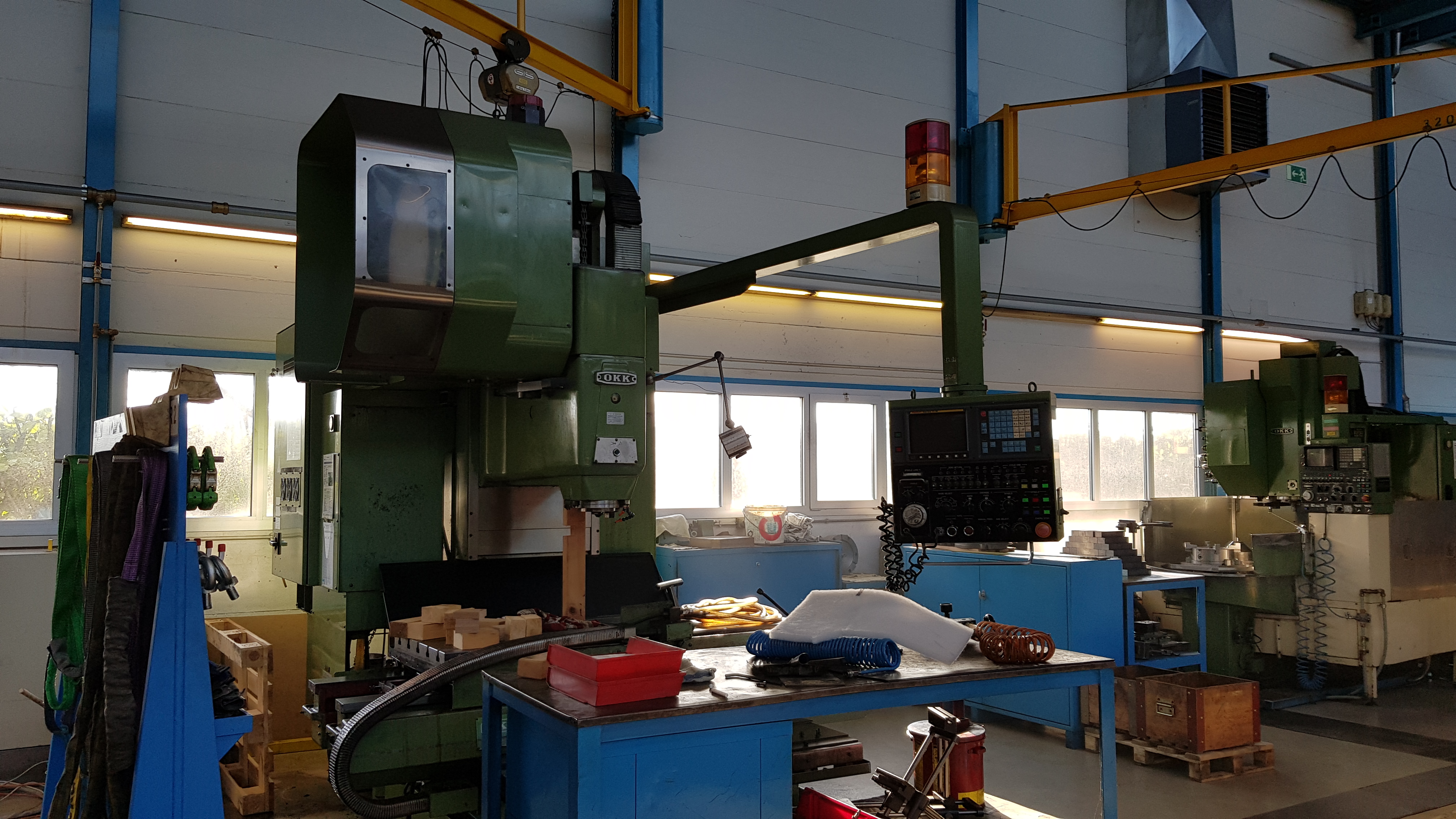

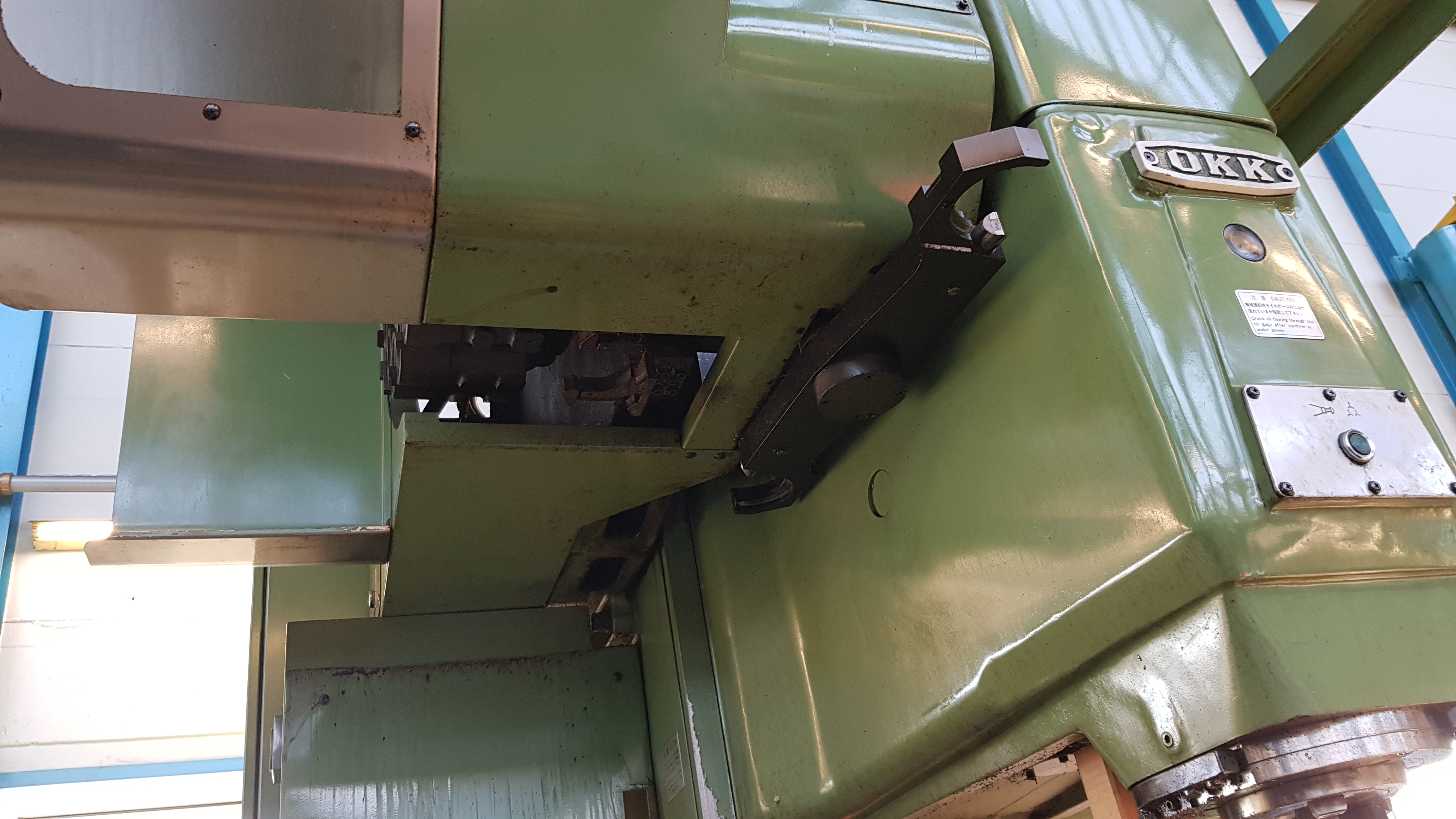

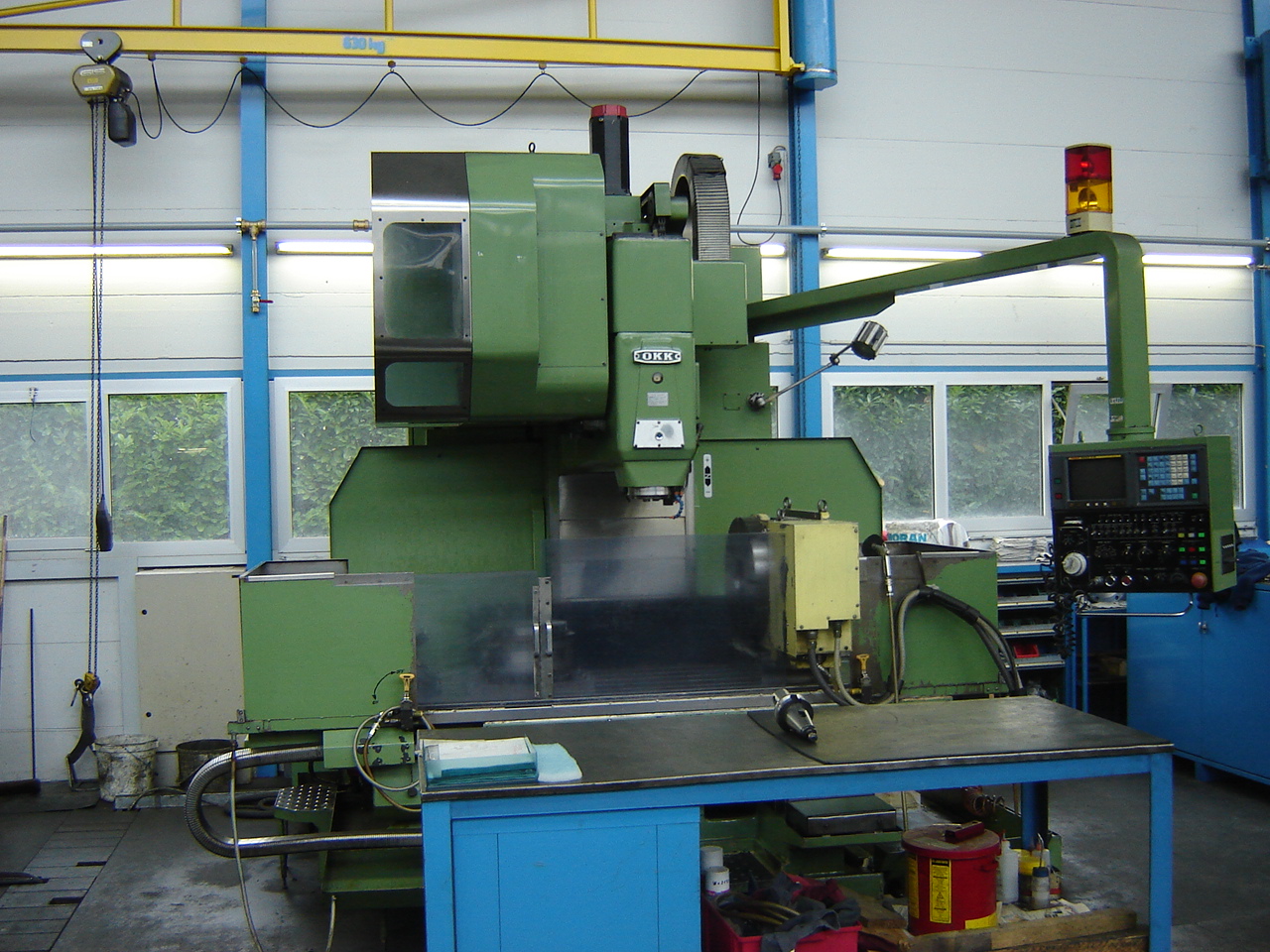

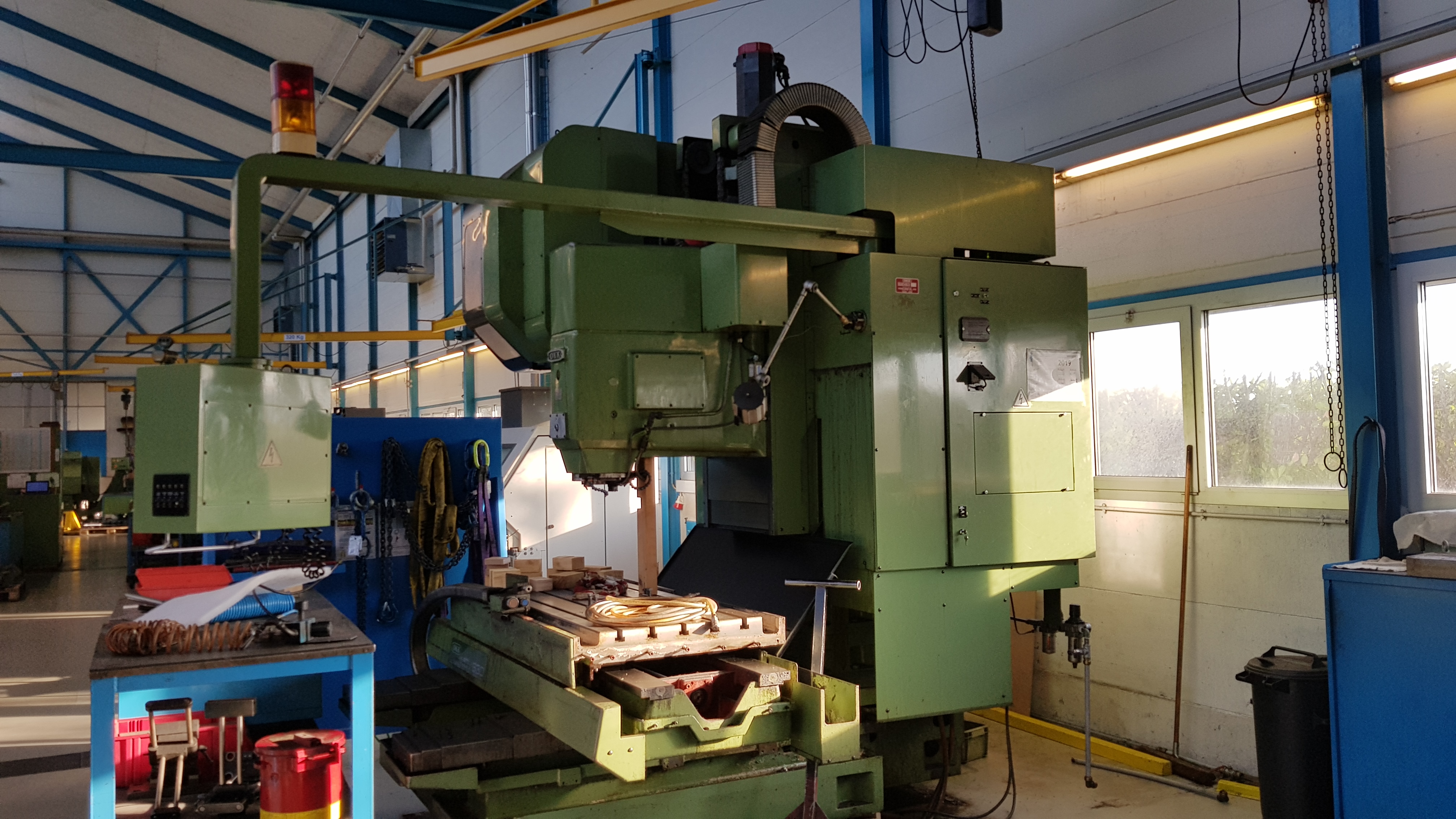

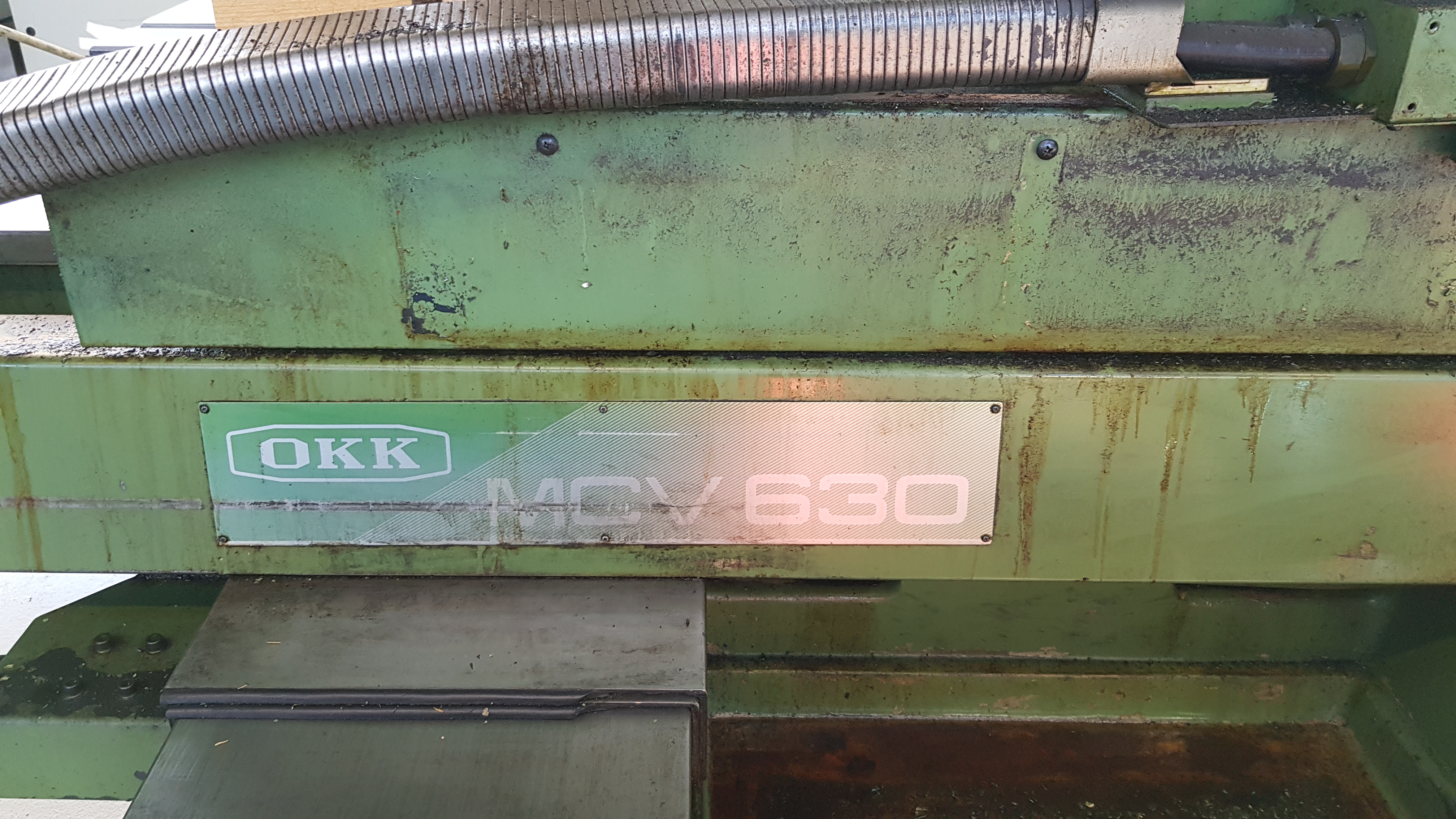

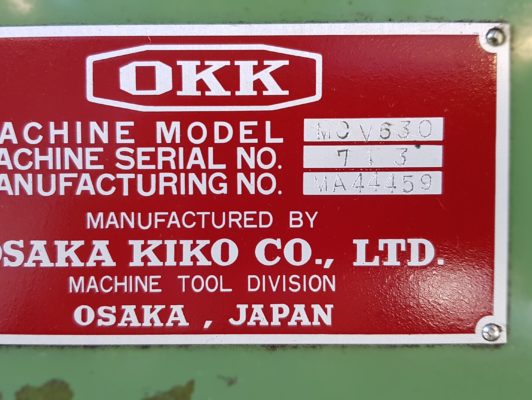

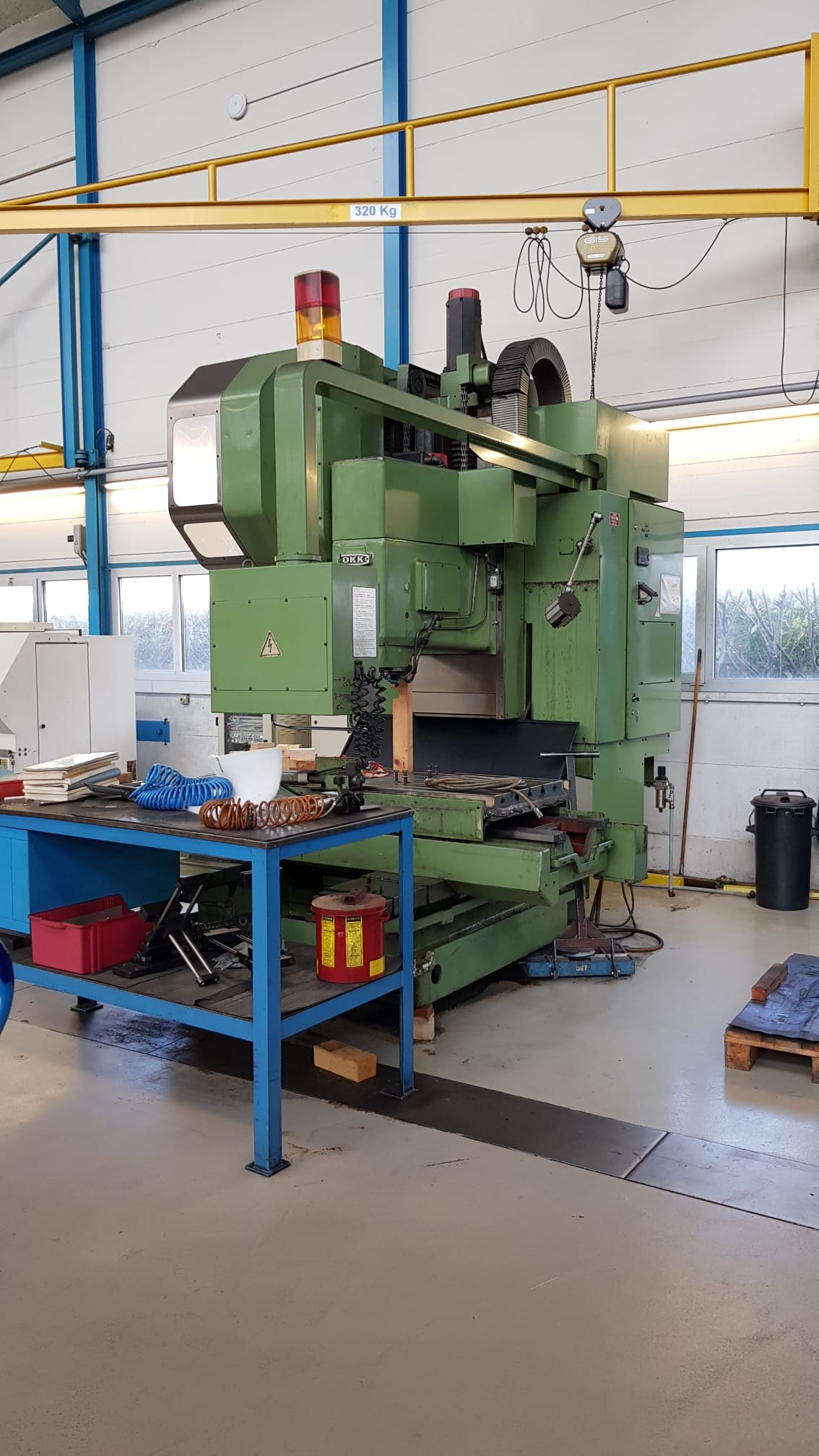

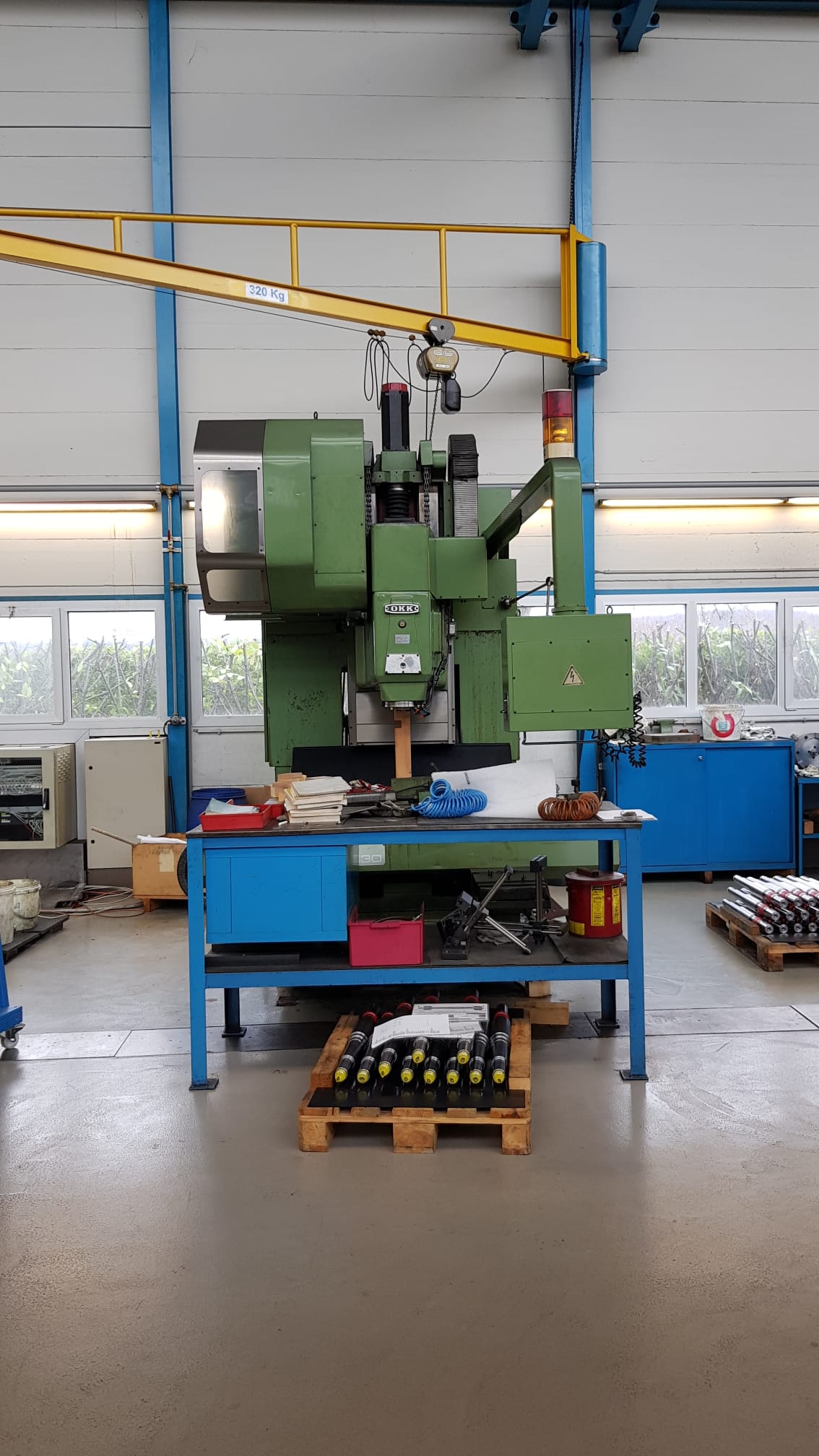

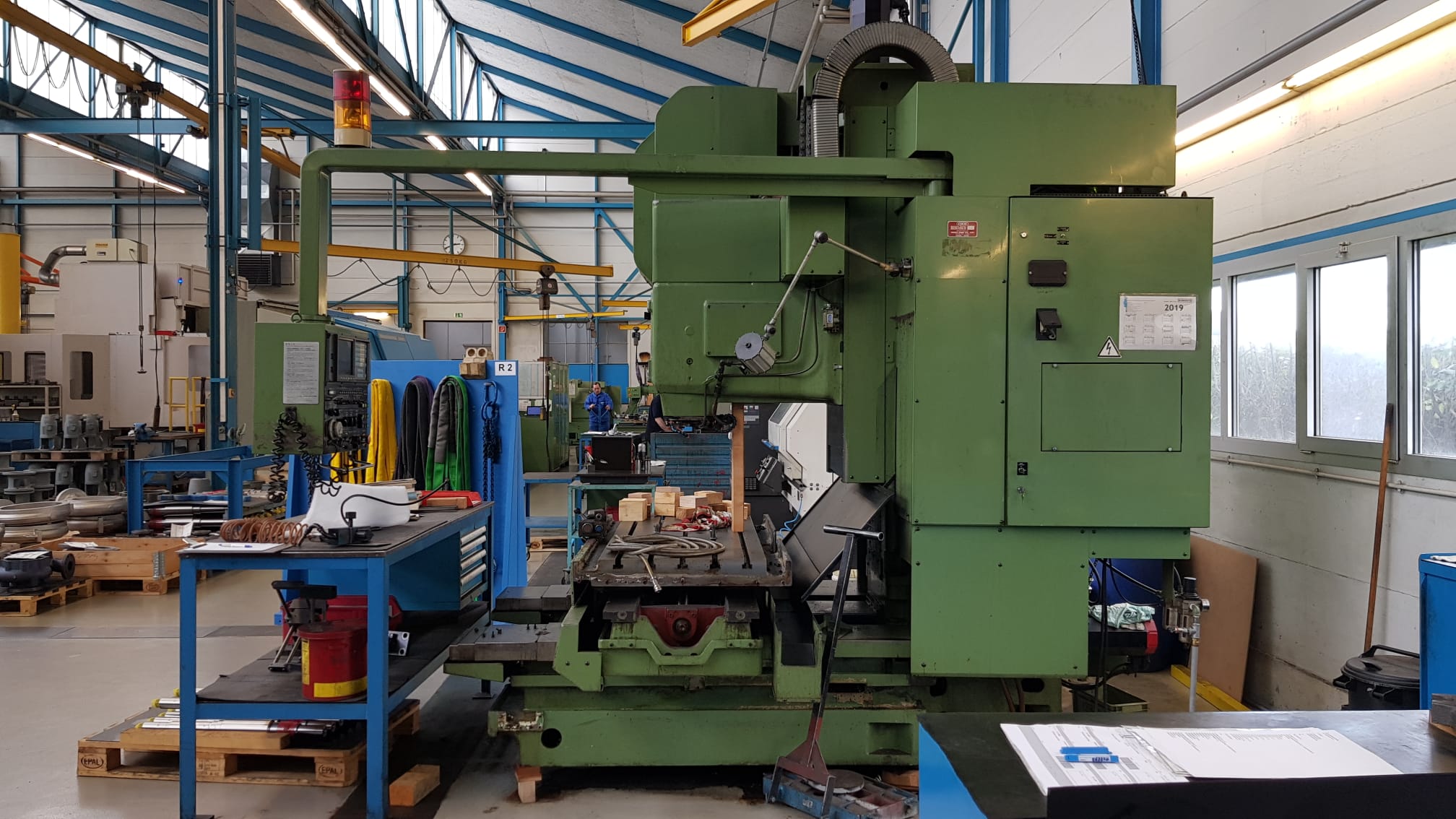

OKK MCV 630 - Used machine
SOLD

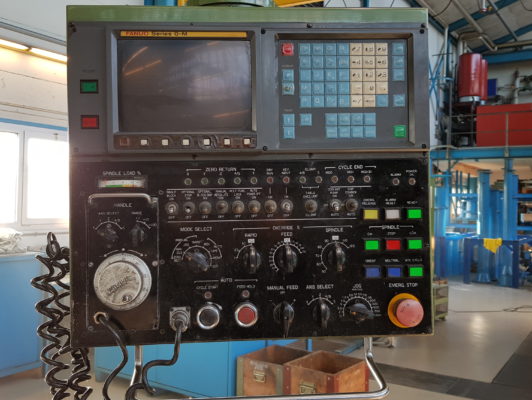

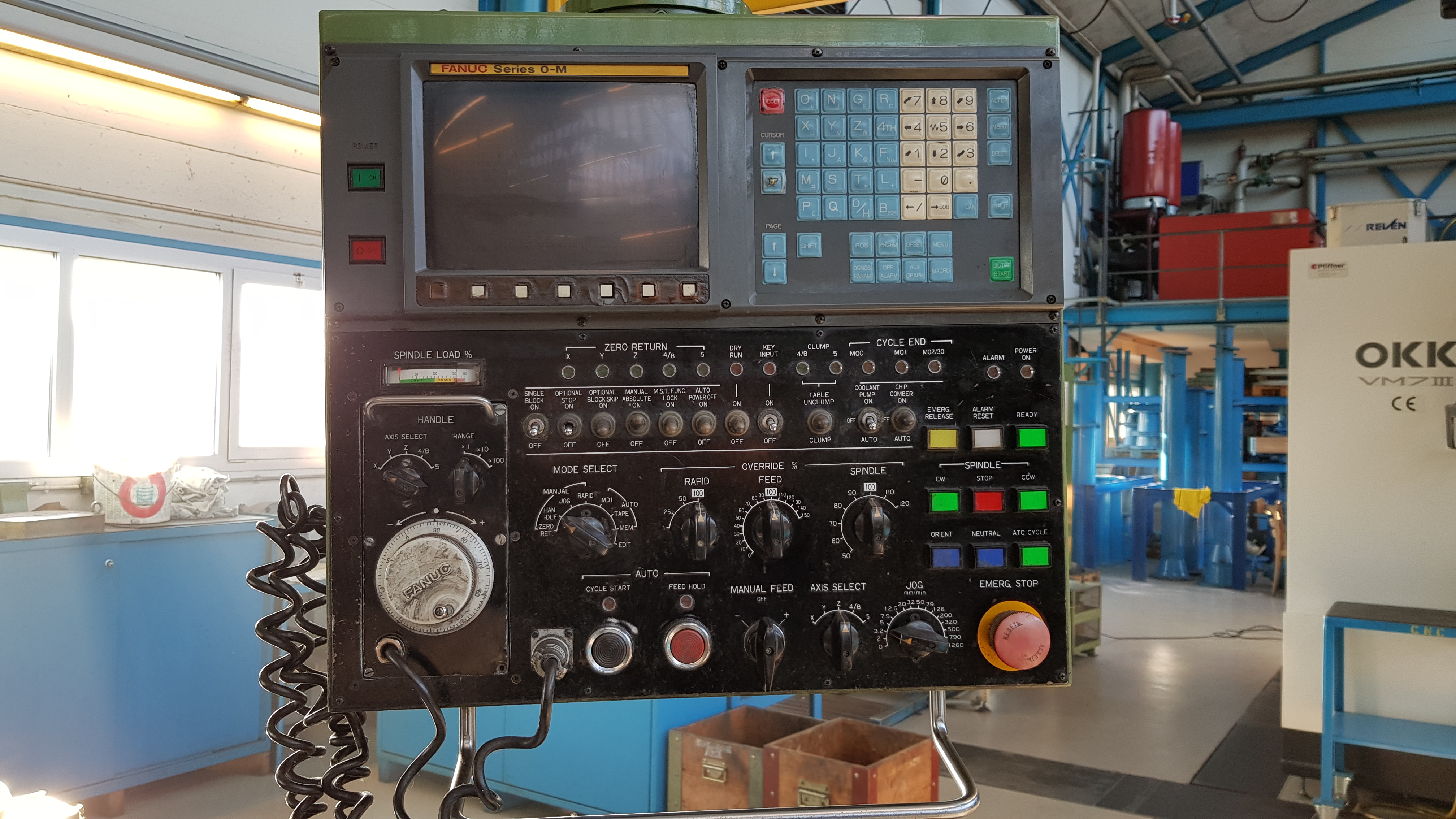

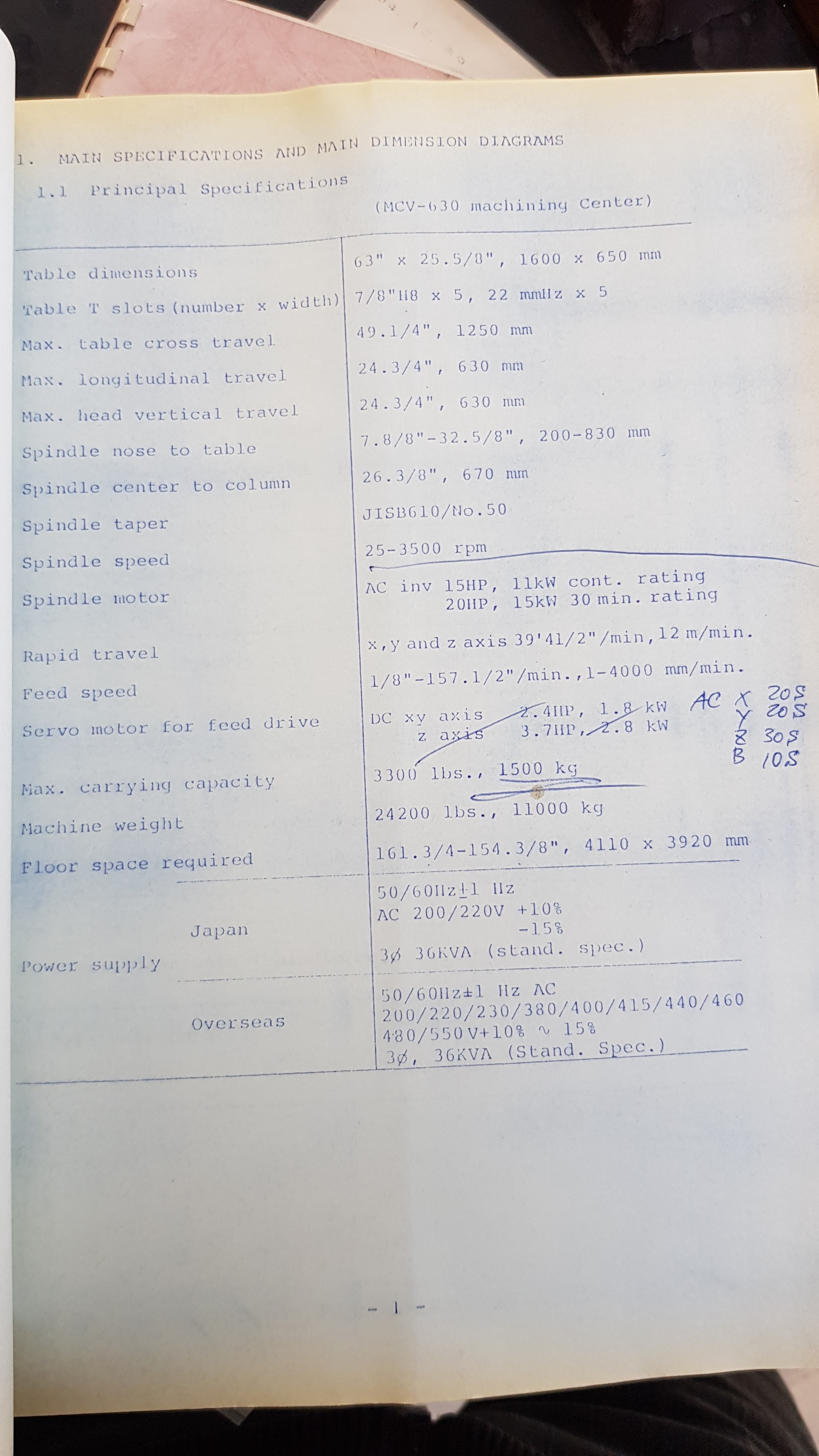

| C.N.C. | Fanuc Series O-M |

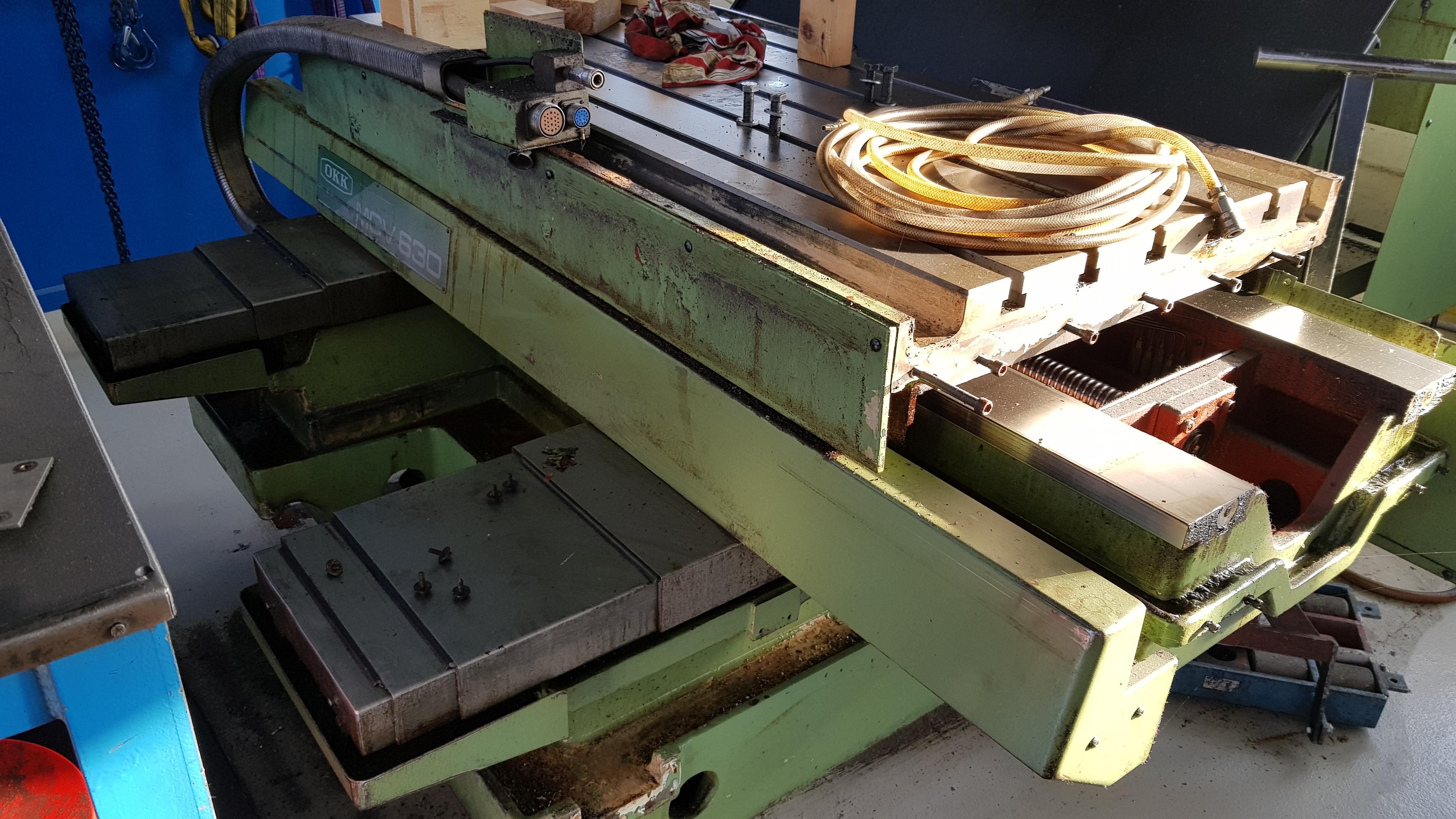

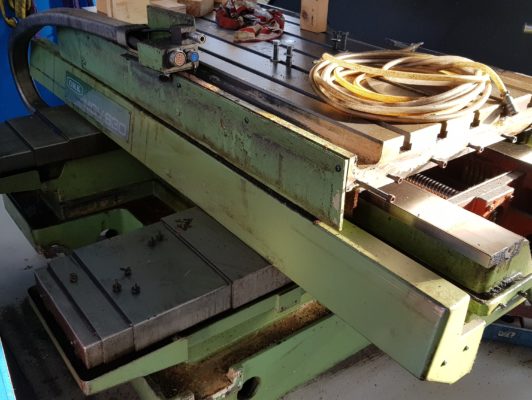

| Table size | 1600 x 650 mm |
| Longitudinal travel | 1200 mm |
| Cross travel | 630 mm |
| Vertical stroke | 630 mm |
| Maximum weight on table | 1500 Kg |
| min/max distance between the vertical spindle and the table | 200 / 830 mm |

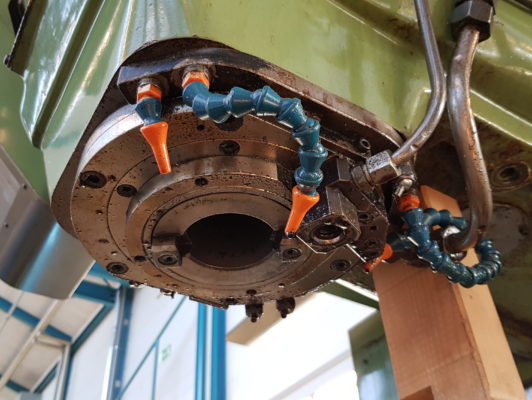

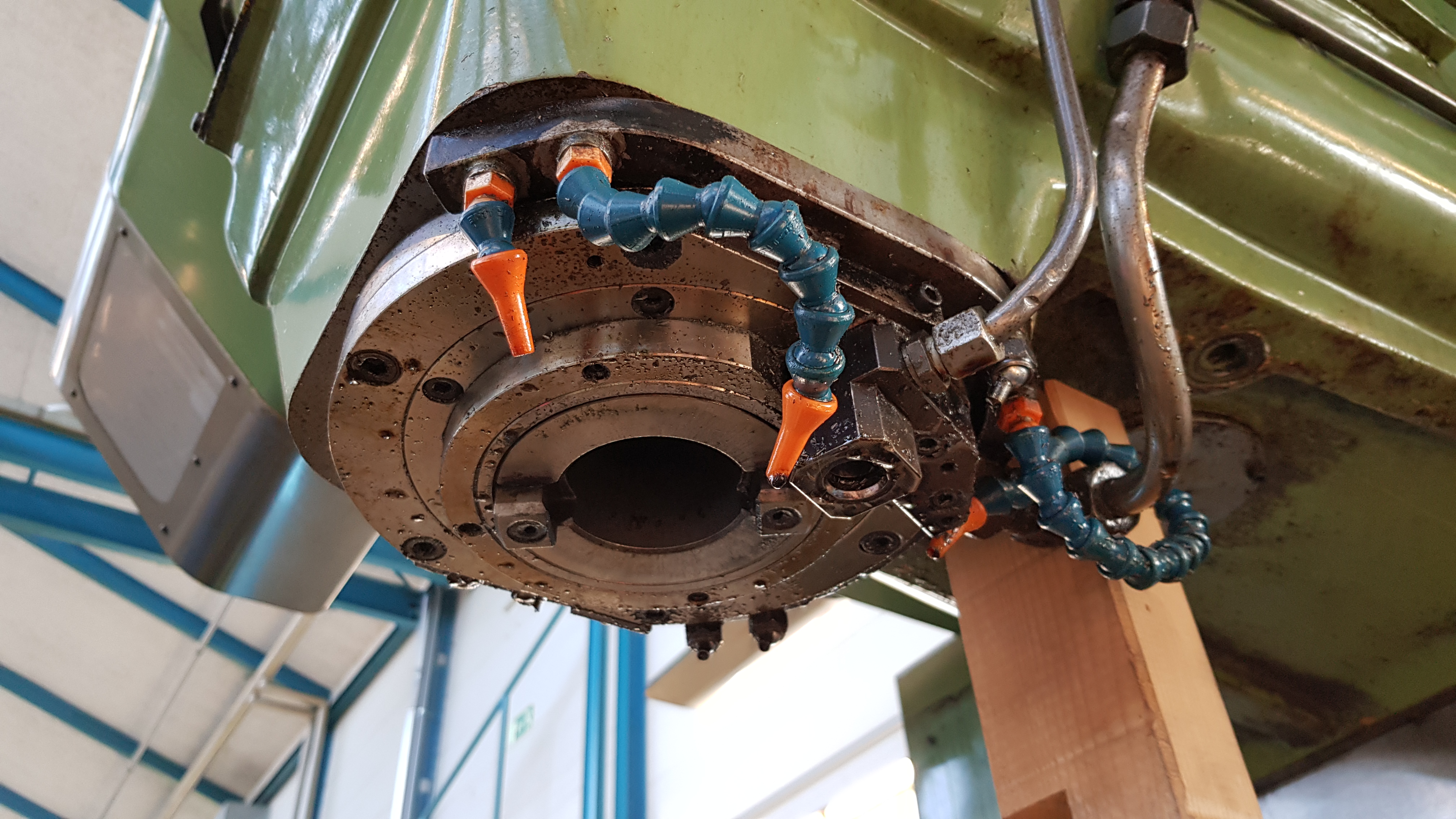

| Spindle taper | ISO 50 |
| Spindle speed | 25 / 3500 RPM |

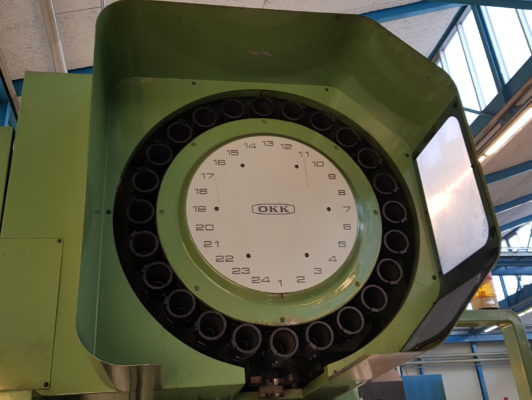

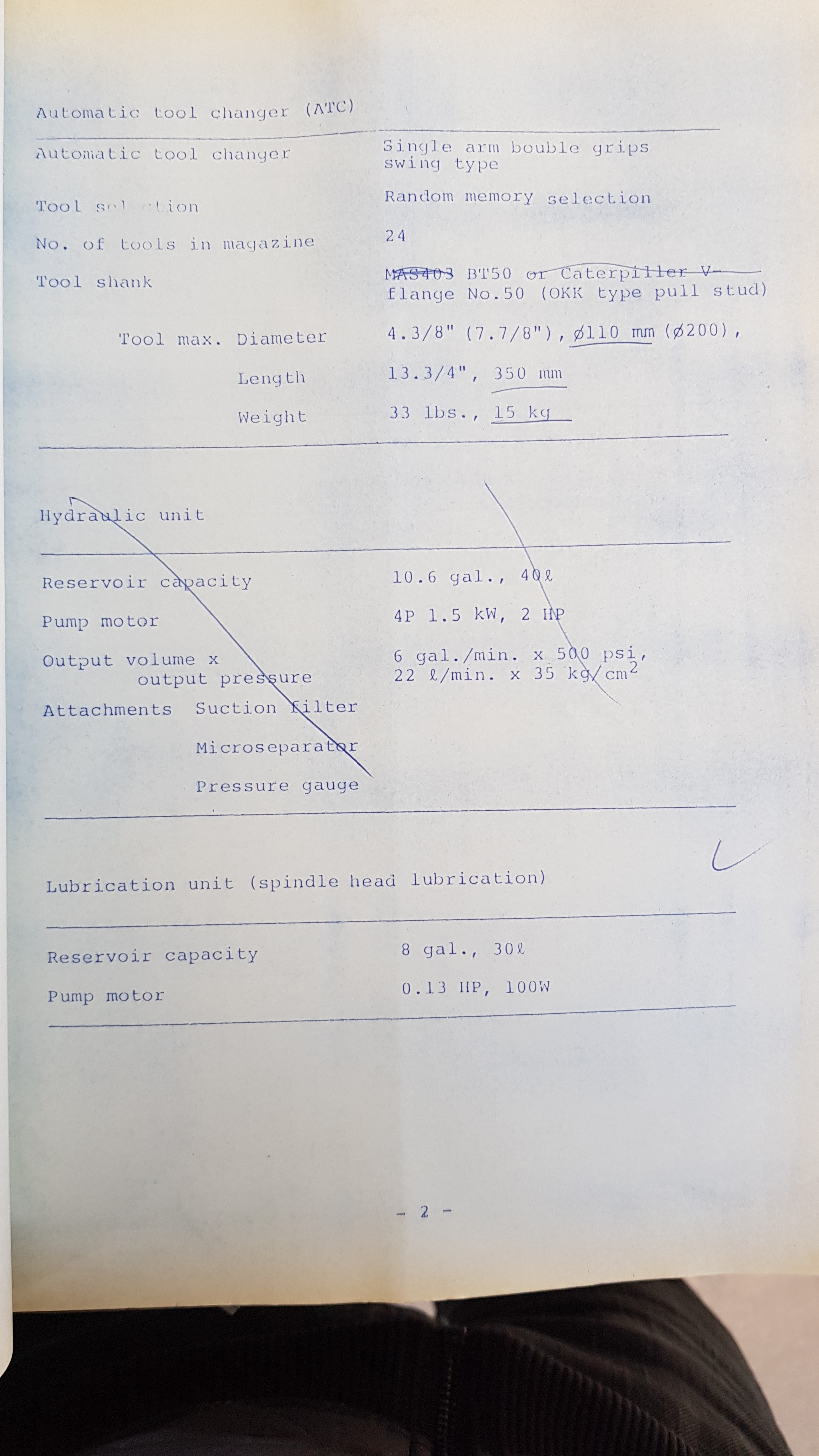

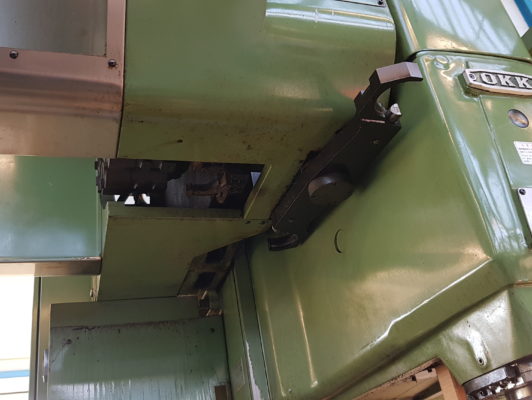

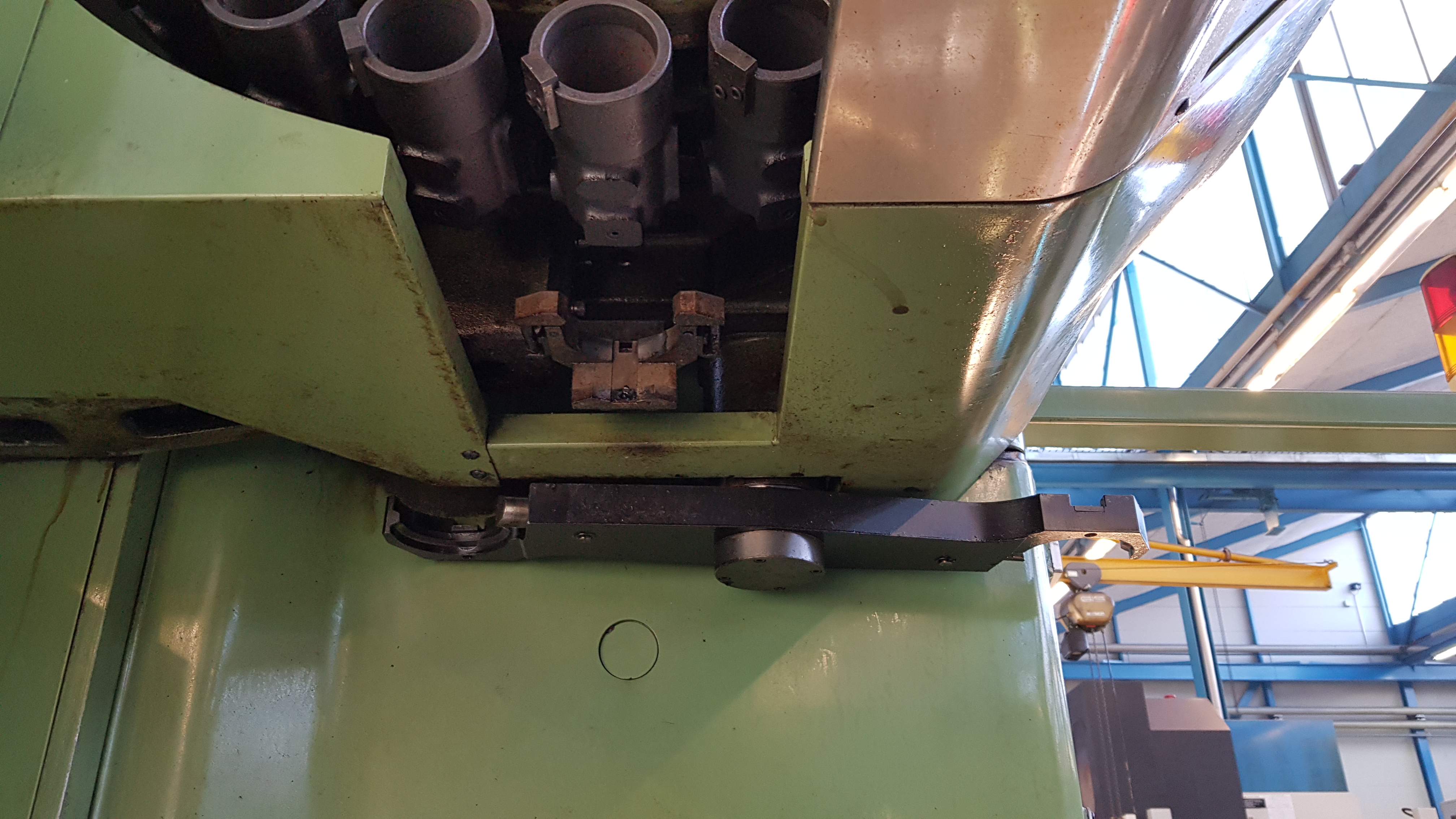

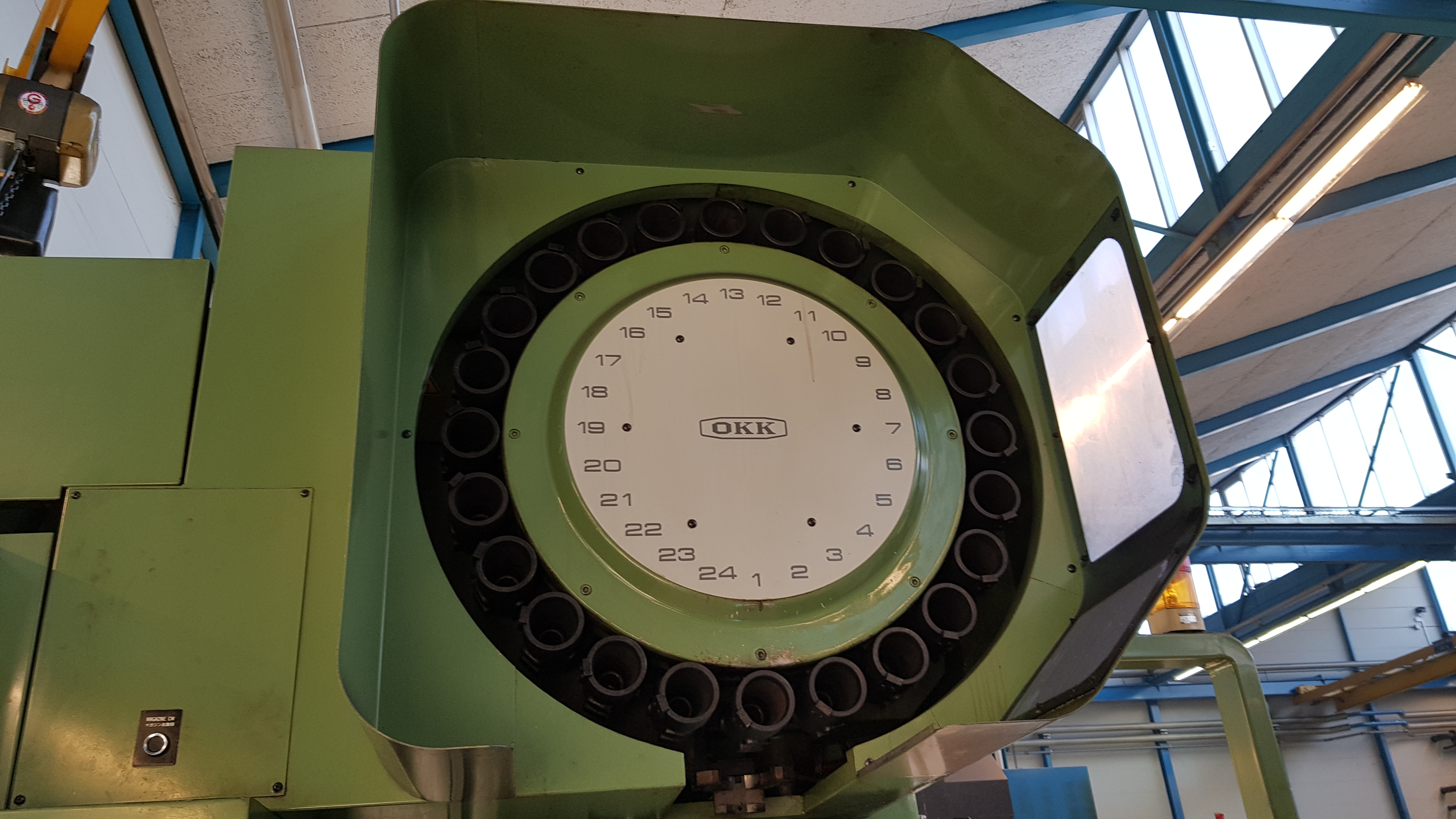

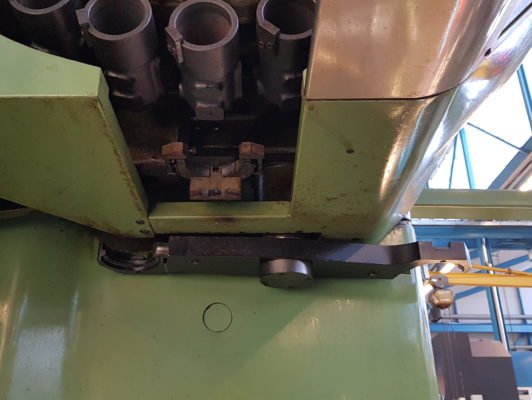

| Number of tools | 24 |
| Max. diameter | 110 mm |
| Maximum length | 350 mm |
| Max weight admitted | 15 kgs |
| Power | 36 KW |
| Weight | 11000 Kg |
| Dimensions | 4110 x 3920 mm |
| Year | 1989 |

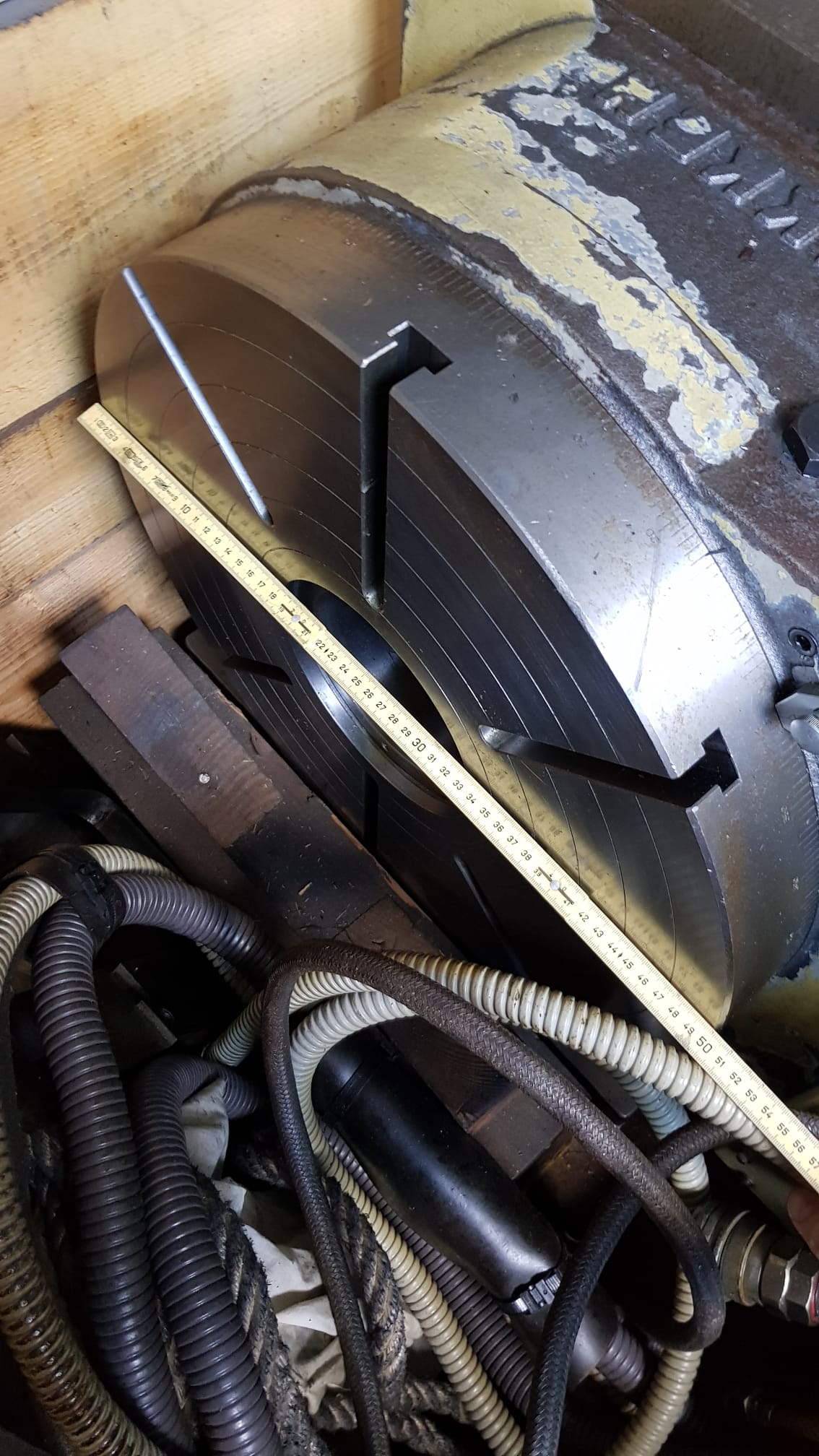

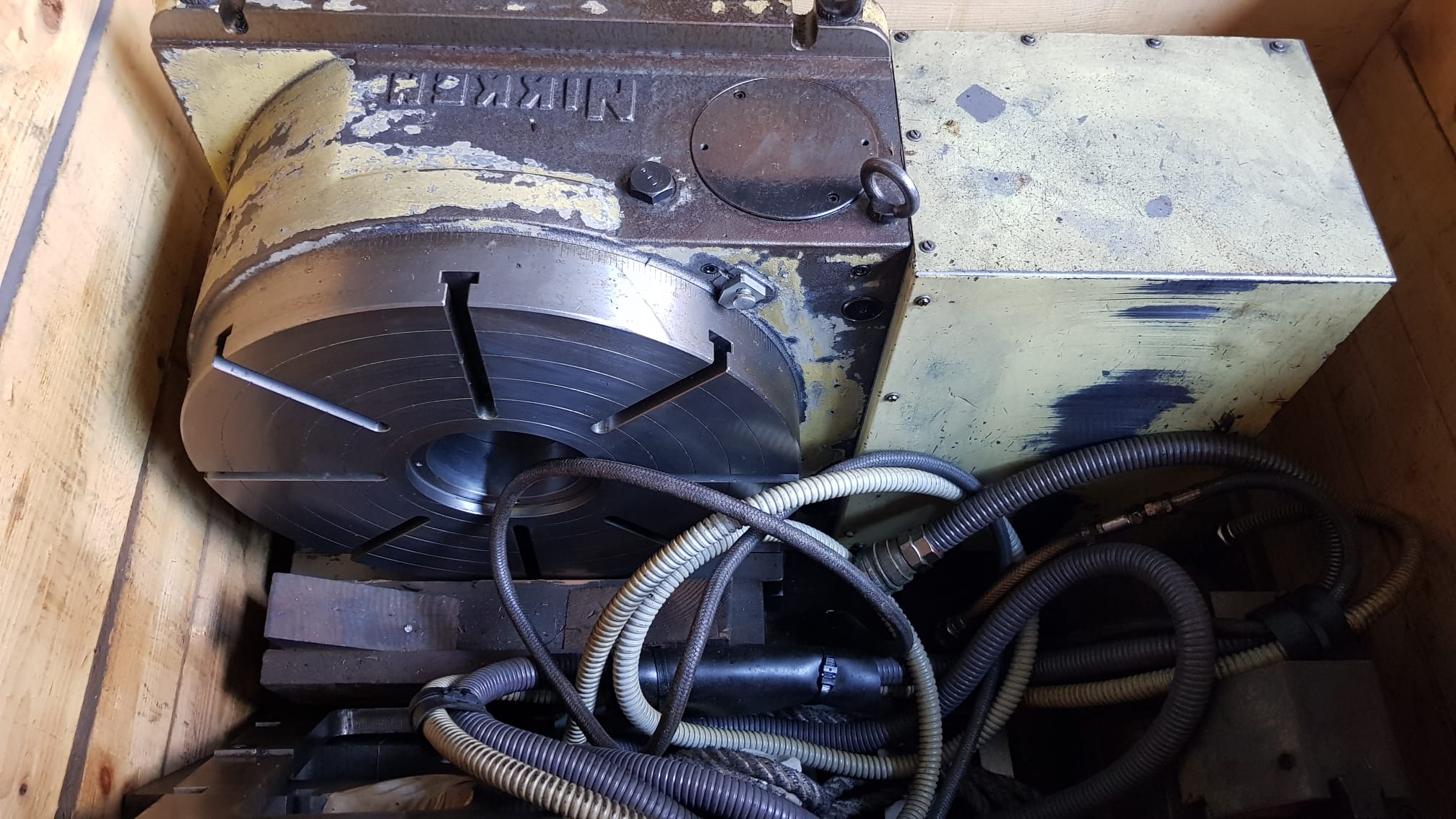

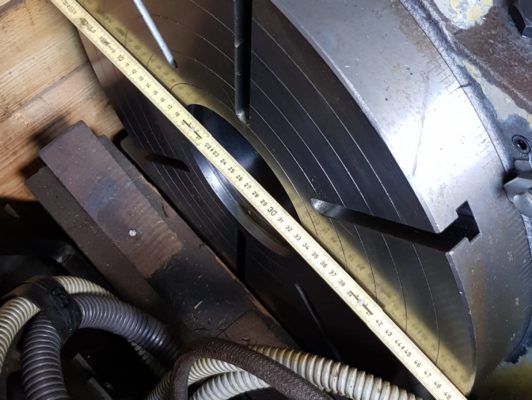

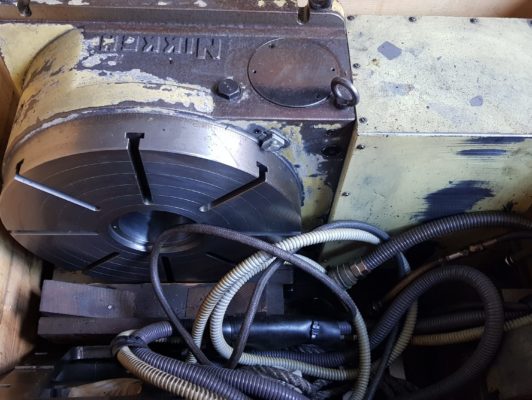

4th axis Nikken Ø: 500 mm
