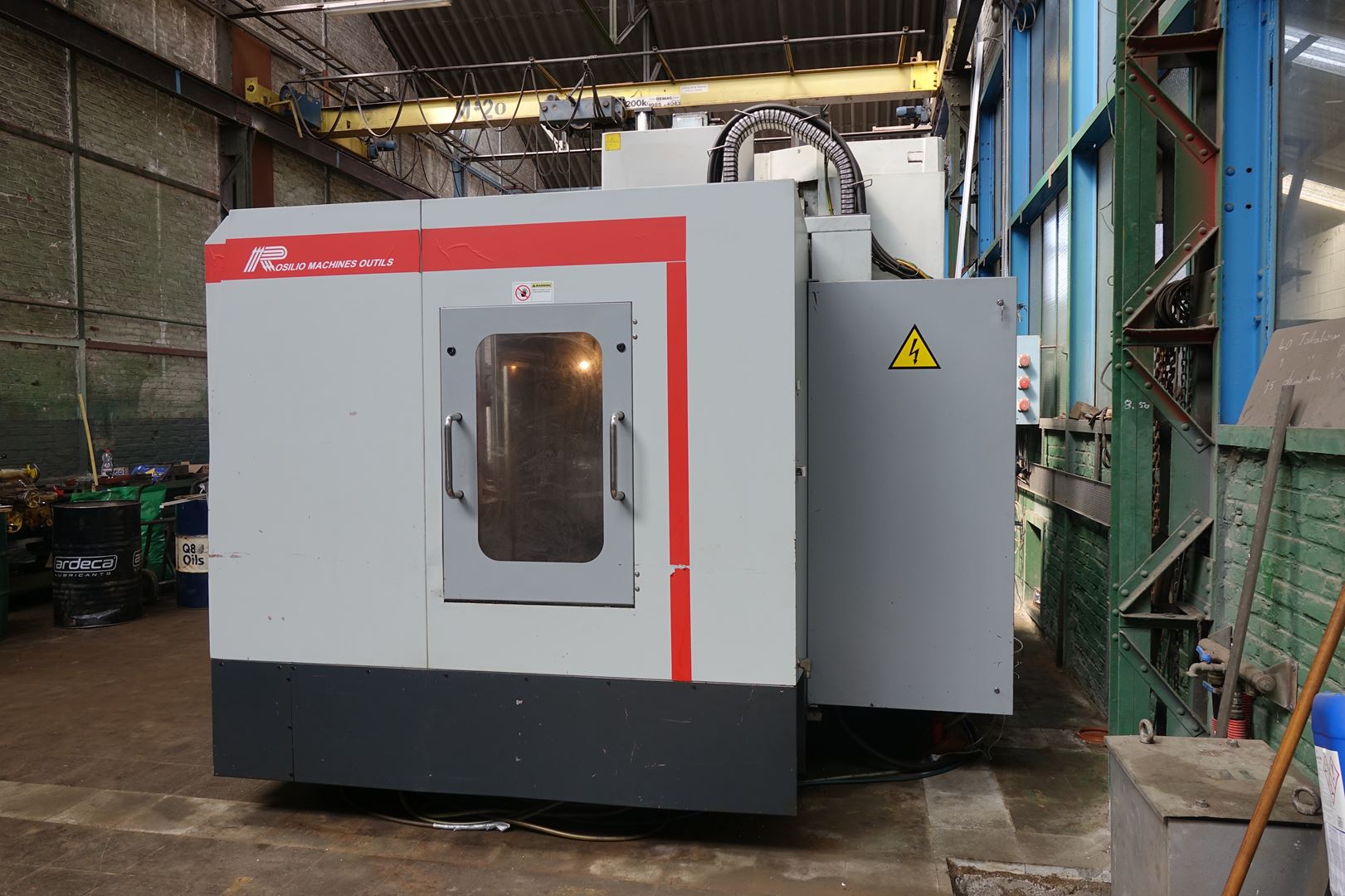

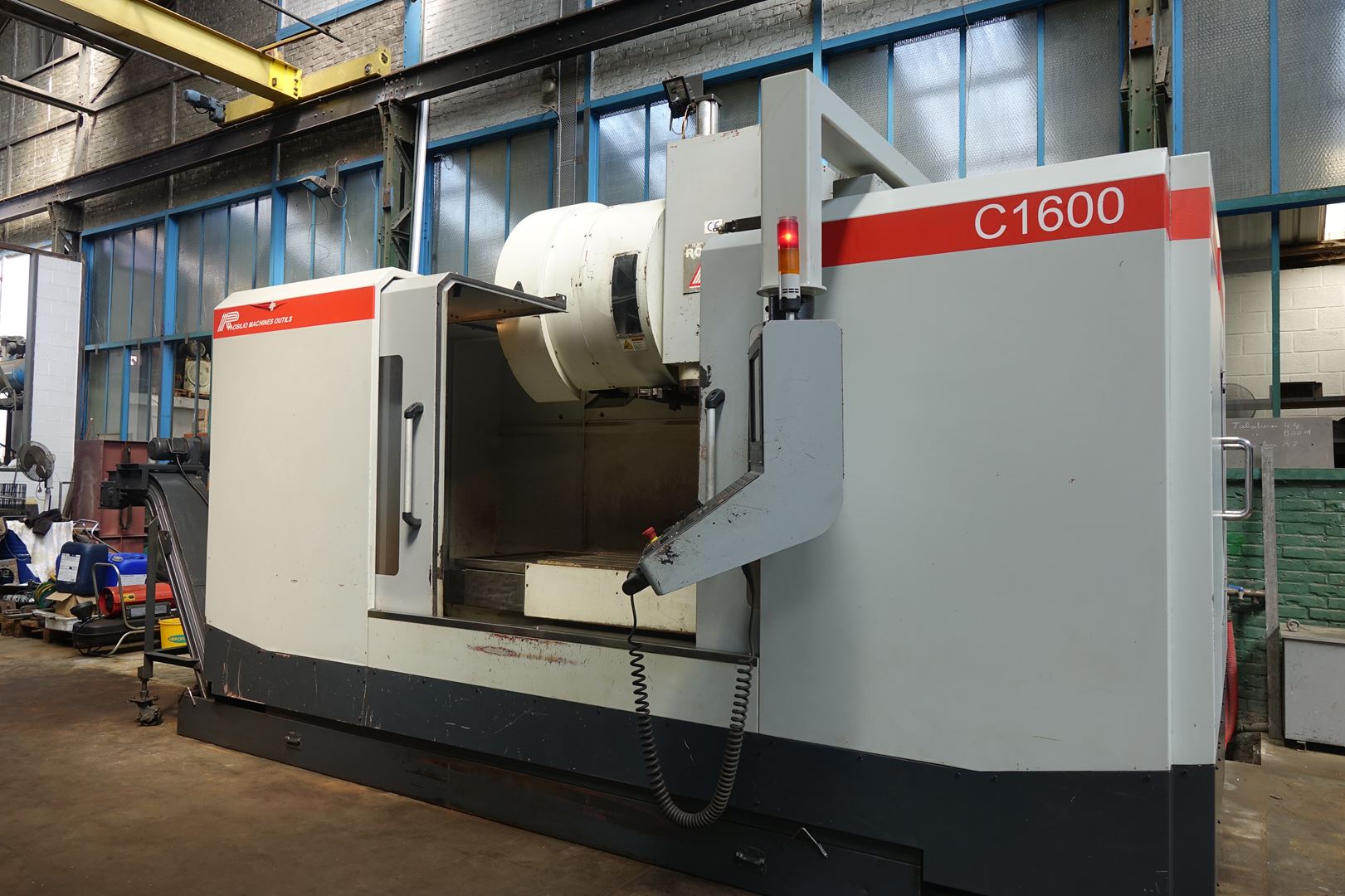

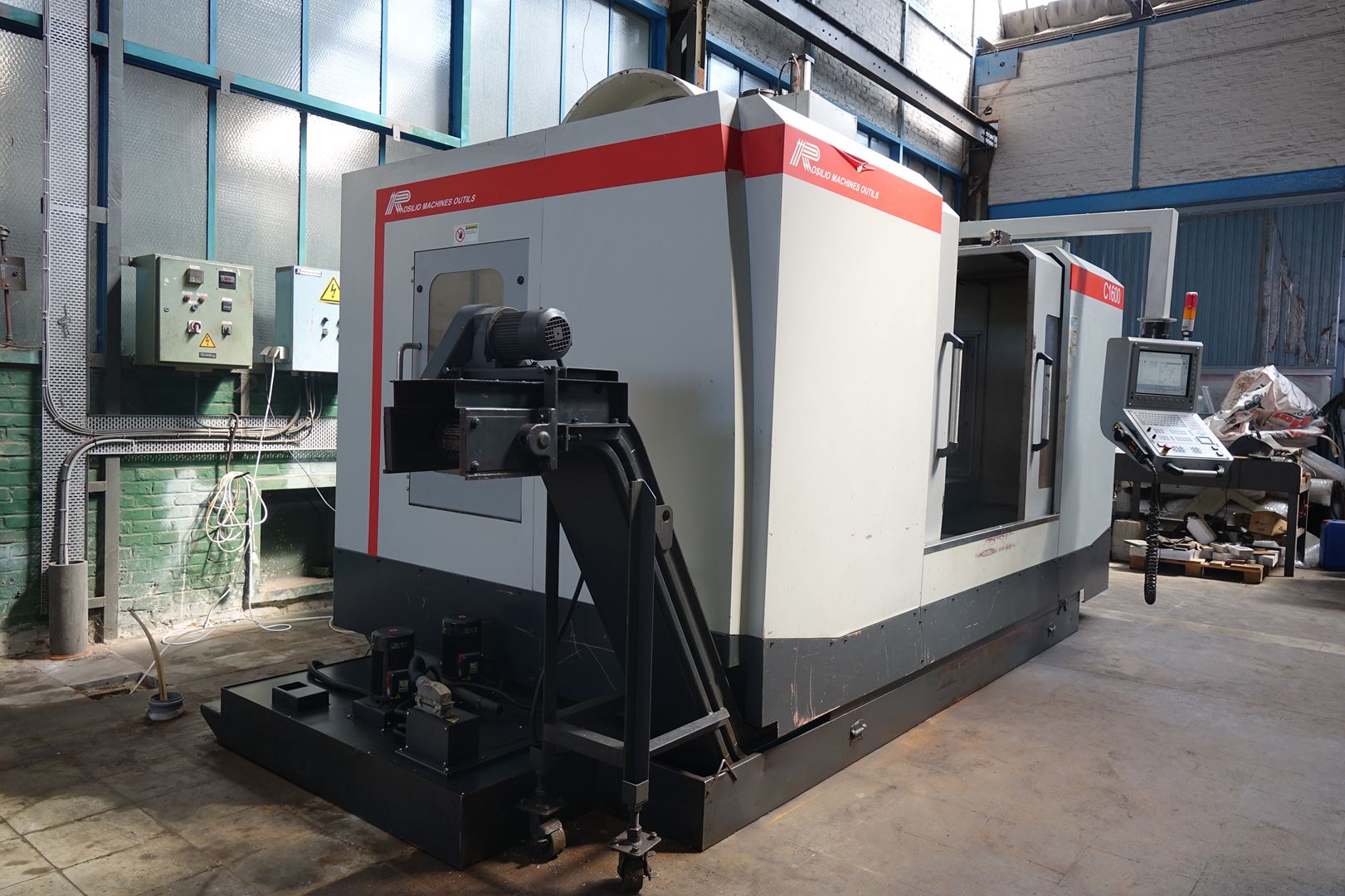

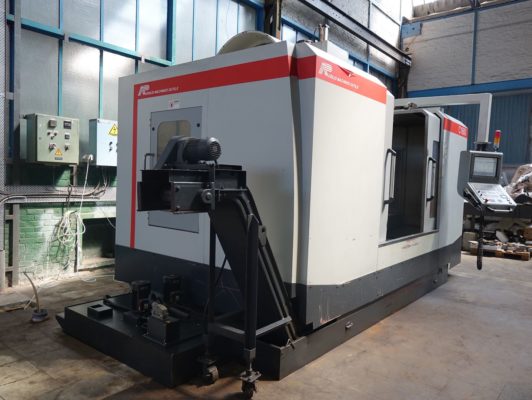

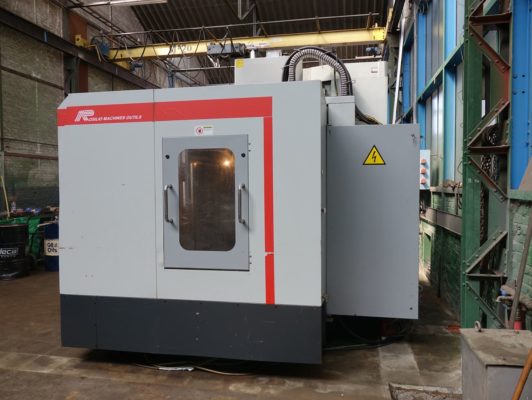

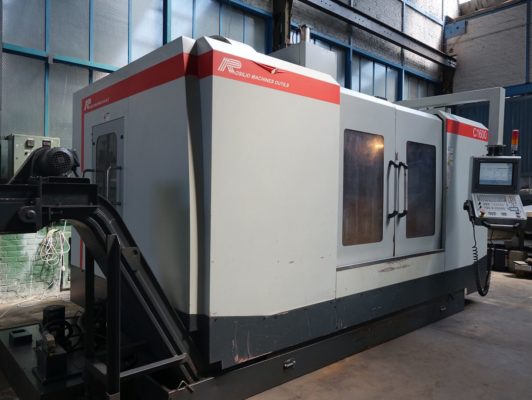

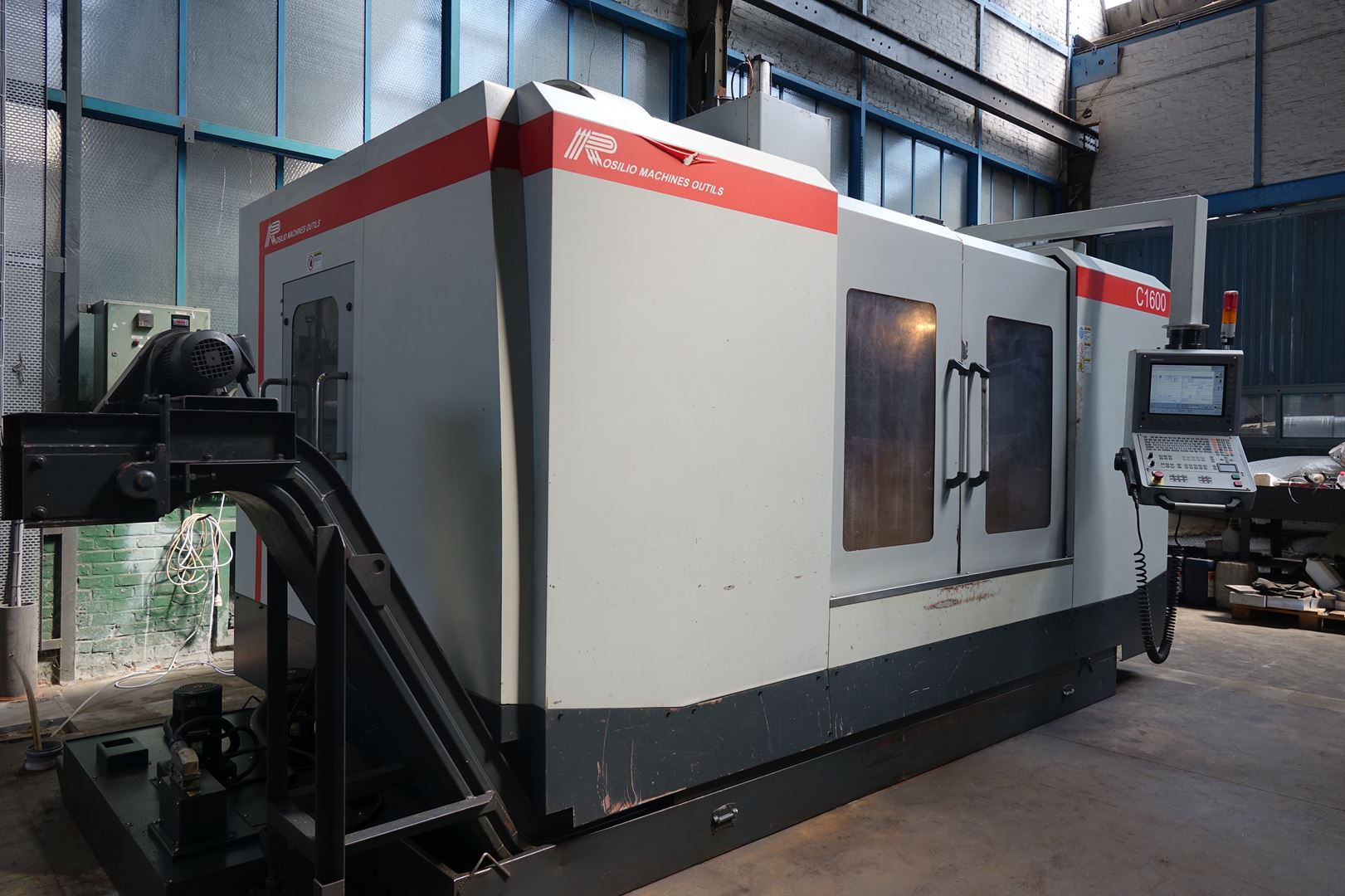

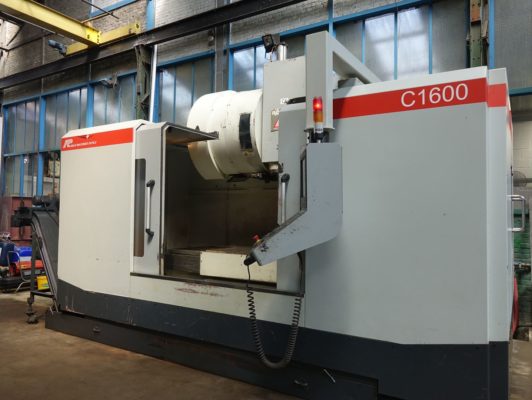

ROSILIO C1600 - Used machine
SOLD
| Year | 12/2008 |

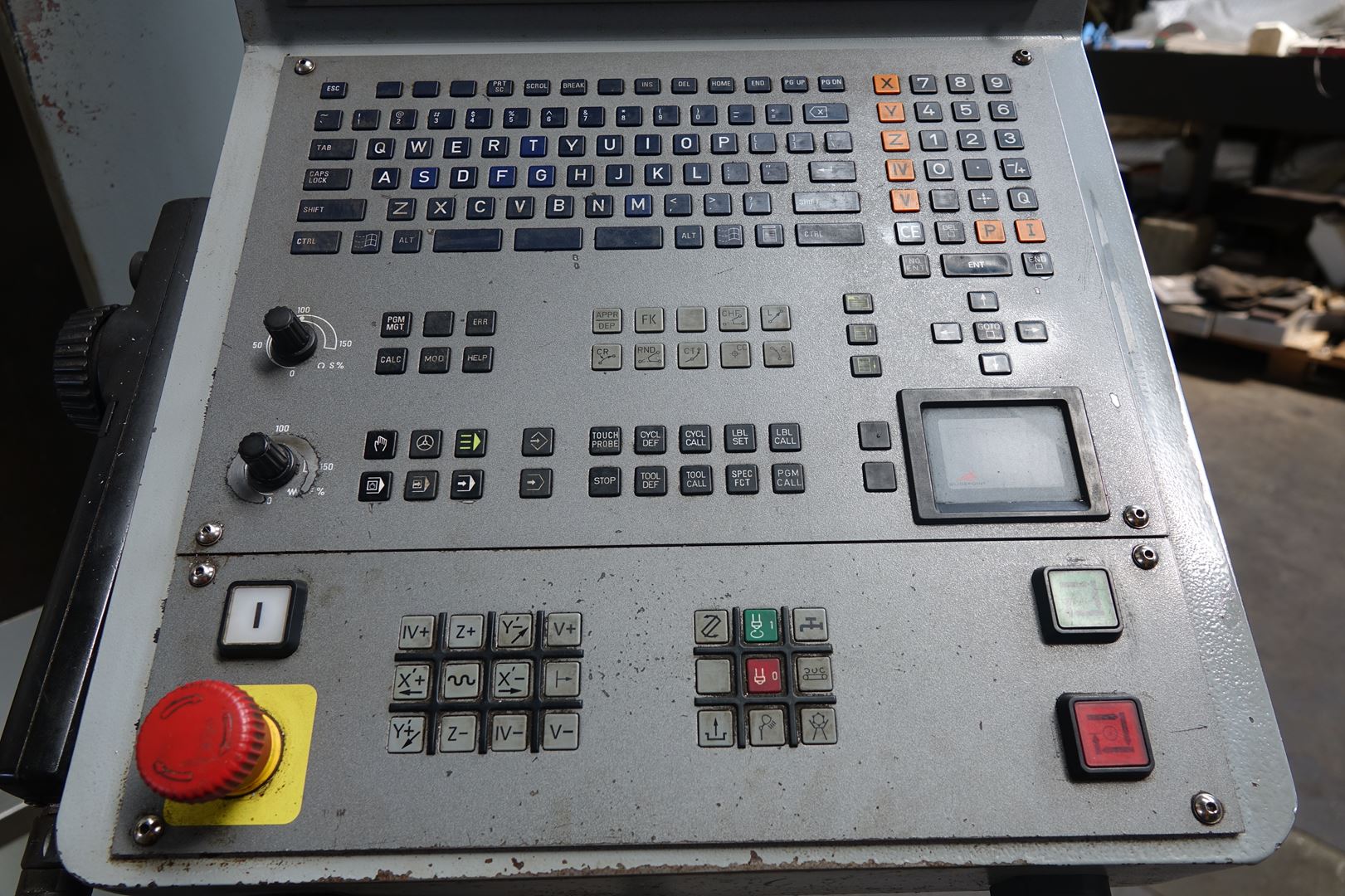

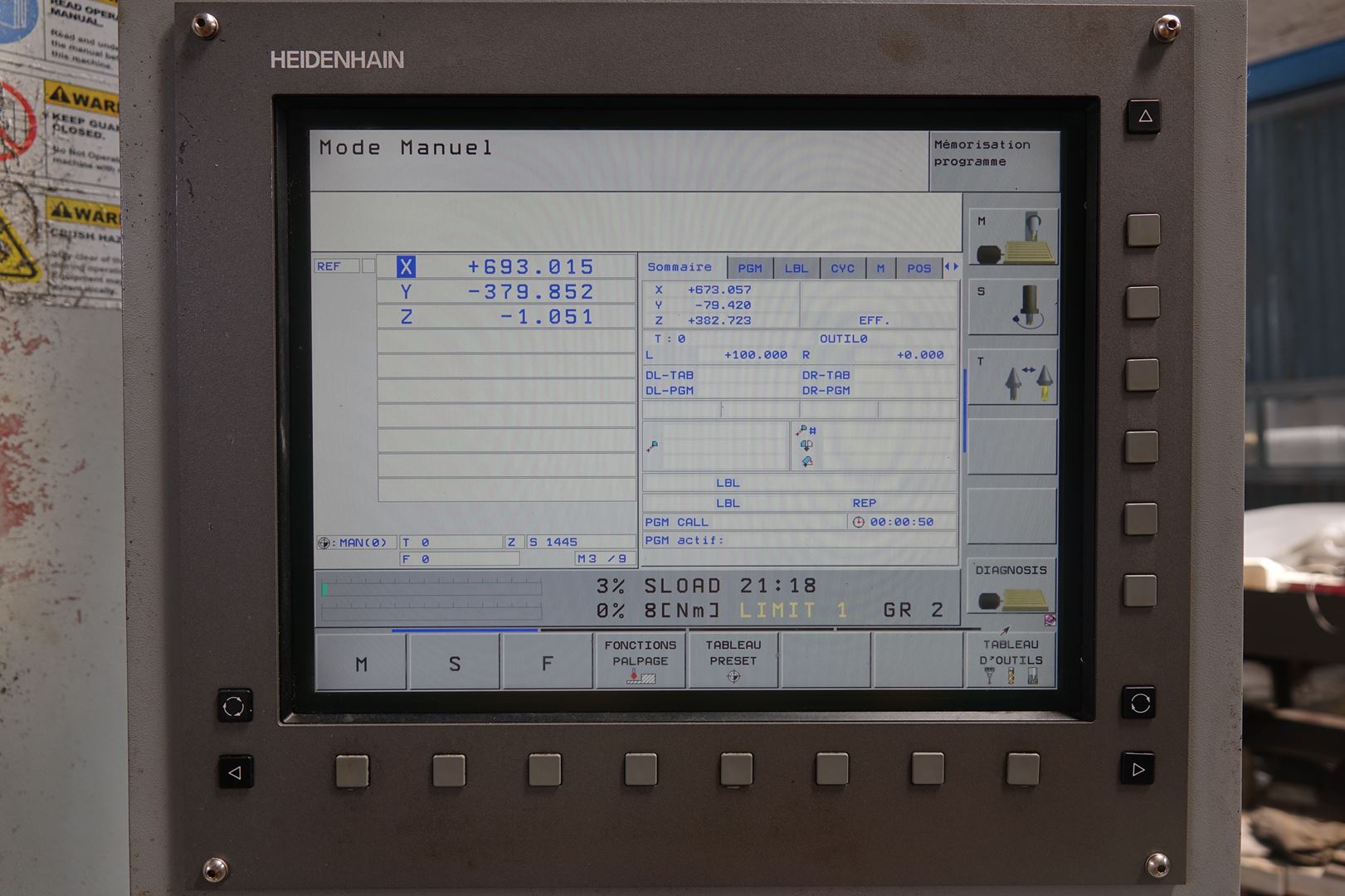

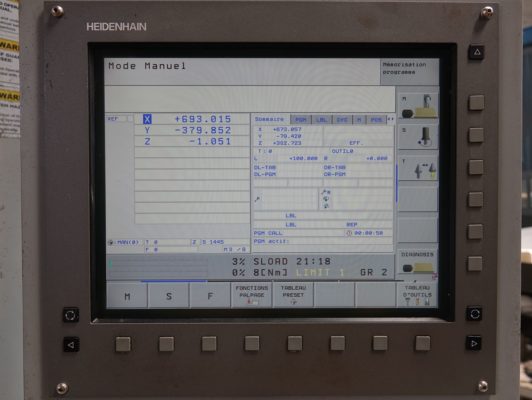

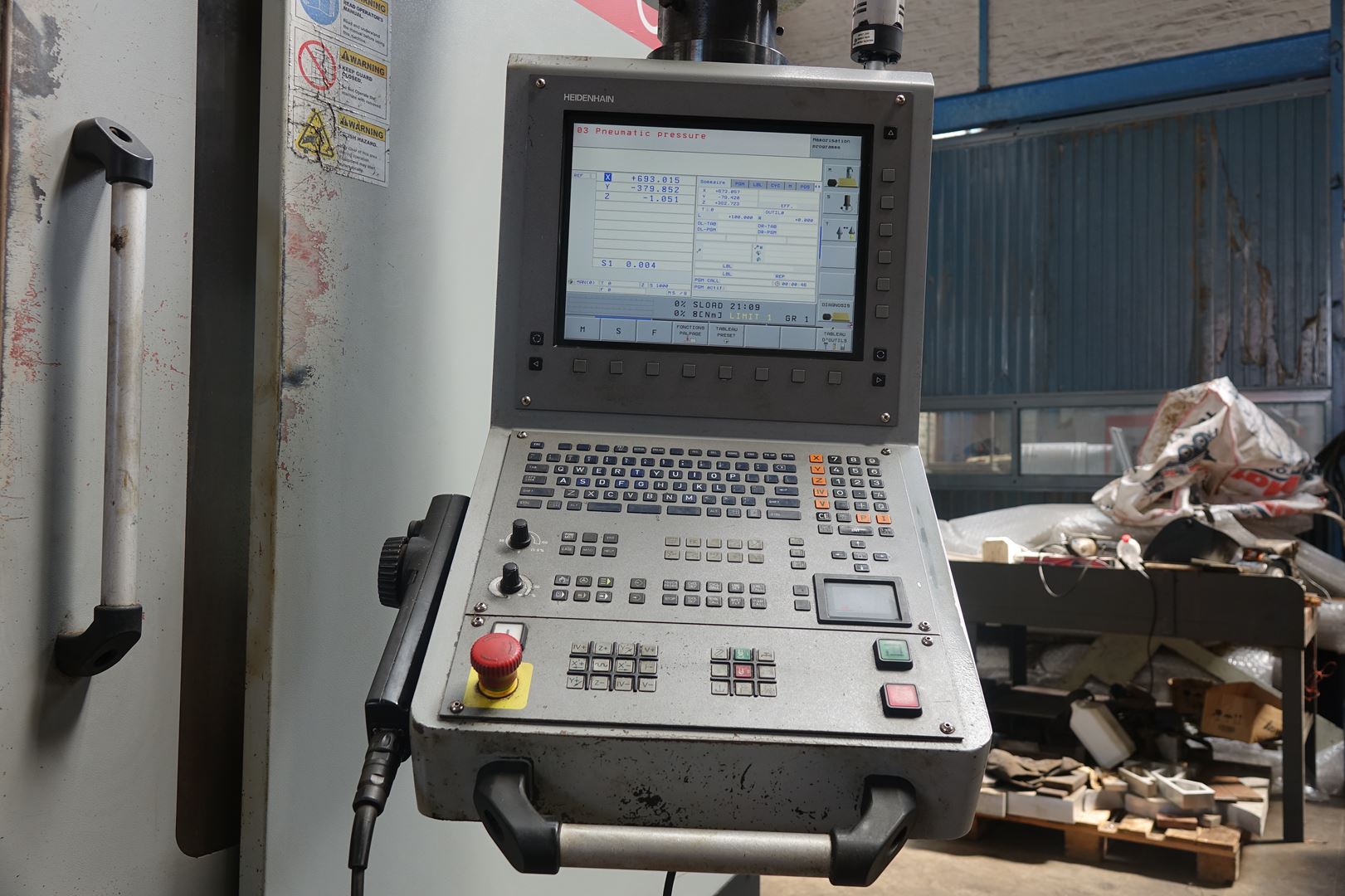

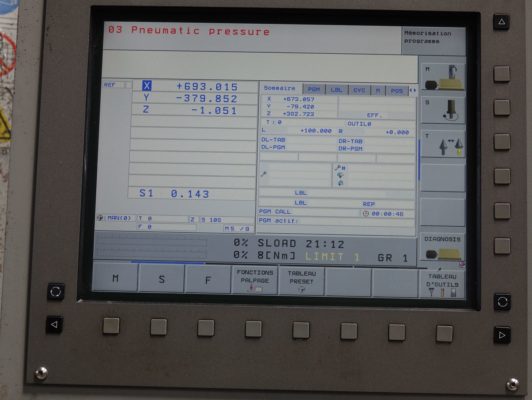

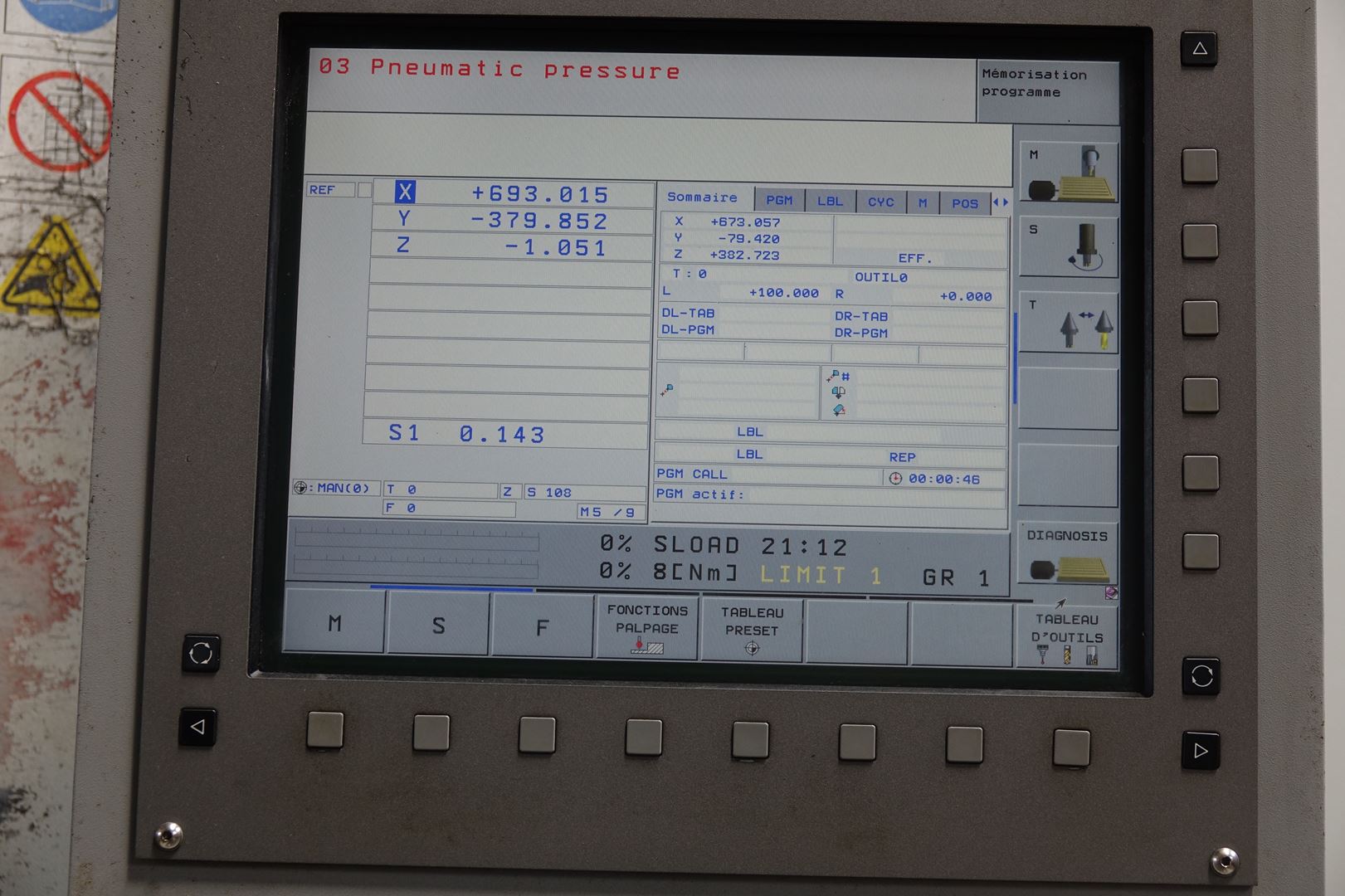

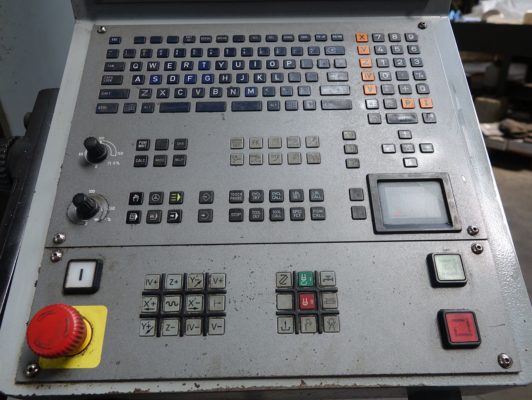

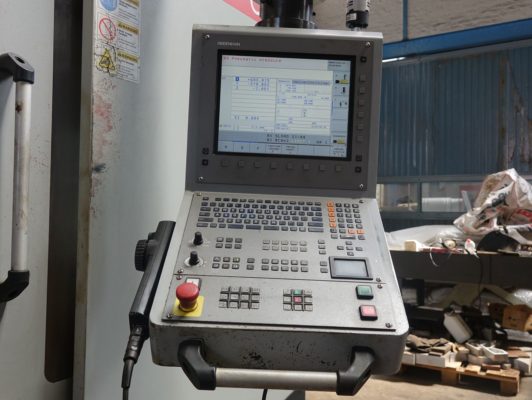

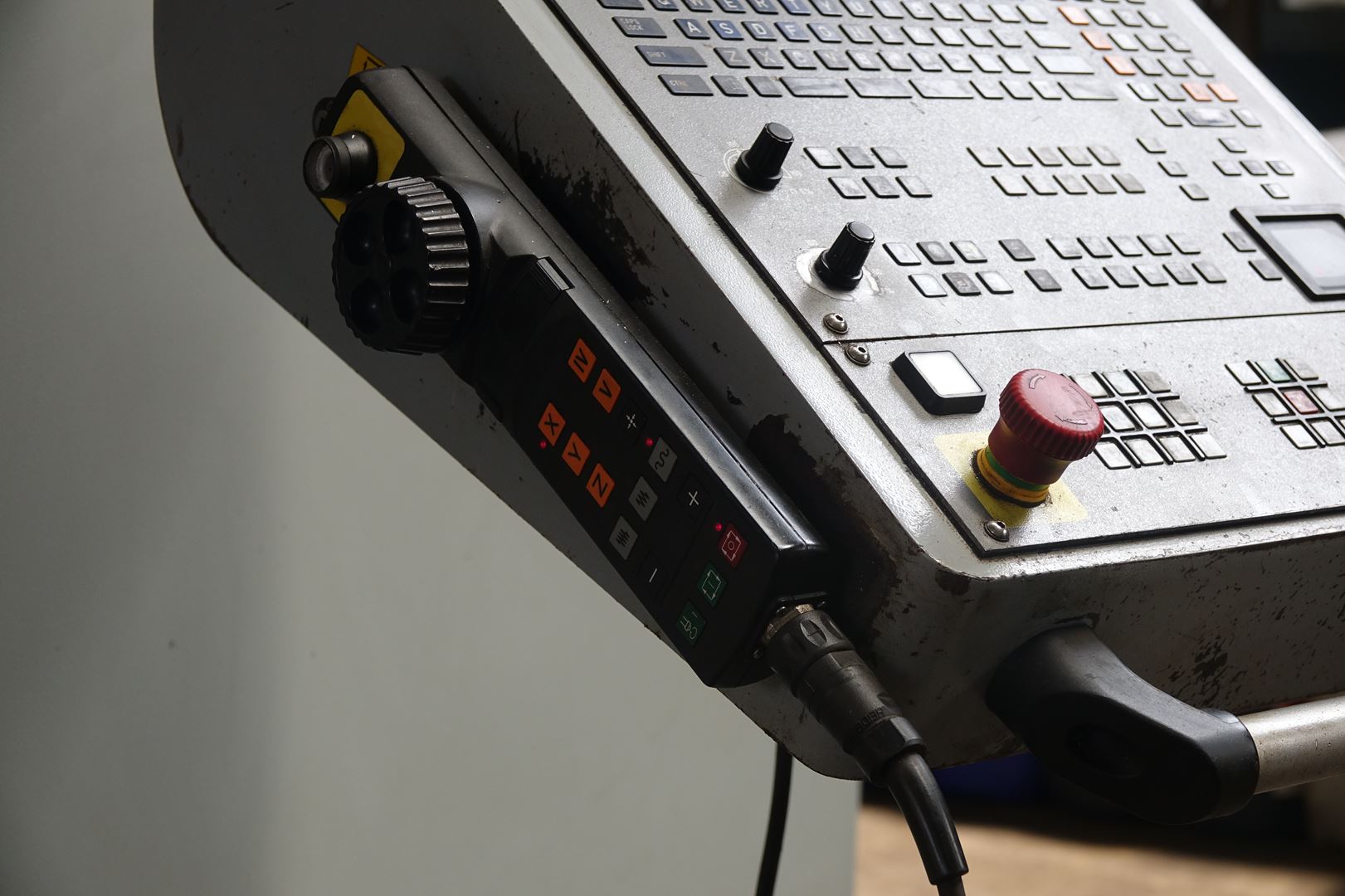

| C.N.C. | Heidenhain iTNC 530 |
| Longitudinal travel | 1600 mm |
| Cross travel | 815 mm |
| Vertical stroke | 700 mm |
| Table size | 1700 x 815 mm |
| Maximum weight on table | 3000 Kg |

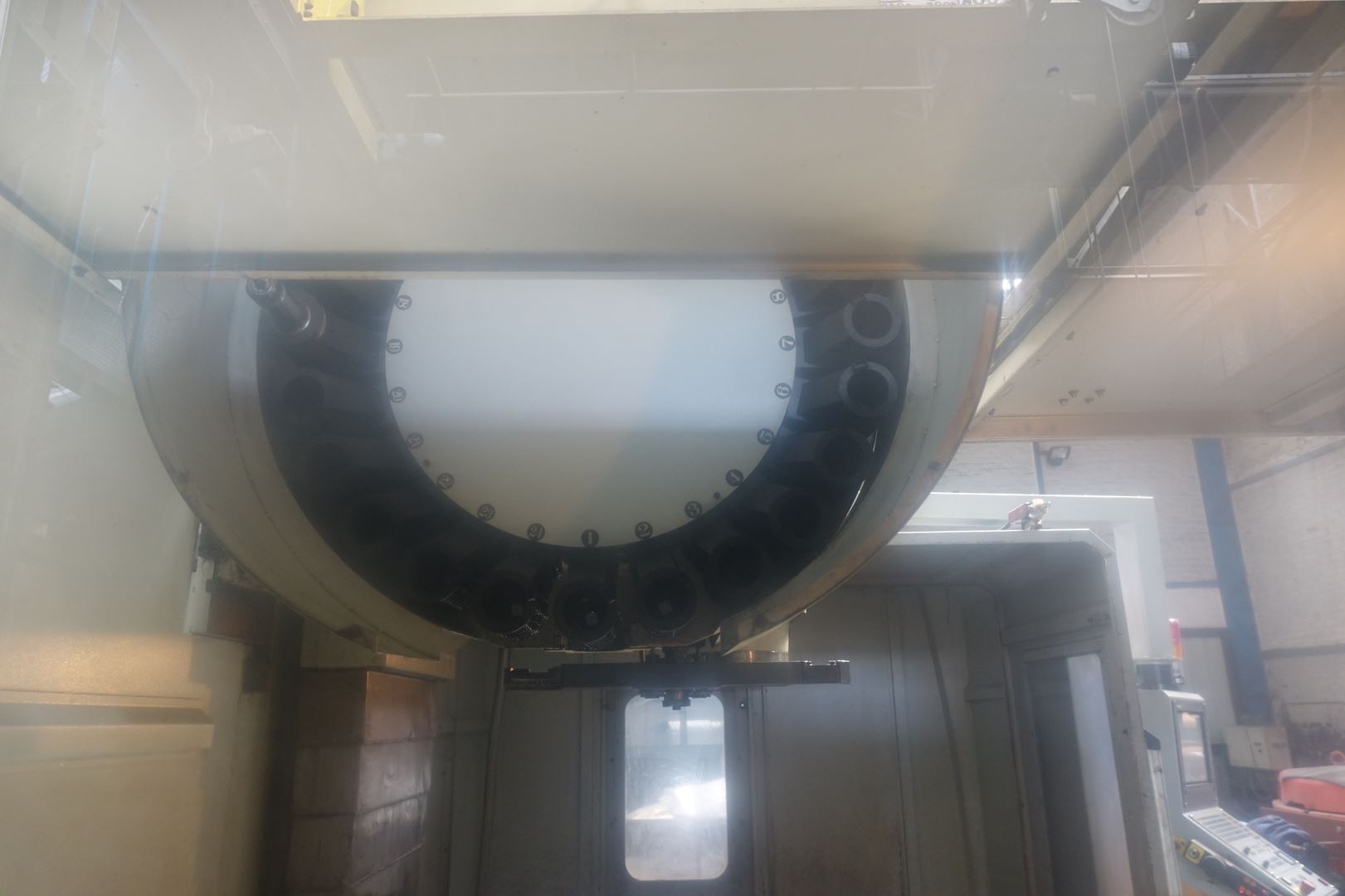

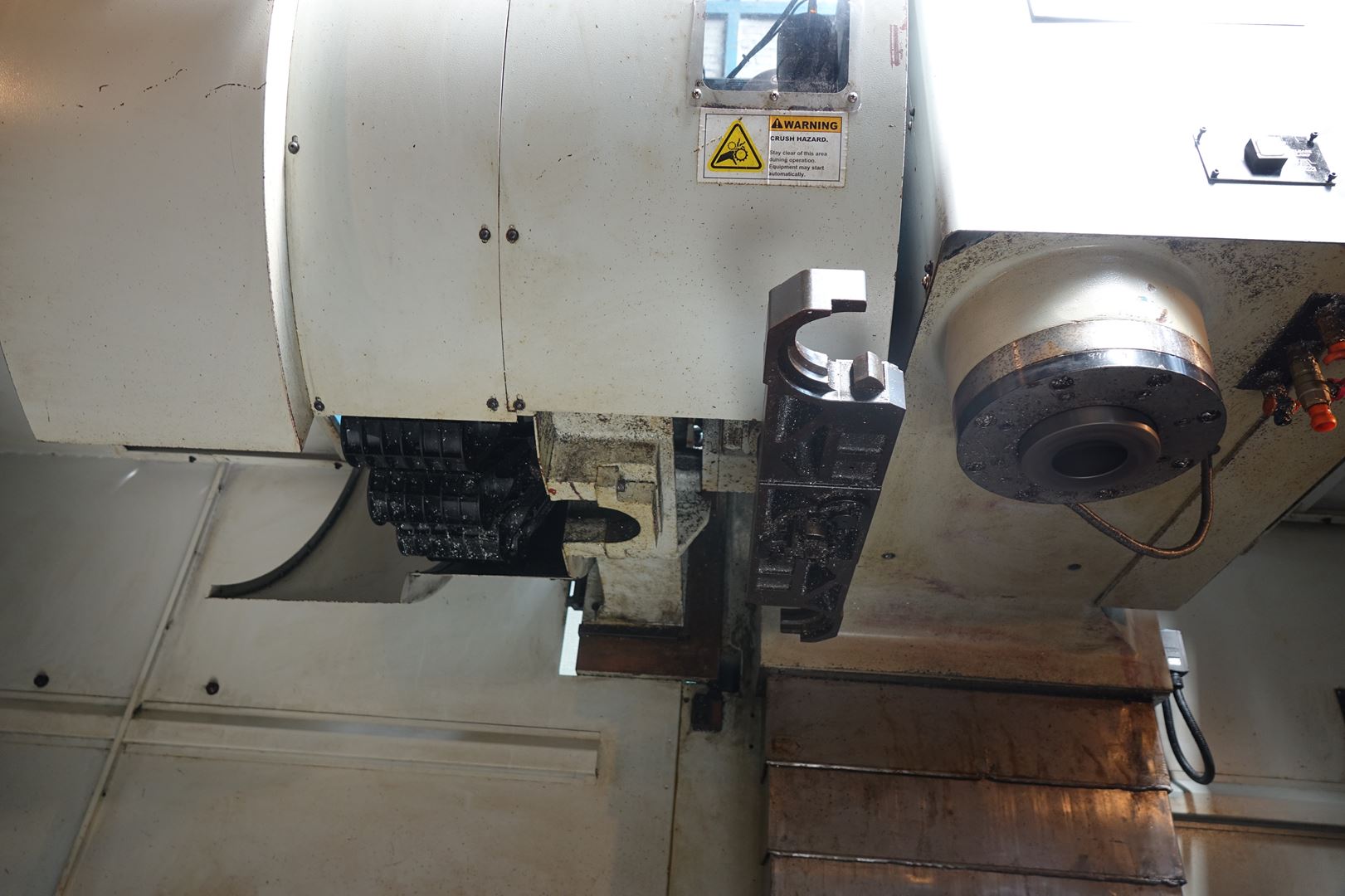

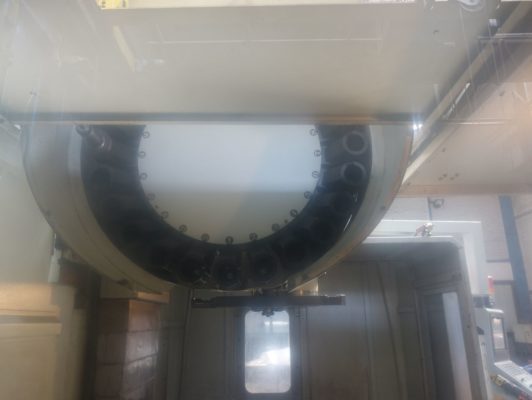

| Number of tools | 24 |

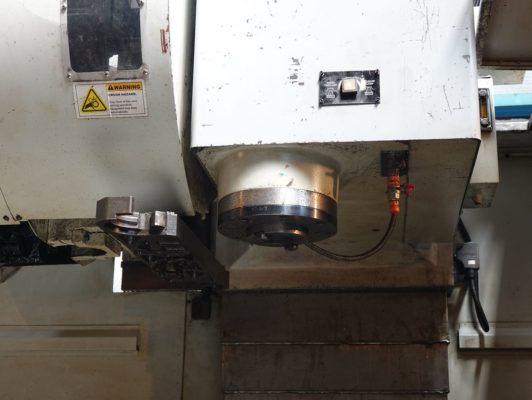

| Spindle taper | BT50 |
| Spindle speed | 12000 RPM |
| Max weight of the tools | 15 kgs |
| Max. diameter | 127 mm |
| Maximum length | 300 mm |
| Tool changing time | 2.5 sec |
| Capacity | 17/29 T |
| Dimensions | 4700x3800x3200 mm |
| Weight | 15000 Kg |

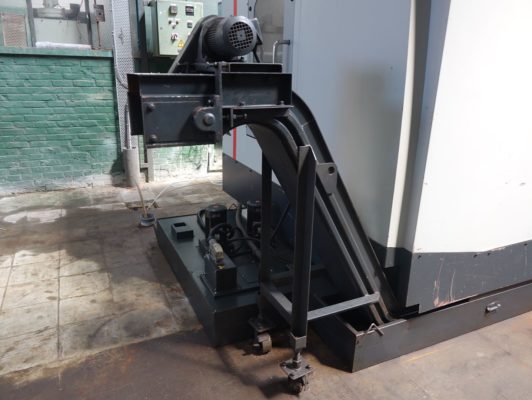

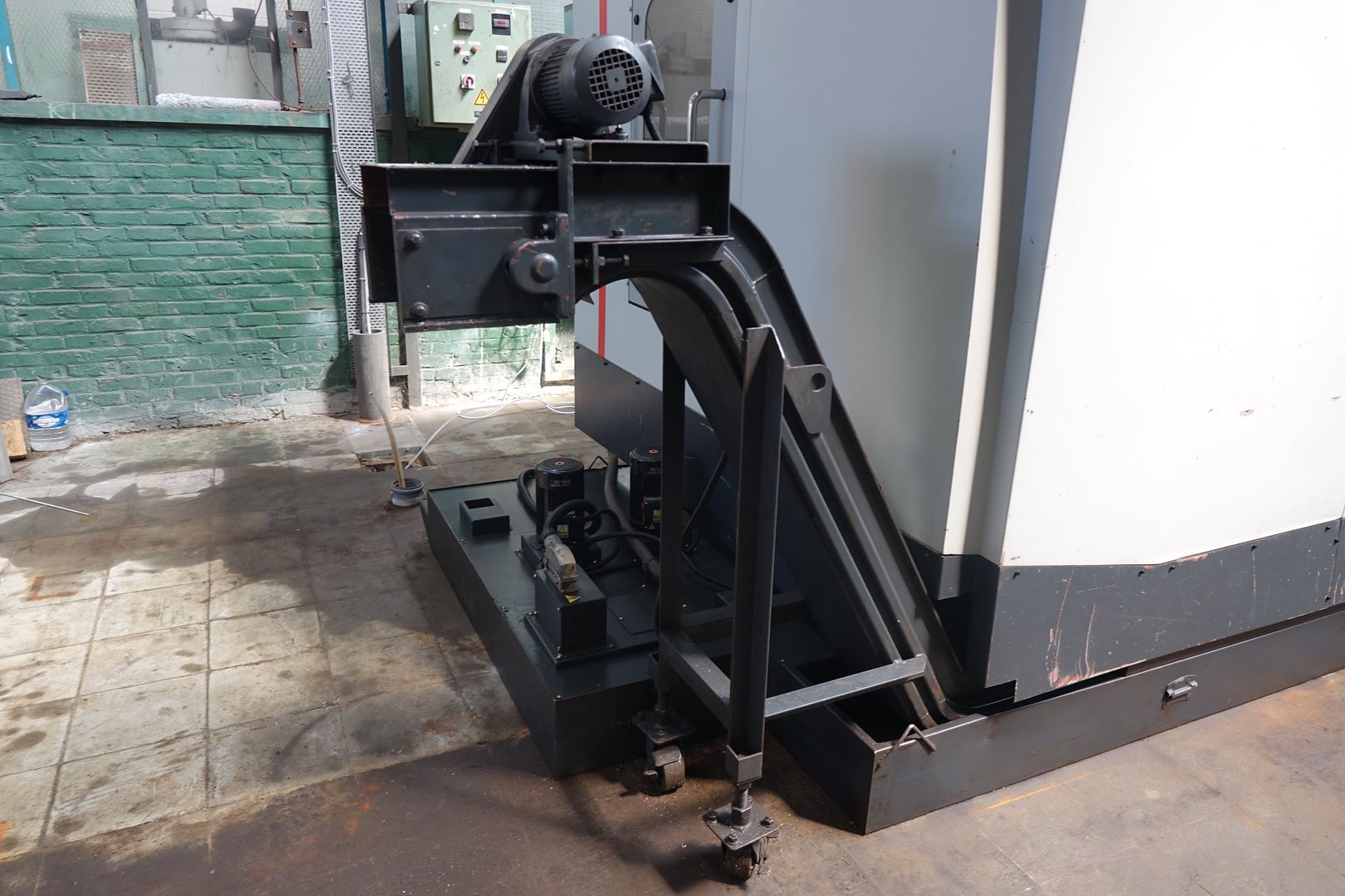

Chip conveyor

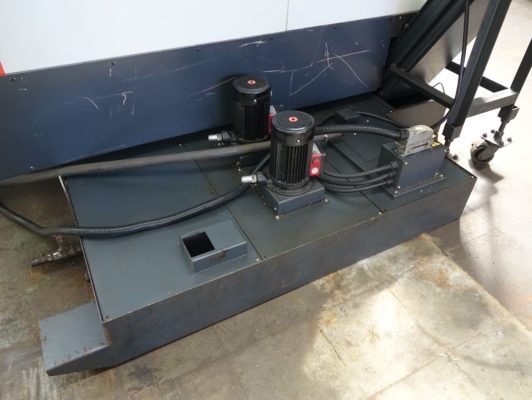

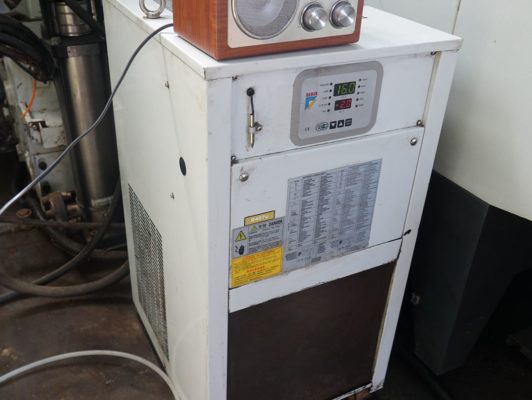

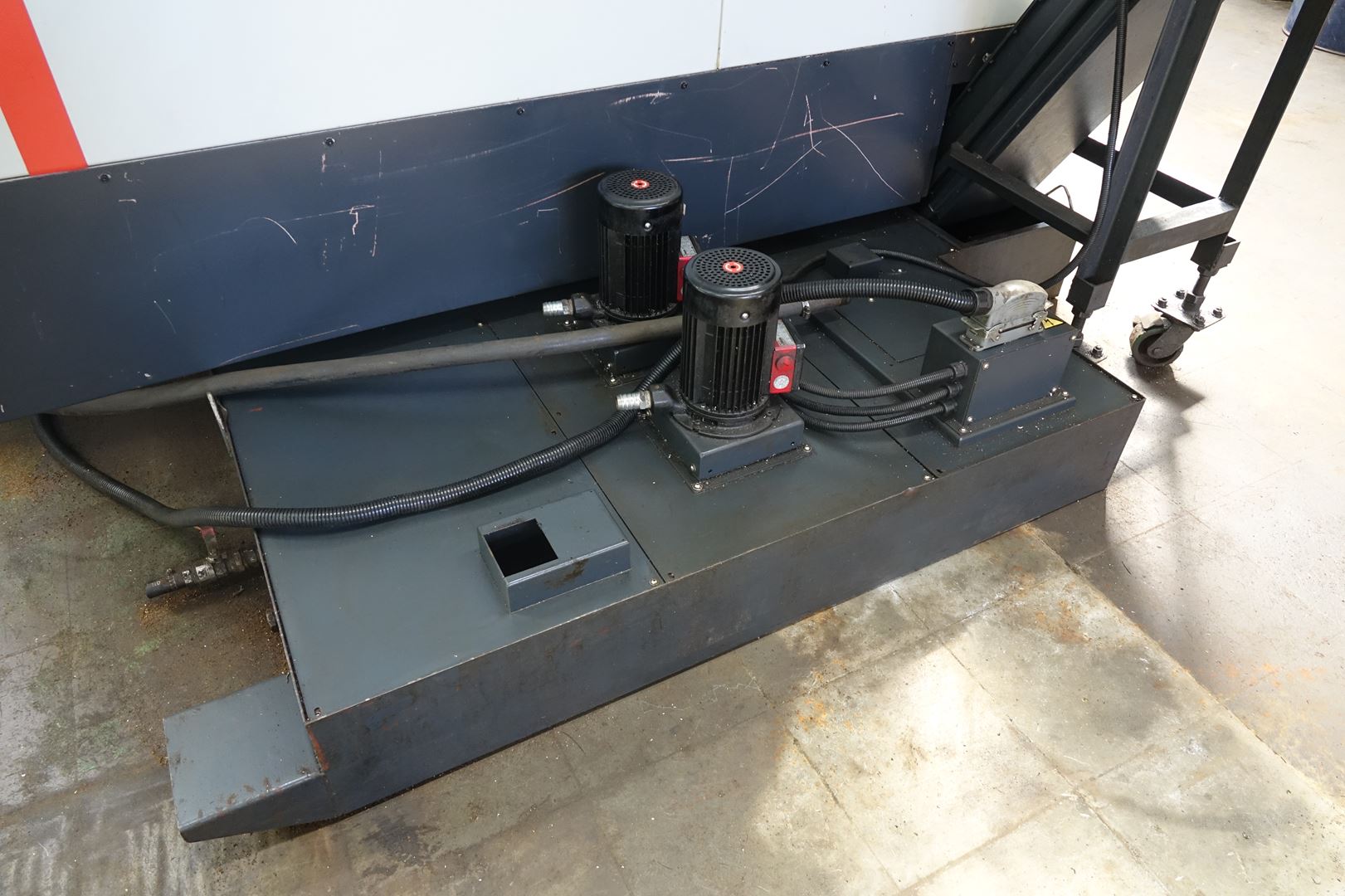

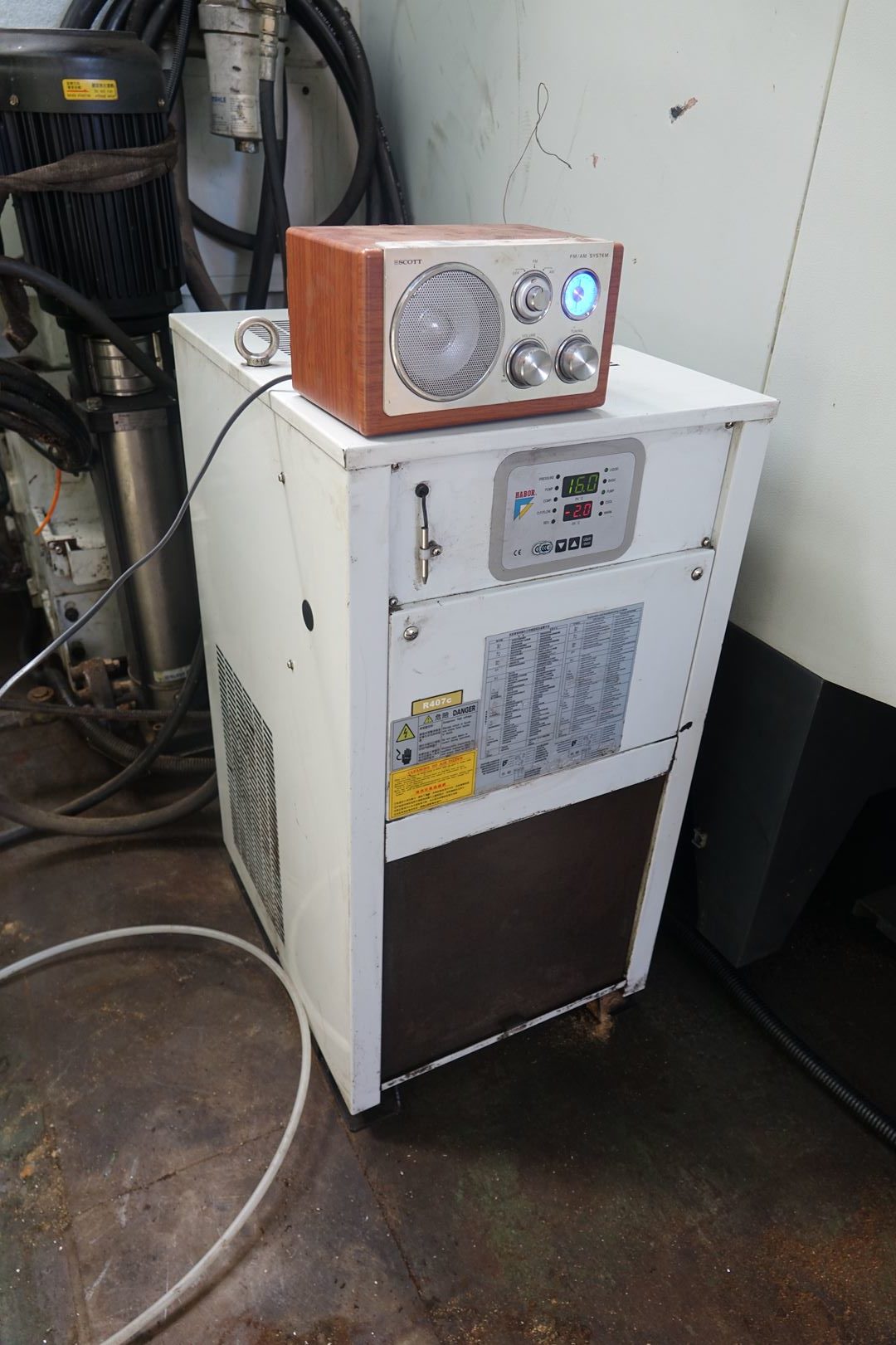

Cooler
