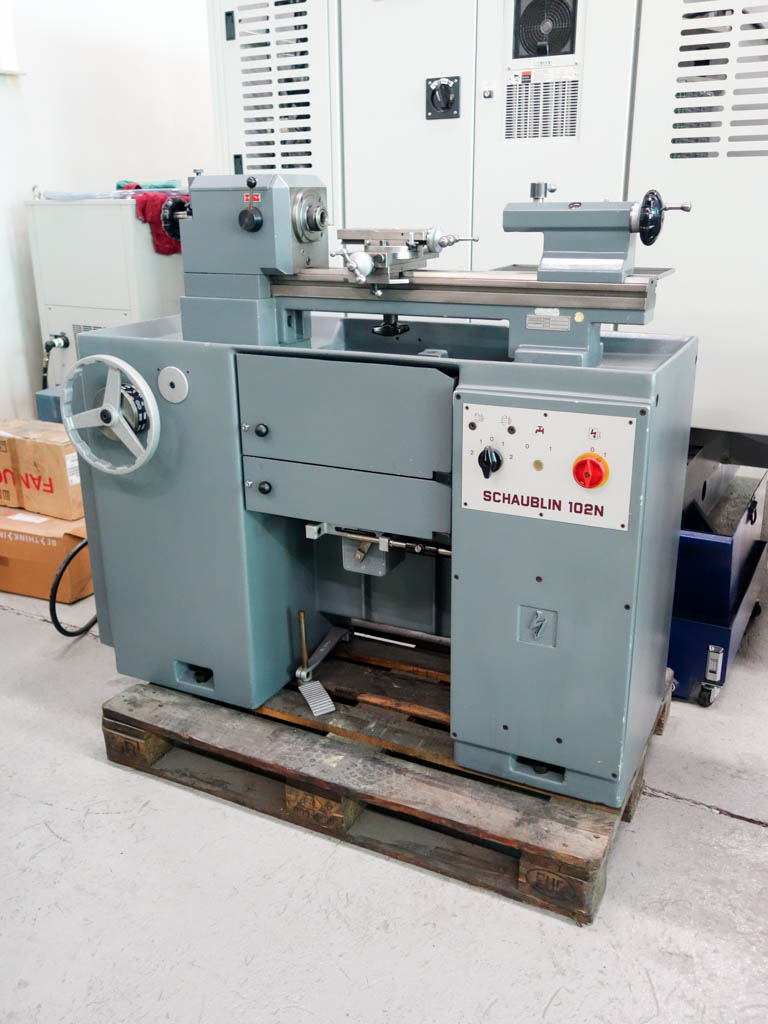

SCHAUBLIN 102 N 80 - Used machine
SOLD
| max. admitted diameter over the bed | 200 mm |
| Height of centers | 102 mm |
| Distance between centers | 470 mm |
| Bed length | 1000 mm |

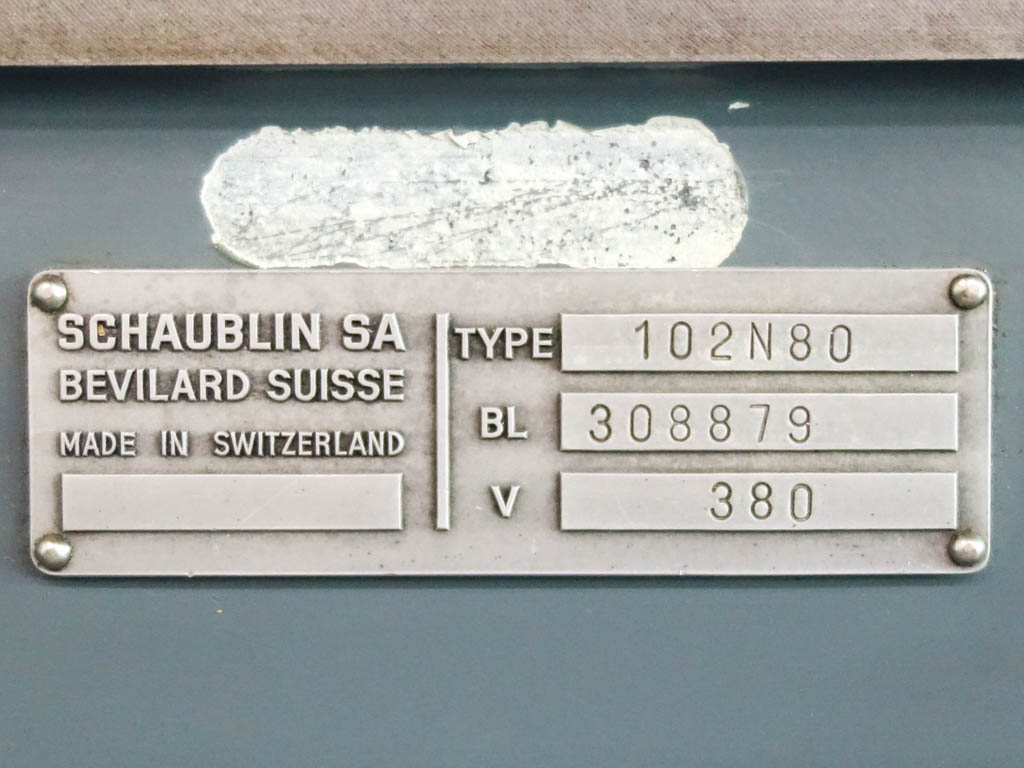

| Serial Number | 308879 |
COMPOSITION
Headstock W20
Stepless motor speed variation
Countershaft with speed reduction unit 1:5
Cast iron base
Clutch and brake
Knee operated control device with reversing switch

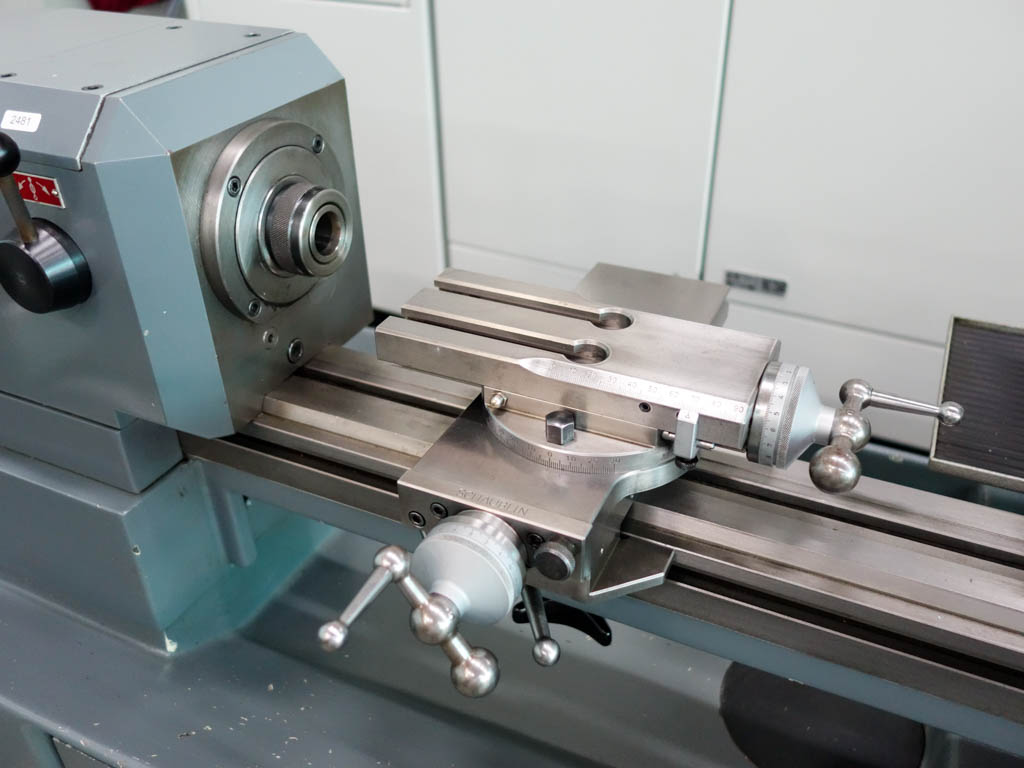

Carriage

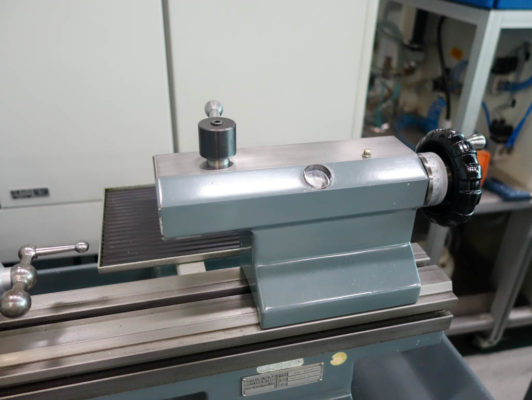

Screw-type tailstock CM2

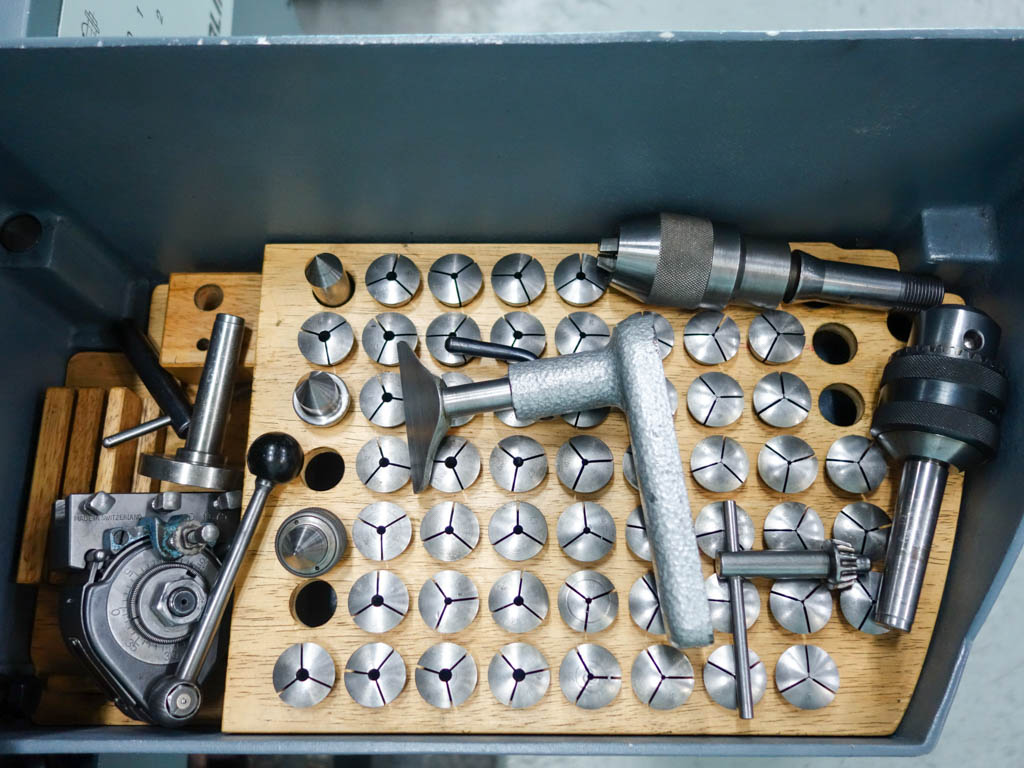

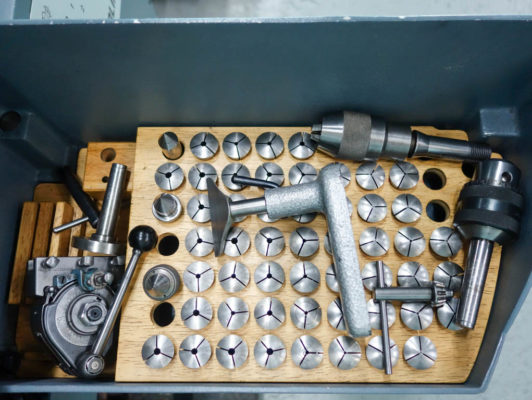

ACCESSORIES
Tray for tooling
Handle rest with T-support
Turret MULTIFIX
Tool holder MULTIFX
60° male center W20
Auto gripping drilling chuck W20
Drilling chuck with key CM2
60° male center CM2
60° revolving male center CM2
Drilling plate CM2

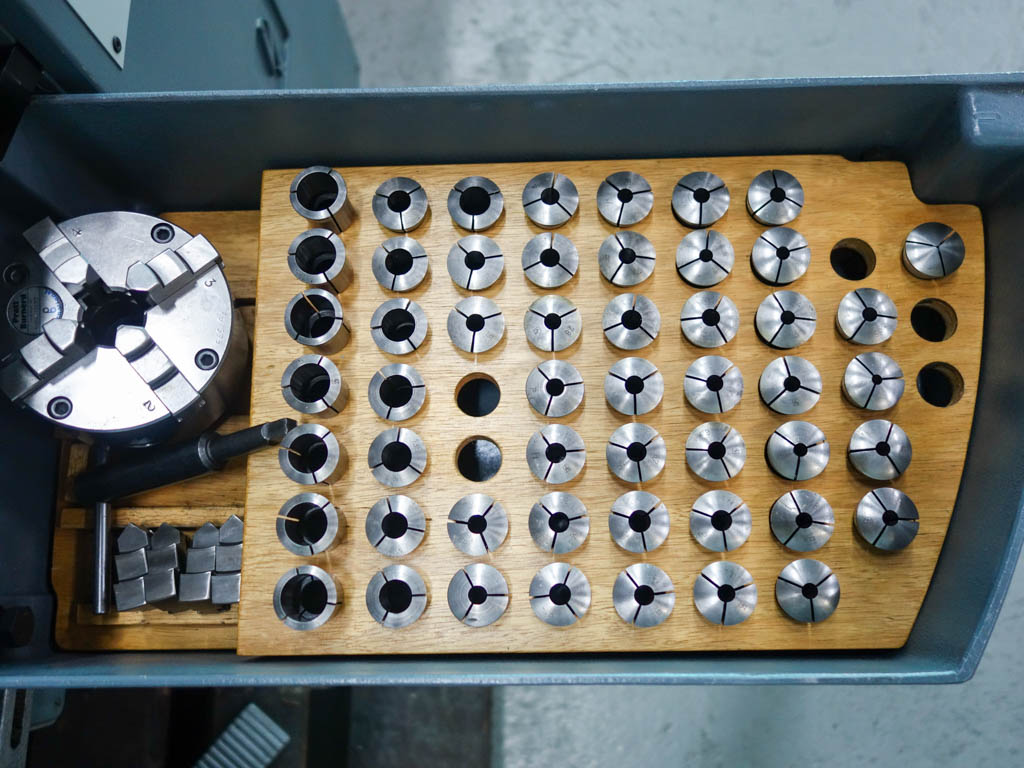

Chuck 2×4 jaws Ø100 mm self-centering clamping W20
Set of collets W20
