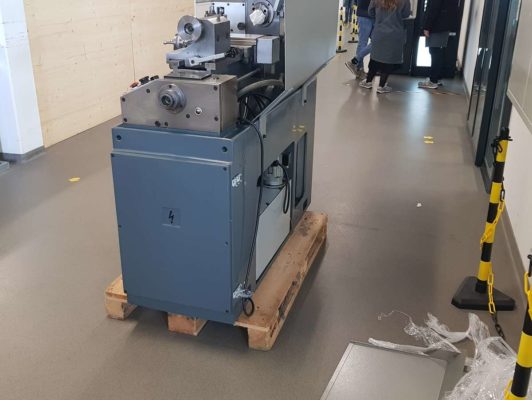

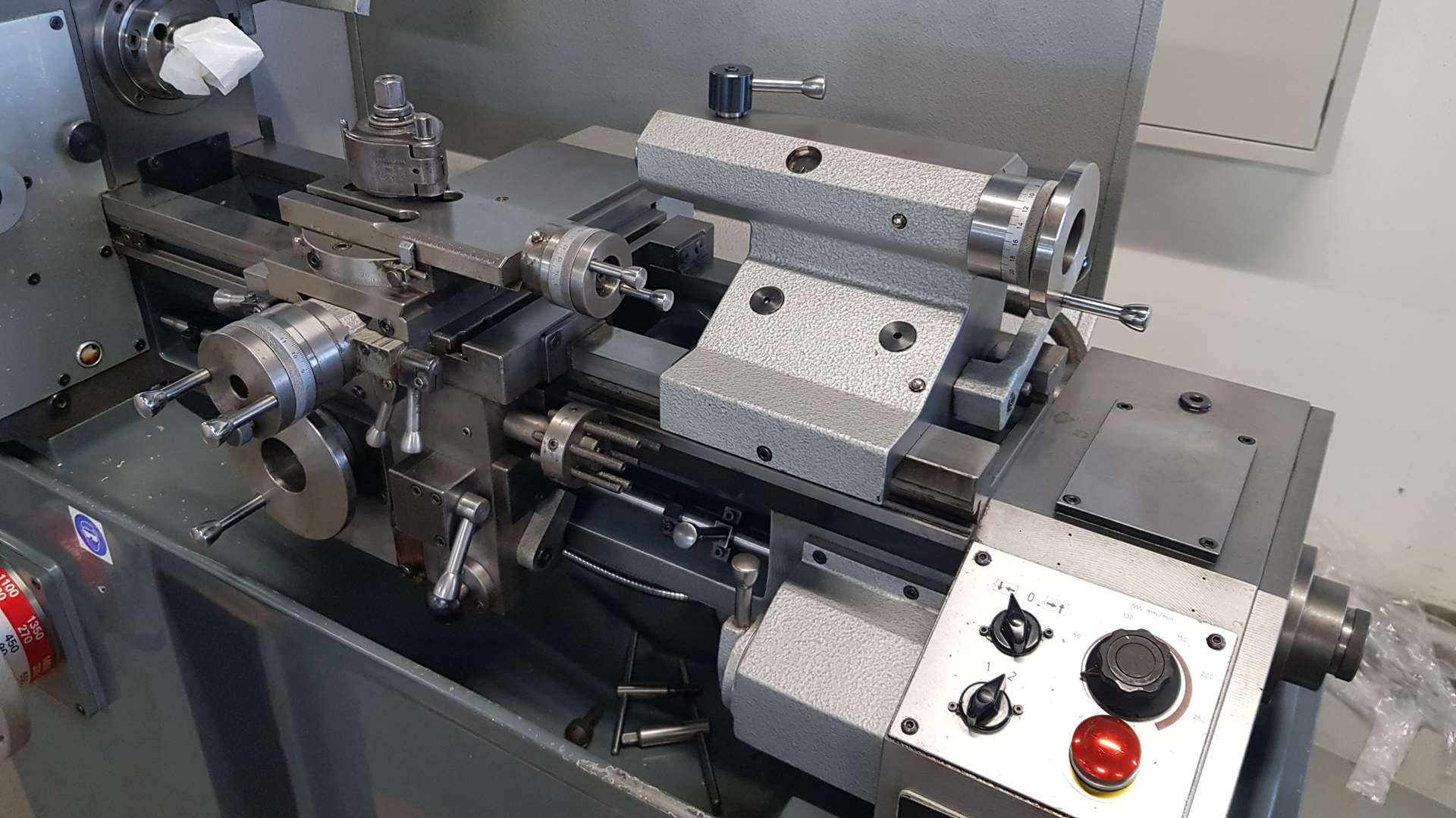

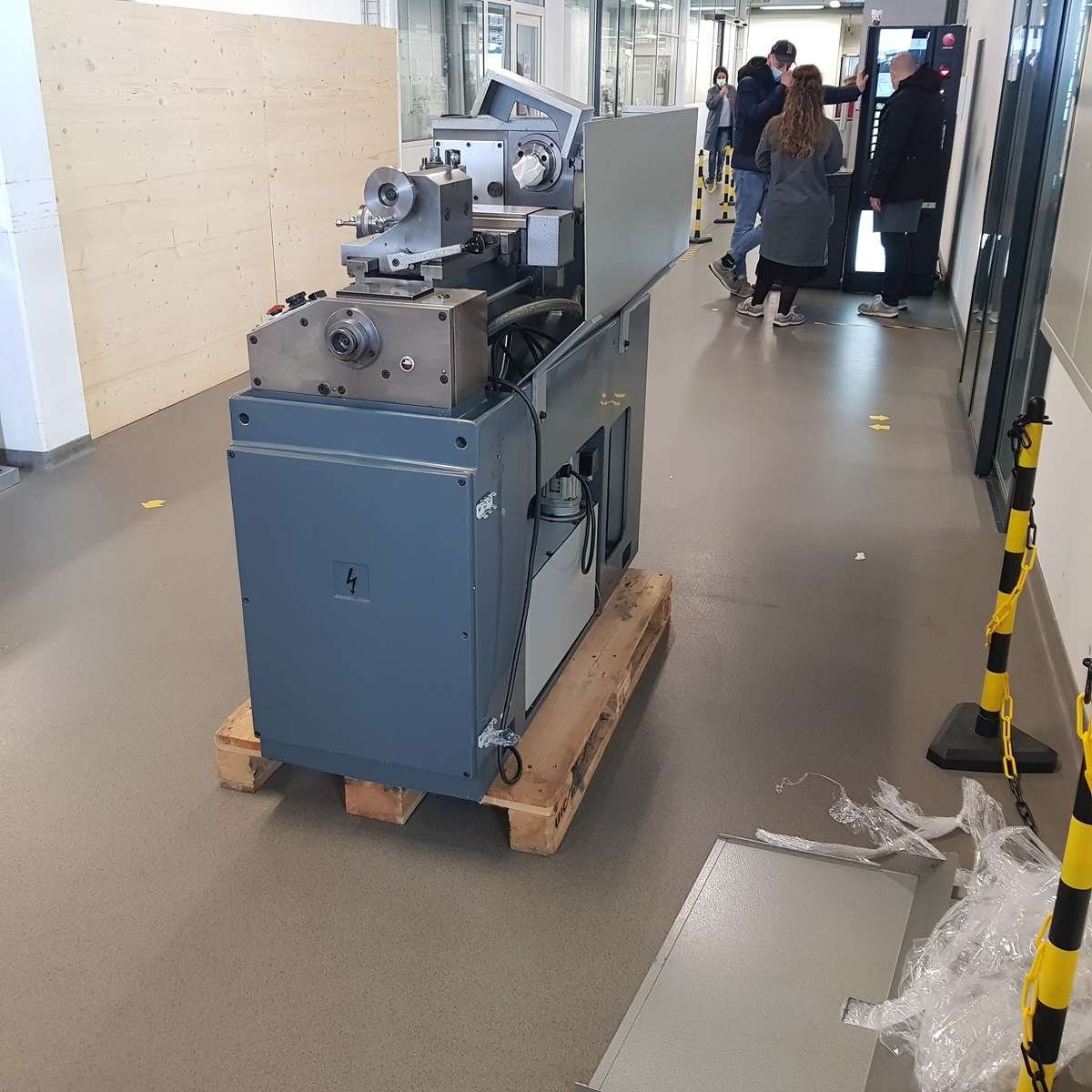

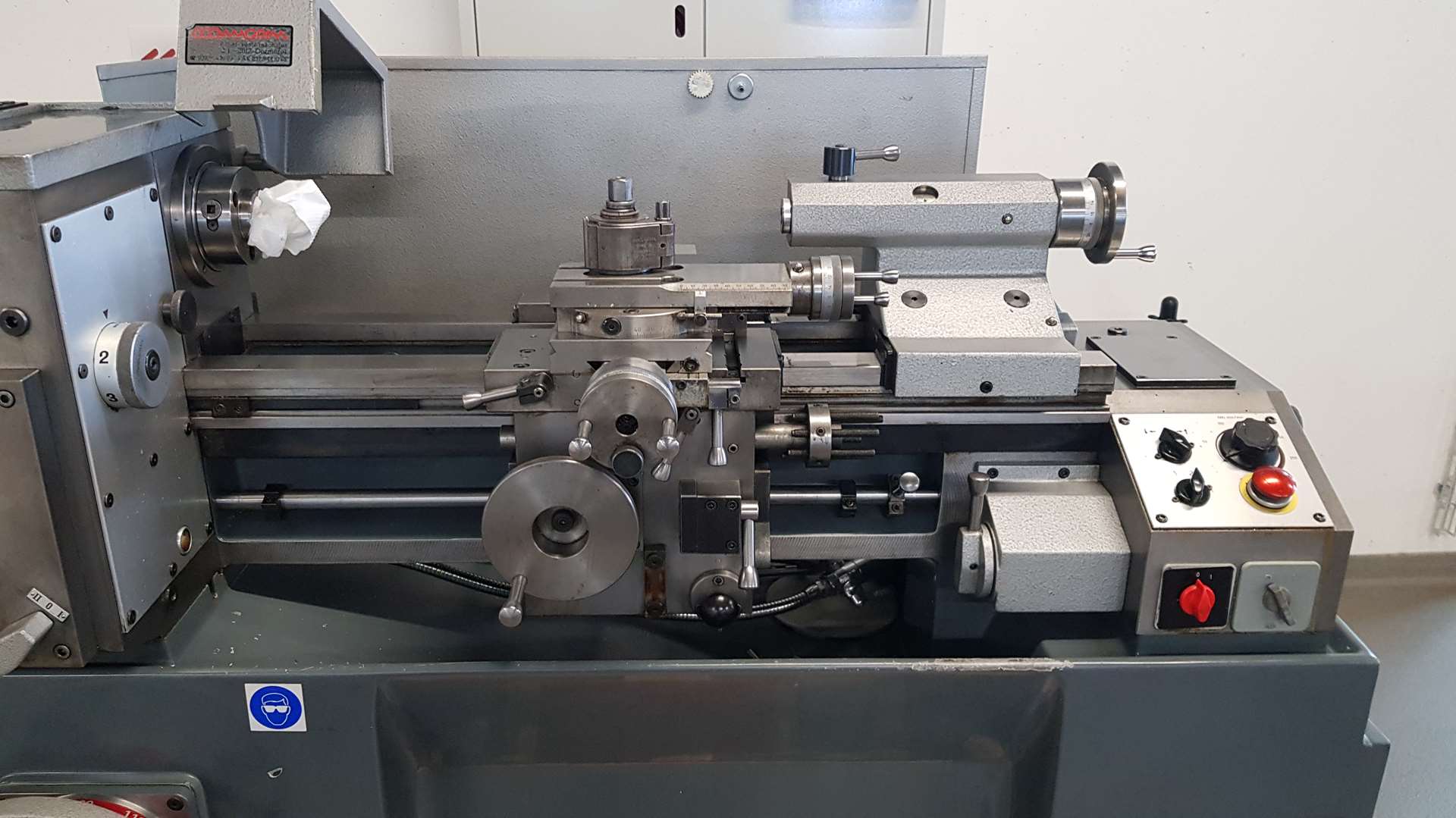

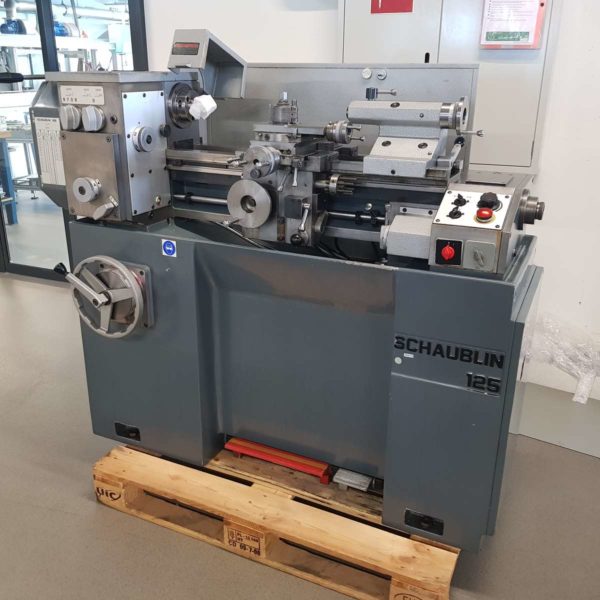

SCHAUBLIN 125C - Used machine
SOLD
| Model | 125 C |
| max. admitted diameter over the bed | 270 mm |
| Height of centers | 125 mm |
| Distance between centers | 500 mm |
| Hole through spindle | 28 mm |
| Spindle speed | 45 - 3000 RPM |
| Stroke of the sleeve | 100 mm |
| longitudinal and cross feed | 4 -260 mm/mn |
| Dimensions | 1480x730x1280 mm |
| Weight | 950 Kg |

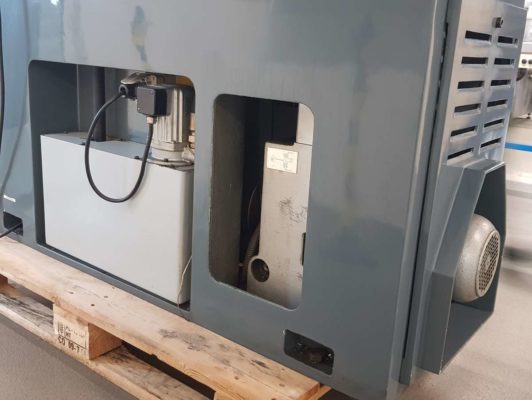

| Motor power | 0.55 KW à 500 t/min 1.85 KW à 1500 t/min HP |
| Tail stock taper | CM 2 |

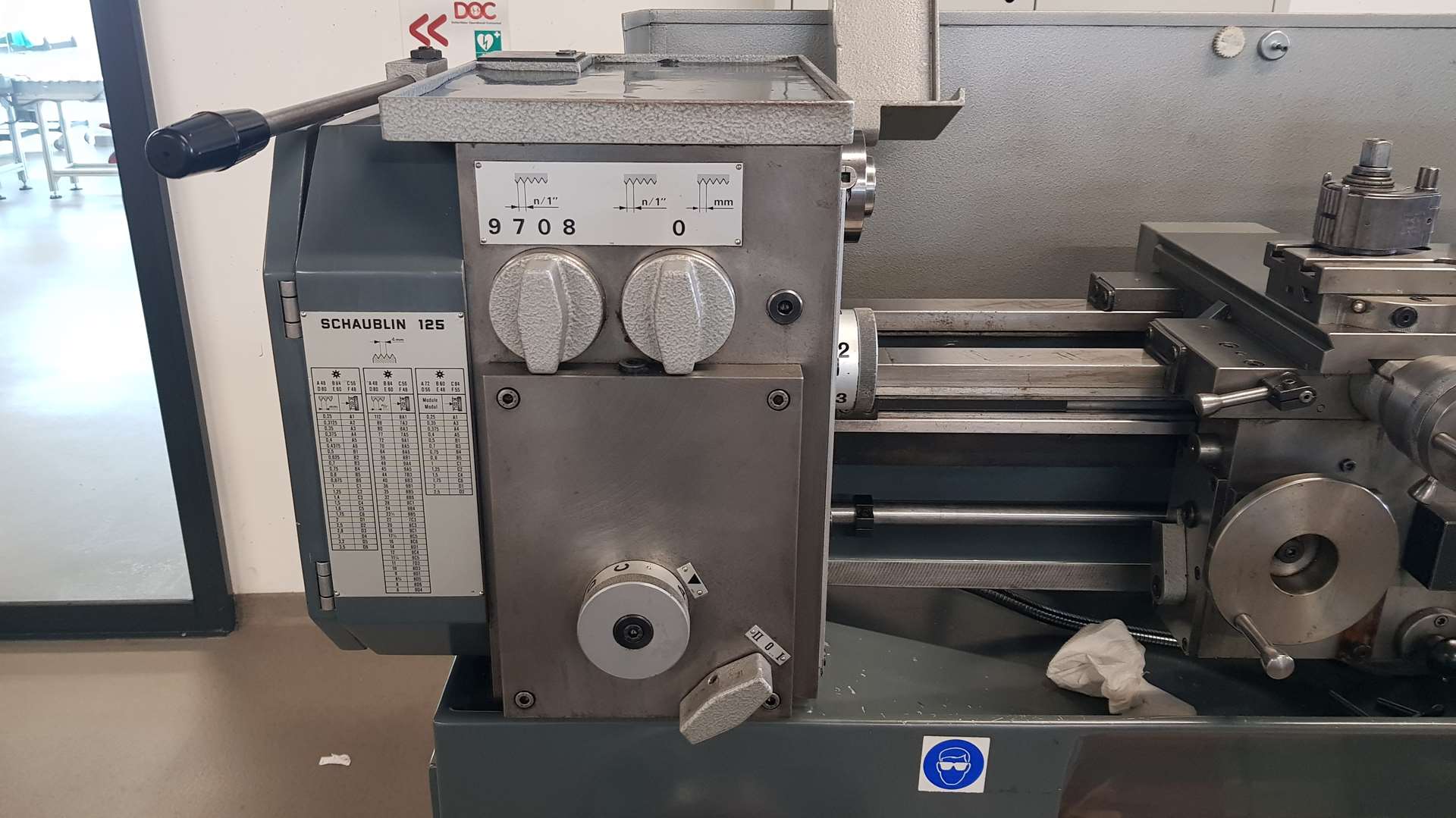

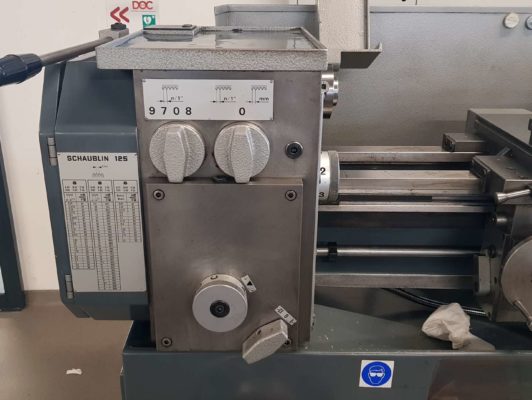

Worhead

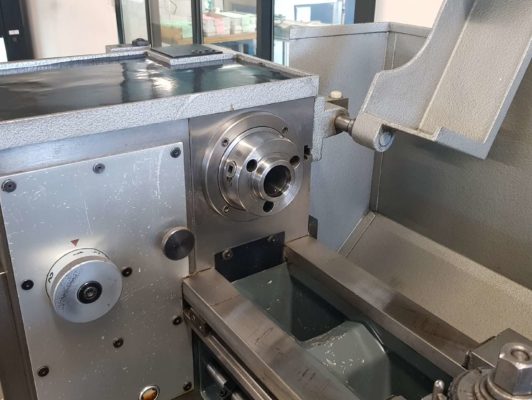

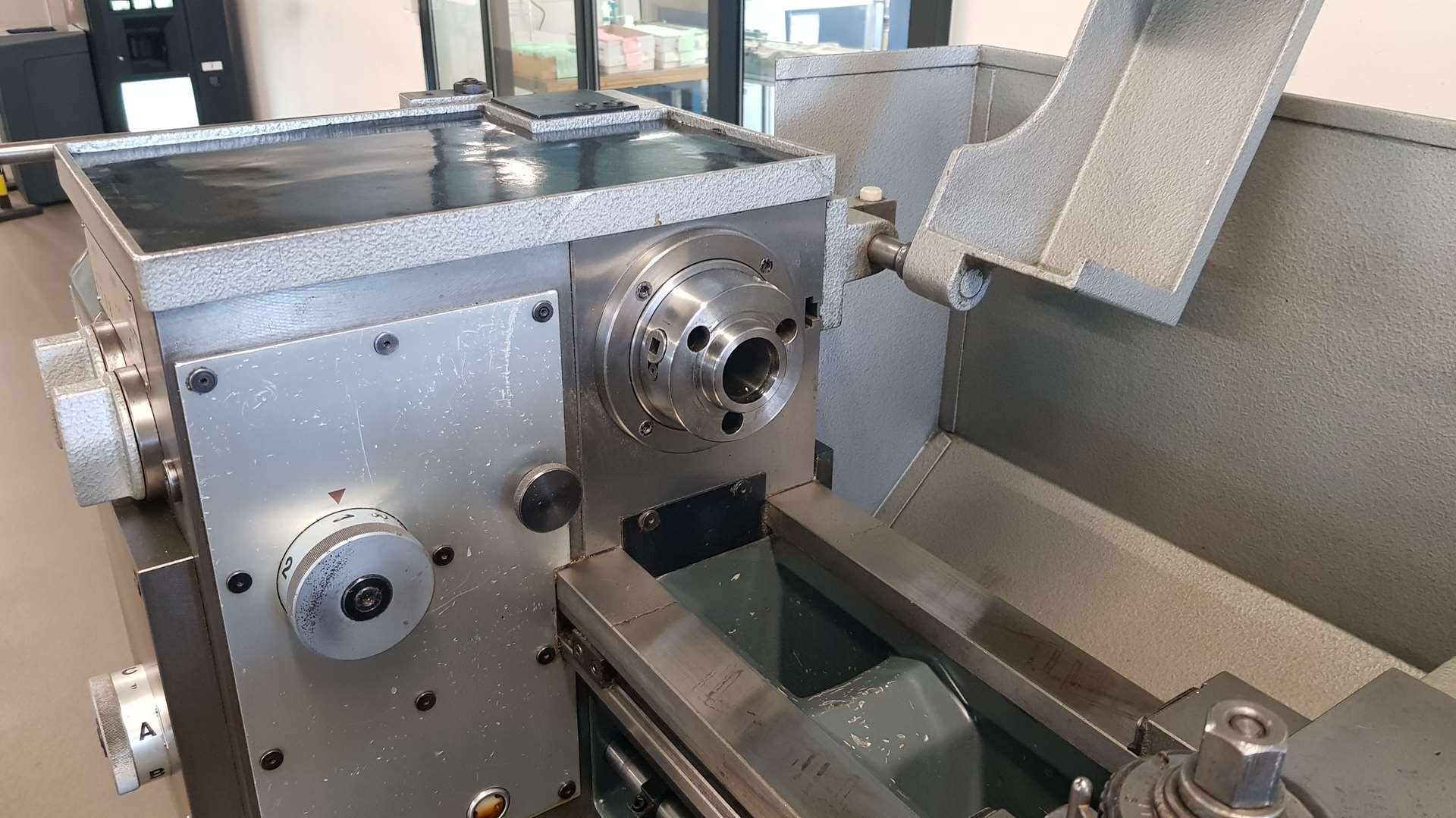

Camlock D1-3” spindle nose
Spindle for B32 collet

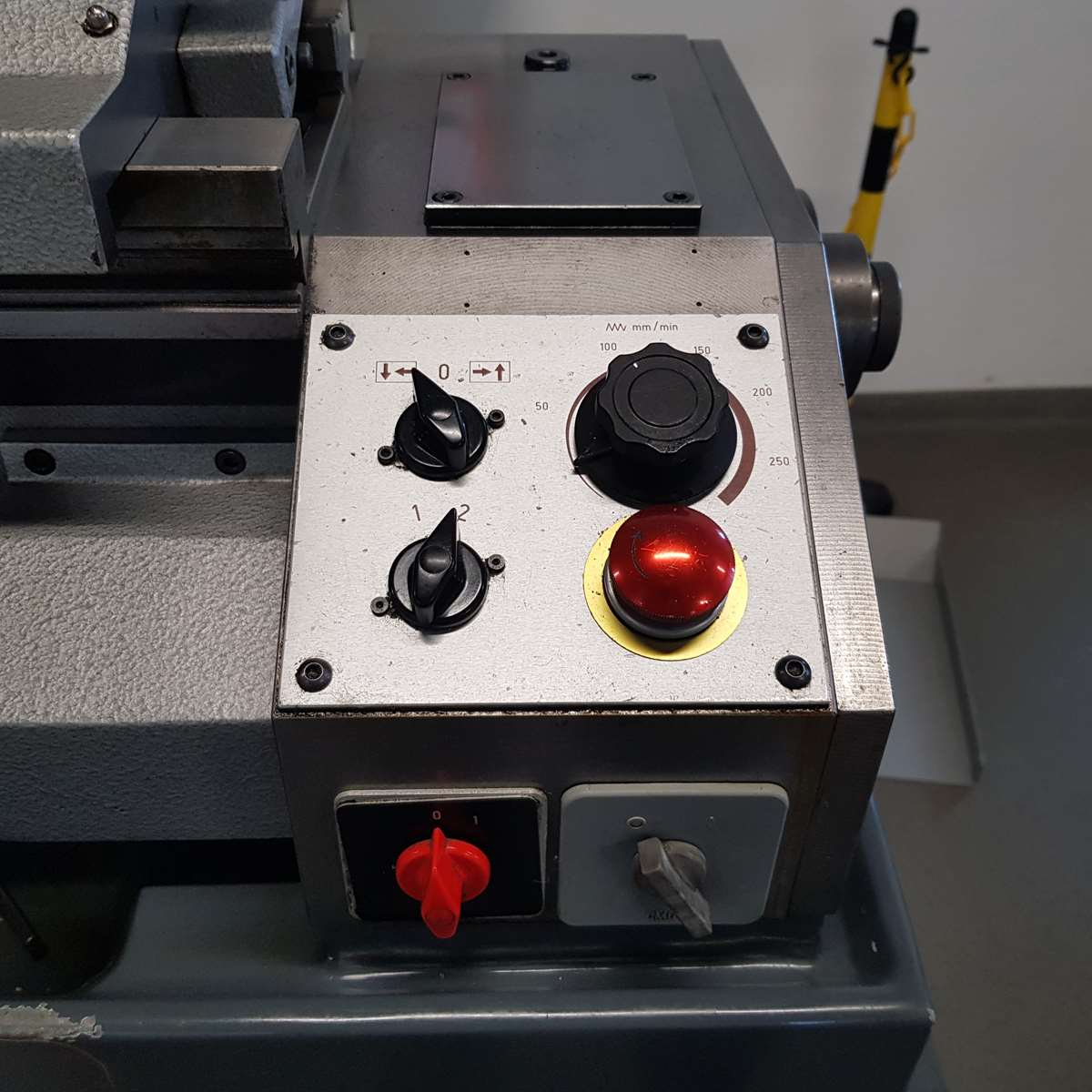

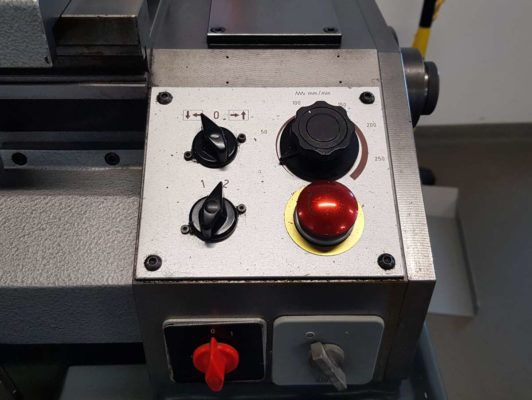

Automatic feed C Version

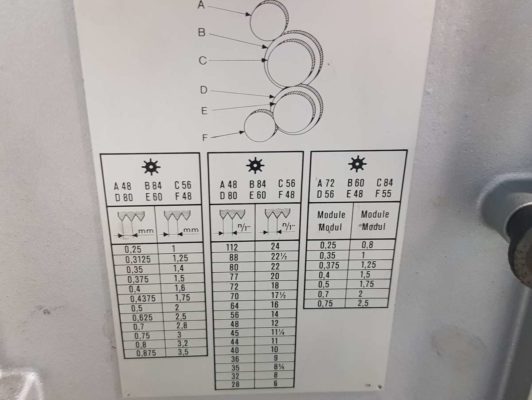

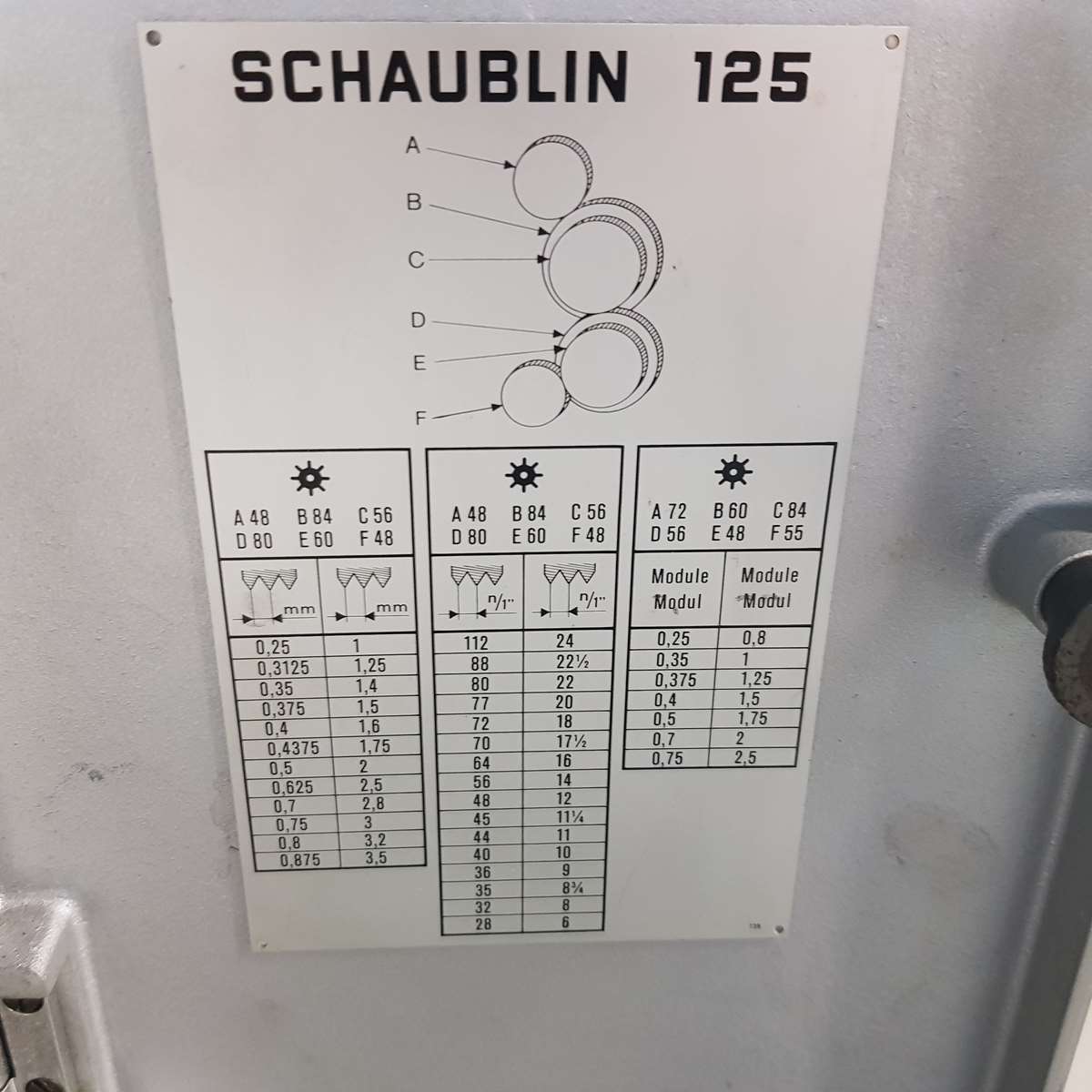

Thread with universal box, metric pitch: 0.25-3.5 mm
Thread with universal box, English pitch: 112-6 threads/1″.

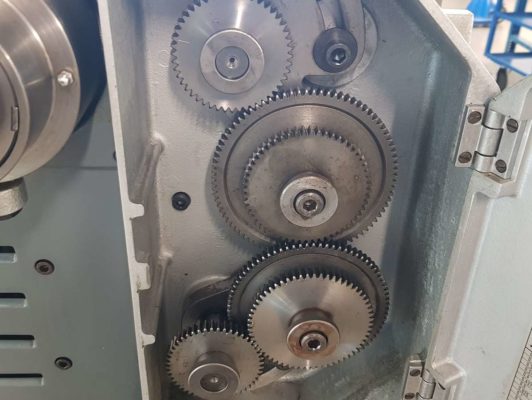

Special pitches with simultaneous use of gearbox and spare wheels: 0,25-8 mm
