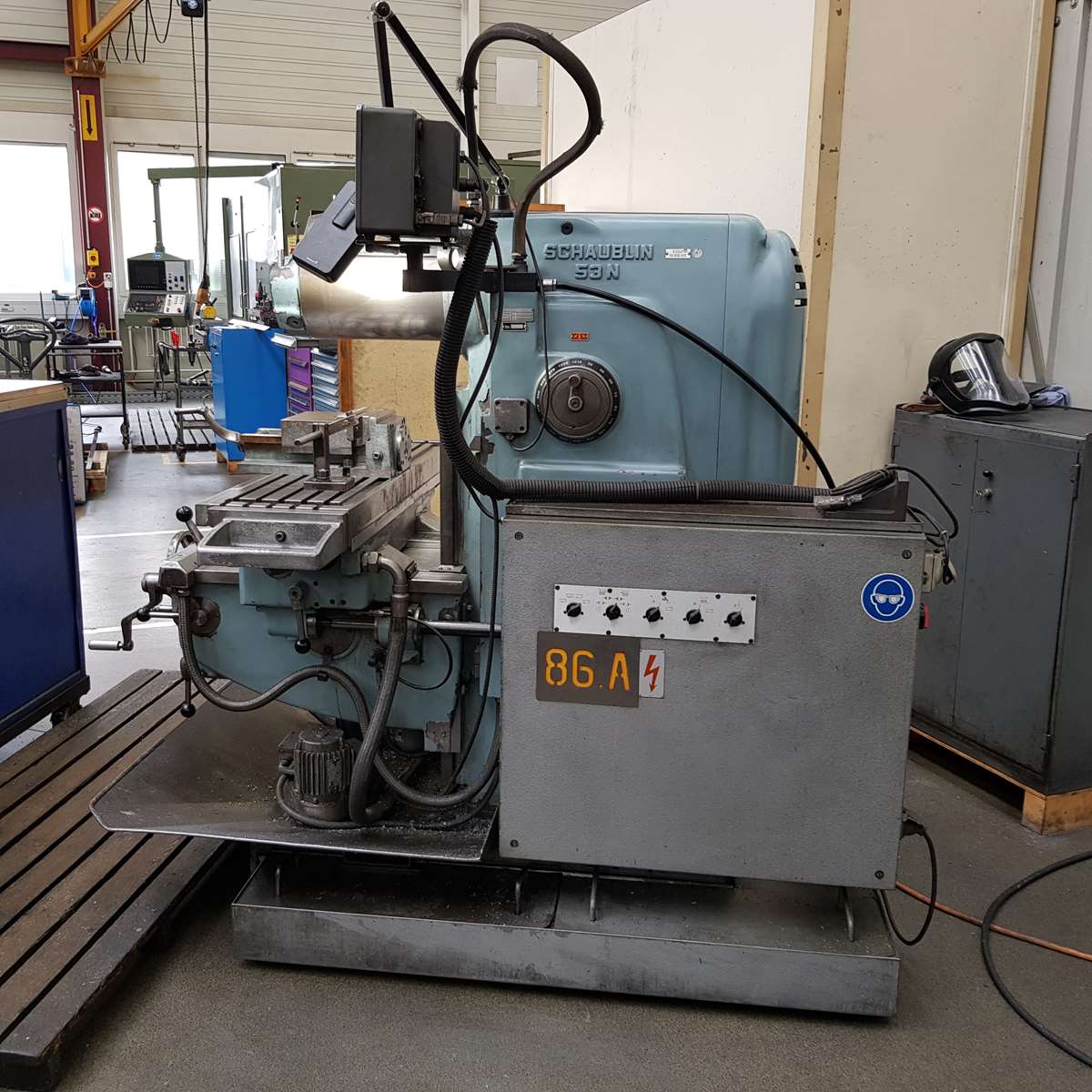

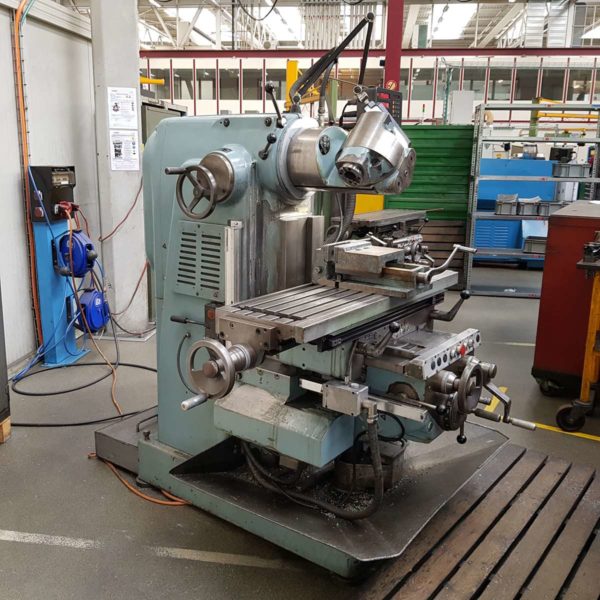

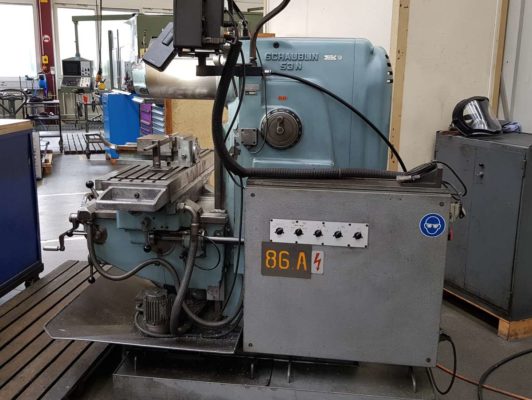

SCHAUBLIN 53 N - Used machine
SOLD
| Cross travel - Y | 250 mm |
| Vertical travel | 490 mm |
| Table area | 1100 x 305 mm |
| Number of T-slots | 5 |
| Groove maximum width | 14-H7 mm |
| Spindle taper | ISO-40 |
| Hole through spindle | 25.2 mm |
| Main motor | 3/1500 kW-t/min |
| Rapid feeds motor | 1.2/3000 kW-t/min |
| Power | 5.1 KW |

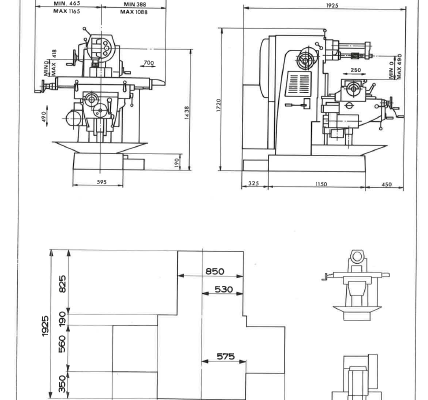

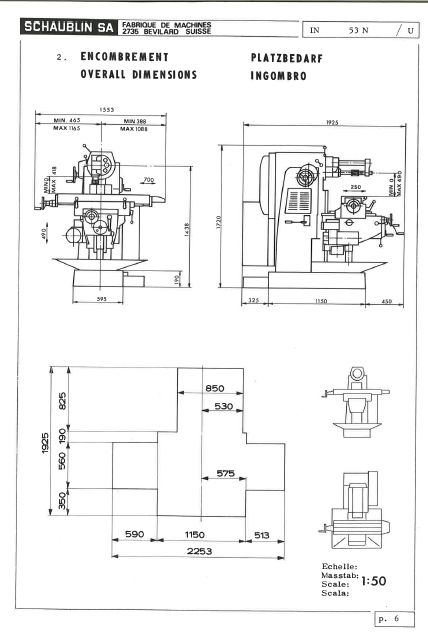

| Dimensions | 2250x1920x1720 mm |
| Weight | 2000 Kg |

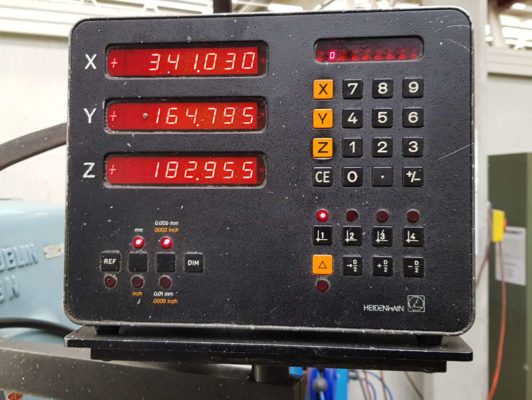

DRO 3 axis HEIDENHAIN

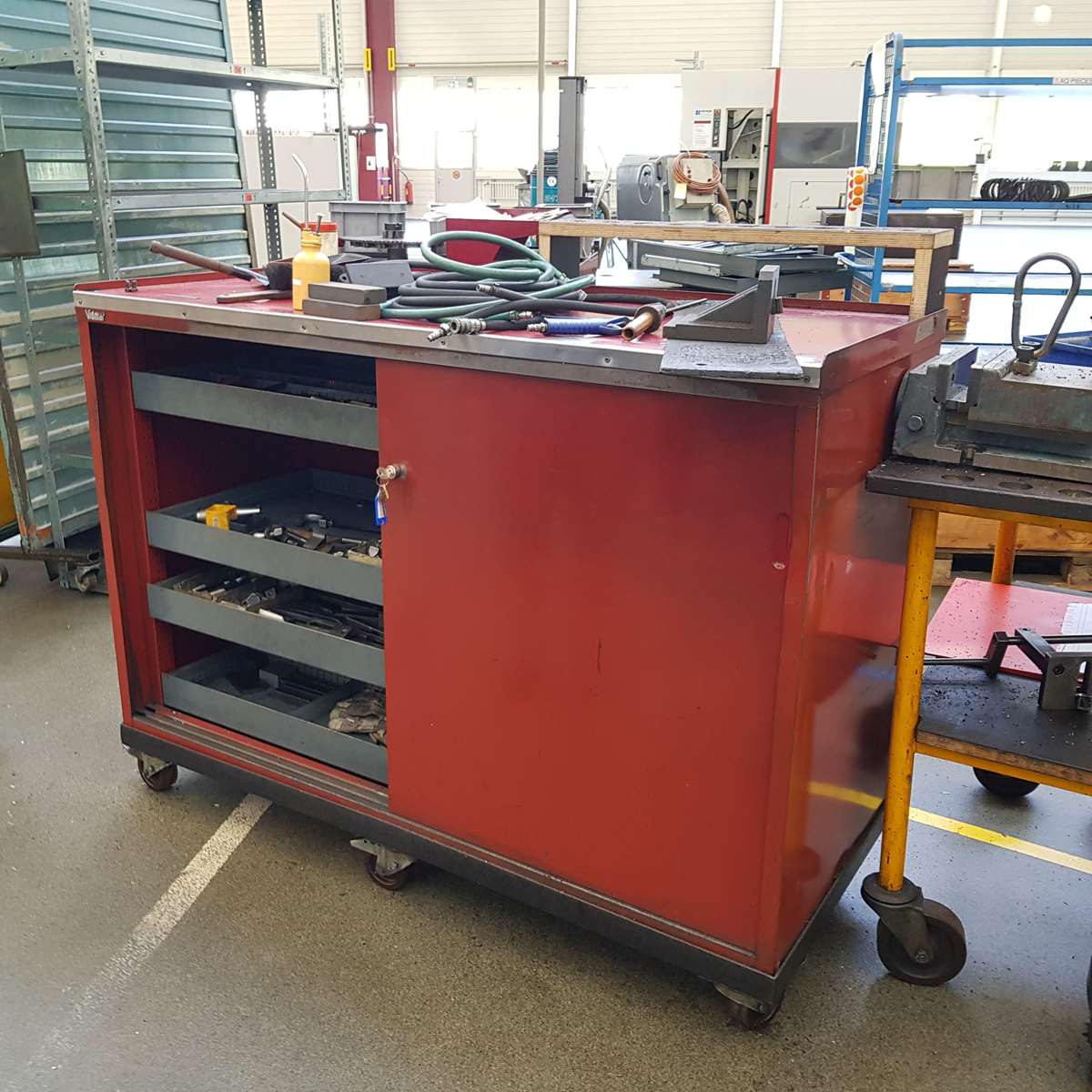

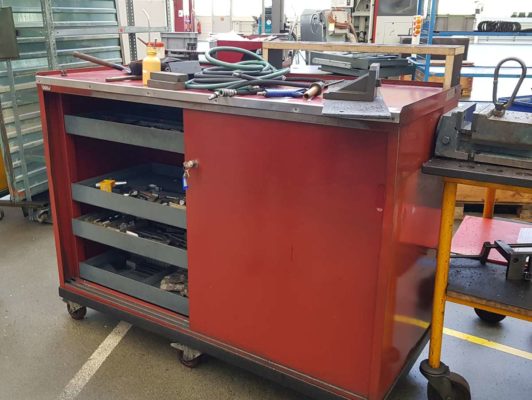

1 red cabinet on wheels, 2 doors 1500x630x1130 mm

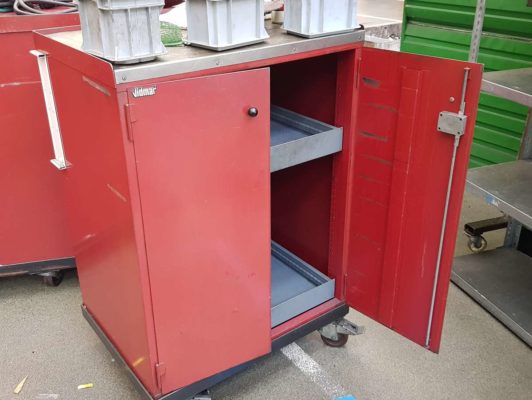

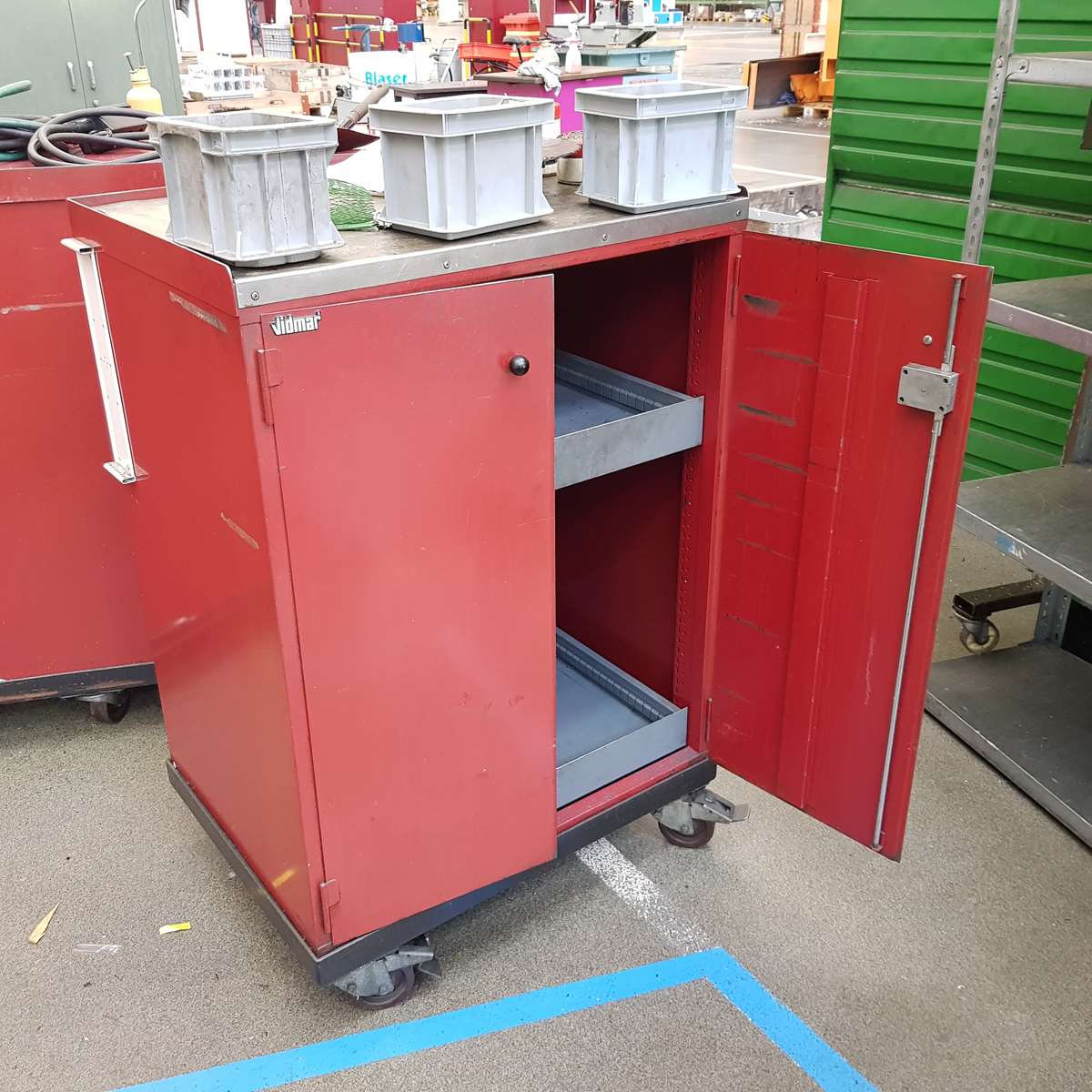

1 red cabinet on wheels, 2 doors 770x580x1140 mm

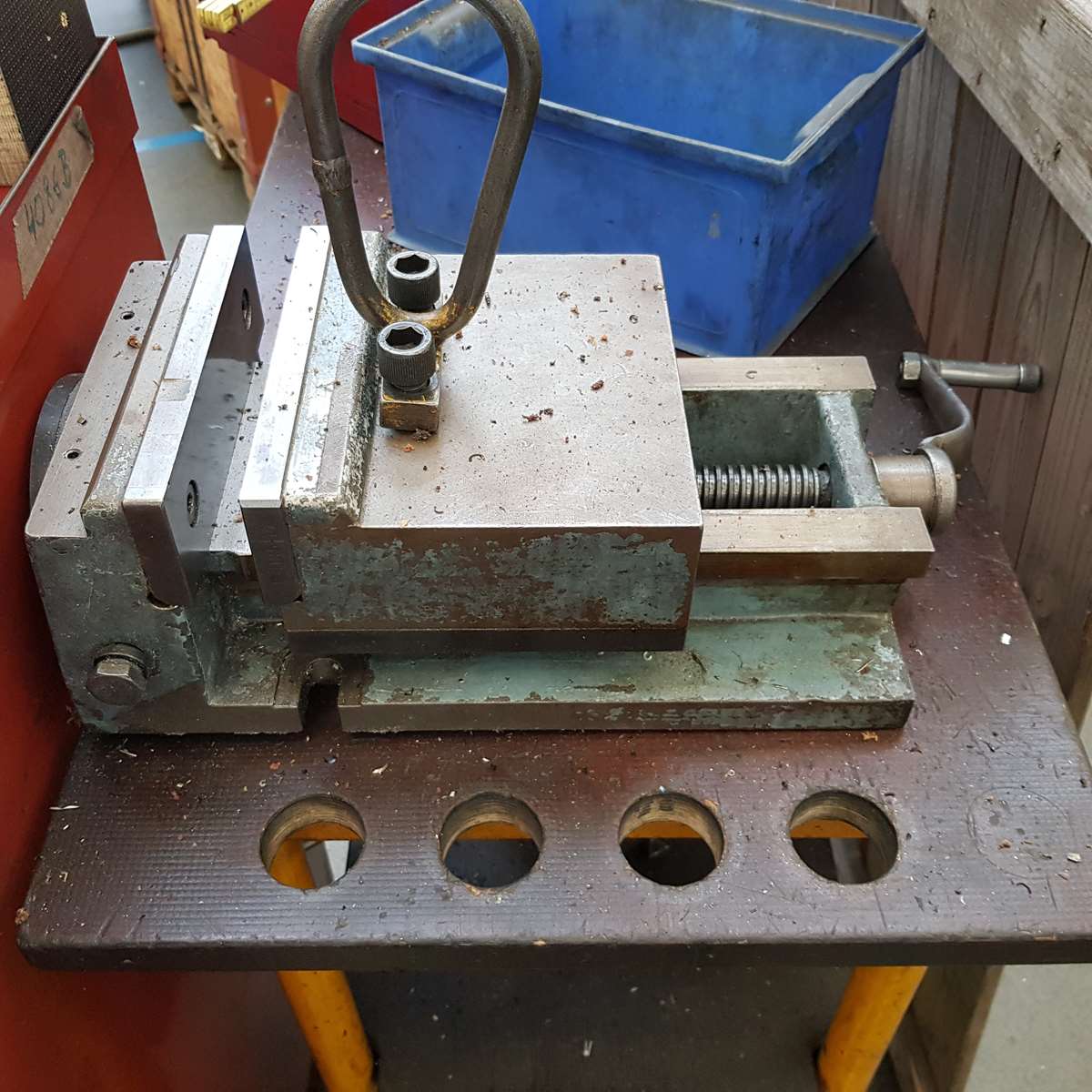

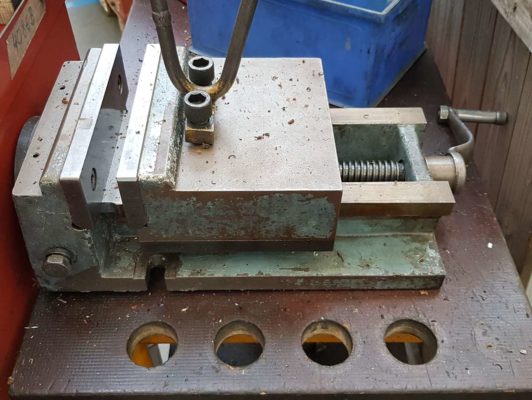

1 vice opening 140 mm, jaw 200×60 mm
