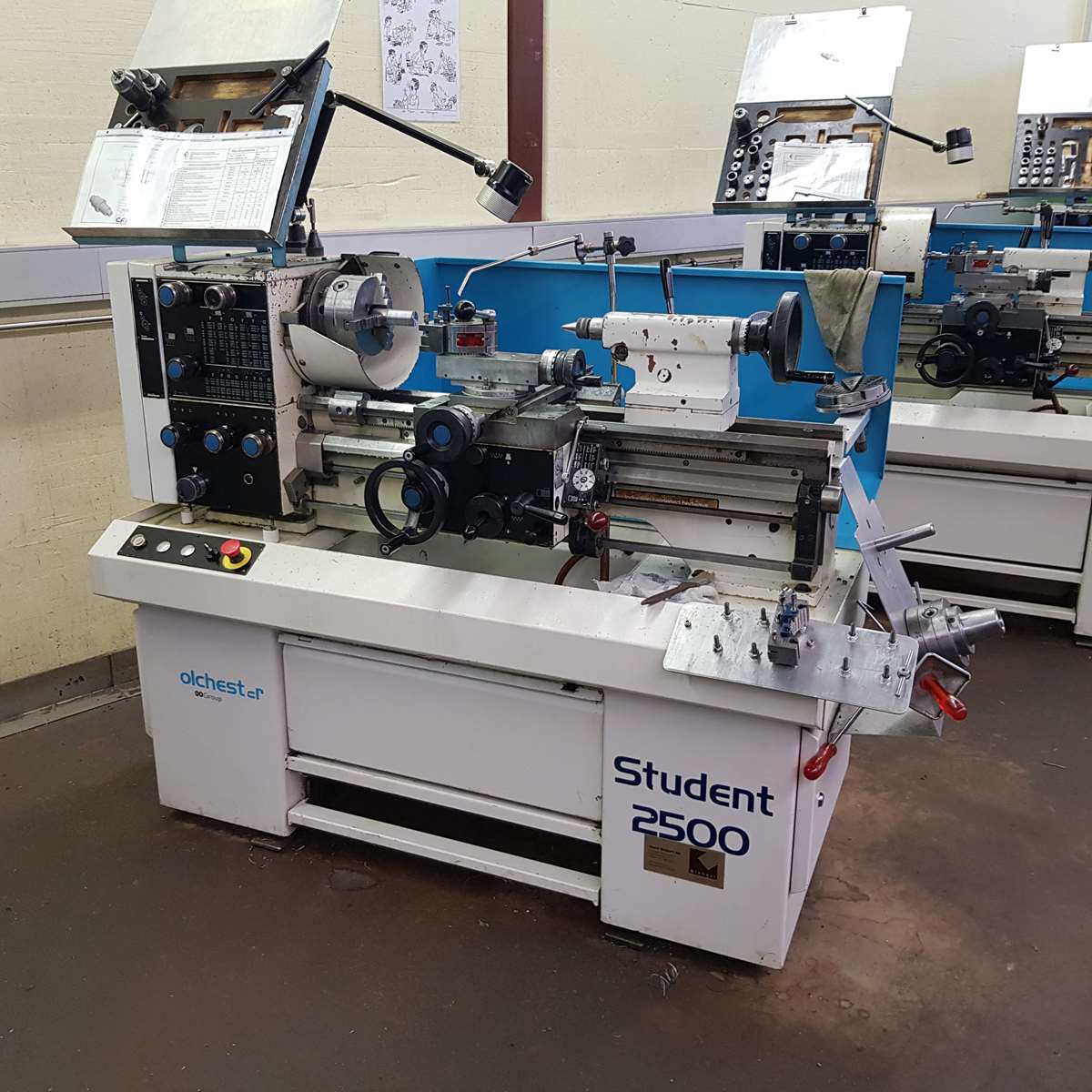

COLCHESTER 2500 - Used machine
SOLD
| Type | STUDENT 2500 |
| Maximum diameter allowed above the bench | 330 mm |
| Height of tips | 167 mm |
| Distance between points | 1000 mm |
| Cross slide travel | 135 mm |
| Travel of the longitudinal slide | 90 mm |
| Number of spindle speeds | 12 |
| Spindle speed | 40 - 2500 RPM |
| Power | 2.2 KW |
| Spindle diameter | 40 mm |
| Number of metric steps | 45 |
| Metric steps | 0.2 à 14 |
| Number of module steps | 18 |
| Modulus pitch | 0.3 à 3.5 |
| Spindle taper | D1-4 Camlock |
| Tailstock taper | CM3 |
| Tailstock sleeve stroke | 100 mm |
| Dimensions | 2130x1020x1450 mm |
| Weight | 720 Kg |
Equipment
– Lamp
– Multifix turret and tool holder
– 3 jaw chuck
– Magnetic chuck
– Cooling system
