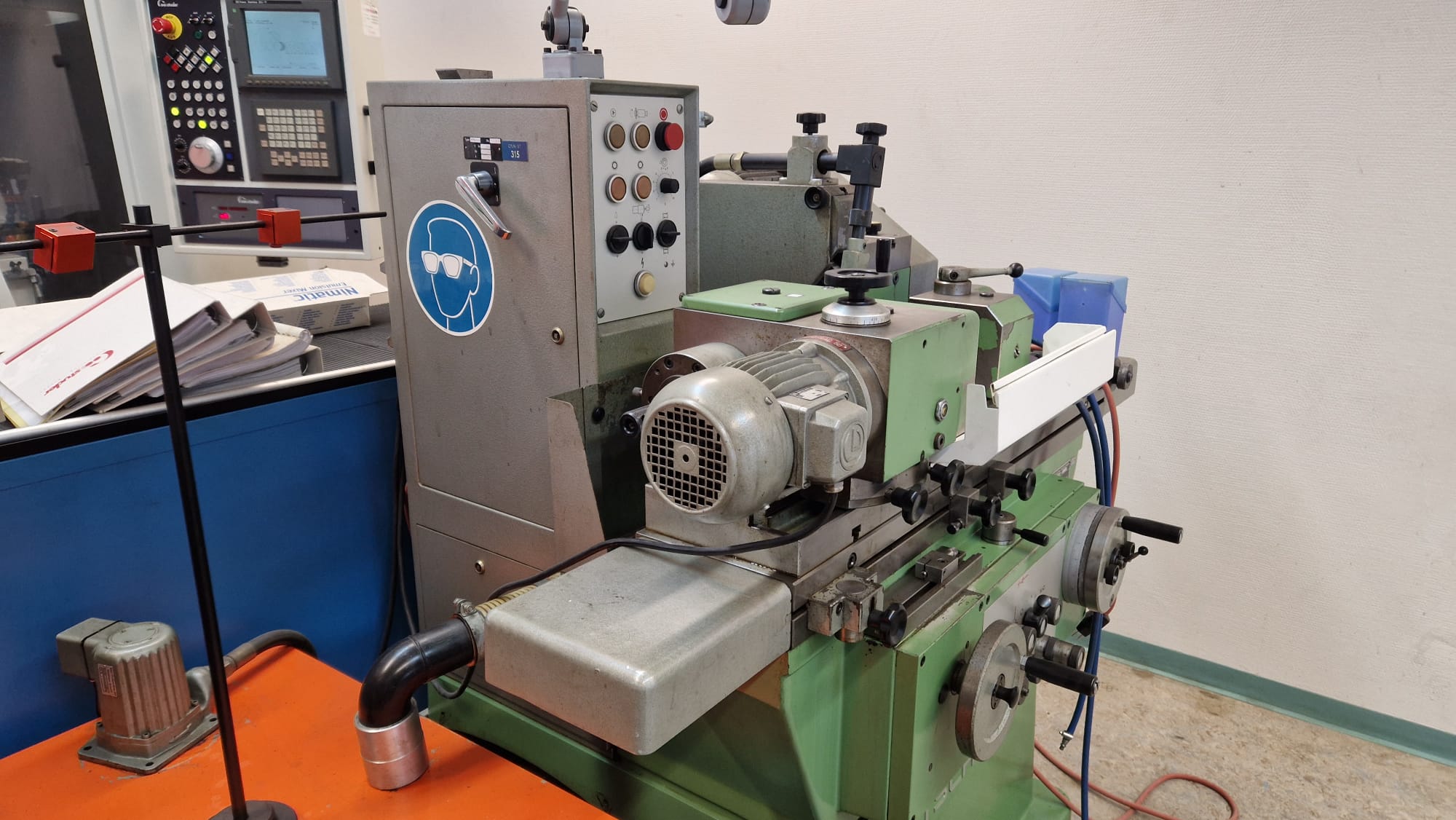

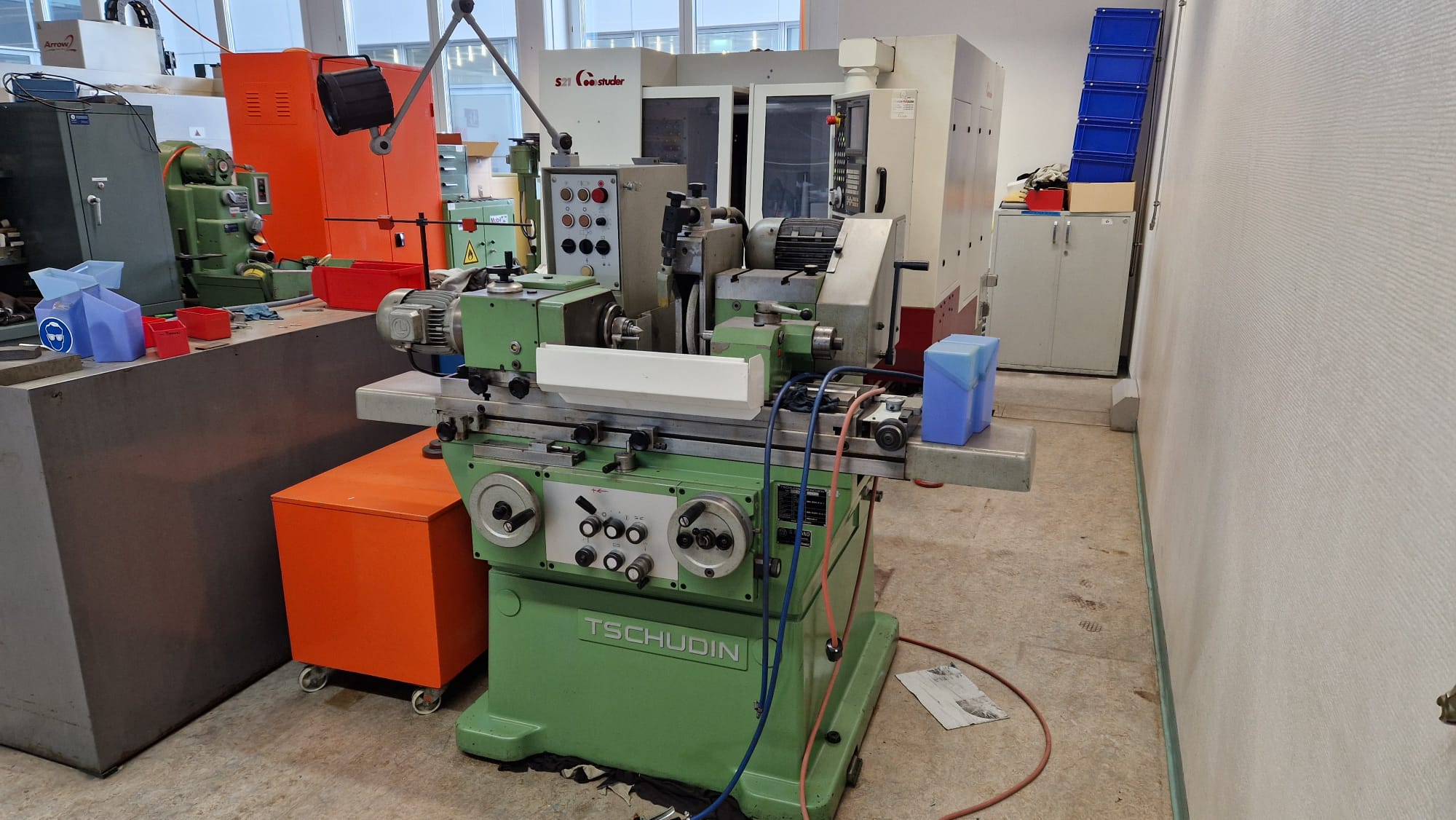

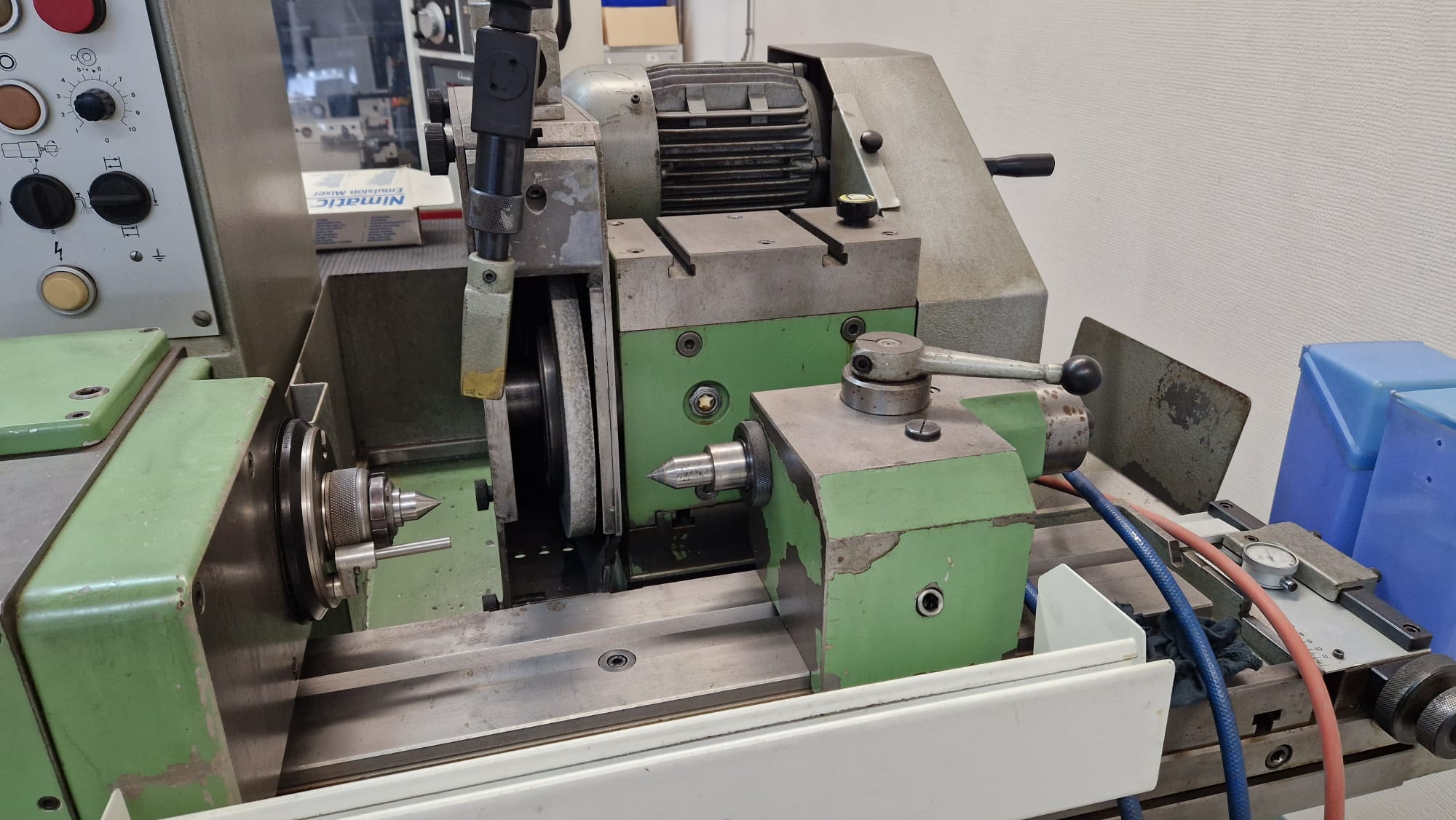

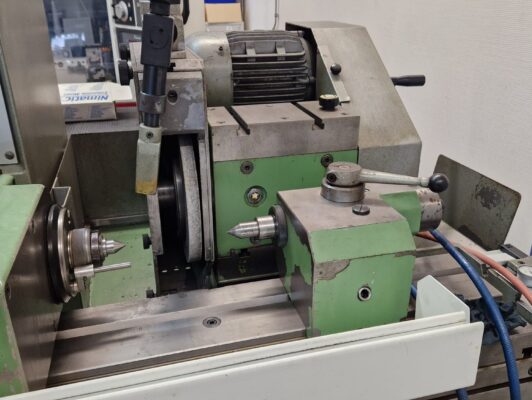

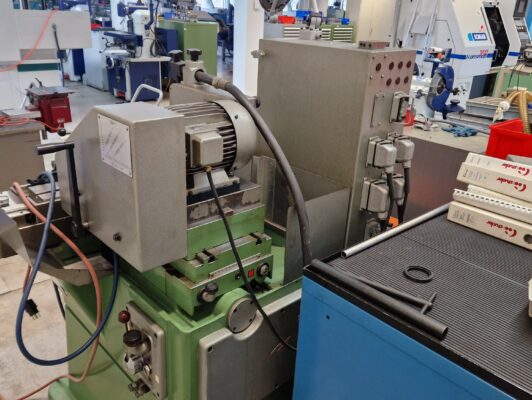

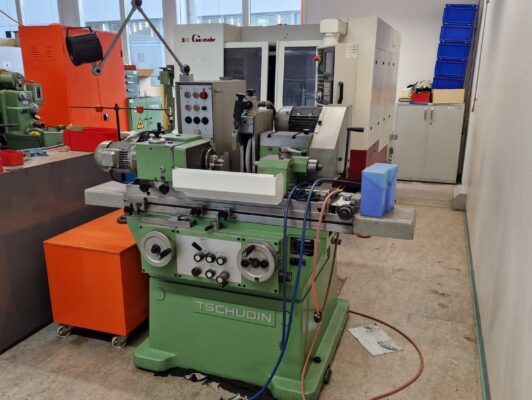

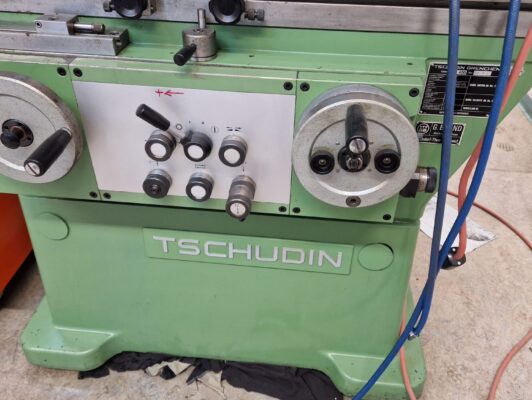

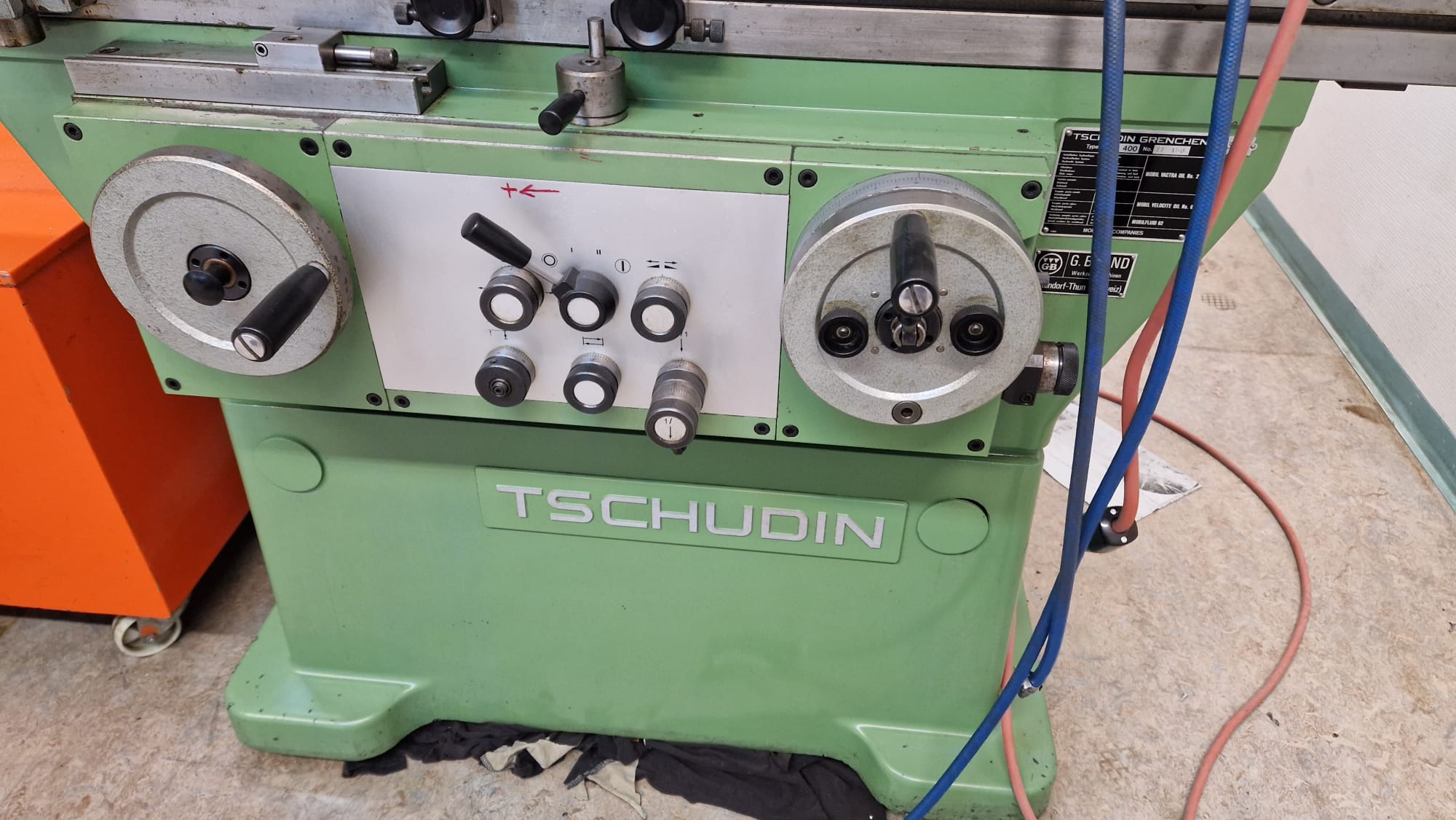

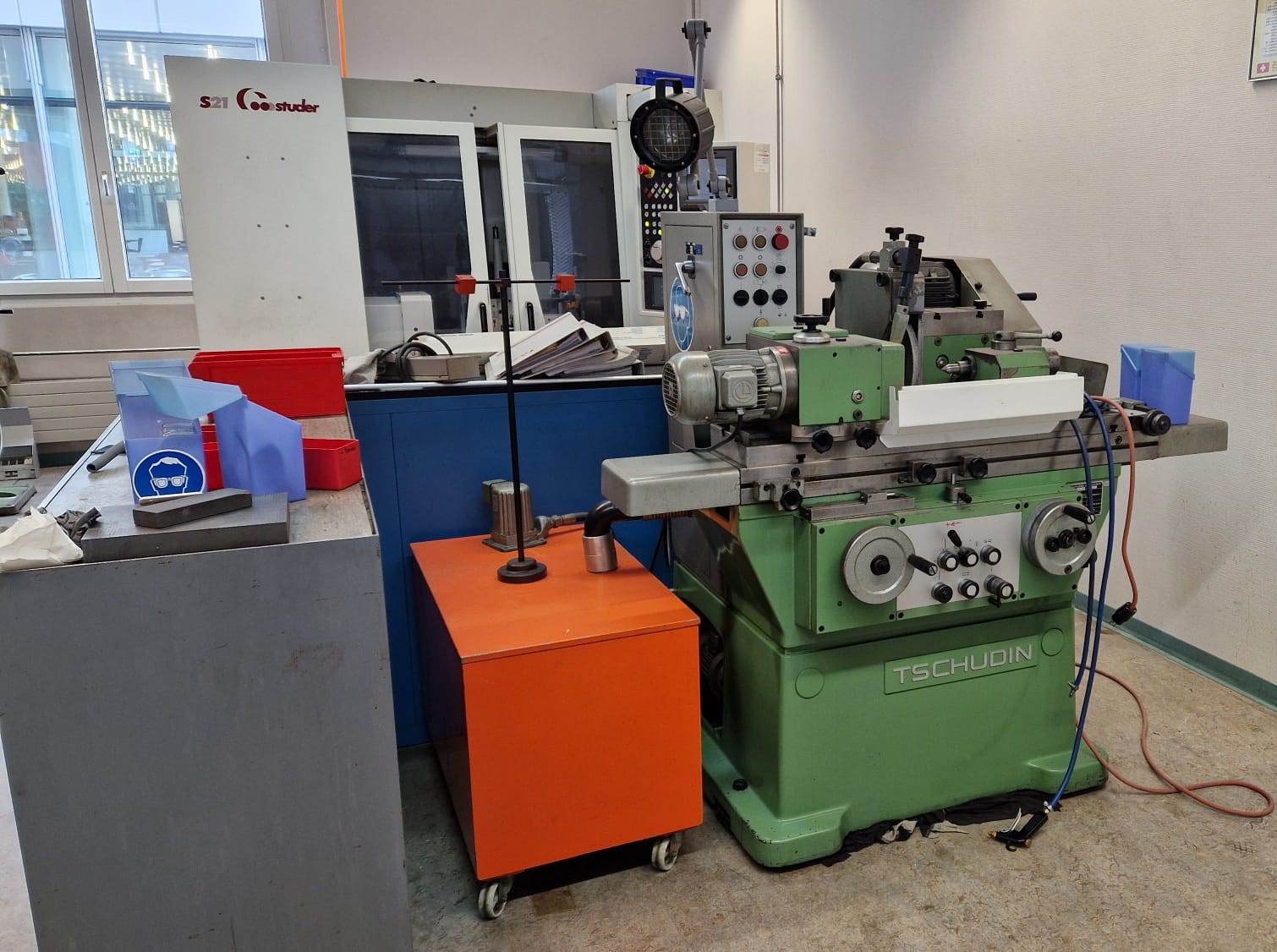

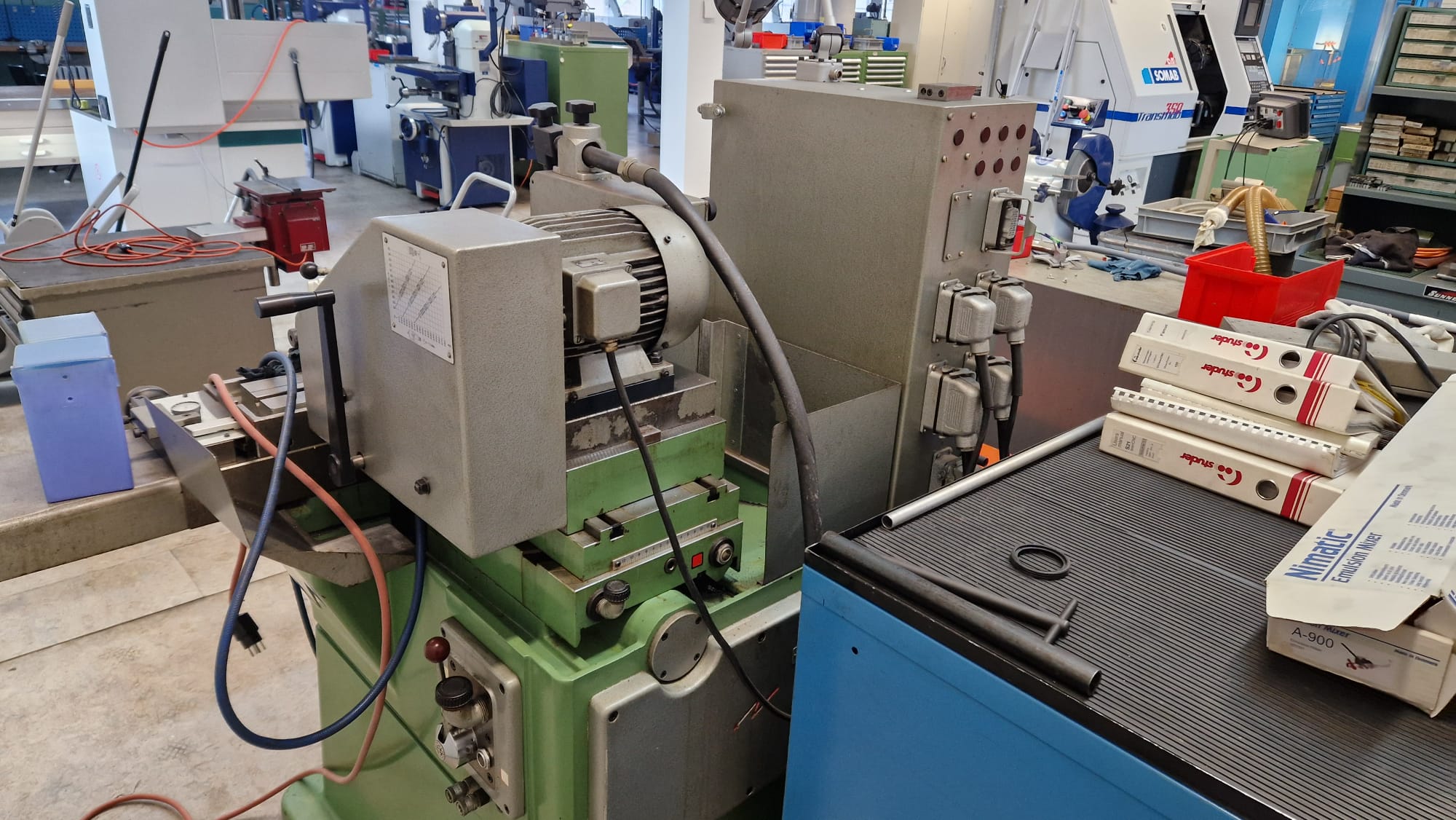

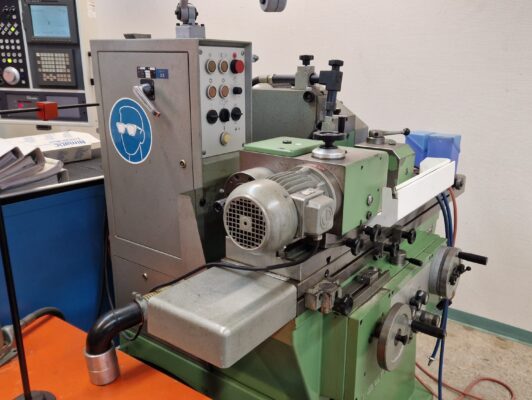

TSCHUDIN HTG 400 - Used machine

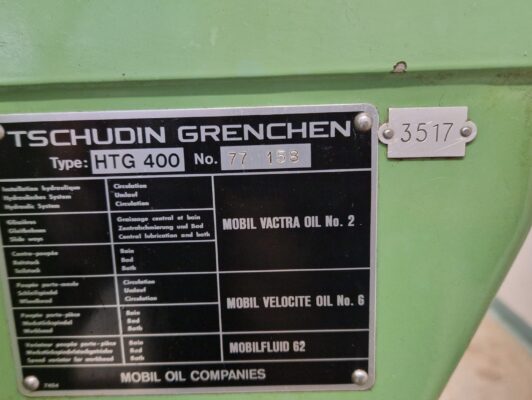

| Serial Number | 77158 |
| Height of centers | 100 mm |
| Distance between centers | 400 mm |
| Parts head | CM4 |
| Head orientation | 360 ° |
| Spindle speed | 65 à 500 RPM |
| Spindle power | 0,55 KW |
| Hole through spindle | 24 mm |
| Wheel head speed | 1930/2240 t/mn |
| Grinding wheel diameter | 300 mm |
| Max wheel width | 50 mm |
| Hydraulic clamping tailstock | CM3 |
| Table orientation | 9 ° |
| Weight | 1600 Kg |
| Dimensions | 1520x1200x1470 mm |

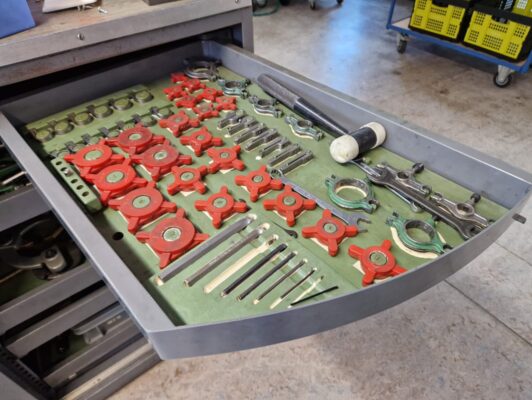

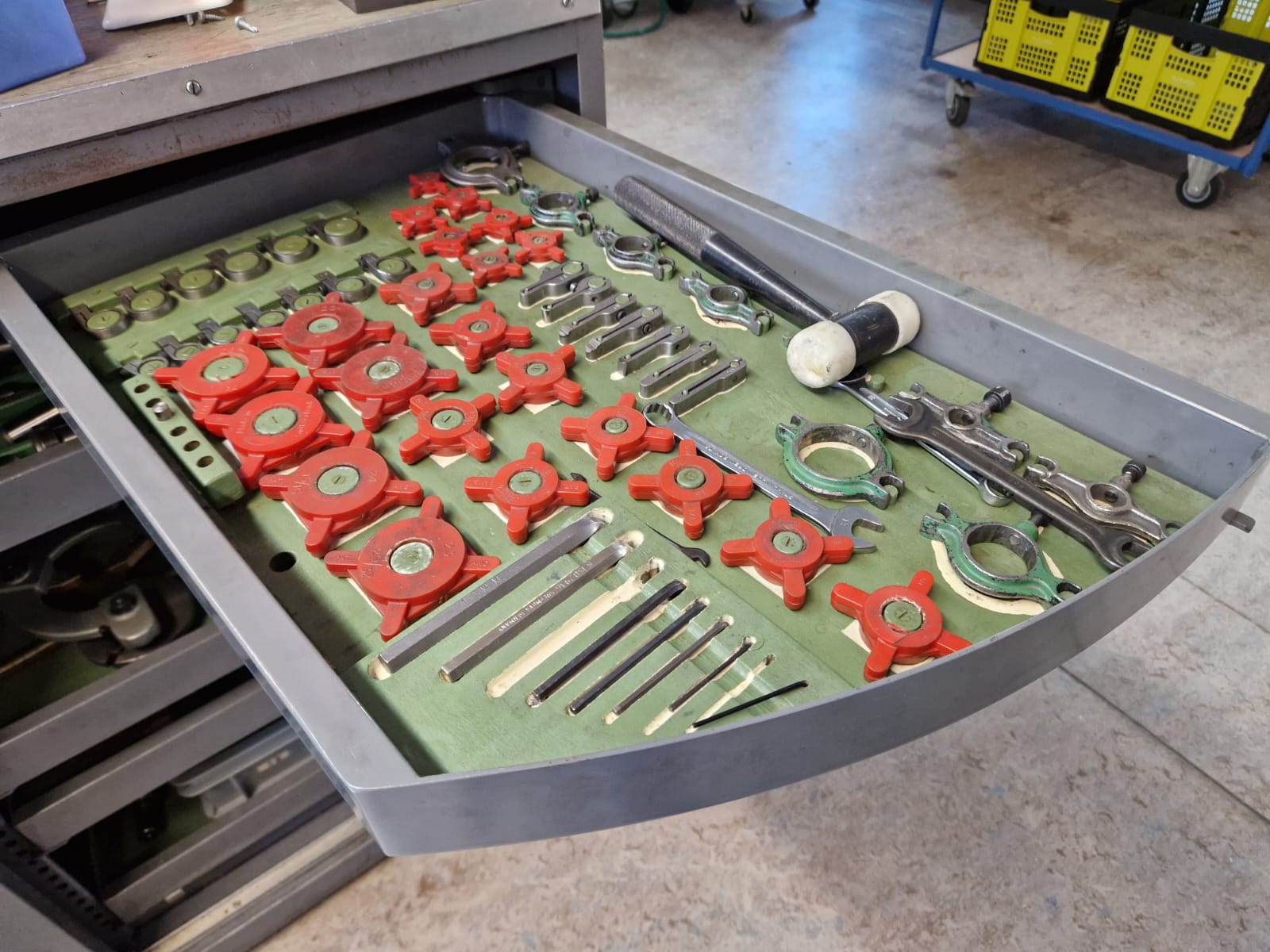

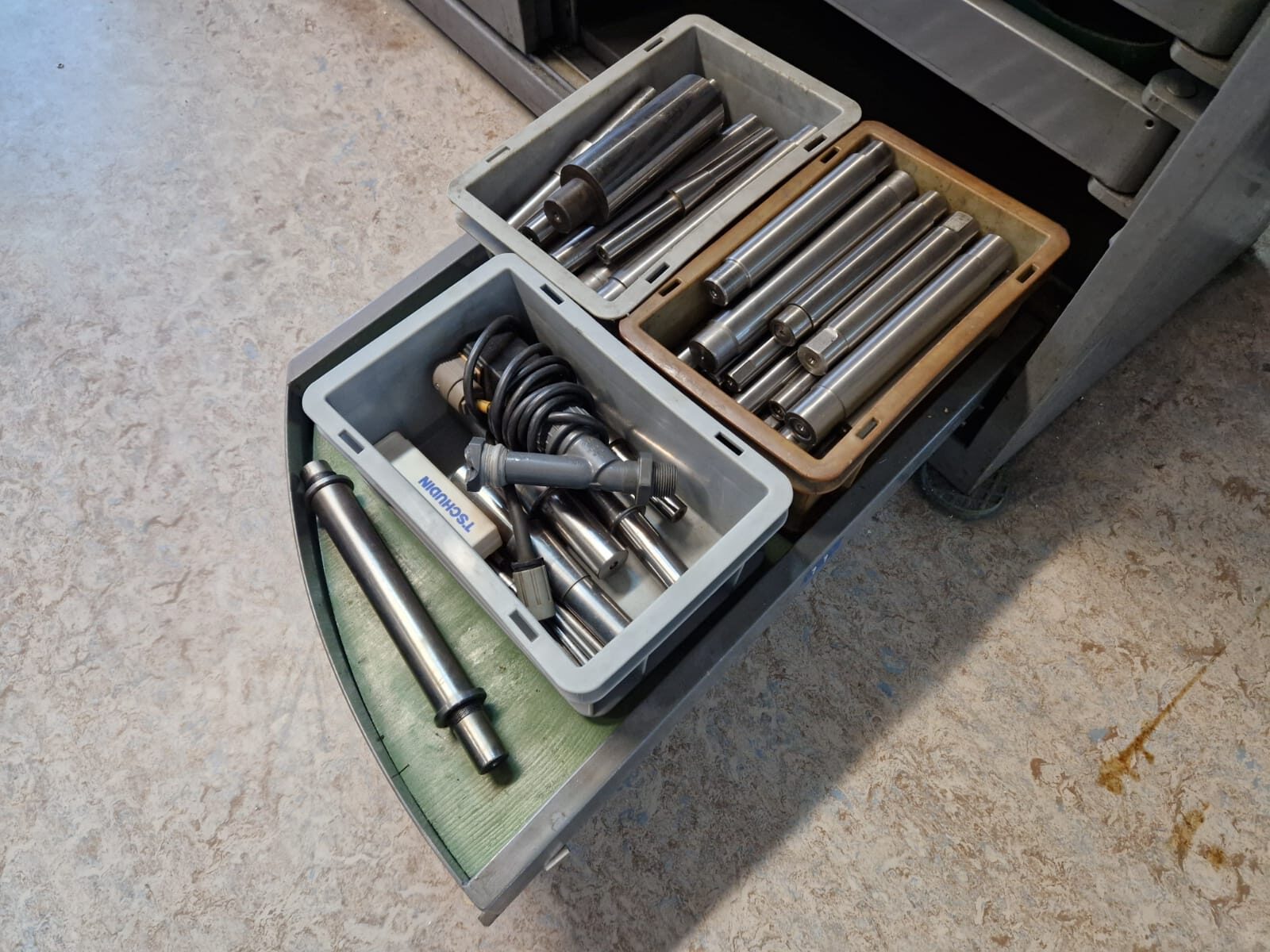

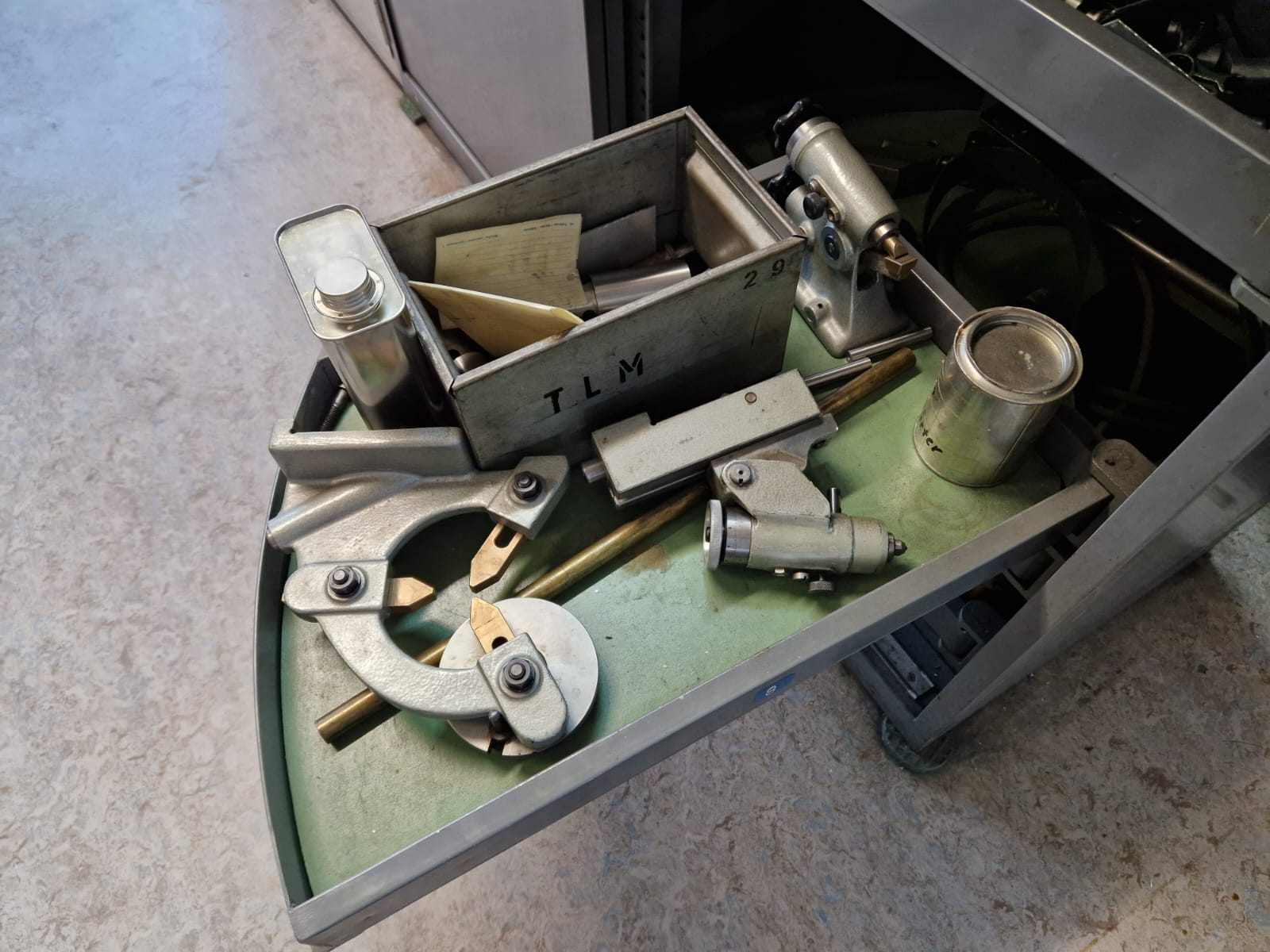

Accessories :

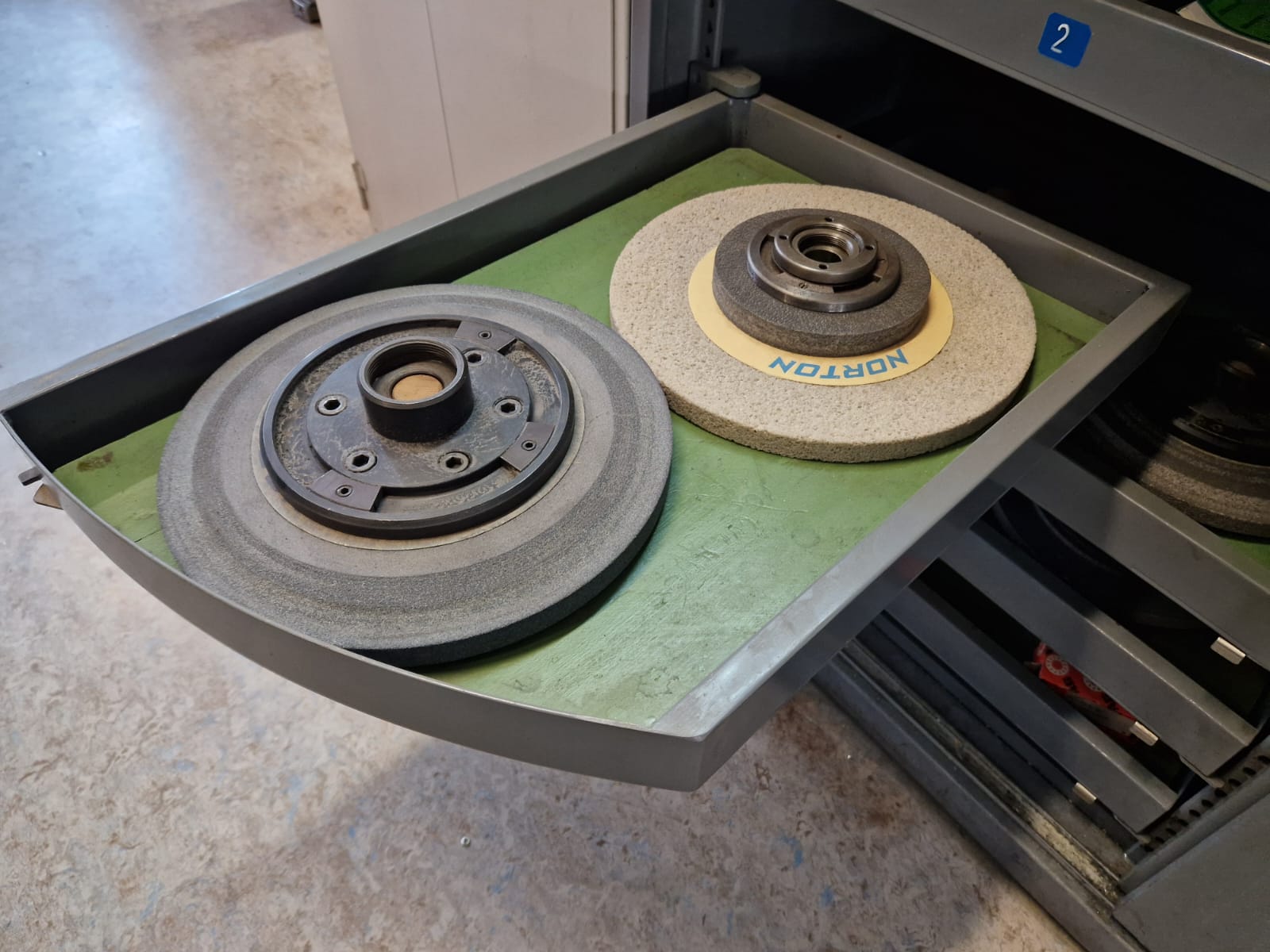

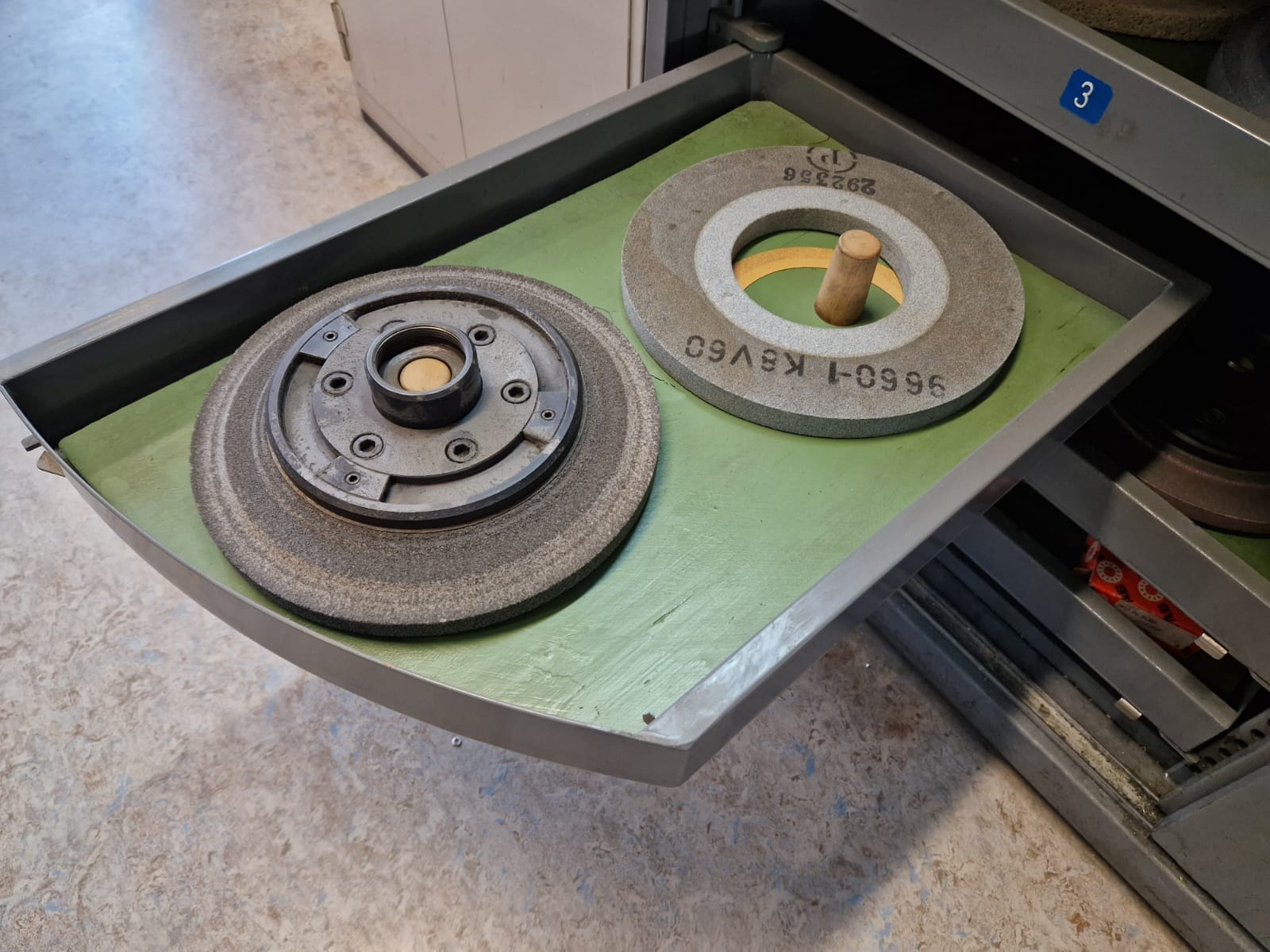

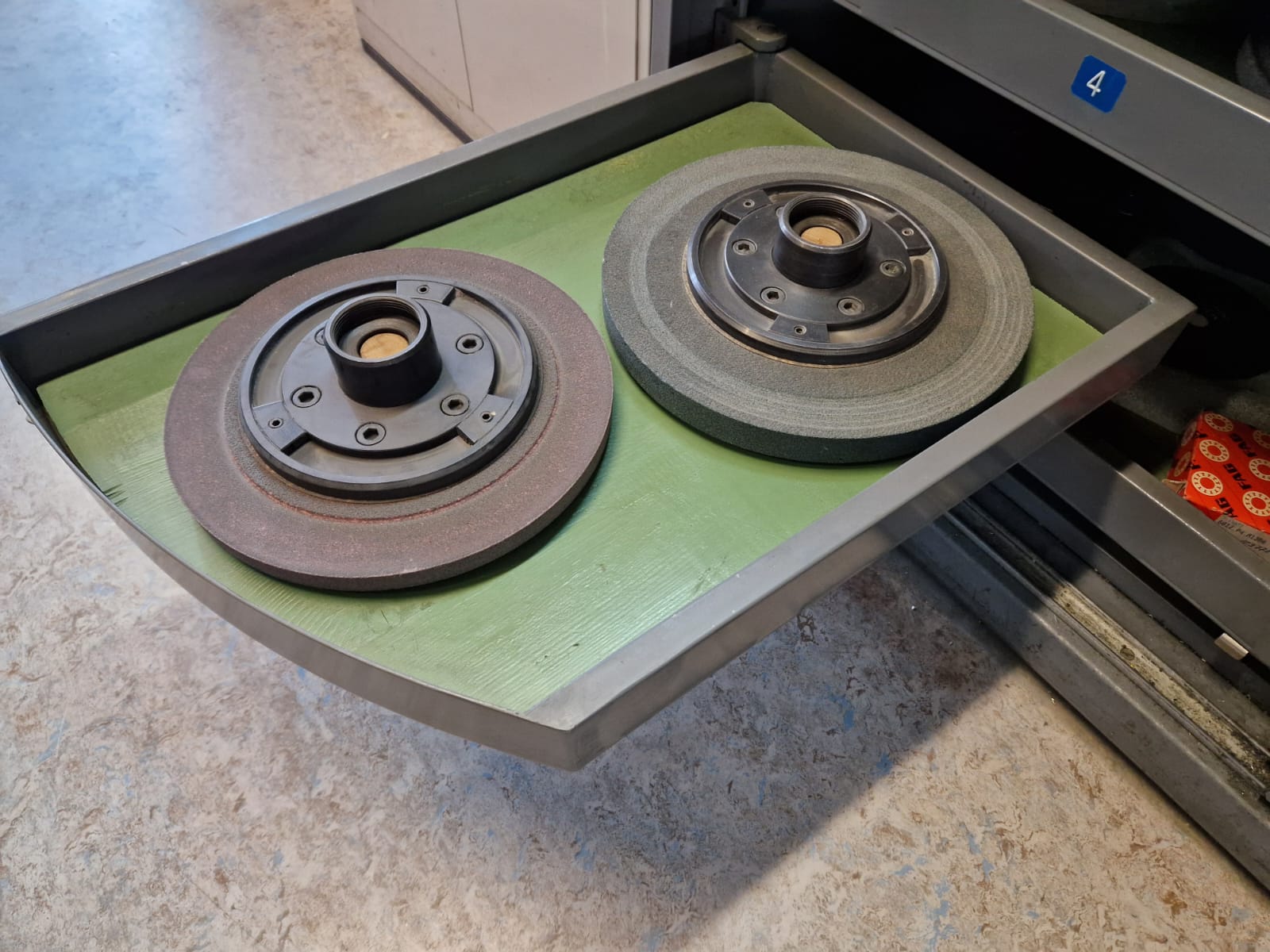

- Grinding wheels with flanges

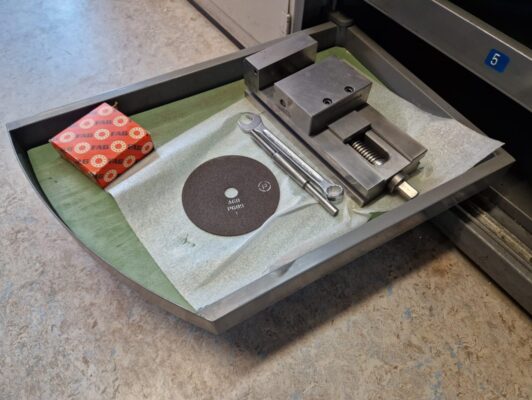

- Vice

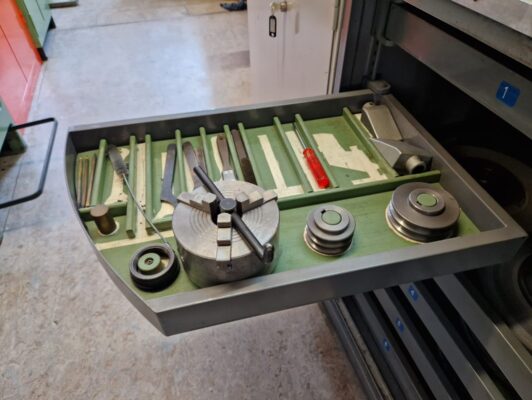

- 3-jaw chuck
- Steady rest
- Dressing device for grinding wheels

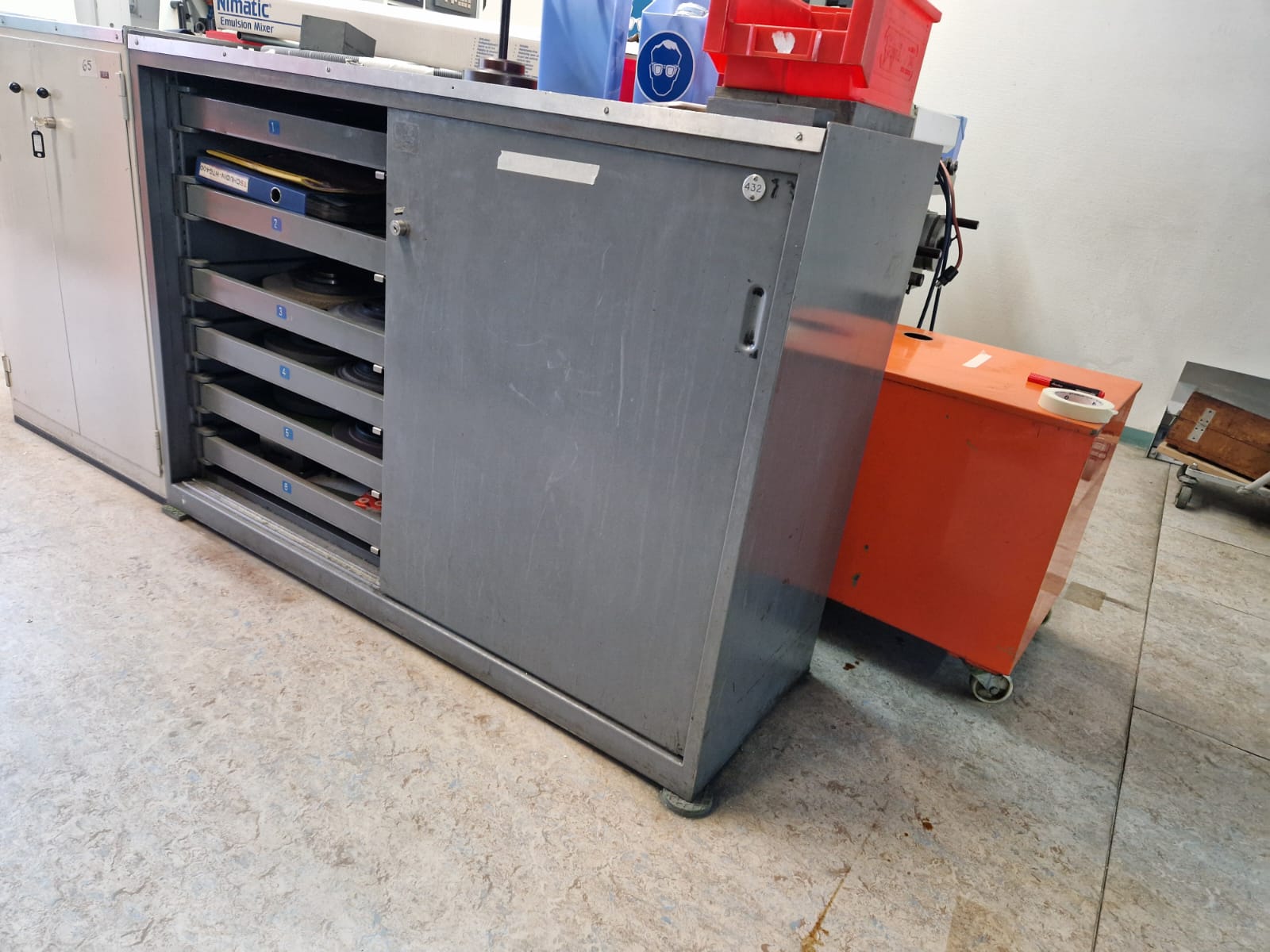

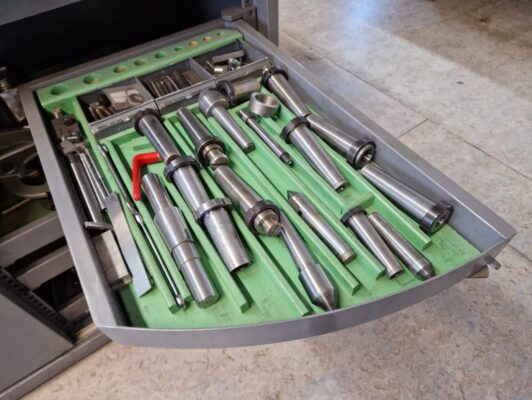

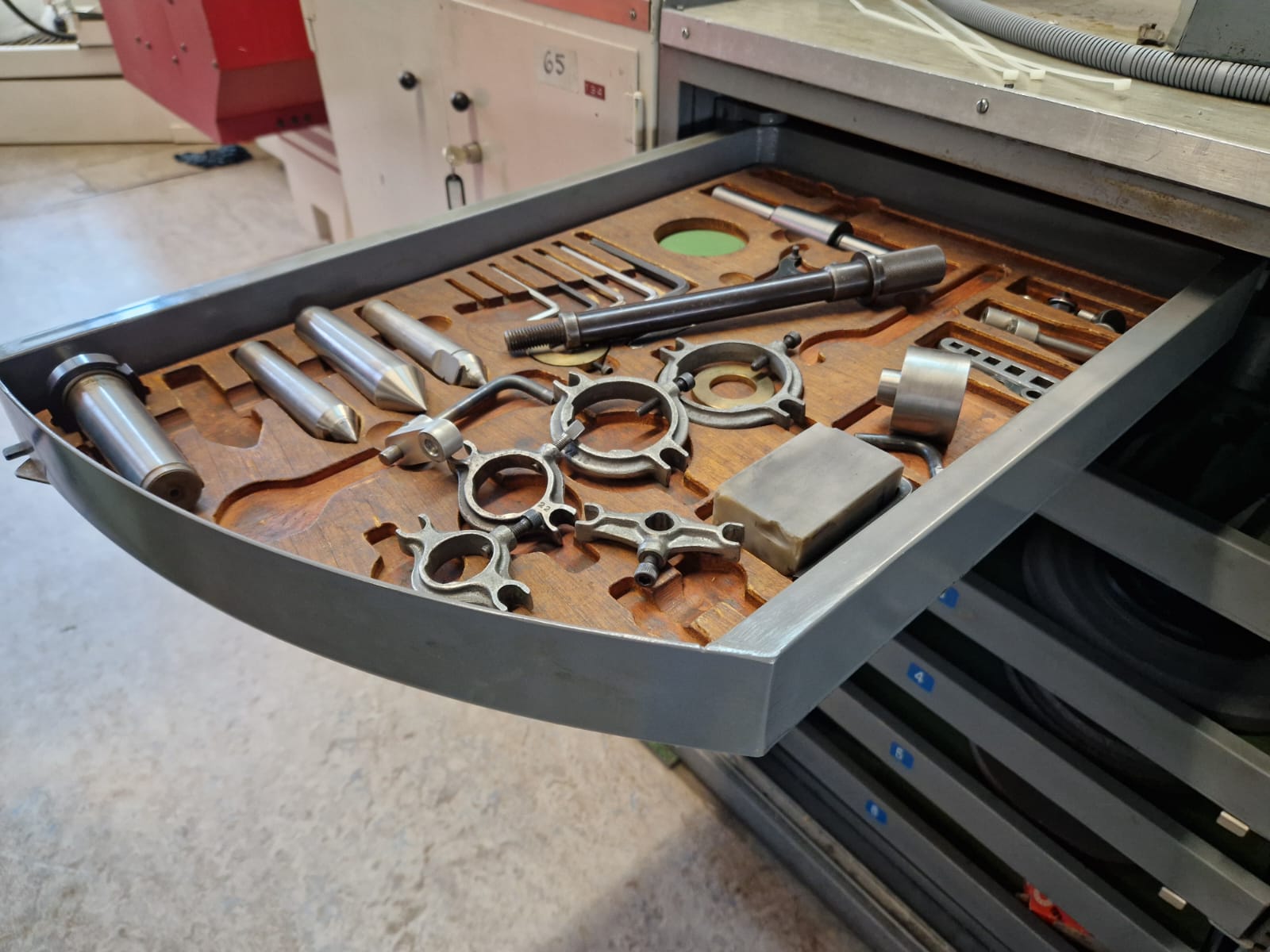

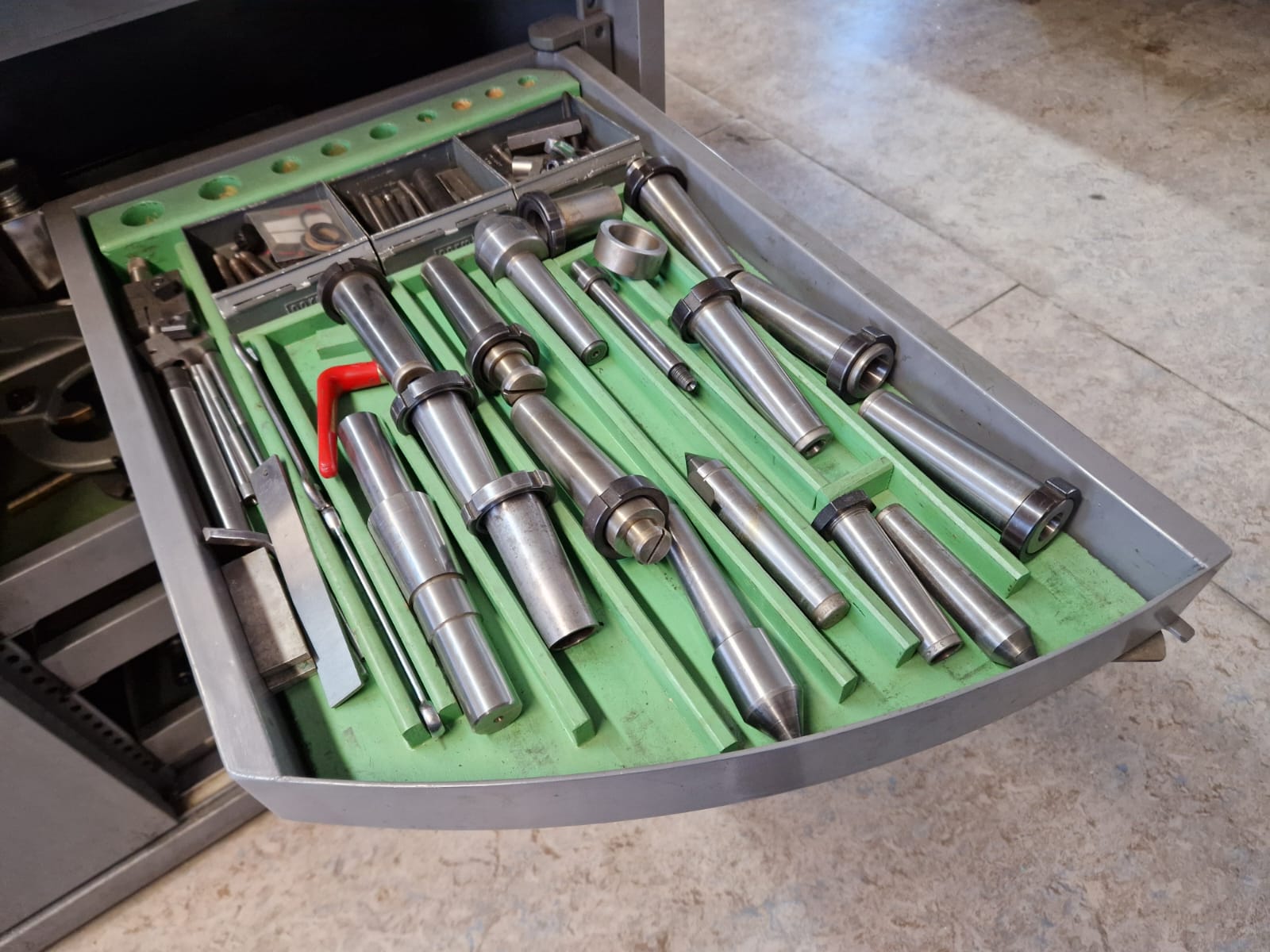

- Layette for tools
- Lamp
- Coolant tank
